100% Новый оригинальный SIMCOM 4g
- Категория: GPS Modules & Receivers >>>
- Поставщик: KST,Components,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 12.39 $* | 13.10 $* |
| Aug-15-2025 | 12.35 $* | 13.81 $* |
| Jul-15-2025 | 10.51 $* | 11.88 $* |
| Jun-15-2025 | 12.74 $* | 13.3 $* |
| May-15-2025 | 10.50 $* | 11.68 $* |
| Apr-15-2025 | 11.1 $* | 12.28 $* |
| Mar-15-2025 | 11.54 $* | 12.99 $* |
| Feb-15-2025 | 11.94 $* | 12.60 $* |
| Jan-15-2025 | 11.88 $* | 12.78 $* |
Характеристики
Specification
Product Advantages
- LCC¹ form factor with abundant interfaces
- Suitable for LTE, UMTS and GSM networks with global coverage
- Abundant software functions: FOTA, LBS, TLS, VoLTE
- Multi-constellation GNSS receiver support
- AT commands of the SIM7600-H series are compatible with the SIM7500/SIM7600 series modules
- Suitable for LTE, UMTS and GSM networks with global coverage
- Abundant software functions: FOTA, LBS, TLS, VoLTE
- Multi-constellation GNSS receiver support
- AT commands of the SIM7600-H series are compatible with the SIM7500/SIM7600 series modules
Product Details

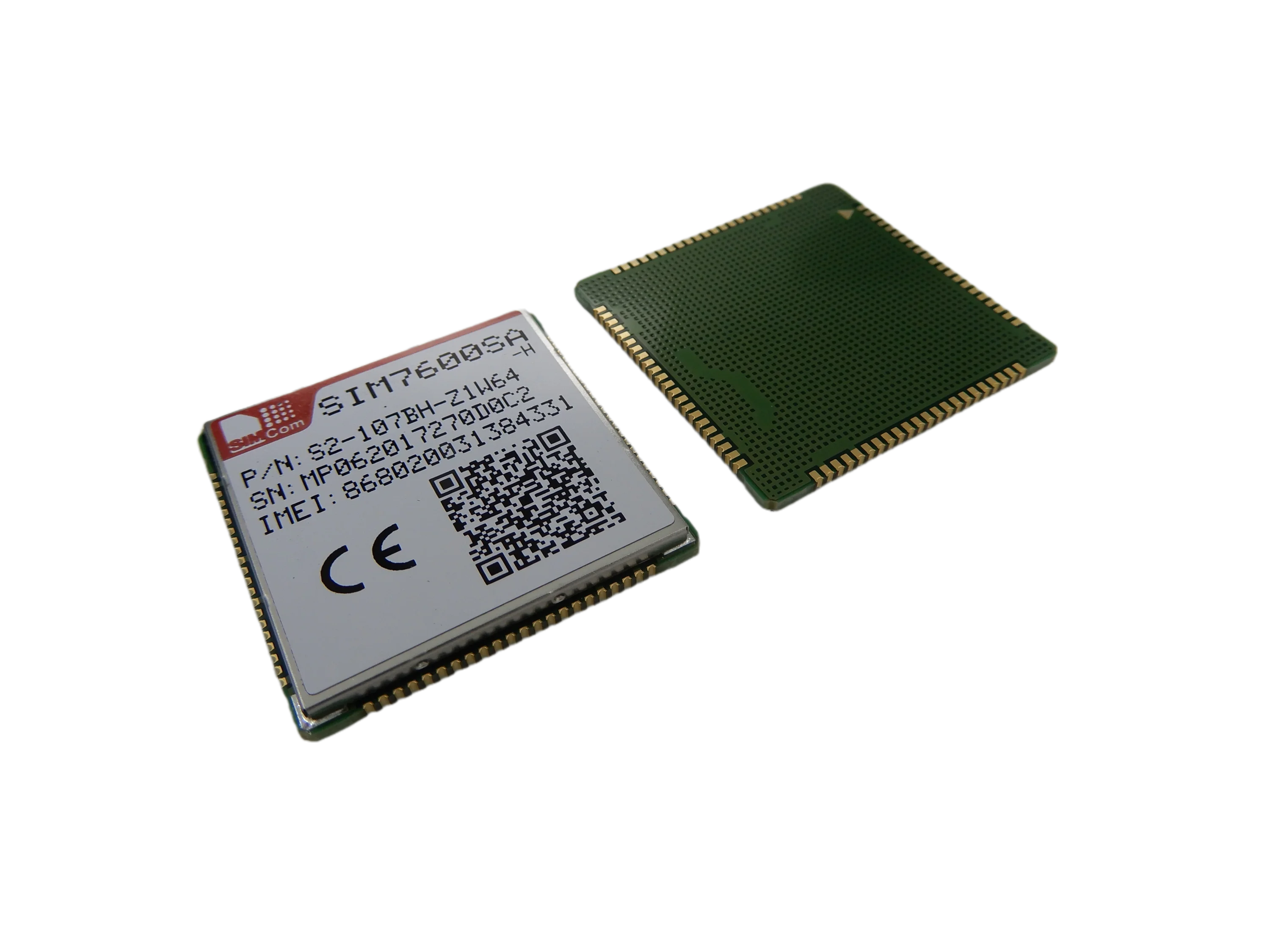

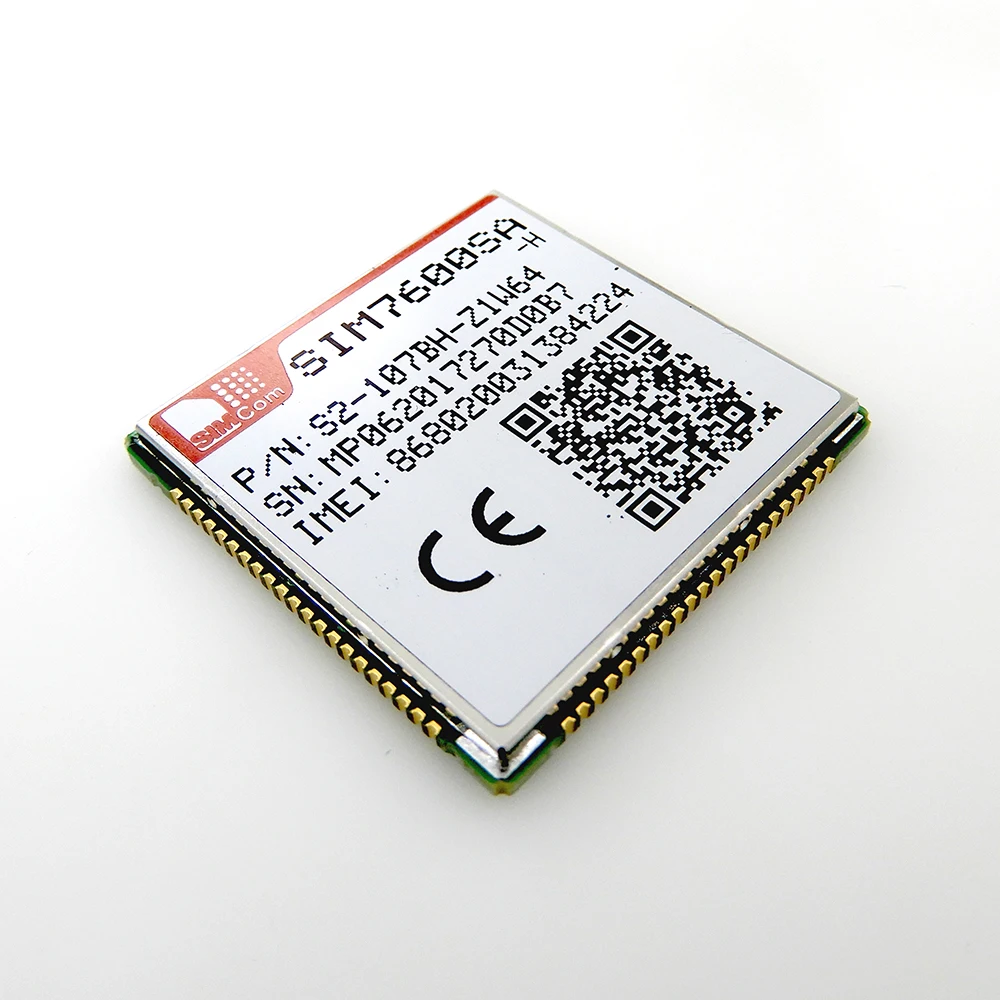

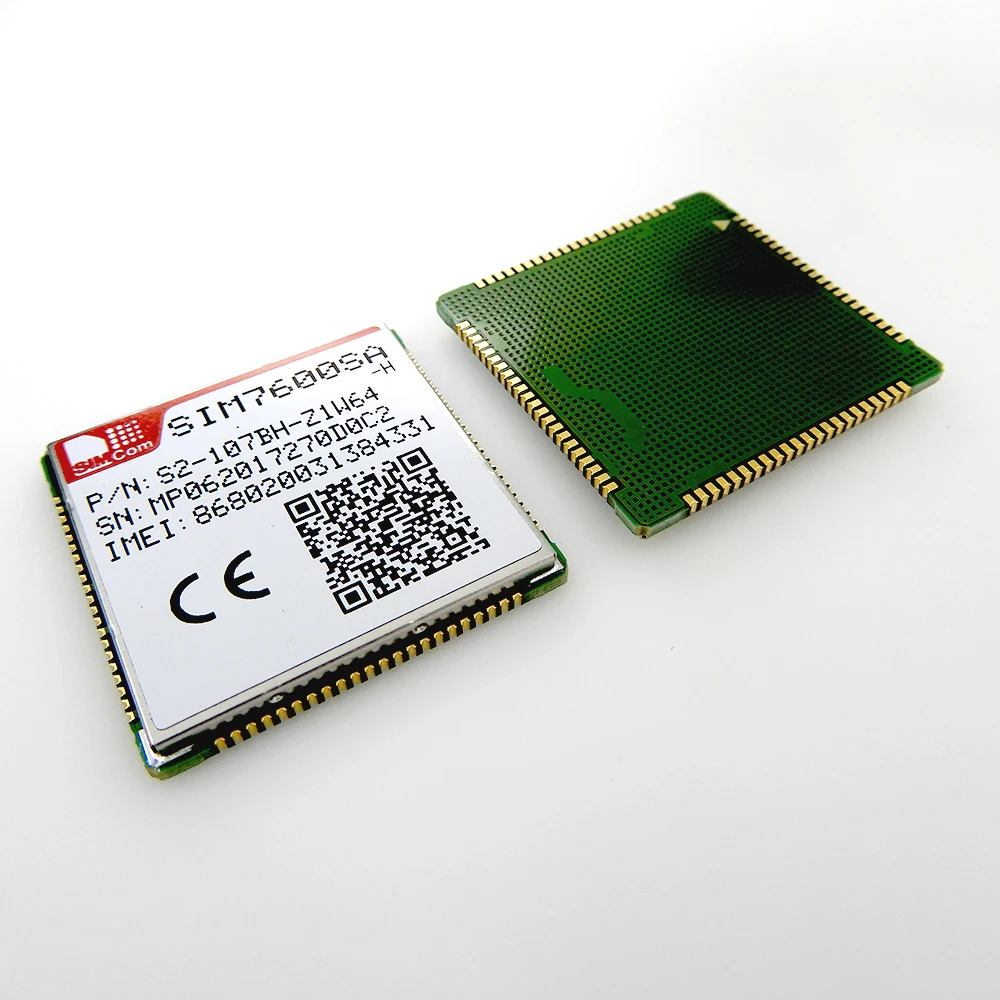

Product | SIM7600SA-H |
Form Factor | LCC, 87PIN |
Dimensions(mm) | 30.0*30.0*2.9 |
Frequency Bands | B1/B2/B3/B4/B5/B7/ B8/B28/B66 |
B40 | |
B1/B2/B5/B8 | |
850/900/1800/1900MHz | |
GNSS | o |
Temperature GNSS | -40℃ ~ +85℃ Optional |
Electrical Features | |
Supply Voltage(V) | 3.4~ 4.2 |
Power Consumption(mA) | 2.3 |
3.3 | |
2.8 | |
Data Transfer | |
LTE(Mbps) | 150(DL)/50(UL) |
HSPA+(Mbps) | 42(DL)/5.76(UL) |
WCDMA(Kbps) | 384(DL)/384(UL) |
GPRS/EDGE(Kbps) | 236.8(DL)/236.8(UL) |
Software Features | |
Protocol | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS |
TLS | ● |
File System | ● |
Audio Record/Play | o |
TTS | o |
DTMF | o |
LBS | ● |
FOTA | ● |
Jamming Detection | ● |
Android RIL | Android 5.0/6.0/ 7.0/8.0/9.0 |
USB Driver | Microsoft Windows 7/8/10 Linux/Android |
WWAN (RNDIS) | ● |
ECM | ● |
MBIM | Win8/Win10 |
NDIS | Linux/Windows 7/8/10 |
Open Linux | o |
Firmware Upgrade | USB/FOTA |
Interfaces | |
SIM Card | 1.8V/3.0V |
UART | ● |
USB | ● |
PCM | o |
ADC | ● |
SD Card | ● |
SPI | o |
I2C | ● |
Diversity Receiver | ● |
Certification | |
Regulatory | CE-RED/ACMA/FCC/NCC/ RoHS/REACH/Anatel |
Carrier |
Please contact us for latest price and stock quantity!
Company Profile
With over 10 years of design and development experience,combined with our innovative and high service orientation have made KST a deeply trusted supply chain partner to the world's leading ODMs and OEMs.
KST offers a full range of supply chain solutions for consumer, medical device, vehicle terminal manufacturers. KST has accumulated many years of experiences,we have confidence to show our expertise to meet your expectations and requests.
Our Advantages:
1. Engineers with working experience during several years.
2. Main products :
Communication module, GPS&GNSS module, and development board materials (integrated circuit, capacitor, resistor, inductor, IGBT module).
3. Quick response, professional engineers for your online inquiries.
4. We take our business seriously and keep innovating.
Never stop thinking and trying!
Business concept: multi-cooperation, responsibility,thankfulness.
KST offers a full range of supply chain solutions for consumer, medical device, vehicle terminal manufacturers. KST has accumulated many years of experiences,we have confidence to show our expertise to meet your expectations and requests.
Our Advantages:
1. Engineers with working experience during several years.
2. Main products :
Communication module, GPS&GNSS module, and development board materials (integrated circuit, capacitor, resistor, inductor, IGBT module).
3. Quick response, professional engineers for your online inquiries.
4. We take our business seriously and keep innovating.
Never stop thinking and trying!
Business concept: multi-cooperation, responsibility,thankfulness.
Packaging & Shipping
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Eastern Asia(20.00%),North America(20.00%),Domestic Market(19.00%),Western Europe(10.00%),Southern Europe(5.00%),Mid East(5.00%),Oceania(5.00%),Eastern Europe(5.00%),South Asia(2.00%),South America(2.00%),Africa(2.00%),Central America(2.00%),Southeast Asia(2.00%),Northern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
M2M Modules,GNSS Modules,Integrated Circuits,ADI/TI/NXP,IGBT Module
4. why should you buy from us not from other suppliers?
With over 10 years of design and development experience,combined with our innovative and high service orientation have made KST a deeply trusted supply chain partner to the world's leading contract manufacturers and OEMs.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,CPT,DDU；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese
We are based in Guangdong, China, start from 2015,sell to Eastern Asia(20.00%),North America(20.00%),Domestic Market(19.00%),Western Europe(10.00%),Southern Europe(5.00%),Mid East(5.00%),Oceania(5.00%),Eastern Europe(5.00%),South Asia(2.00%),South America(2.00%),Africa(2.00%),Central America(2.00%),Southeast Asia(2.00%),Northern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
M2M Modules,GNSS Modules,Integrated Circuits,ADI/TI/NXP,IGBT Module
4. why should you buy from us not from other suppliers?
With over 10 years of design and development experience,combined with our innovative and high service orientation have made KST a deeply trusted supply chain partner to the world's leading contract manufacturers and OEMs.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,CPT,DDU；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese
Contact us
Shenzhen KST Components Limited.
Contact: Cathy
Email:cathy@kstmicro.com
Web: www.kstmicro.com
ADD:308, Nanguang Building, Huaqiangbei, Futian, Shenzhen, Guangdong, China
Contact: Cathy
Email:cathy@kstmicro.com
Web: www.kstmicro.com
ADD:308, Nanguang Building, Huaqiangbei, Futian, Shenzhen, Guangdong, China
