Высокая мощность автомобильное пусковое реле 12V/24V Автомобиль Мотоцикл 3735010A0-N031
- Категория: Auto Relays >>>
- Поставщик: Zhejiang,Maiersi,Auto,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 9.77 $* | 9.46 $* |
| Jul-17-2025 | 7.9 $* | 7.7 $* |
| Jun-17-2025 | 9.66 $* | 9.6 $* |
| May-17-2025 | 9.51 $* | 9.88 $* |
| Apr-17-2025 | 7.1 $* | 7.53 $* |
| Mar-17-2025 | 9.13 $* | 9.2 $* |
| Feb-17-2025 | 8.28 $* | 8.12 $* |
| Jan-17-2025 | 8.24 $* | 8.51 $* |
Характеристики
Products Description
MYES-SRD2 Start/Preheat Relay Product Advantage
1.Ceramic potting , fast heat dissipation , good sealing and high strength.
2.Outsourcing plastic shell , excellent insulation performance.
3.Pure copper is resistant to high temperature enameled wire of 180℃.
4.The contact materials are all TU2 oxygen-free electrolytic copper.
5.The power cord is made of 200C high temperature resistant PTFE material.
6.Inert gas is filled after vacuuming inside to prevent arcing and sintering and improvehe loa

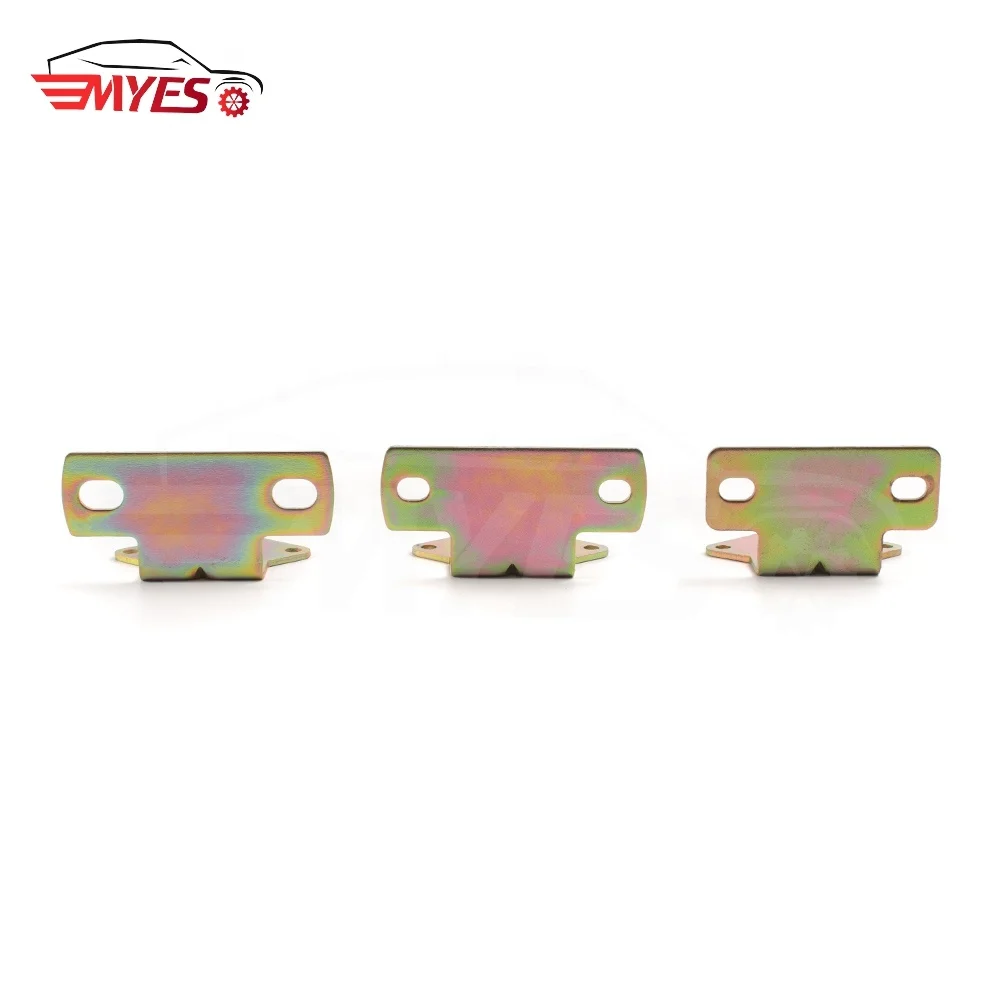

7.Mounting brackets with different hole distances , better replace the old model of different relays
MYES-SRD2 technical parameters and instructions for use
MYES-SRD2 start/preheat relay , working principle and instructions for use:

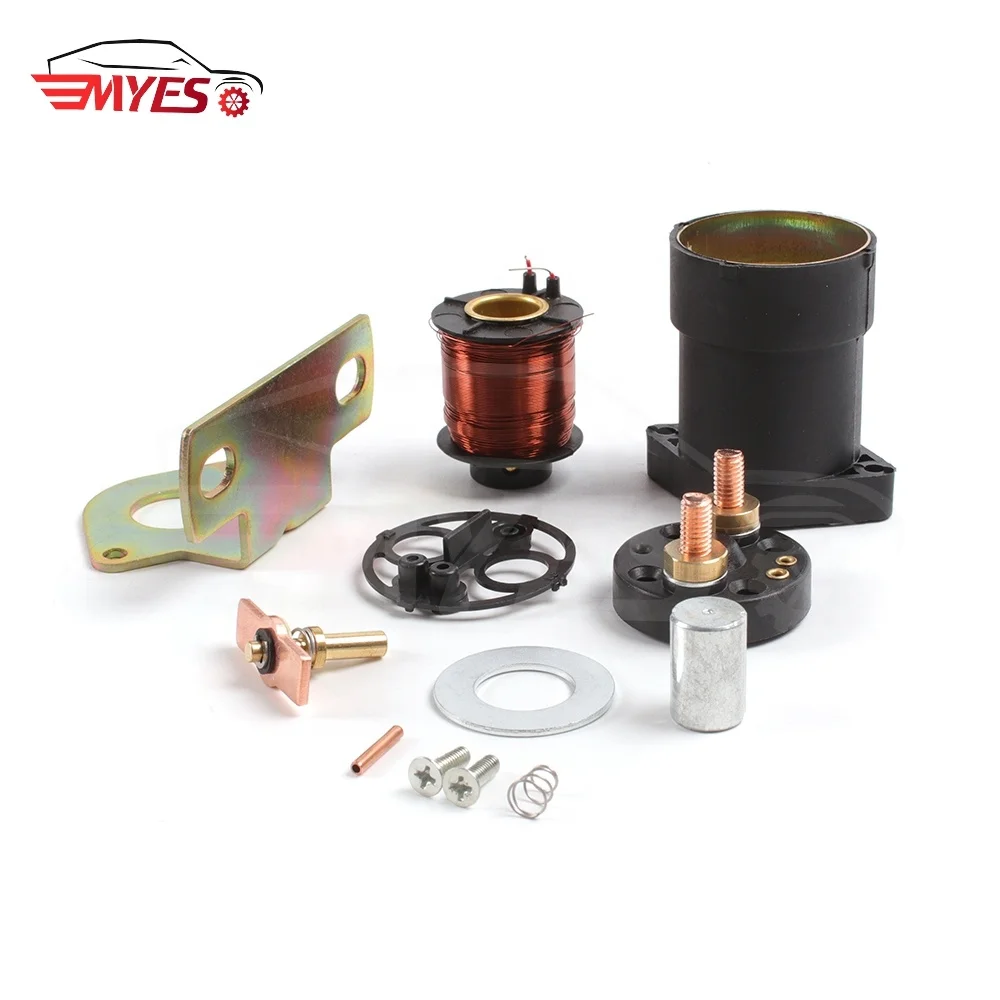

1.When the two wires are energized with working voltage , the coil generates a magnetic field toattract the moving iron core , and the moving iron core pushes the contact piece to close the twoM6 terminal circuits.
2.When the coil is powered off , the magnetic field disappears , and the moving iron core bouncesback under the action of the spring force , thus disconnecting the circuit of the two M6 terminalposts .
3.This product adopts advanced production technology such as ceramic potting , interal vacuuming and filling of inert gas, magnetic field arc extinguishing structure , etc , which effectively prevents the contact point from arcing and sintering under the condition of instantaneous high crent , thereby effectively preventing product bumout and failure . Circumstances , it also effectivelyimproves the load power and service life of the product .
3.This product adopts advanced production technology such as ceramic potting , interal vacuuming and filling of inert gas, magnetic field arc extinguishing structure , etc , which effectively prevents the contact point from arcing and sintering under the condition of instantaneous high crent , thereby effectively preventing product bumout and failure . Circumstances , it also effectivelyimproves the load power and service life of the product .
Techniacl Parameter requirements:
1 . The product technical requirements meet the requirements of QC / T413-2002 , QC / T695-2002.
2 . The product parameters are shown in the table below.
Rated Voltage | Operating Voltage | Starting Voltage | Release Voltage | Coil Current |
DC 12V | 10~16V | ≤ 8V | 1.5~4V | ≤ 2.4A |
DC 24V | 20~32V | ≤ 16V | 3~8V | ≤ 1.2A |
3 . According to customer requirements , the coil can be installed with a bidirectional diode
(modelP6KE43CA , maximum rectified current A , maximum reverse withstand peak voltage 1000V);
4 . Load voltage : on demand , , contact voltage drop : s10mv / A;
5 . Ambient temperature : -40 + 65 " ; insulation class : H;
6 . Protection level : IP67 ( the product can work normally for a long time when immersed in cleanwater ) ;
7 . Installation method : In order to make it easier for the moving iron core to be disconnected byits own weight , it is recommended to install it vertically or horizontally;
8 . The terminal $ 10 socket wrench installation , torque force 24n . m ( Just flatten the spring pad );
9 . Cautions : No damage or collision shall be allowed during production , transportation and instalation . If damaged , please contact us for a refund or replacement;
OE Number | ||
MYES-SRD1 | 37ZB6-35090-A | |

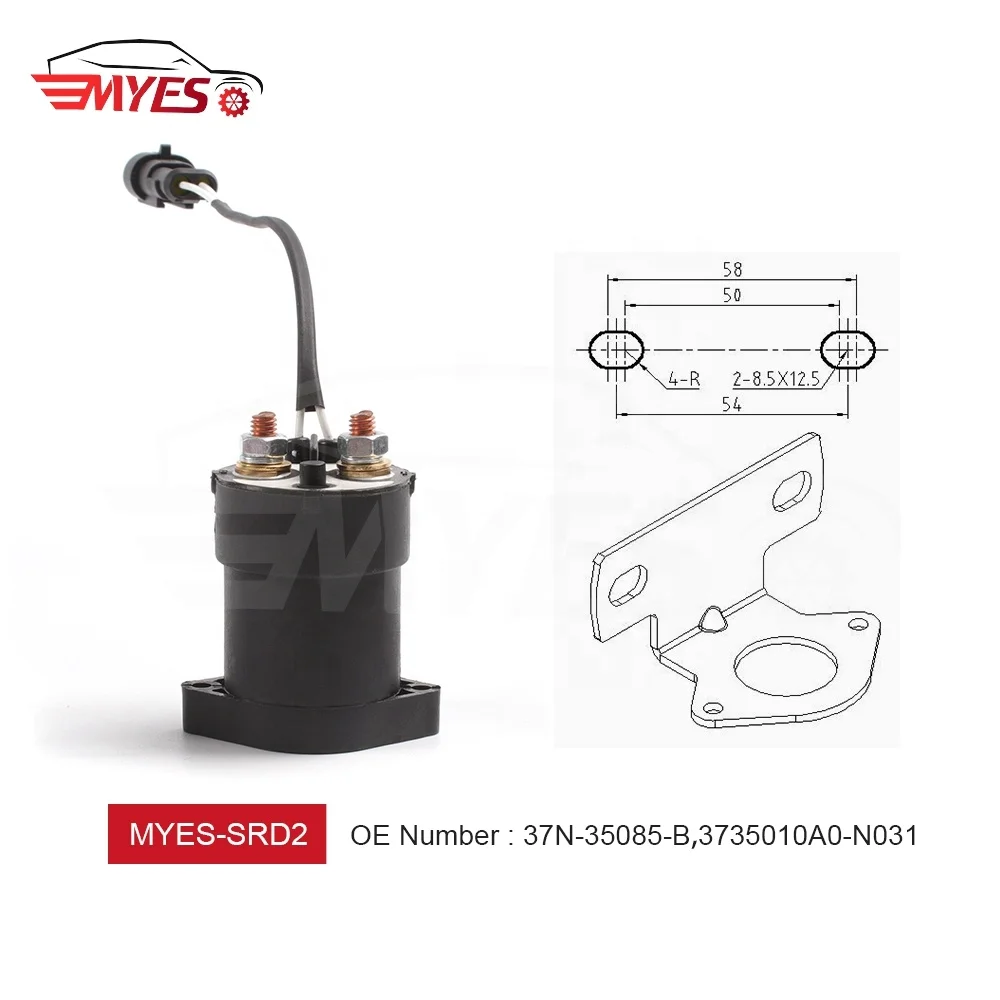

MYES-SRD2 | 37N-35085-B、3735010A0-N031 | |
MYES-SRD3 | 3735085-KC100、3735010A0-N008、3708020-240 | |
MYES-SRD4 | JD26 | |
OEM/ODM | Customized according to plug style and bracket hole distance. | |
Note:
The new product can replace all the old products, only the hole distance of the bracket and the style of the plug are provided.
