TC-4 небольшой ручной счетчик таблеток капсул и планшет Счетная машинка для

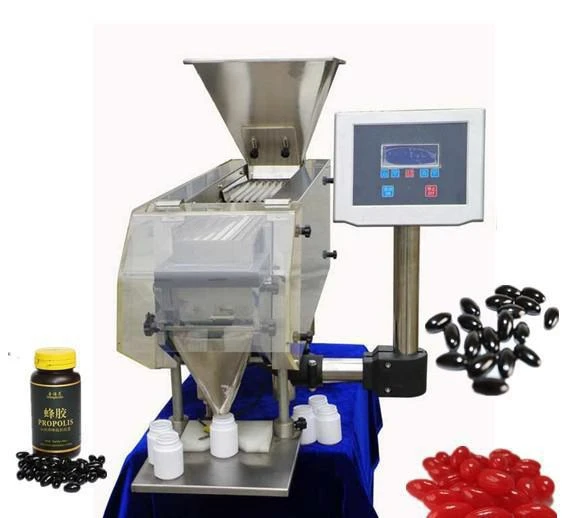

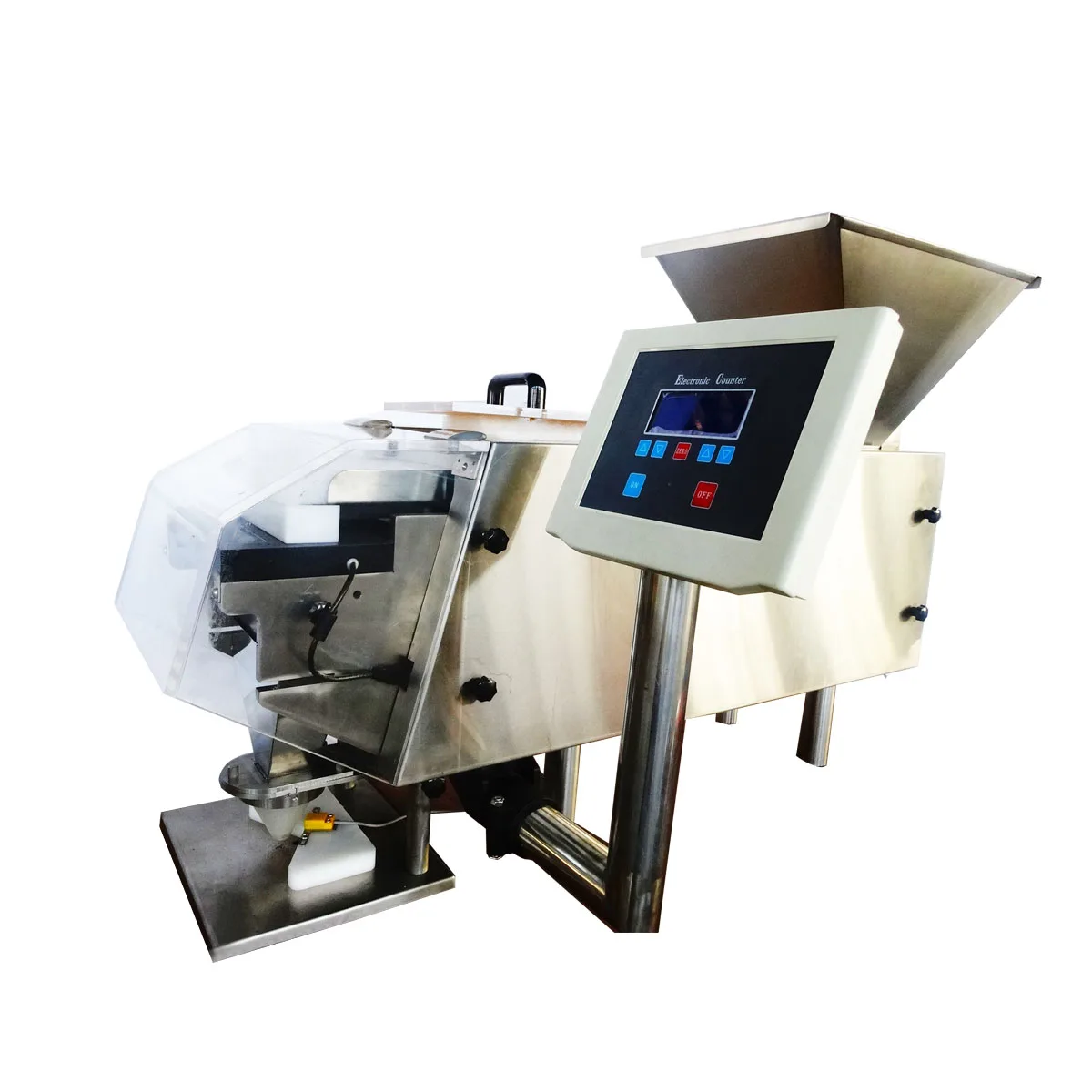

TC-4 Small Manual Tablet Counter Capsule and Tablet Counting Machine is the most advanced multi-channel, under the vibration-type material, the calculation Machine control, dynamic scan count, the system self-test, fault indication alarm, automatic shutdown and other advanced technologies, according to GMP standard design, is a photoelectric machine count of the integration of high-tech pharmaceutical filling equipment.

The machine can be widely used in many different shapes, sizes of tablets, capsules, pills, capsules and transparent soft drugs such as the Fast Counting of bottling, bottling accuracy of counting the advanced level of similar products at home and abroad.

Technical Parameters:
1. Application of drugs range: 000 ~ 5 # capsules, 5.5 ~ 16 Tablets, sugar-coated tablet, 3-16 pill, 00 ~ 5 # transparent soft capsule.
2. For bottle container: bottle diameter 20-40, bottle diameter 35-60, bottle of high 20-150 plastic bottles, glass bottles.
3. Mounted adjustable volume range :20-9999.
4. Counting speed :1000-4000 / min
5. Counting Speed :20-30 bottles / min (depending on dosage form, the bottle specification, loading volume and put bottles of speed).
6. Counting error: ≤ 1 ‰
7. Power and Power: AC220V 50HZ 0.5KW
8. Weight: 110Kg
9. Dimension: 110 × 37 × 69 (cm)

Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.

Usually to ship TC-4 Small manual tablet counter capsule and tablet counting machine by sea way.

Documents:
Operational manual with English will be given at the time of dispatch of machine.

Guarantee:
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.

Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).

If you need, we can dispatch our engineer to install and test machine in your country. But our clients need to pay relative fees of our engineer. Our quotations will not include these fees.

Nuoya Machinery Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical,Chemical,food and so etc fields.

Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.

The Headquarter is located in The beautiful,historical and cultural City-Yangzhou.
Our production,examinaton and supervision are strictly following the ISO9001 International Quality System and have CE Certification.
