OC-SDJ тоннель с жидким азотом Мгновенный машина быстрой заморозки
US $20000-$100000
-80 градусов промышленные ультра
- Категория: Freezing Equipment >>>
- Поставщик: Wuxi,Guanya,Refrigeration,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 8568.84 $* | 8996.69 $* |
| Aug-16-2025 | 8496.16 $* | 8921.76 $* |
| Jul-16-2025 | 7128.54 $* | 7484.2 $* |
| Jun-16-2025 | 8352.0 $* | 8770.59 $* |
| May-16-2025 | 7272.22 $* | 7636.65 $* |
| Apr-16-2025 | 8208.16 $* | 8618.84 $* |
| Mar-16-2025 | 8136.59 $* | 8543.36 $* |
| Feb-16-2025 | 8064.0 $* | 8467.63 $* |
| Jan-16-2025 | 7992.94 $* | 8392.62 $* |
Характеристики
Products Description
Advantages and Features of Industrial Chiller:
The basic principle of ultra-low temp water-cooled chiller is that under ultra-low temperature, the movement of molecules is slowed down until the surface of the trapped and frozen cryogenic coiled tubes is slowed down, and the vapor is easy to be arrested, set and frozen, and the capture rate is high.
LNEYA specializes in the production of single-fluid cryogenic chillers. The refrigeration temperature ranges from -150°C to -5°C, which can meet the needs of different refrigeration temperatures. The company developed a direct-cooled ultra-low temperature chiller, using international brand compressors Carrier, using automatic cascade refrigeration mode and mixed refrigerants, within 3 minutes can be refrigerated to minus 120°C.
1.Temperature ranges from -5℃ ~ -150℃, can meet different temperature needs.
2.Famous brand semi-closed piston compressor, semi-closed bipolar piston compressor, semi-hermetic screw compressor, main brand are BOCK, Copeland, Handbell, fusheng; Plate heat exchanger, Small volume, High efficiency.
3.Top imported cold controller; Generator cooling water circuit uses intermediate heat exchanger, improve system reliability and safety.
4.DANFOSS electronic expansion valve, high precision control.
5.Adopt Siemens PLC S7-200/300, LNEYA touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm.
6.Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water.
LNEYA specializes in the production of single-fluid cryogenic chillers. The refrigeration temperature ranges from -150°C to -5°C, which can meet the needs of different refrigeration temperatures. The company developed a direct-cooled ultra-low temperature chiller, using international brand compressors Carrier, using automatic cascade refrigeration mode and mixed refrigerants, within 3 minutes can be refrigerated to minus 120°C.
1.Temperature ranges from -5℃ ~ -150℃, can meet different temperature needs.
2.Famous brand semi-closed piston compressor, semi-closed bipolar piston compressor, semi-hermetic screw compressor, main brand are BOCK, Copeland, Handbell, fusheng; Plate heat exchanger, Small volume, High efficiency.
3.Top imported cold controller; Generator cooling water circuit uses intermediate heat exchanger, improve system reliability and safety.
4.DANFOSS electronic expansion valve, high precision control.
5.Adopt Siemens PLC S7-200/300, LNEYA touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm.
6.Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water.

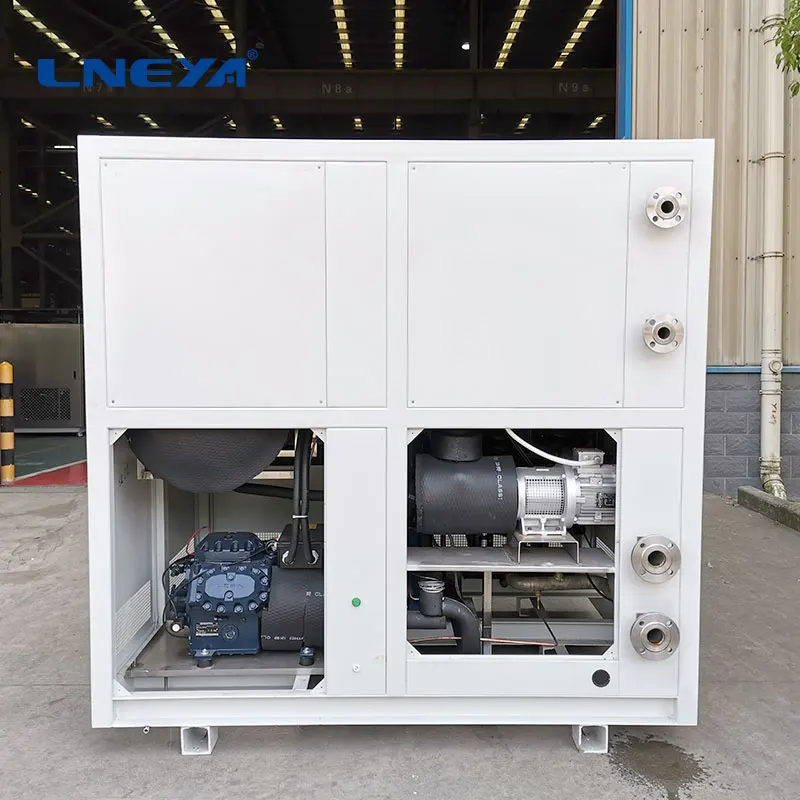

Compressor:
Adopt the world famous brand compressor, enhance the cooling effect and reduce the energy consumption.
Touch Screen:
Siemens 7-inch color touch screen, digital curve display, support data export.

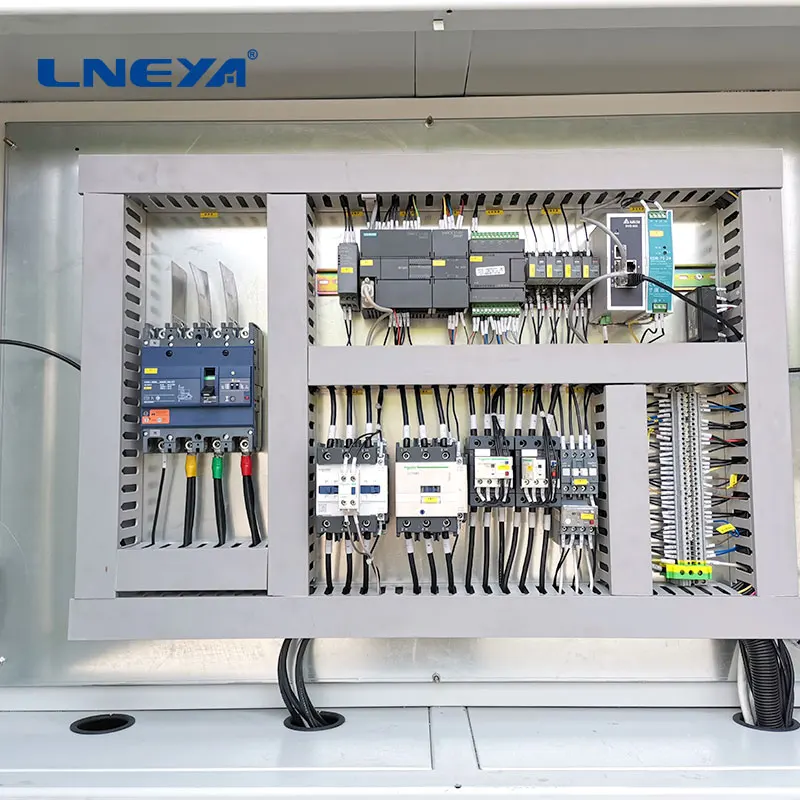

Electric Cabinet:
Compact design, strong structural versatility, adopt standard module design, high technical performance.
Product Paramenters
Model | LD- 4W | LD- 6W | LD- 8W | LD- 12W | LD- 20W | LD- 30W | LD- 40W | LD- 60W | LD- 90W | ||||||||
Temp range | -80 ~ -30 ℃ (optional: -150 ~ -5℃) | -10~+200 ℃ | |||||||||||||||
Cooling capacity (KW) AT -60 ℃ | 6 | 9 | 12 | 18 | 30 | 45 | 60 | 90 | 135 | ||||||||
5160 Kcal/h | 7740 Kcal/h | 10320 Kcal/h | 15480Kcal/h | 25800 Kcal/h | 38700 Kcal/h | 51600 Kcal/h | 77400 Kcal/h | 116100 Kcal/h | |||||||||
Circulation pump info | 6.6 m³/h 2.5bar | 6.6 m³/h 2.5bar | 9 m³/h 2.5bar | 15 m³/h 2.5bar | 25 m³/h 2.5bar | 25 m³/h 2.5bar | 25 m³/h 2.5bar | 35 m³/h 2.5bar | 35 m³/h 2.5bar | ||||||||
Inlet&outlet connection size | DN25 | DN25 | DN32 | DN40 | DN50 | DN50 | DN50 | DN65 | DN65 | ||||||||
Expansion tank | 100L | 175L | 250L | 350L | 500L | 600L | 750L | 1000L | 1350L | ||||||||
Refrigerant | R404A/R23/R14 | ||||||||||||||||
Dimension cm | 100*150 *185 | 205*145 *205 | 205*145 *205 | 205*145 *175 | 245*145 *205 | 300*160 *225 | 350*160 *205 | 400*160 *225 | 500*200 *225 | ||||||||
Power max 380V 50HZ | 14KW | 18KW | 30KW | 43KW | 69KW | 101KW | 136KW | 200KW | 295KW | ||||||||
Weight kg | 950 | 1100 | 1400 | 1800 | 2200 | 3000 | 3500 | 4000 | 5000 | ||||||||
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products offer temperature control solutions for applications from -152 to +350℃.
Product packaging
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
After sale service
Quality assurance
Guarantee that the goods are sold to be conform to the provisions of the contract and qualified new products by factory
inspection, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract.
Installation and debugging
After the arrival of the goods, my company or my company agent is responsible for installation and debugging of equipment need on-site installation and debugging.
Inspection and acceptance
After installation and debugging, acceptance by the customer to confirm the goods to be conform to the provisions of the contract and qualified new products, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract, and after the confirmation of a full set of technical documents, sign the installation acceptance report and confirm acceptance.
Training
At the same time of installation and debugging of equipment, my company’s after-sales service engineer is responsible for
technical training for user until user can be skilled of operation. In the process of using equipment by customer, customer can consult relevant technical issues to after-sales service personal of our company at any time, according to the situation, my company will arrange training on site or remote.
After sale service commitment
A full free one year warranty since the date of acceptance, during the warranty period, all repairs and spare parts are free of charge(instrukent malfunction caused bu human factors will be charged of cost price of spare parts); After the warranty period, we will be responsible for maintenance of equipment for lifetime, according to the actual maintenance fees, appropriate fee will be charged.
(PS:There will have extra charge if the customer need on-site service. And customers need to describe the issue first and then send some failed pics or videos in advance, then Lneya judge if it is possible to go for after-Sales on site. )
Quality assurance
Guarantee that the goods are sold to be conform to the provisions of the contract and qualified new products by factory
inspection, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract.
Installation and debugging
After the arrival of the goods, my company or my company agent is responsible for installation and debugging of equipment need on-site installation and debugging.
Inspection and acceptance
After installation and debugging, acceptance by the customer to confirm the goods to be conform to the provisions of the contract and qualified new products, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract, and after the confirmation of a full set of technical documents, sign the installation acceptance report and confirm acceptance.
Training
At the same time of installation and debugging of equipment, my company’s after-sales service engineer is responsible for
technical training for user until user can be skilled of operation. In the process of using equipment by customer, customer can consult relevant technical issues to after-sales service personal of our company at any time, according to the situation, my company will arrange training on site or remote.
After sale service commitment
A full free one year warranty since the date of acceptance, during the warranty period, all repairs and spare parts are free of charge(instrukent malfunction caused bu human factors will be charged of cost price of spare parts); After the warranty period, we will be responsible for maintenance of equipment for lifetime, according to the actual maintenance fees, appropriate fee will be charged.
(PS:There will have extra charge if the customer need on-site service. And customers need to describe the issue first and then send some failed pics or videos in advance, then Lneya judge if it is possible to go for after-Sales on site. )
