Двухступенчатая машина для

Цена:50 000,00 $ - 70 000,00 $*

Количество:

Products Description

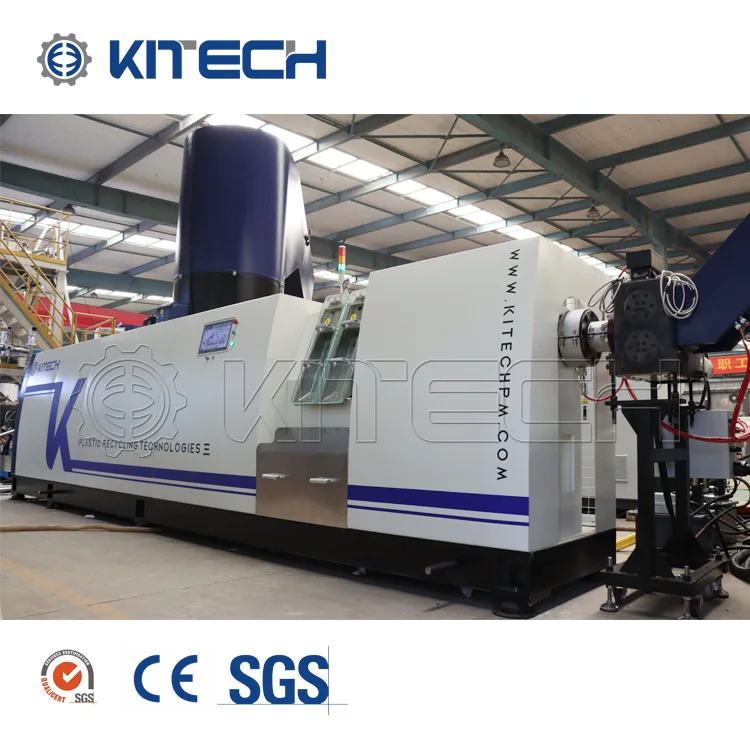

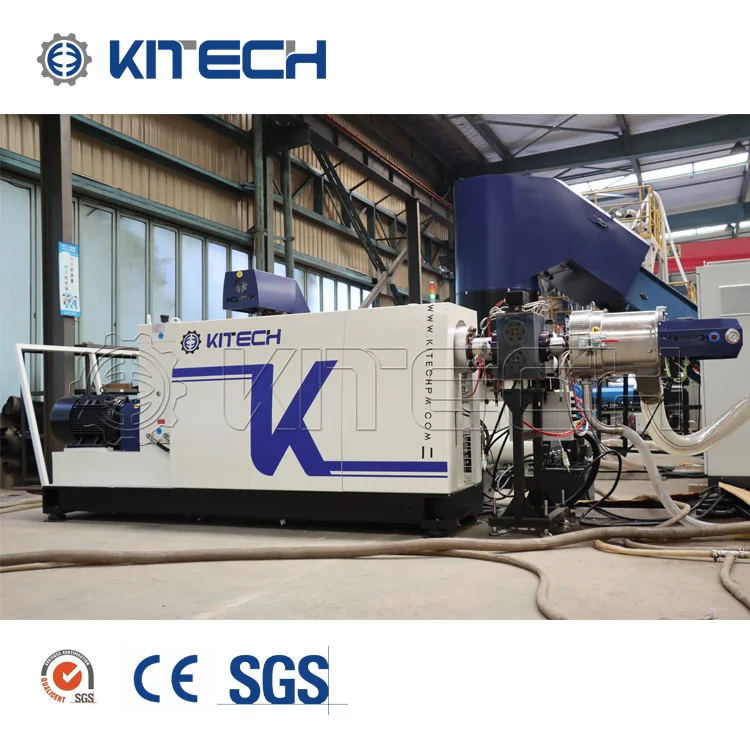

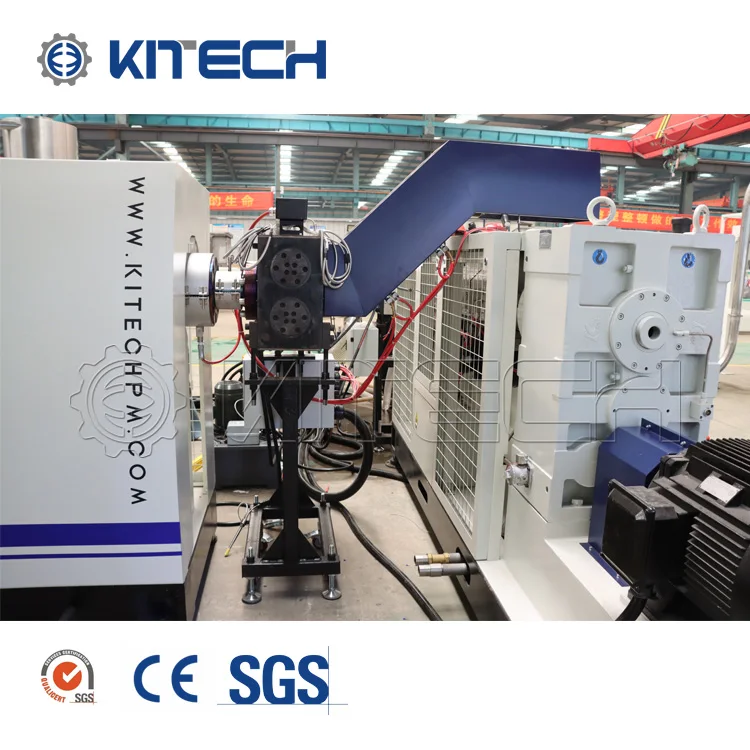

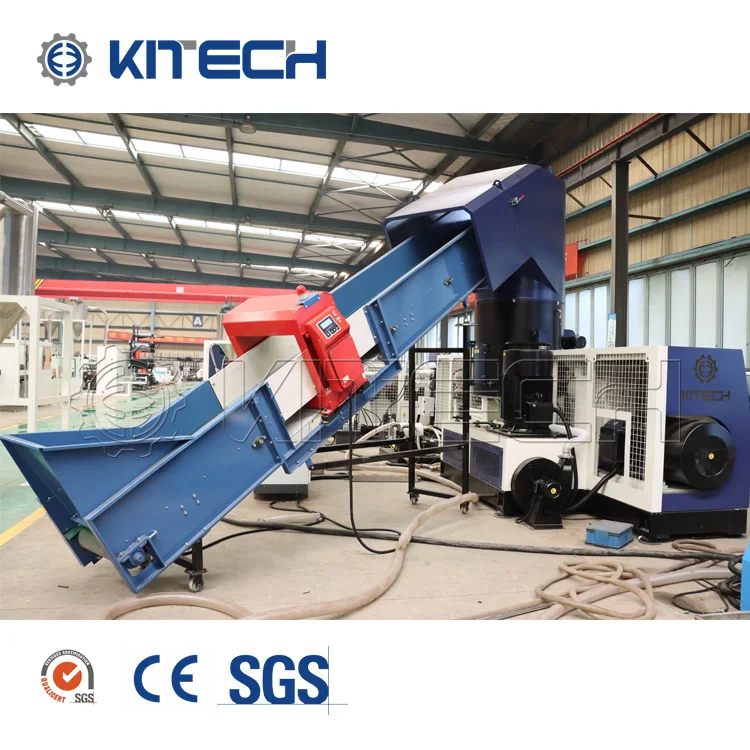

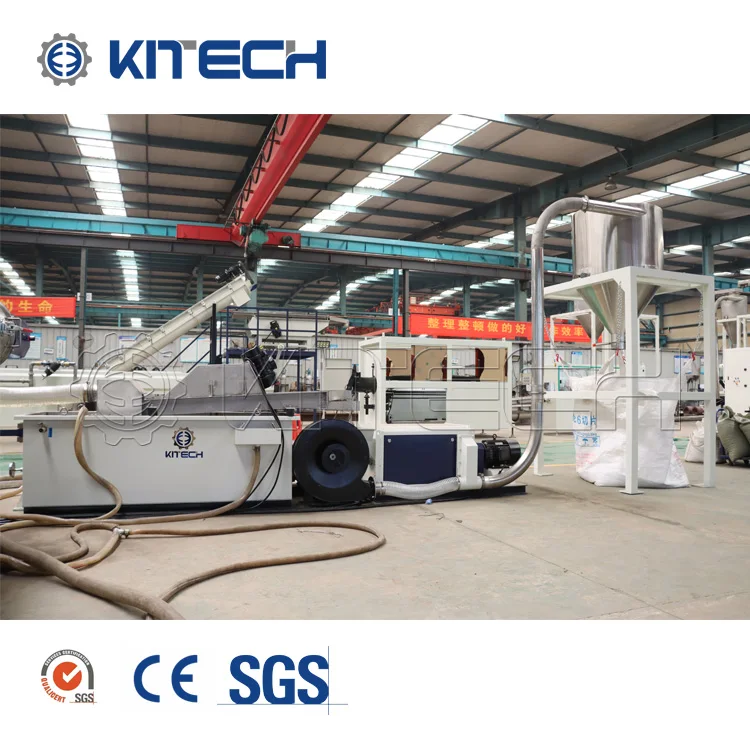

Details Images

Technology Data

Type			KCP80	KCP100	KCP120	KCP140	KCP160	KCP180
Capacity(kg/h)			150-250	300-420	400-600	600-750	800-950	1000-1200
Energy consumption(kWh/kg)			0.2-0.33	0.2-0.33	0.2-0.33	0.2-0.33	0.2-0.33	0.2-0.33
Length(mm)			10,300	10,300	11,400	11,400	14,800	14,800
Width(mm)			6,200	6,200	6,450	6,450	6,850	6,850
Height(mm)			3,500	3,750	3,980	4,250	4,460	4,850
Compactor	Volume(L)	300	500	800	1000	1200	1400
Compactor		Motor Power(kw)	37-45	55-75	75-90	90-132	132-160	160-185
Extruder	Screw Diameter(mm)	φ80	φ100	φ120	φ140	φ160	φ180
		L/D	30-40	30-40	30-40	30-40	30-40	30-40
		Motor power(kw)	55-75	90-110	132-160	160-200	250-315	315-355
Filter (options)	Two position plate type	●	●	●	●	●	●
		Two position piston type	○	○	○	○	○	○
		Back flush piston type	○	○	○	○	○	○
		Automatic selfcleaning type	○	○	○	○	○	○
2nd Extruder (optional)	Screw Diameter(mm)	φ100	φ120	φ150	φ150	φ180	φ200
		L/D	10-18	10-18	10-18	10-18	10-18	10-18
		Motor power(kw)	37-45	45-55	55-75	75-90	90-110	110-160
Downstream(options)	Water ring pelletizer	●	●	●	●	●	●
		Strand pelletizer	○	○	○	○	○	○
		Automatic strand pelletizer	○	○	○	○	○	○
		Underwater pelletizer	○	○	○	○	○	○

●standard ○alternative
