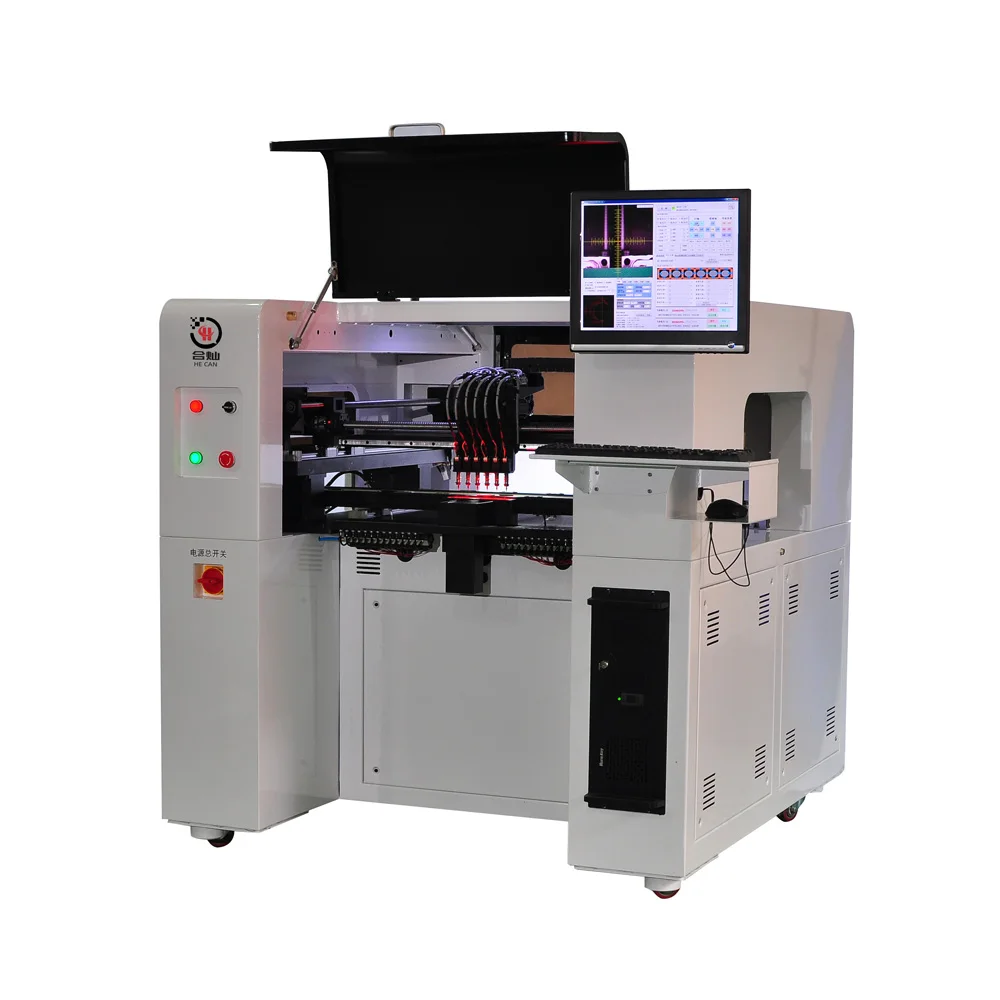

Машина для изготовления светодиодных ламп 6 головок автоматическое распознавание торговой марки используемая машина SMT выбора и размещения
- Категория: >>>
- Поставщик: Wenzhou,Hecan,Electronic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 13447.52 $* | 14119.25 $* |
| Aug-20-2025 | 13334.7 $* | 14001.49 $* |
| Jul-20-2025 | 11187.71 $* | 11746.12 $* |
| Jun-20-2025 | 13108.29 $* | 13763.2 $* |
| May-20-2025 | 11413.23 $* | 11984.58 $* |
| Apr-20-2025 | 12882.61 $* | 13526.42 $* |
| Mar-20-2025 | 12769.80 $* | 13407.50 $* |
| Feb-20-2025 | 12656.59 $* | 13289.66 $* |
| Jan-20-2025 | 12543.41 $* | 13170.95 $* |
Характеристики
Product Introduction
Introduction

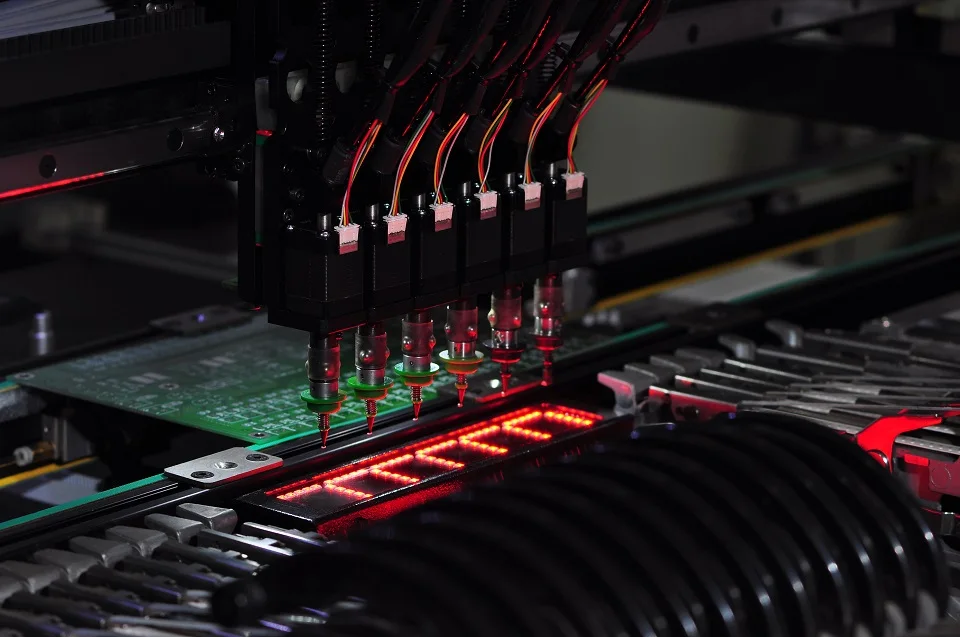

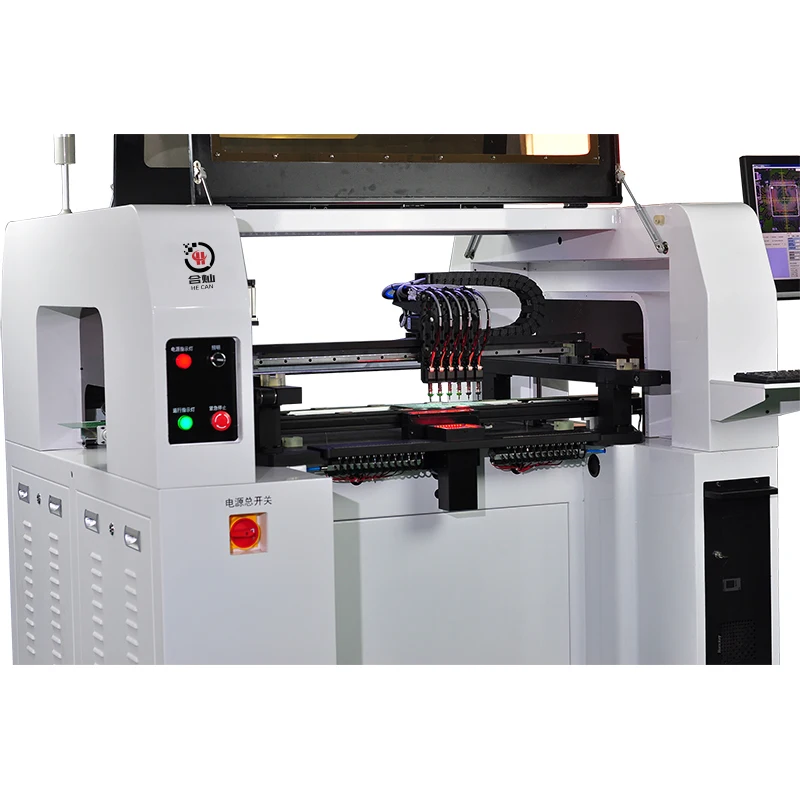

Based on 6 mounting heads +8 cameras+64 feeder positions+ Panasonic

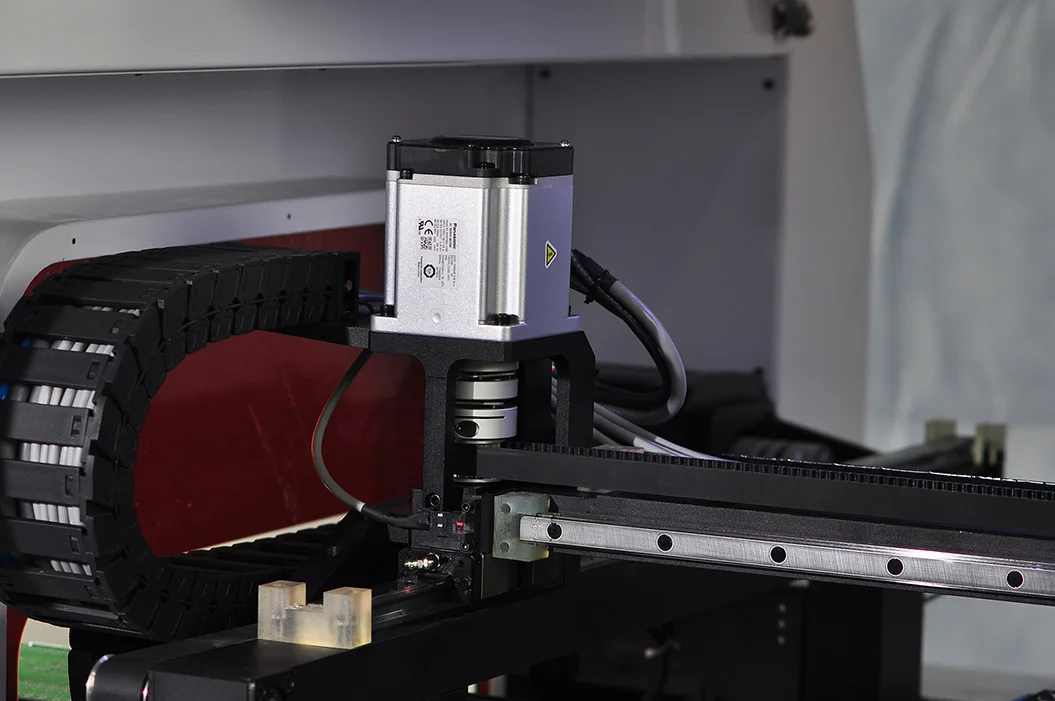

Servo motor+guide screw, the positioning is highly developed（PRECISION:0.01MM）
SMT PNP Machine can pick 0201, 0402, 0603, 0805, 1206, diode, triode, SOT, and QFP, BGA, etc. With lead pitch ≥0.3mm (pin center distance 0.5mm) within 40 * 40mm.
Servo motor+guide screw, the positioning is highly developed（PRECISION:0.01MM）
SMT PNP Machine can pick 0201, 0402, 0603, 0805, 1206, diode, triode, SOT, and QFP, BGA, etc. With lead pitch ≥0.3mm (pin center distance 0.5mm) within 40 * 40mm.
Part List
Item | Description | Quantity | Remarks |
1 | Pick and place machine | 1 Set | 110/220V |
2 | IC fixed support | 4 Sets | Four M5*8,four M5*6 |
3 | JUKl nozzle | 16 Pieces | 502*4,503*4,504*4,505*3,506*1 |
4 | Calibration suction nozzle | 4 Pieces | |
5 | Power wire | 1 Piece | |
6 | Fixed foot | 4 Pieces | Diameter 20mm |
7 | The keyboard and mouse | 1 Set | |
8 | Nozzle calibration inkpad | 1 Box | |
9 | lubricant | 1 Piece | |
10 | Chassis key | 1 Piece | |
11 | PC | 1 Set | |
12 | 17 inch liquid crystal display | 1 Set |
Software designed and developed by our self. It is English. And we will keep updating it.
Customers can get updated software regularly
Customers can get updated software regularly
Specification | ||
Model | H6 | |
Number of placement heads | 6(high-accuracy) | |

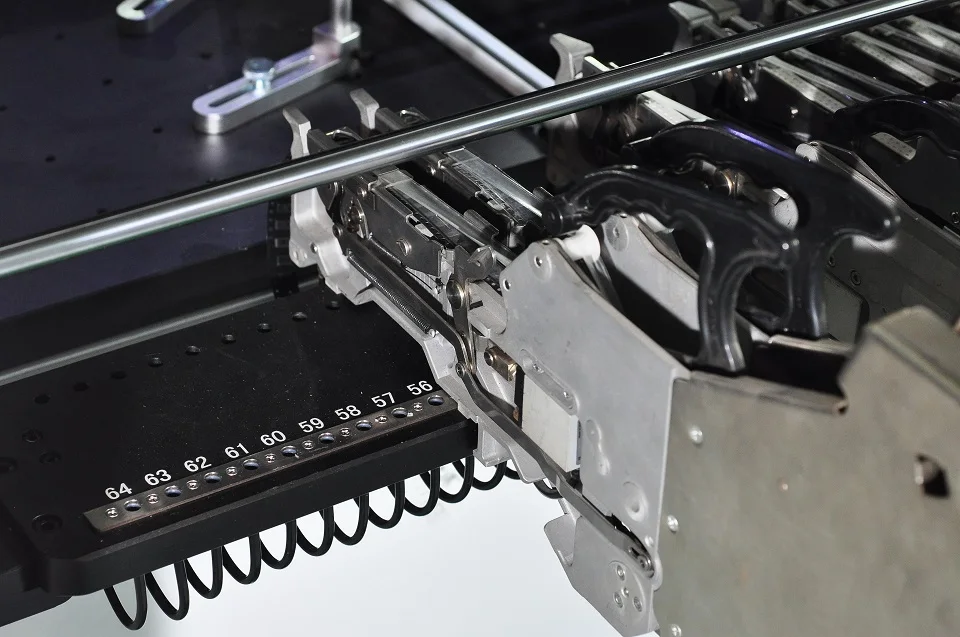

Number of feeder positions | 64(subject to 8mm feeder) | |
Number of cameras | 8 Mark camera----------------1 Fast recognition camera--6 High-precision camera----1 | |
Number of trays | Support up to 48 non- feeder devices, each material can specify its coordinates within the mounting range, and further expand the single-machine order receiving capability from the practical aspect | |
Positioning accuracy | 0.01mm | |
Nozzle buffer range | 4.5mm | |
Maximum Area of PCB | 500 × 370mm | |
Maximum height for components | 7mm（can be customized to 20mm） | |
Maximum moving range of Z axis | 20mm | |
Maximum mounting speed | 12000CPH | |
Average mounting speed | 9000-10000CPH | |
Motor | Panasonic AC Servo Motor MINAS A6 series | |
Driver | Panasonic high-speed DSP driver | |

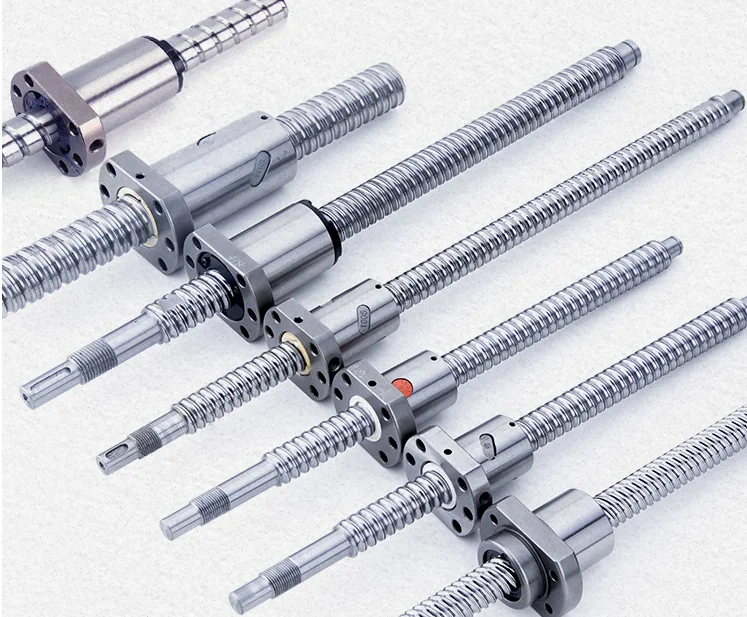

XYZ drive guide rail | Taiwan Shangyin high-precision heavy-duty linear guide rail | |
Applicable mounting range | Suitable for 0201, 0402, 0603, 0805, 1206, diode, triode, SOT, and QFP, BGA, etc.with lead pitch ≥0.3mm (pin center distance 0.5mm) | |
PCB entry mode | Three-stage entry automatic connection from left to right,automatic PCB | |
Programming method | Automatic programming after manually importing files of PCB coordinates | |
Intelligent alarm | Automatic correction, automatic replacement, shortage alarm | |
Suction nozzle vacuum source | Japan CKD contains a high-speed vacuum generator with vacuum destruction | |
Tape feeder | 8,12,16,24mm and vibrating feeder(can be attached to the tube chip) | |
Electronic feeder | Option | |
Drive mode | 2040 grinding screw to ensure motor life and mounting efficiency. | |
X / Y operation mode | Intelligent curve acceleration and deceler | |
Angle for Components | 0-360°, synchronous rotation during movement | |
MARK point positioning | Fully automatic (the MARK point can be set arbitrarily) | |
Operating system | Based on windows xp, win7, software of machine independently developed by OURSELF | |
Visual display | 17-inch industrial control display ratio 4: 3 resolution 1280x1024 | |
Power supply | 220/110V 50/60Hz | |
Average power | 600W | |
Compressed air | 0.5-0.6Mpa | |
Minimum exhaust volume of the air supply source | 80-120L / min, the volume is more than 60L | |
Air source quality requirements | Oil water filter;≥60L,dust filter and air pressure stabilizer etc | |
Product weight | 500KG | |
Machine is of high quality，with at least one-year warranty, lifetime maintenance.
Package
FAQ
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training video and user manual, the user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, just about 2 days for learning operation
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training video and user manual, the user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, just about 2 days for learning operation
A:YES, we will update machine and will send you at first time
Q：Do you have any operation videos to watch?
A：We provide customers with special operation videos. If you don't understand anything, you can contact us and will arrange engineers to shoot the specified videos.
Q: What kind of maintenance is needed?
A: Add lubricating oil to the guide rail, let the water drain away which from the oil-water separator, and clean the nozzle (we
will support this oil)
A: Add lubricating oil to the guide rail, let the water drain away which from the oil-water separator, and clean the nozzle (we
will support this oil)
Service
If you wanna know more, feel free to contact me directly
Mail/Skype：smtmachines@hcpnp.com
Tel/Wechat/WhatsApp：+8618367786556/+8615858886852
Mail/Skype：smtmachines@hcpnp.com
Tel/Wechat/WhatsApp：+8618367786556/+8615858886852
Похожие товары
