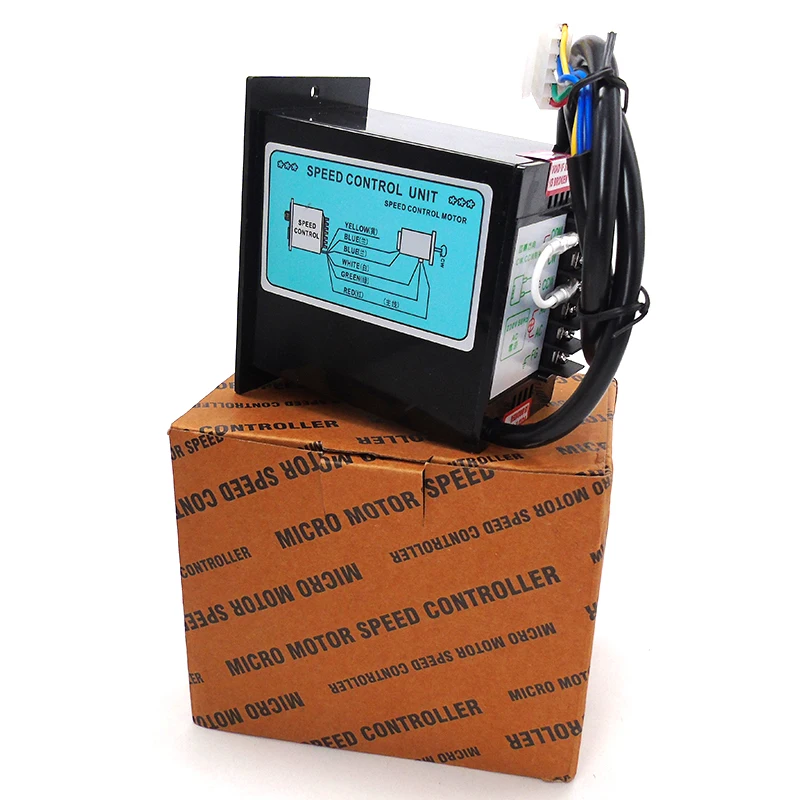

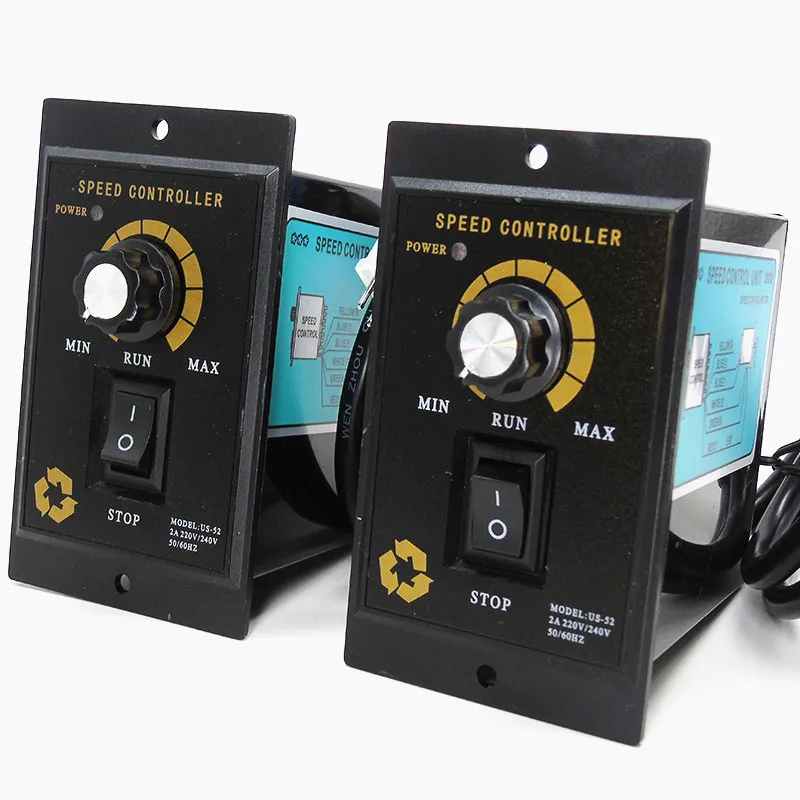

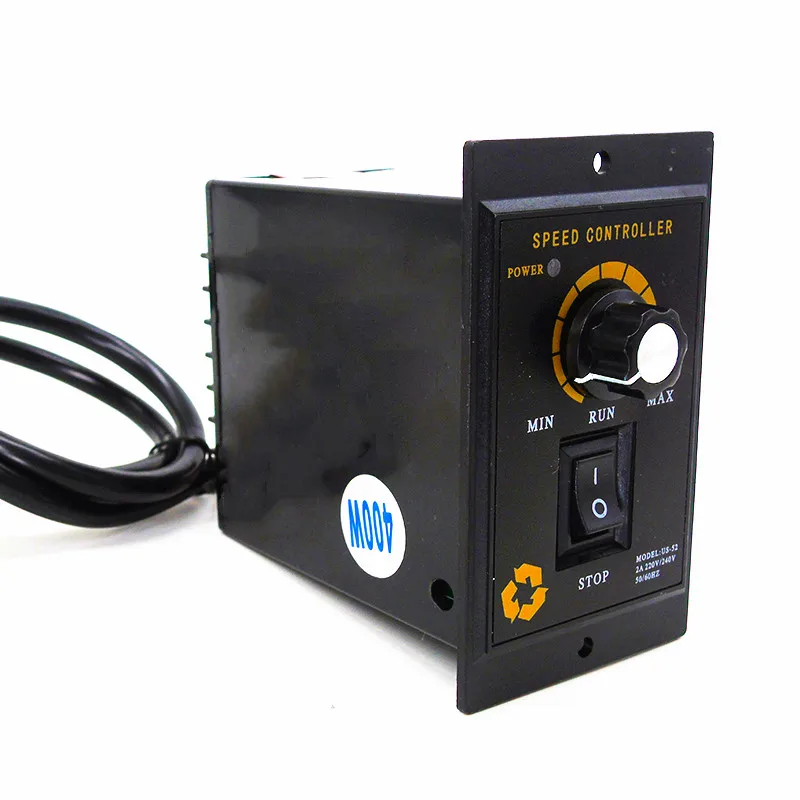

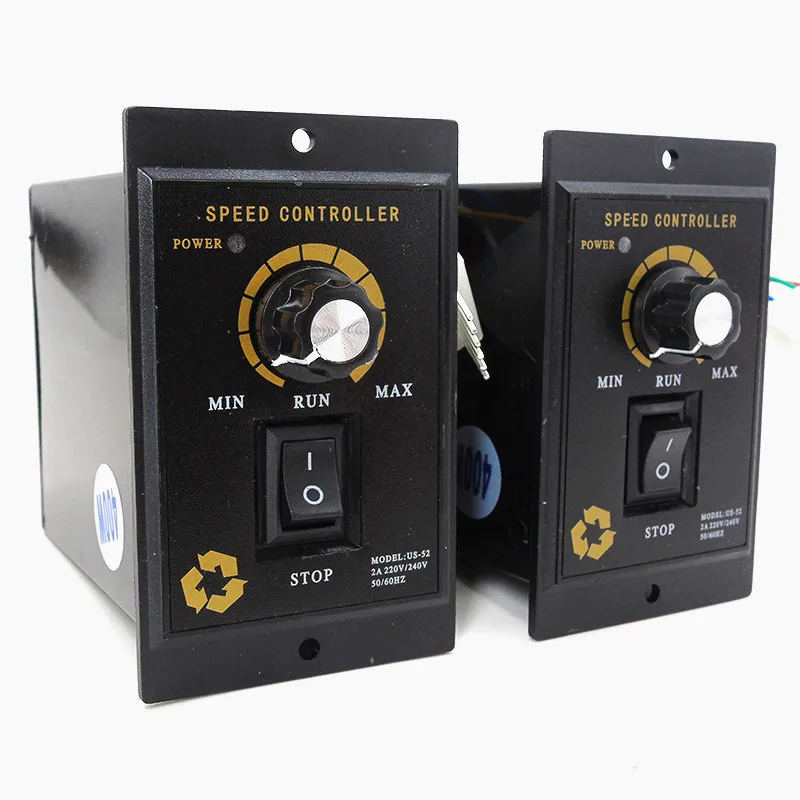

Свяжитесь с нами-52 220 мотор питанием от источника переменного тока напряжением в регулирования скорости контроллер переключатель управления 400 Вт 300 200 120
- Категория: Motor Controller >>>
- Поставщик: Henan,Dongchuan,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 11.39 $* | 11.79 $* |
| Jul-17-2025 | 9.31 $* | 9.34 $* |
| Jun-17-2025 | 11.80 $* | 11.21 $* |
| May-17-2025 | 11.18 $* | 11.47 $* |
| Apr-17-2025 | 9.24 $* | 9.15 $* |
| Mar-17-2025 | 11.88 $* | 11.86 $* |
| Feb-17-2025 | 11.14 $* | 11.90 $* |
| Jan-17-2025 | 11.75 $* | 11.4 $* |
Характеристики
Product Paramenters
Reducer motor governor us-52 is connected to voltage phase 220V, and the governor power is as follows: 6W 15W 25W 40W 60W 90W 120W、180W、200W、250W、300W、400W
140W 180W 200W 250W 400W There are a large number of stock. Quality assurance. Support technology and after-sales service. If you
don't understand, please contact us at any time, 1. Working power supply: AC220V 50Hz / 60Hz voltage fluctuation range ± 10% UE;
2. Rated power: 6W, 10W, 15W, 25W, 40W, 60W, 90W, 120W, 140W, 150W, 160W, 180W, 200W, 250W, 300W, 400W 3. Service environment: -
20 ~ + 55 ℃; 4. Relative humidity: ≤ 90%; 5. Speed regulation range: 90 ~ 1400R / min50hz, 90 ~ 2800r / min60hz Overall dimension:
100 × sixty × 112mm Opening size: 82 × 54mm 90-2 ×φ 4.5mm Installation method: panel screw installation
140W 180W 200W 250W 400W There are a large number of stock. Quality assurance. Support technology and after-sales service. If you
don't understand, please contact us at any time, 1. Working power supply: AC220V 50Hz / 60Hz voltage fluctuation range ± 10% UE;
2. Rated power: 6W, 10W, 15W, 25W, 40W, 60W, 90W, 120W, 140W, 150W, 160W, 180W, 200W, 250W, 300W, 400W 3. Service environment: -
20 ~ + 55 ℃; 4. Relative humidity: ≤ 90%; 5. Speed regulation range: 90 ~ 1400R / min50hz, 90 ~ 2800r / min60hz Overall dimension:
100 × sixty × 112mm Opening size: 82 × 54mm 90-2 ×φ 4.5mm Installation method: panel screw installation
Title goes here.
Reducer motor governor us-52 is connected to voltage phase 220V, and the governor power is as follows: 6W 15W 25W 40W 60W 90W 120W 140W 180W 200W 250W 400W There are a large number of stock. Quality assurance. Support technology and after-sales service. If you don't understand, please contact us at any time,

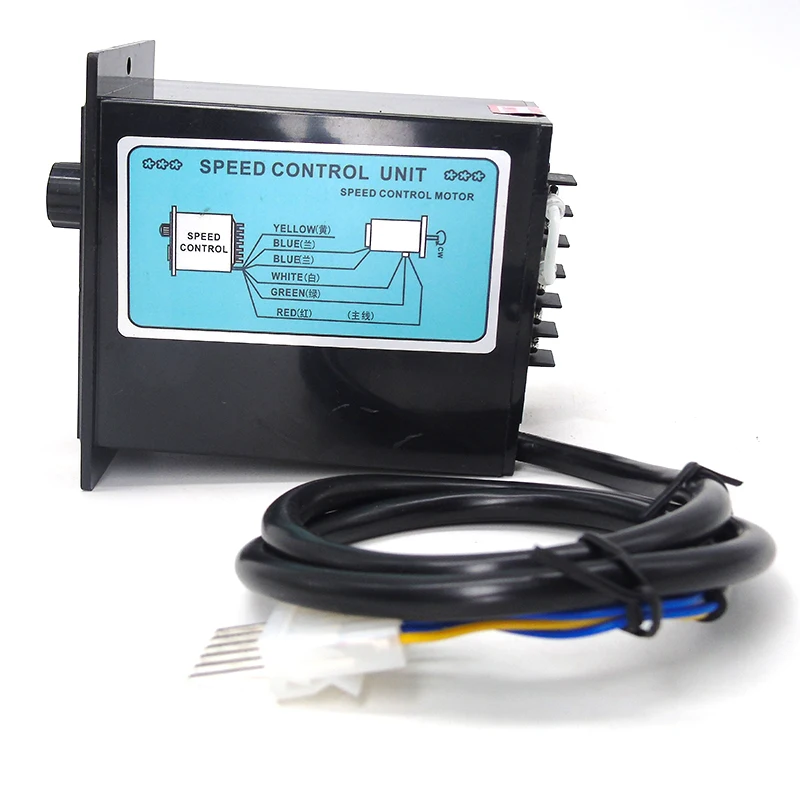

Governor wiring mode: the governor has 6 wires respectively. The black wire is the main line of the motor, the red and white capacitance auxiliary wires are respectively, and the blue and yellow are the speed regulation feedback wires. (the green wire is the ground wire, which can not be used)
1. Working power supply: AC220V 50Hz / 60Hz voltage fluctuation range ± 10% UE;
Governor wiring mode: the governor has 6 wires respectively. The black wire is the main line of the motor, the red and white capacitance auxiliary wires are respectively, and the blue and yellow are the speed regulation feedback wires. (the green wire is the ground wire, which can not be used)
1. Working power supply: AC220V 50Hz / 60Hz voltage fluctuation range ± 10% UE;
Packing & Delivery
1. Working power supply: AC220V 50Hz / 60Hz voltage fluctuation range ± 10% UE;
2. Rated power: 6W, 10W, 15W, 25W, 40W, 60W, 90W, 120W, 140W, 150W, 160W, 180W, 200W, 250W, 300W, 400W
3. Service environment: - 20 ~ + 55 ℃;
4. Relative humidity: ≤ 90%;
5. Speed regulation range: 90 ~ 1400R / min50hz, 90 ~ 2800r / min60hz
Speed regulation range: 90-1400r / min 50Hz
90-2800r/min 60Hz

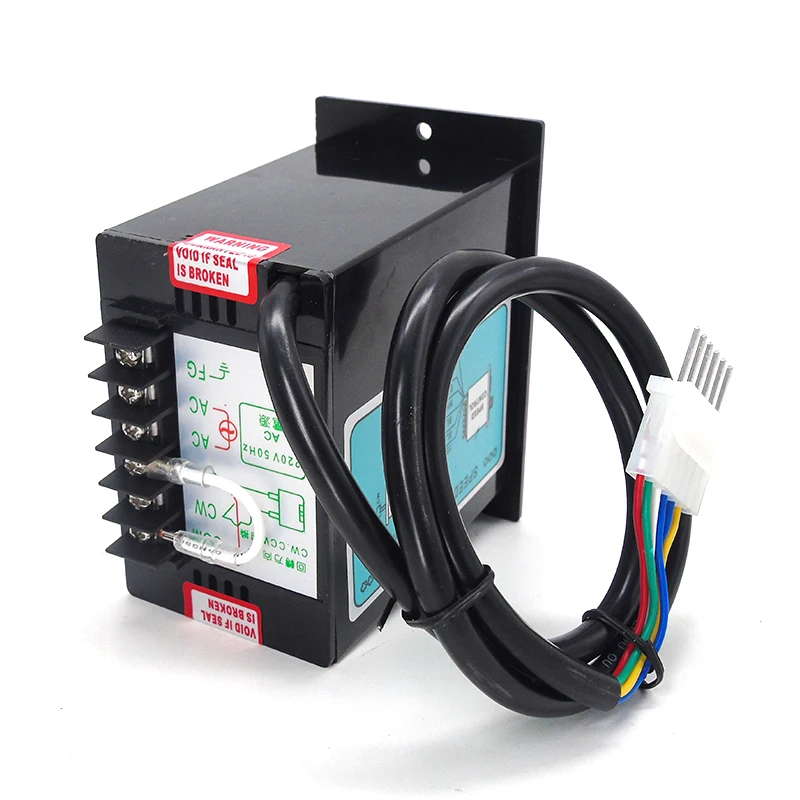

Control mode: forward / reverse rotation can be selected (COM and CW are connected as positive)
Turn, COM and CCW are connected in reverse)
Scope of application: yypj, YCJT, YYCJ, 2ik6rgn-6ik180rgn and other series motors
Overall dimension: 100 × sixty × 112mm
Opening size: 82 × 54mm 90-2 ×φ 4.5mm
Installation method: panel screw installation
2. Rated power: 6W, 10W, 15W, 25W, 40W, 60W, 90W, 120W, 140W, 150W, 160W, 180W, 200W, 250W, 300W, 400W
3. Service environment: - 20 ~ + 55 ℃;
4. Relative humidity: ≤ 90%;
5. Speed regulation range: 90 ~ 1400R / min50hz, 90 ~ 2800r / min60hz
Speed regulation range: 90-1400r / min 50Hz
90-2800r/min 60Hz
Control mode: forward / reverse rotation can be selected (COM and CW are connected as positive)
Turn, COM and CCW are connected in reverse)
Scope of application: yypj, YCJT, YYCJ, 2ik6rgn-6ik180rgn and other series motors
Overall dimension: 100 × sixty × 112mm
Opening size: 82 × 54mm 90-2 ×φ 4.5mm
Installation method: panel screw installation
size
wiring diagram
Product packaging
