Характеристики
Product Information | ||||||||||||||
Module | Vmp(V) | Imp(A) | Voc(V) | Isc(A) | η(%) | Size (MM) | Weight (KG) | |||||||
500W48V | 52.3 | 9.53 | 63.1 | 10.12 | 19.37 | 1956*1320*40 | 27.6KG | |||||||
480W48V | 51.1 | 9.42 | 62.1 | 10.02 | 18.59 | 1956*1320*40 | 27.6KG | |||||||
400W38.5V | 41.3 | 9.73 | 49.0 | 10.31 | 20.17 | 1979*1002*40 | 21.5KG | |||||||
385W36V | 40.0 | 9.63 | 47.9 | 10.22 | 19.42 | 1979*1002*40 | 21.5KG | |||||||
375W36V | 39.2 | 9.53 | 47.3 | 10.12 | 18.91 | 1979*1002*40 | 21.5KG | |||||||
360W36V | 38.3 | 9.42 | 46.6 | 10.02 | 18.15 | 1979*1002*40 | 21.2KG | |||||||
330W32V | 34.0 | 9.70 | 40.6 | 10.27 | 19.82 | 1665*1000*35 | 19.5KG | |||||||
315W32V | 32.9 | 9.56 | 39.6 | 10.14 | 18.92 | 1665*1000*35 | 19.5KG | |||||||
300W32V | 31.9 | 9.42 | 38.8 | 10.02 | 18.02 | 1665*1000*35 | 19.5KG | |||||||
300W36V | 37.6 | 7.98 | 49.0 | 8.46 | 20.16 | 1500*992*35 | 17.9KG | |||||||
280W36V | 36.4 | 7.69 | 43.7 | 8.07 | 18.82 | 1500*992*35 | 17.9KG | |||||||
260W36V | 37.6 | 6.92 | 45.1 | 7.26 | 19.60 | 1340*990*35 | 15.6KG | |||||||
250W36V | 36.4 | 6.86 | 43.7 | 7.21 | 18.81 | 1340*992*35 | 15.6KG | |||||||
230W36V | 37.6 | 6.12 | 45.1 | 6.43 | 19.36 | 1200*990*35 | 14.7KG | |||||||
200W18V | 20.6 | 9.73 | 24.5 | 10.31 | 19.87 | 1480*680*30 | 11.2KG | |||||||
180W16V | 17.7 | 10.17 | 21.0 | 10.75 | 20.05 | 1320*680*30 | 9.6KG | |||||||
170W16V | 17.3 | 9.82 | 20.5 | 10.37 | 18.94 | 1320*680*30 | 9.6KG | |||||||
160W16V | 16.7 | 9.63 | 20.0 | 10.22 | 17.83 | 1320*680*30 | 9.6KG | |||||||
150W16V | 16.0 | 9.42 | 19.4 | 10.02 | 16.71 | 1320*680*30 | 9.6KG | |||||||

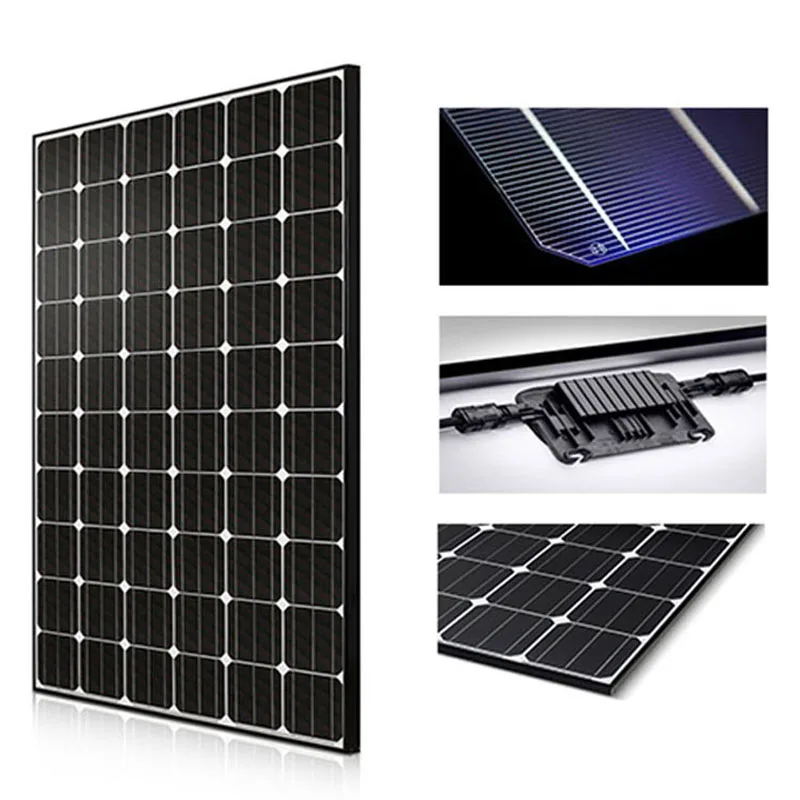

Solar Cell
> High efficiency 5BB PV cell
> Uniform color
> Anti-PID
> Germany standard Cell
> Full test
> Uniform color
> Anti-PID
> Germany standard Cell
> Full test
Glass
> Antireflective glass> Translucency of normal luminance is increased 2%
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years
Frame
> Stock-size
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
EVA
>High Transmittance EVA,>High GEL Content To Provide Good Encapsulation
>Protect Cells From Vibration With Longer Durability.
>Protect Cells From Vibration With Longer Durability.
Humanized design
> More protection with practical and effective design
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
Junction box
>Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
