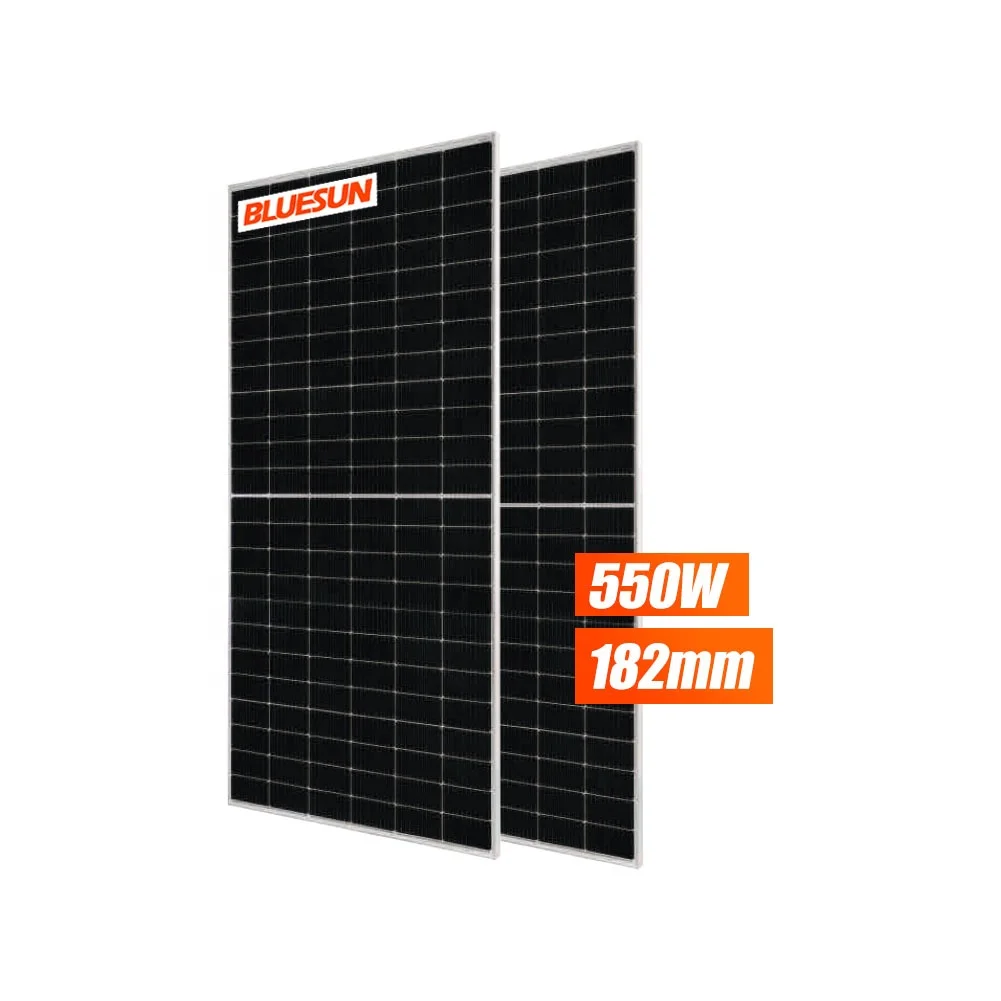

Bluesun Цена панели солнечных батарей 415W 455W 550W 650W 700W фотоэлектрическая PV половина сотовый подойдет как для повседневной носки так модули комплект Солнечная
- Категория: Solar Energy Products >>>
- Поставщик: Bluesun,Ess,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 182.97 $* | 186.42 $* |
| Jul-20-2025 | 147.49 $* | 150.37 $* |
| Jun-20-2025 | 179.45 $* | 183.60 $* |
| May-20-2025 | 177.21 $* | 181.97 $* |
| Apr-20-2025 | 142.80 $* | 145.9 $* |
| Mar-20-2025 | 174.66 $* | 177.91 $* |
| Feb-20-2025 | 173.73 $* | 176.34 $* |
| Jan-20-2025 | 172.11 $* | 175.70 $* |
Характеристики
Product Description
PERC Cell
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
ELECTRICAL PARAMETERS AT STC | ||||||||||||
TYPE | BSM525M10-72HPH | BSM530M10-72HPH | BSM535M10-72HPH | BSM540M10-72HPH | BSM545M10-72HPH | BSM550M10-72HPH | ||||||
Rated Maximum Power(Pmax) [W] | 525 | 530 | 535 | 540 | 545 | 550 | ||||||
Open Circuit Voltage(Voc) [V] | 49.15 | 49.3 | 49.45 | 49.6 | 49.75 | 49.9 | ||||||
Maximum Power Voltage(Vmp) [V] | 41.15 | 41.31 | 41.47 | 41.64 | 41.8 | 41.96 | ||||||
Short Circuit Current(lsc) (A] | 13.65 | 13.72 | 13.79 | 13.86 | 13.93 | 14 | ||||||
Maximum Power Current(lmp) [A] | 12.76 | 12.83 | 12.9 | 12.97 | 13.04 | 13.11 | ||||||
Module Efficiency [%] | 20.3 | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 | ||||||
Power Tolerance | 0~+5W | |||||||||||
STC | Irradiance 1000W/m2, cell temperature 25°C, AM1.5G | |||||||||||
Remark | Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types. | |||||||||||

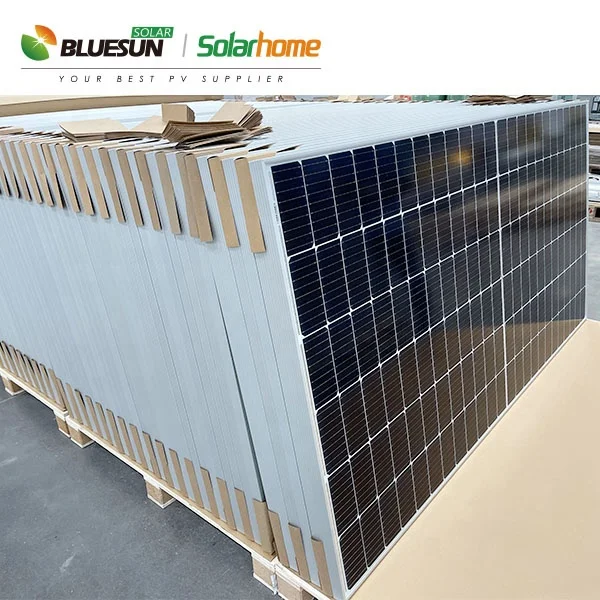

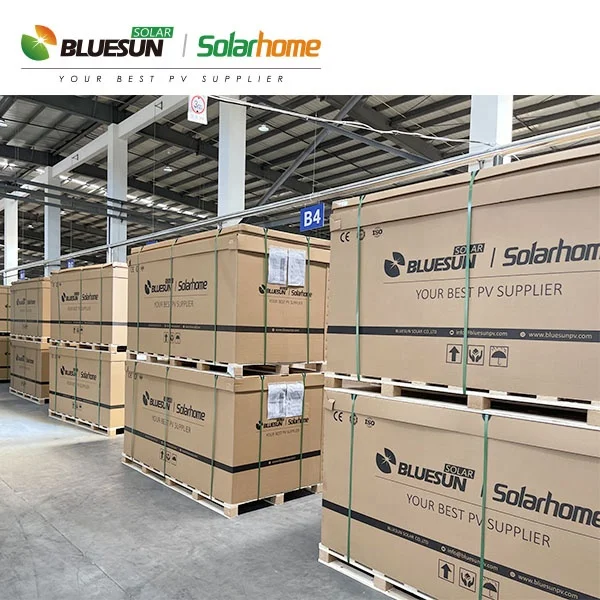

Packing & Delivery
Model | BSM-72HPH | BSM-72HBD |
Pcs/Pallet | 31 | 31 |
Pcs/40'HQ | 620 | 620 |
Our Project
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CNF | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
