Products Description

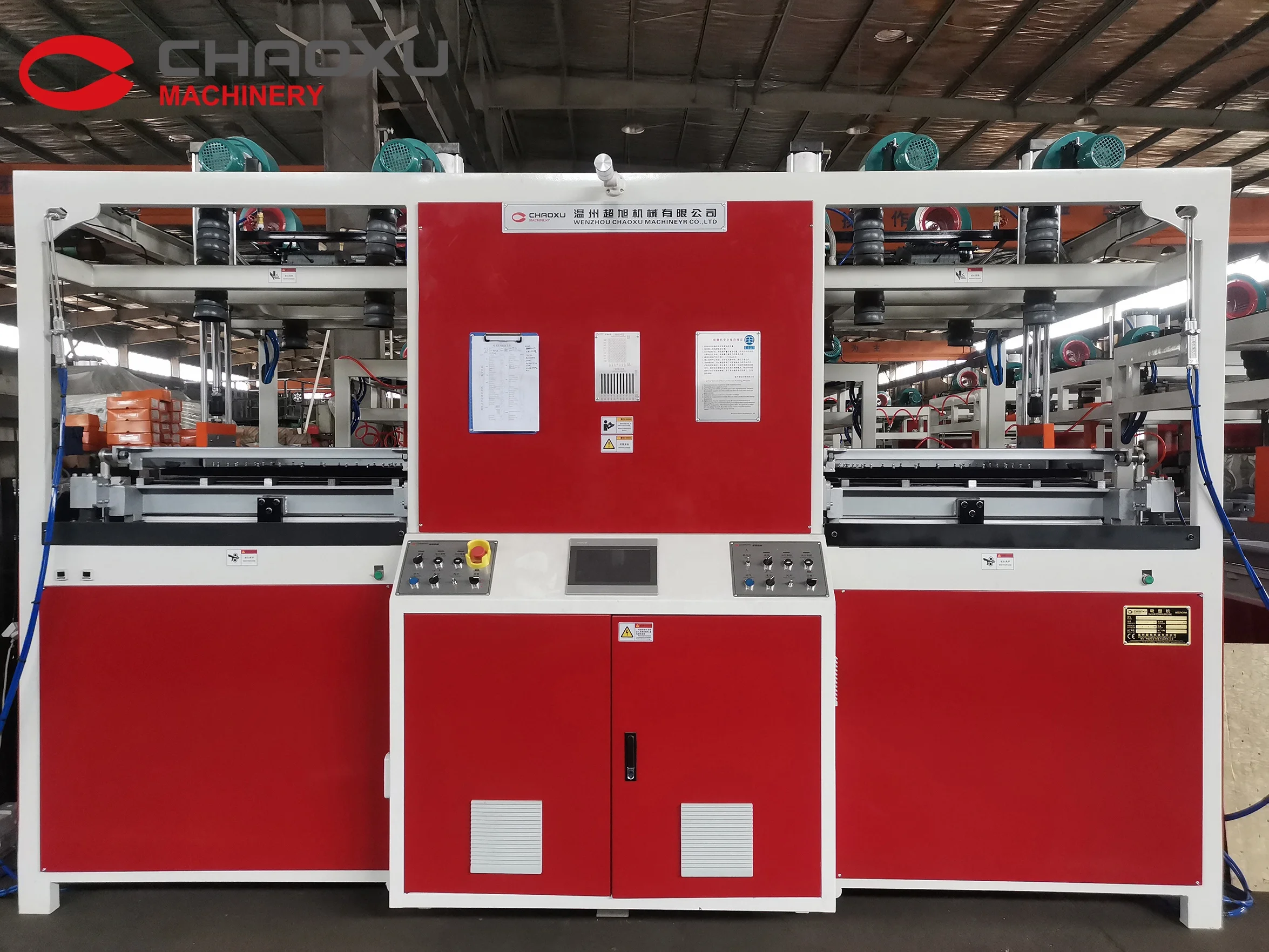

CHAOXU Luggage Manufacturing Machine Plastic Vacuum Former
Parameters
Model | UINT | YX-20A | YX-24A | YX-28A | ||
Thickness | MM | 1-4 | ||||
Input power | V | 380 | ||||
Vacuum capacity | M³ | 0.2 | 0.3 | 0.35 | ||
Vacuum pressure | MPA | -0.07 ~ -0.09 | ||||
Air pressure | MPA | 0.65-0.75 | ||||
Air consumption | L / MIN | 550 | 650 | 800 | ||
Weight | T | 2 | 2.2 | 2.4 | ||
Total power | KW | 40 | 49 | 57 | ||
Working power | KW | 30 | 39 | 45 | ||
Forming Dimension | MM | 600*420*200 | 690*510*200 | 780*600*200 | ||
Overall dimension | MM | 2880*1760*2410 | 3180*1860*2410 | 3480*1960*2440 | ||
Machine Feature
1)Two working modes. Automatic and Manual working modes can be chosen by customers.
2)Two Chambers. The left and right stations can work by turns to save time and provide productivity.
3)PLC screen. The operation interface is compact and easy to operate, the paraments can be adjusted and saved in real time.
4)Preheated system. Sheets can be preheated automatically to save power and time.
5)Heaters. All heaters are controlled separately and easy to be adjusted.
6)Silent technology. Machines can move and work silently.
7)Cooling system. Customers can change the cooling direction according to the situation.
4)Preheated system. Sheets can be preheated automatically to save power and time.
5)Heaters. All heaters are controlled separately and easy to be adjusted.
6)Silent technology. Machines can move and work silently.
7)Cooling system. Customers can change the cooling direction according to the situation.
Application
Plastic sheet such as ABS, PC or recycled material is suitable for this machine. It is specially used to process

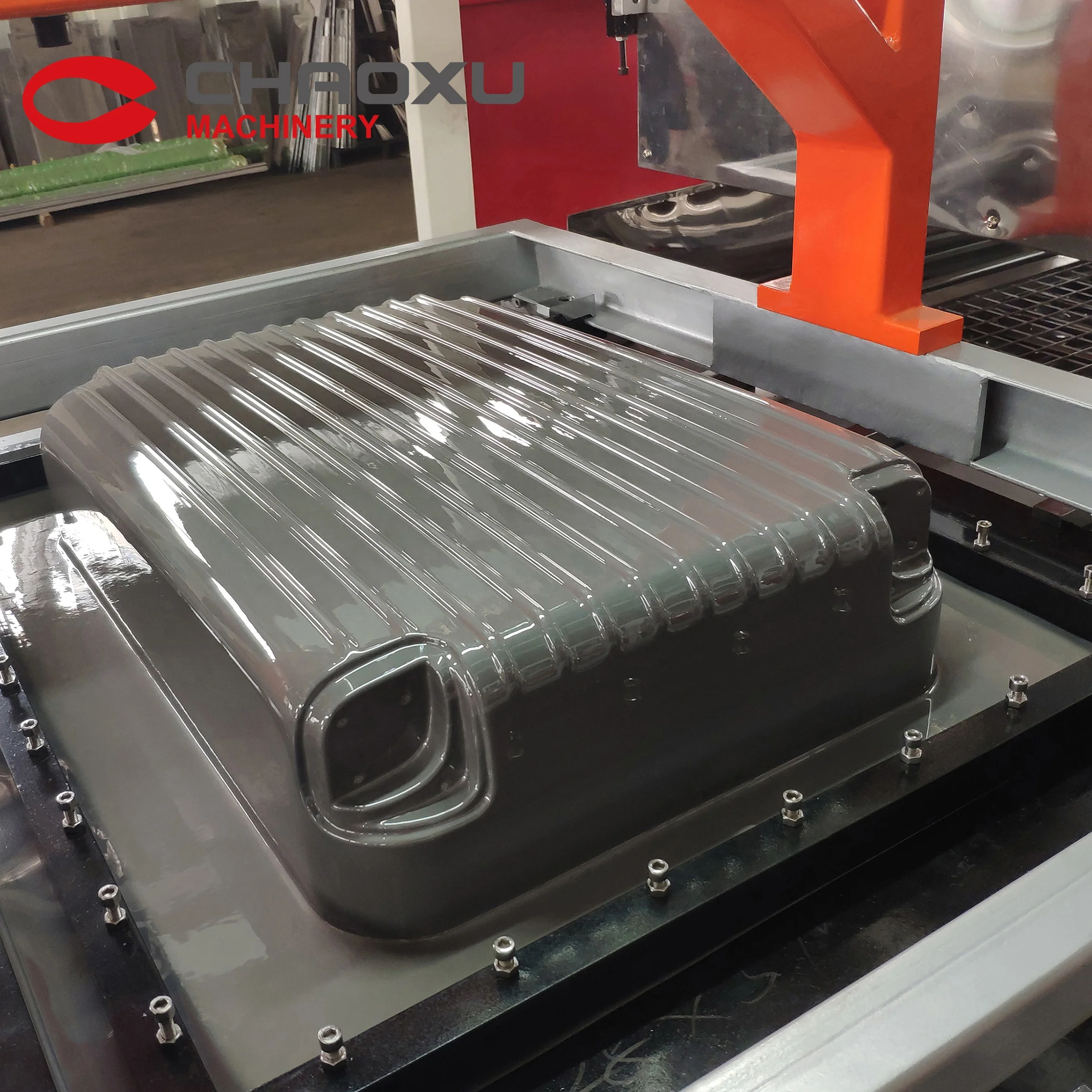

Suitcase/Luggage/Trolley case shell with fast speed and high good quality.
The YX-A series is provided with automatic separated frame operation and upper-lower double heating with PLC intelligent control system. Machine can be customized as required.
Suitcase/Luggage/Trolley case shell with fast speed and high good quality.
The YX-A series is provided with automatic separated frame operation and upper-lower double heating with PLC intelligent control system. Machine can be customized as required.
About Us
Wenzhou Chaoxu Machinery Co.,ltd has specialized in Intelligent Luggage Machinery Industry since 1992.
We became a leading brand after two decades’ development and management, having a group of senior technical team. Our main products are Plastic Sheet Extrusion Machine, Vacuum Forming Machine, Cutting Machine, Punching Machine and so on.
In addition, we have researched and achieved lots of national technical patents:
We became a leading brand after two decades’ development and management, having a group of senior technical team. Our main products are Plastic Sheet Extrusion Machine, Vacuum Forming Machine, Cutting Machine, Punching Machine and so on.
In addition, we have researched and achieved lots of national technical patents:
for example: Cursor positioning device in cutting component
Mold distributor device and Water film temperature machine device for Extrusion Machine
Lifting frame device and Drying oven device for Vacuum Forming Machine
Also, we processed CE, ISO9001:2015 certificates and owned the whole running system.
Meanwhile, we are cooperating with global famous luggage manufacturers such as Samsonite, Crown and having further relationship with suppliers ABB, Schneider, Siemens, Taiwan Weinview, Japan ORMON and so on. Our machines are sold well among Western Europe, Middle East, Southeast Asia and other more than 20 countries and regions.
Lifting frame device and Drying oven device for Vacuum Forming Machine
Also, we processed CE, ISO9001:2015 certificates and owned the whole running system.
Meanwhile, we are cooperating with global famous luggage manufacturers such as Samsonite, Crown and having further relationship with suppliers ABB, Schneider, Siemens, Taiwan Weinview, Japan ORMON and so on. Our machines are sold well among Western Europe, Middle East, Southeast Asia and other more than 20 countries and regions.
