SZG Industrial Rotating Vacuum Dryer drying

Категория: Vacuum Drying Equipment >>>
Поставщик: Liaoyang,Shenzhou,Machinery,Equipment,Co.,Ltd.

Цена:4 200,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	4998.83 $*	5248.71 $*
Aug-15-2025	4956.27 $*	5204.7 $*
Jul-15-2025	4158.65 $*	4366.40 $*
Jun-15-2025	4872.94 $*	5116.53 $*
May-15-2025	4242.95 $*	4454.33 $*
Apr-15-2025	4788.64 $*	5027.9 $*
Mar-15-2025	4746.22 $*	4983.85 $*
Feb-15-2025	4704.37 $*	4939.30 $*
Jan-15-2025	4662.63 $*	4895.93 $*

Характеристики

Product Description

SZG Series Double Taper Vacuum Drier is a new generation drying device developed by our factory on the basis of combining the technology of same products. It has two connecting ways, i.e. Pulley or chain. Therefore it is stable in operation. The special design guarantees two shafts realize good concentricity. Heat medium and vacuum system all adapt reliable machinery seal or rotating joint made from abroad. On the basis, we also developed SZG-A. It can carry out steeples speed change and constant temperature control.As a special factory in drying industry, we provide hundreds of set to customers for their use. As for working medium, it may be high temperature conduction heat oil or middle temperature steam. For drying the adhesive raw material, the factory has designed specially a stirring plate for you.

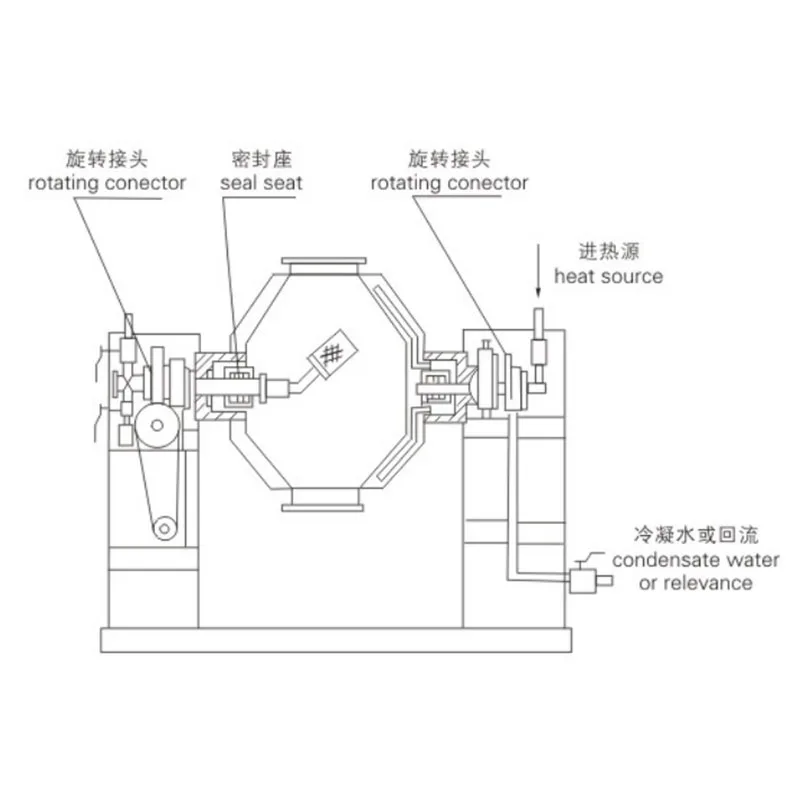

Principles

○ Let heat source (for example, low pressure steam or heat conduct oil) pass through the sealed jacket. The heat will be
transmitted to raw material to be dried through inner shell

○ Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can e realizd

○ The raw material exists at the state of vacuum. The drop of team pressure makes the moisture (solvent) at the surface of raw material become saturation and will evaporate. The solvent will be discharged through vacuum pump an drecovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time.

Specification

Item			Type
Name	Unit	100	350	750	1000	1500	2000	3000	4500
Total volume	L	100	350	750	1000	1500	2000	3000	4500
Working volume	L	≤50	≤175	≤375	≤500	≤750	≤1000	≤1500	≤2250
Heating area	㎡	1.16	2	3.5	4.61	5.58	7.5	9.6	13.8
Speed	rpm	6								4	4
Power	kw	0.75	1.5	2.2	3	4	5.5	7.5	15
Height of rotating frame	mm	1810	2090	2500	2665	2915	3055	3330	4210
Total weight	Kg	550	900	1200	1300	1500	2000	3000	4000
Design pressure inside tank	Mpa	-0.09~0.096
Design Dressure inside jacket	Mpa	≤0.3
Please send us an enquiry for more models.

Packing & Delivery

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

FAQ

1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
