Серия SZG Высококачественная пищевая химическая промышленность ротационная вакуумная двухконусная коническая сушильная
- Категория: >>>
- Поставщик: Changzhou,Jumei,Drying,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.63 $* | 0.45 $* |
| Aug-15-2025 | 0.24 $* | 0.96 $* |
| Jul-15-2025 | 0.69 $* | 0.18 $* |
| Jun-15-2025 | 0.84 $* | 0.81 $* |
| May-15-2025 | 0.38 $* | 0.33 $* |
| Apr-15-2025 | 0.5 $* | 0.76 $* |
| Mar-15-2025 | 0.67 $* | 0.56 $* |
| Feb-15-2025 | 0.71 $* | 0.58 $* |
| Jan-15-2025 | 0.55 $* | 0.84 $* |
Характеристики
Description

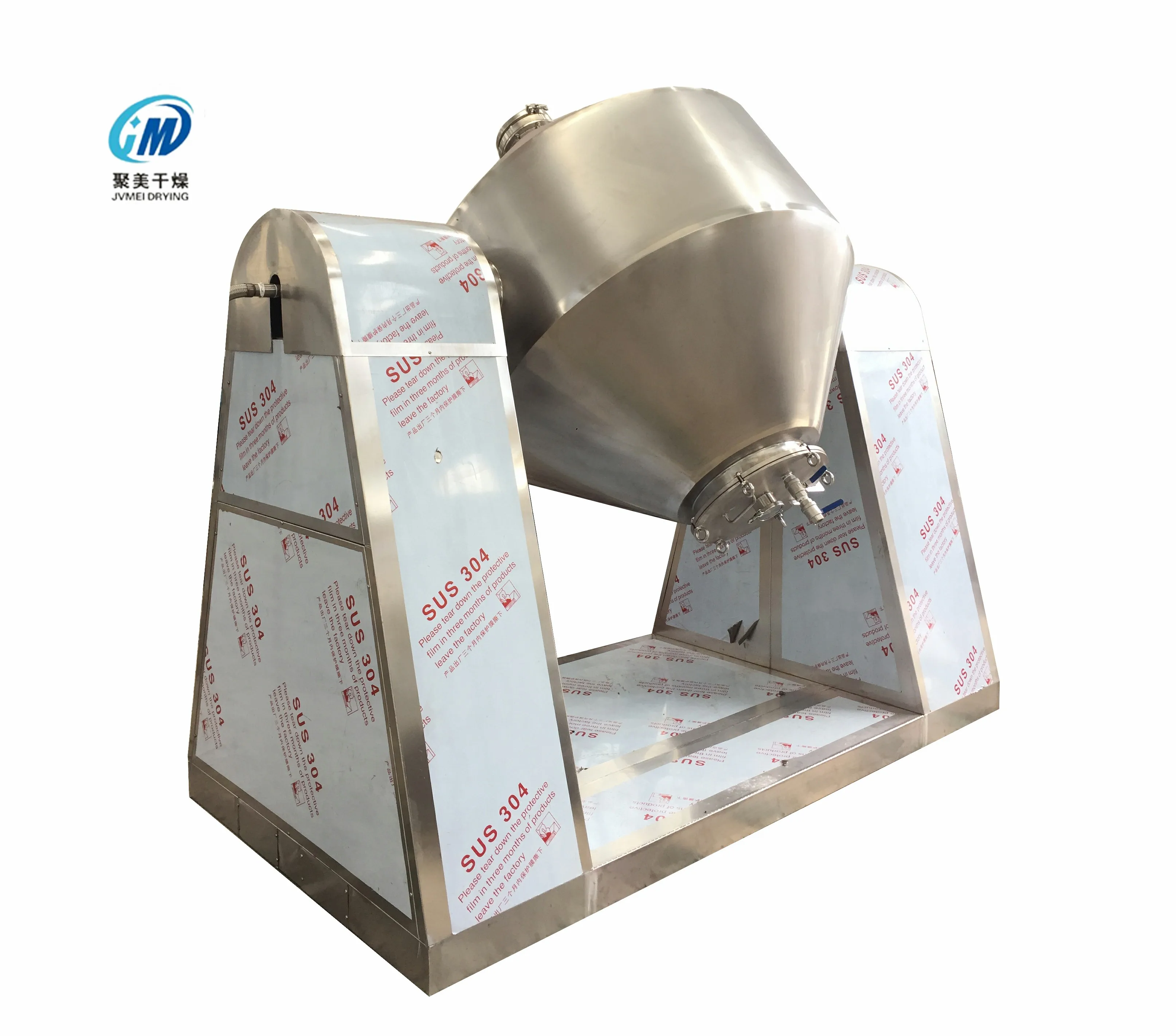

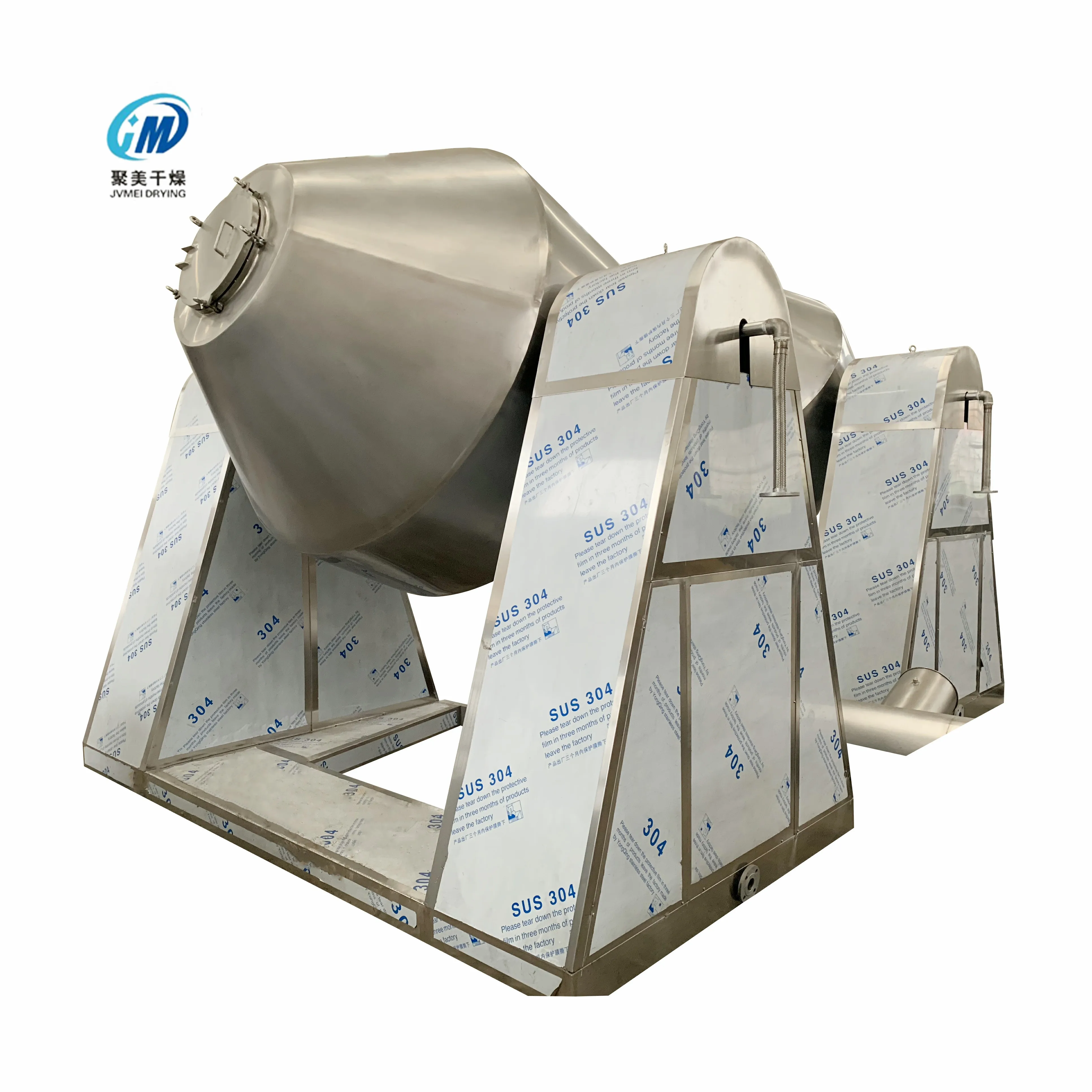

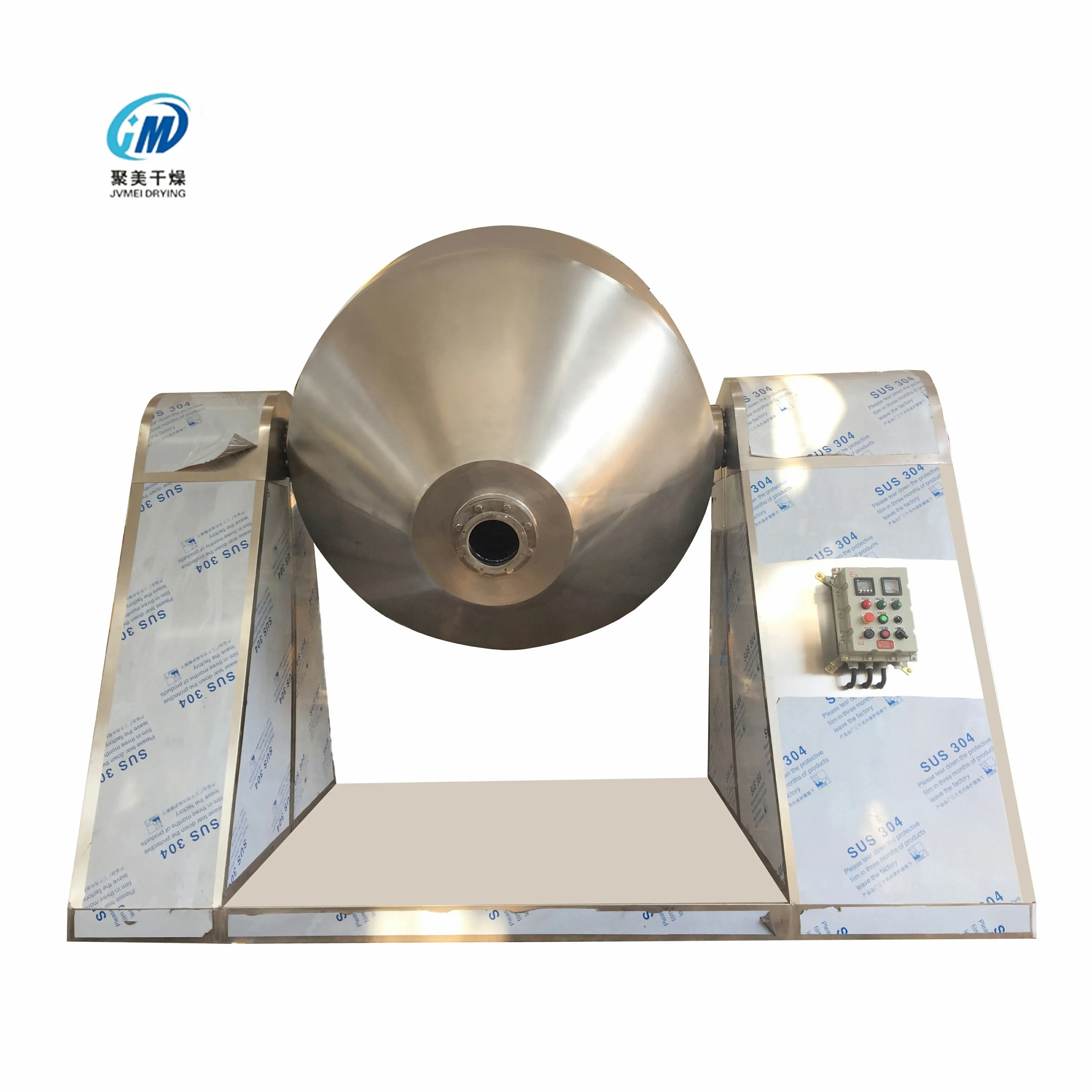

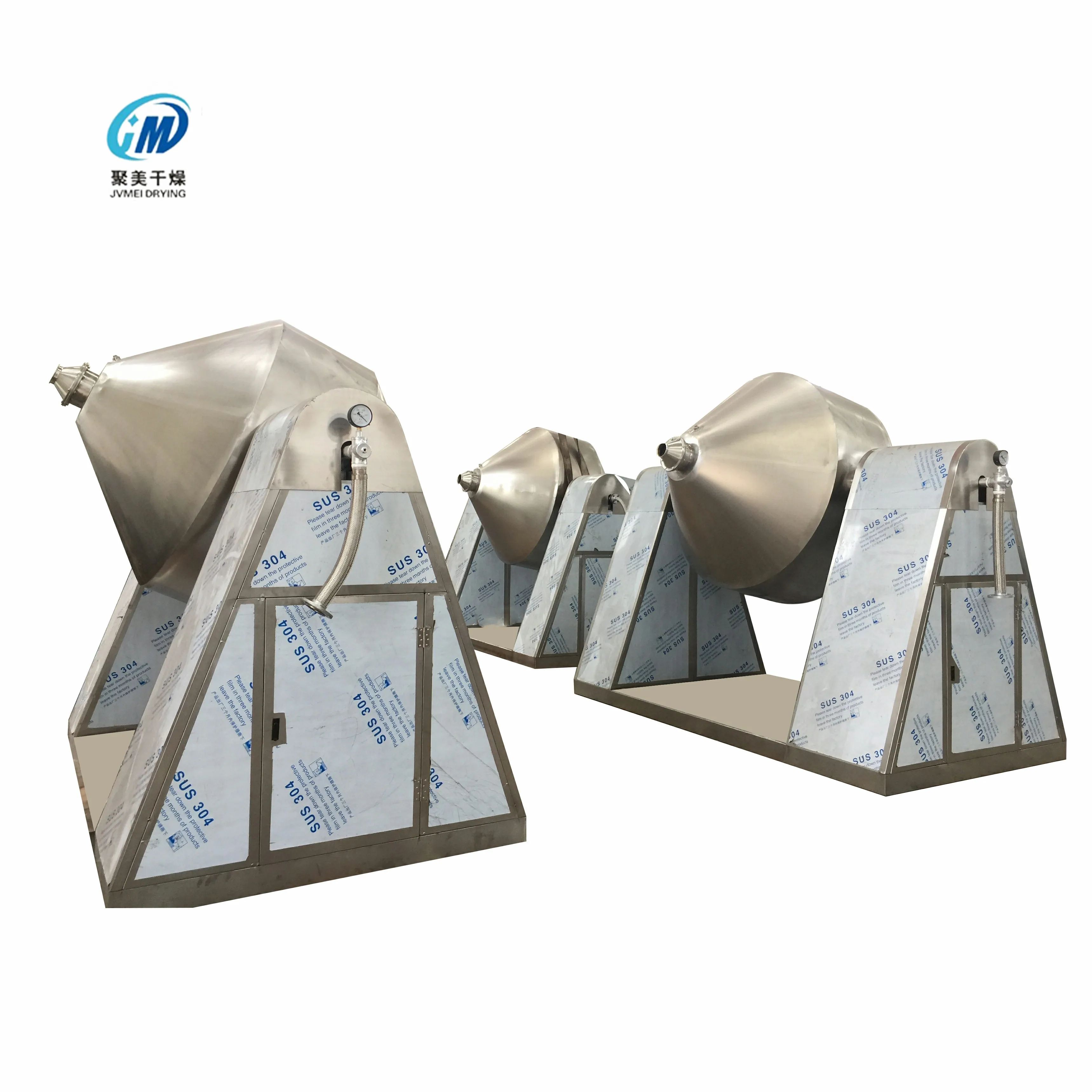

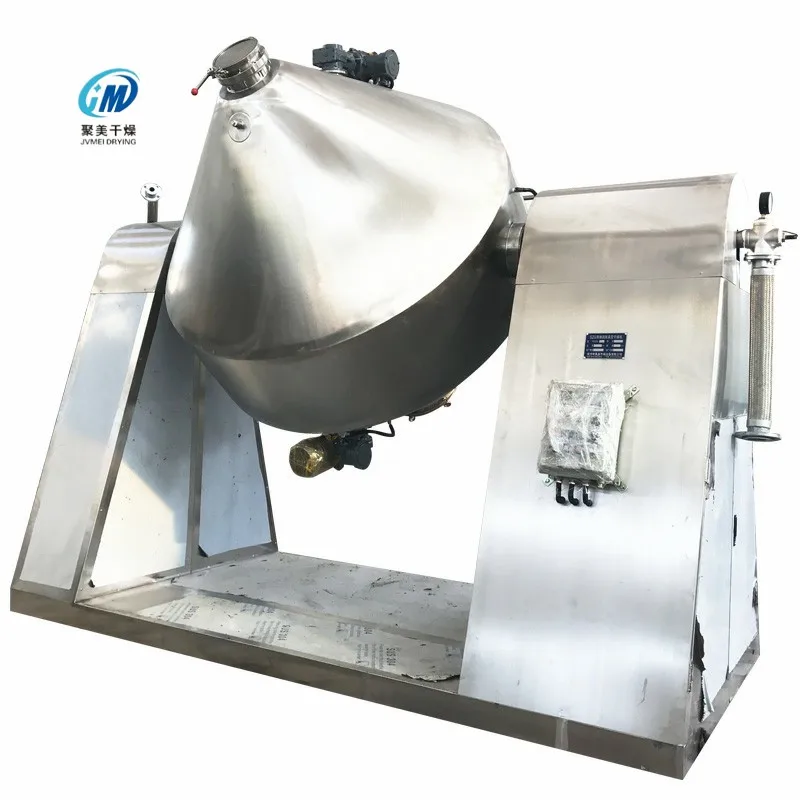

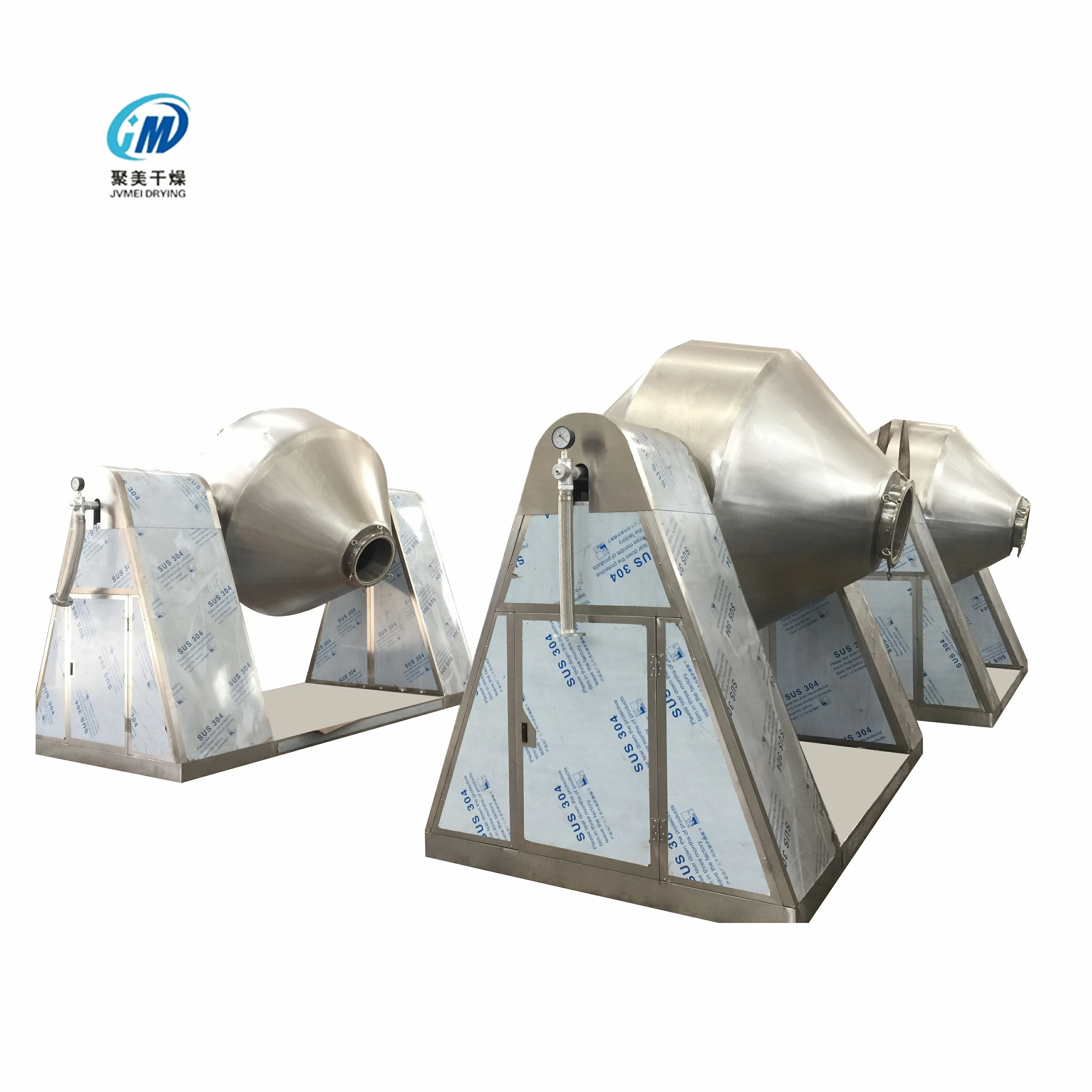

SZG Series Conical Vacuum dryer Vacuum Double cone dryer is a new generation drying device developed by our factory on the basis of combining the technology of similar equipment. It has two connecting ways, i.e. belt or chain. Therefore it is stable in operation. The special design guarantees two shafts realize good concentricity. Heat medium and vacuum system all adapt reliable rotating connector with the technology from USA. On this basis, we also developed SZG-A. It can carry out steeples speed change and constant temperature control.
As a specialized factory in drying industry, we supply hundred sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. For drying the adhesive raw material, we have designed specially a stirring plate buffer for you.
As a specialized factory in drying industry, we supply hundred sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. For drying the adhesive raw material, we have designed specially a stirring plate buffer for you.
As a specialized company in drying industry, we supply hundred sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. The biggest may be 8000L. Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized; The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material reach the state of saturation and evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can berealized within a short time.
1.When oil is used to heat, use automatic constant temperature control. It can be used for drying biology products and mine. Its temperature of operation can be adjusted form 20-160 ℃ .
2.Compared to ordinal dryer, its heat efficiency will be 2 times higher.
3.The heat is indirect. So the raw material can not be polluted. It is in conformity with the requirement of GMP. It is easy in washing and maintenance.
2.Compared to ordinal dryer, its heat efficiency will be 2 times higher.
3.The heat is indirect. So the raw material can not be polluted. It is in conformity with the requirement of GMP. It is easy in washing and maintenance.
item | spec | ||||||||||||
name | unit | 100 | 350 | 1000 | 1500 | 4000 | 500050000 | ||||||
total volume | L | 100 | 350 | 1000 | 1500 | 4000 | 500050000 | ||||||
working volume | L | 50 | 175 | 500 | 750 | 2000 | 2500^5000 | ||||||
heating area | m2 | 1.16 | 2 | 4.61 | 5.58 | 12.1 | 14.1 | ||||||
speed | rpm | 6 | 4 | 4 | |||||||||
power | kw | 0.75 | 1.5 | 3 | 3 | 7.5 | 7.5 | ||||||
rotating height | mm | 1810 | 2090 | 2665 | 2915 | 3800 | 4180^8200 | ||||||
total weight | kg | 825 | 1350 | 2070 | 2250 | 5350 | 6000'12000 | ||||||
design pressure inside the tank | mpa | 0.006 | |||||||||||
design pressure of jacket | mpa | 0.3 | |||||||||||
01
Stainless Steel Material, One Year Warranty
02
Customized Models Available
03
Smooth Running Effect
1、Q: Is Changzhou Jumei drying equipment Co.,Ltd. a manufacturer , trading company or a third party?
A:We are a manufacturer and our company was foundedin 2013.
2、Q:Where is your factory?
A: Jumei is located in Changzhou City，Jiangsu Prov-ince,China, which is located in the Yangtze River Delta,the economic center of China.
3、Q:How can l get to your factory?
A: You can fly directly to Shanghai Pudong or HongqiaoInternational Airport,and then take the high-speed rail-way to Changzhou station (it's only one hour by train fromShanghai to Changzhou). We arrange to meet you atChangzhou station to our company. Our company isabout 30 kilometers away from Changzhou station.
If you are in China now, you can take a plane to Chang-zhou Benniu airport, or take a train or bus to Changzhoudirectly.
If you are in China now, you can take a plane to Chang-zhou Benniu airport, or take a train or bus to Changzhoudirectly.
We sincerely welcome you to visit our company at anytime.
