High precious benchtop manual smt PCB solder paste stencil printer/printing machine FP2636 support frameless stencil
Product Description

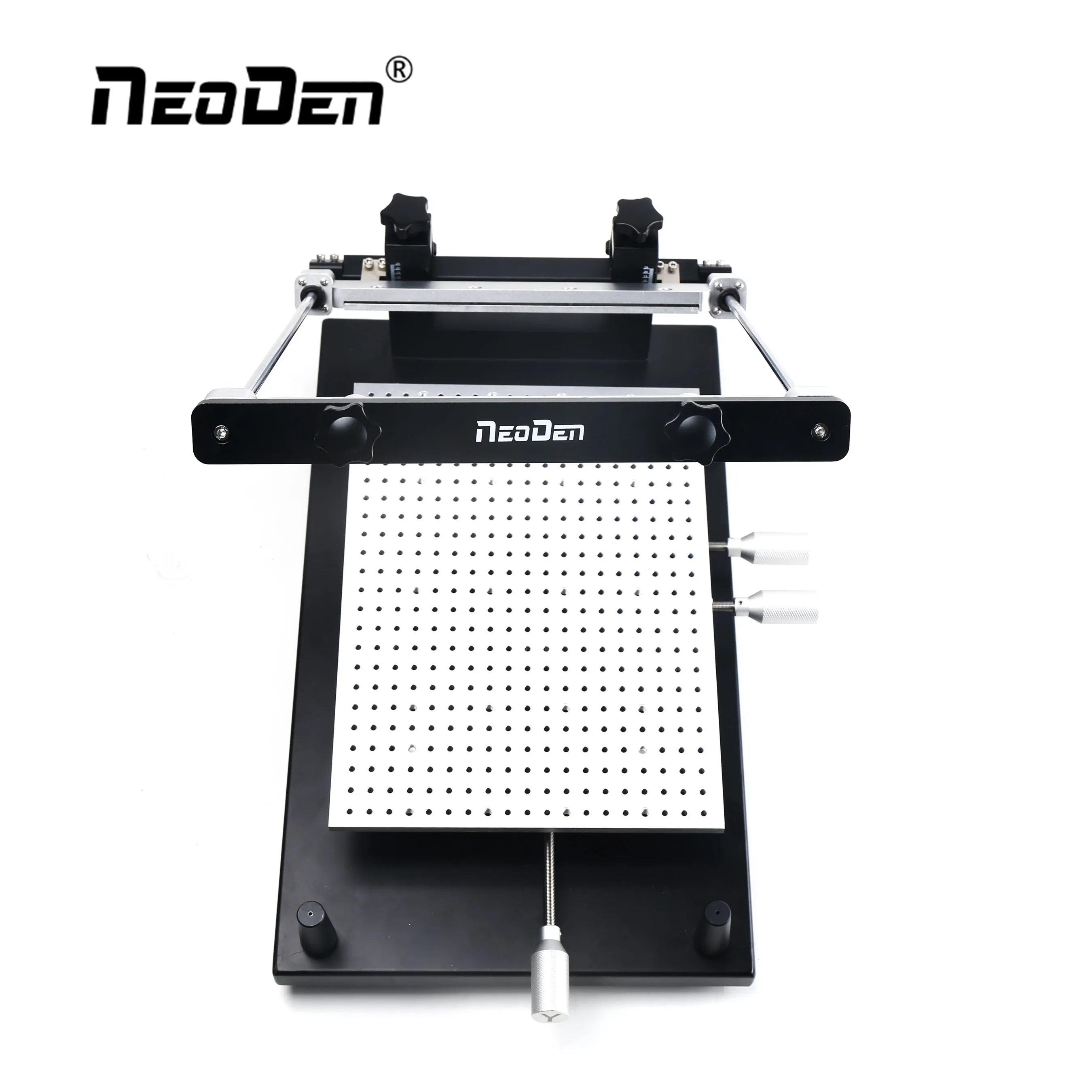

FP2636 is a high precision manual stencil solder printer for PCB board. It is small and easy to operate, affordable, which is
suitable for prototype and small scale electronics factory.
FP2636 frameless version supports frameless stencil, it is more convenient to print for prototyping.
suitable for prototype and small scale electronics factory.
FP2636 frameless version supports frameless stencil, it is more convenient to print for prototyping.
Features
1.T screw rod regulating handle, ensure adjustment accuracy and levelness of PCB fixed plane, minimum lead pitch achieved 1mm.
2.Adjustable rubber footing, ensure the flatness while operating.
3.Letter mark for each regulating handle, better and easier to operate.
4.Rulers of stencil fixed frame for reference lines, ensure the levelness between stencil and PCB.

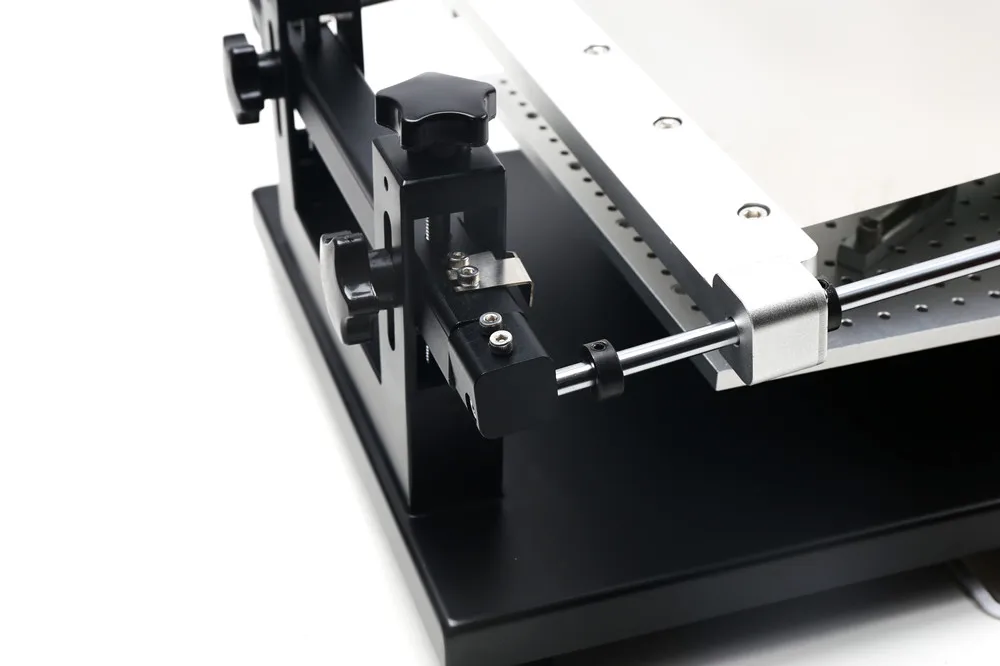

5.Straight damping shaft, ensure the stencil fixed frame can be fastened at random angles, to improve convenience while operating.

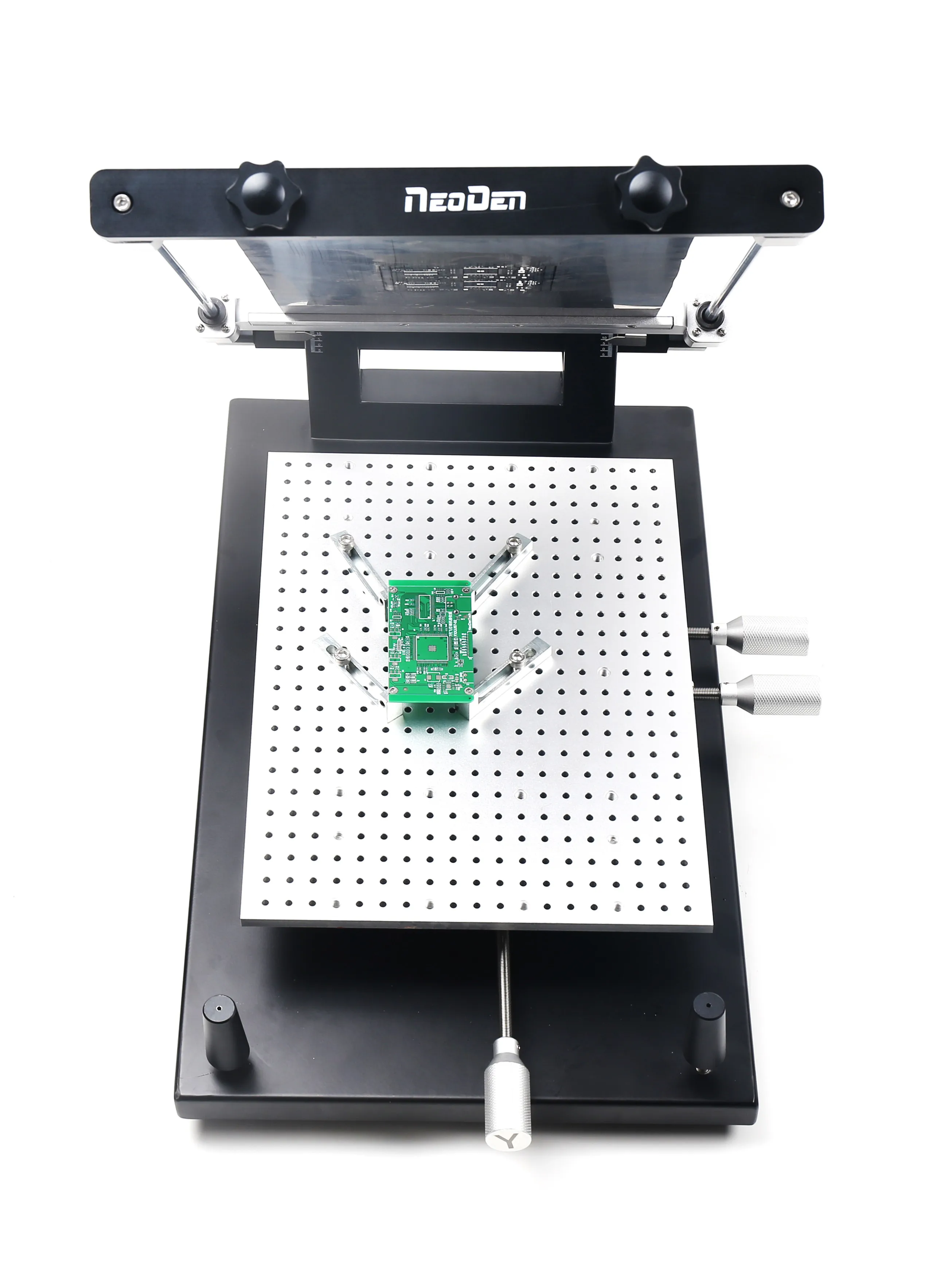

6.L supports and pins to fix PCB, applicable for multiple types of PCBs’ fixation and printing, more flexible and convenient.
7.The mechanical fixation frame for quick installation and replacement of frameless stencils, ensure high-efficiency but low-cost.
8.Support for single sided as well as double sided PCB.
2.Adjustable rubber footing, ensure the flatness while operating.
3.Letter mark for each regulating handle, better and easier to operate.
4.Rulers of stencil fixed frame for reference lines, ensure the levelness between stencil and PCB.
5.Straight damping shaft, ensure the stencil fixed frame can be fastened at random angles, to improve convenience while operating.
6.L supports and pins to fix PCB, applicable for multiple types of PCBs’ fixation and printing, more flexible and convenient.
7.The mechanical fixation frame for quick installation and replacement of frameless stencils, ensure high-efficiency but low-cost.
8.Support for single sided as well as double sided PCB.

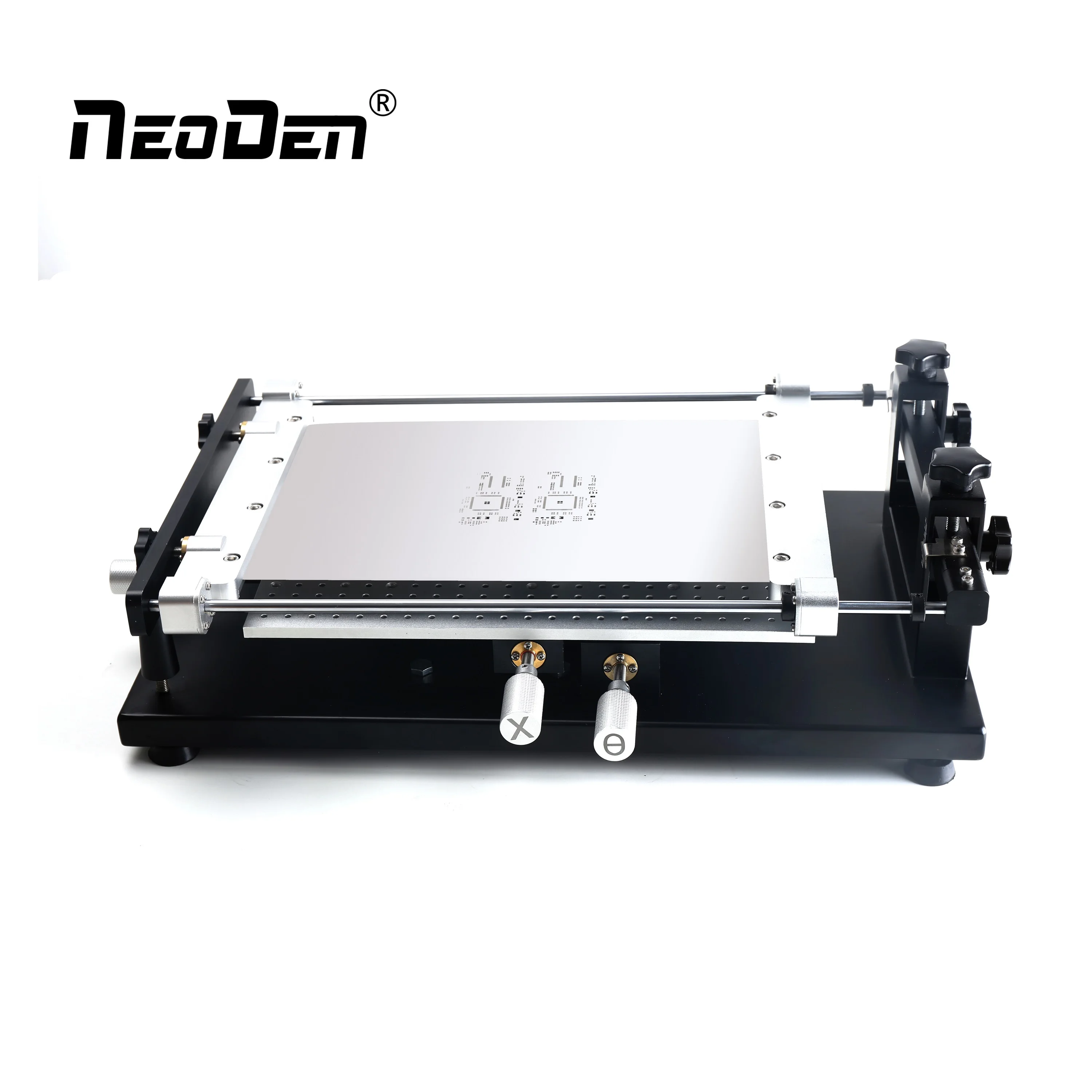

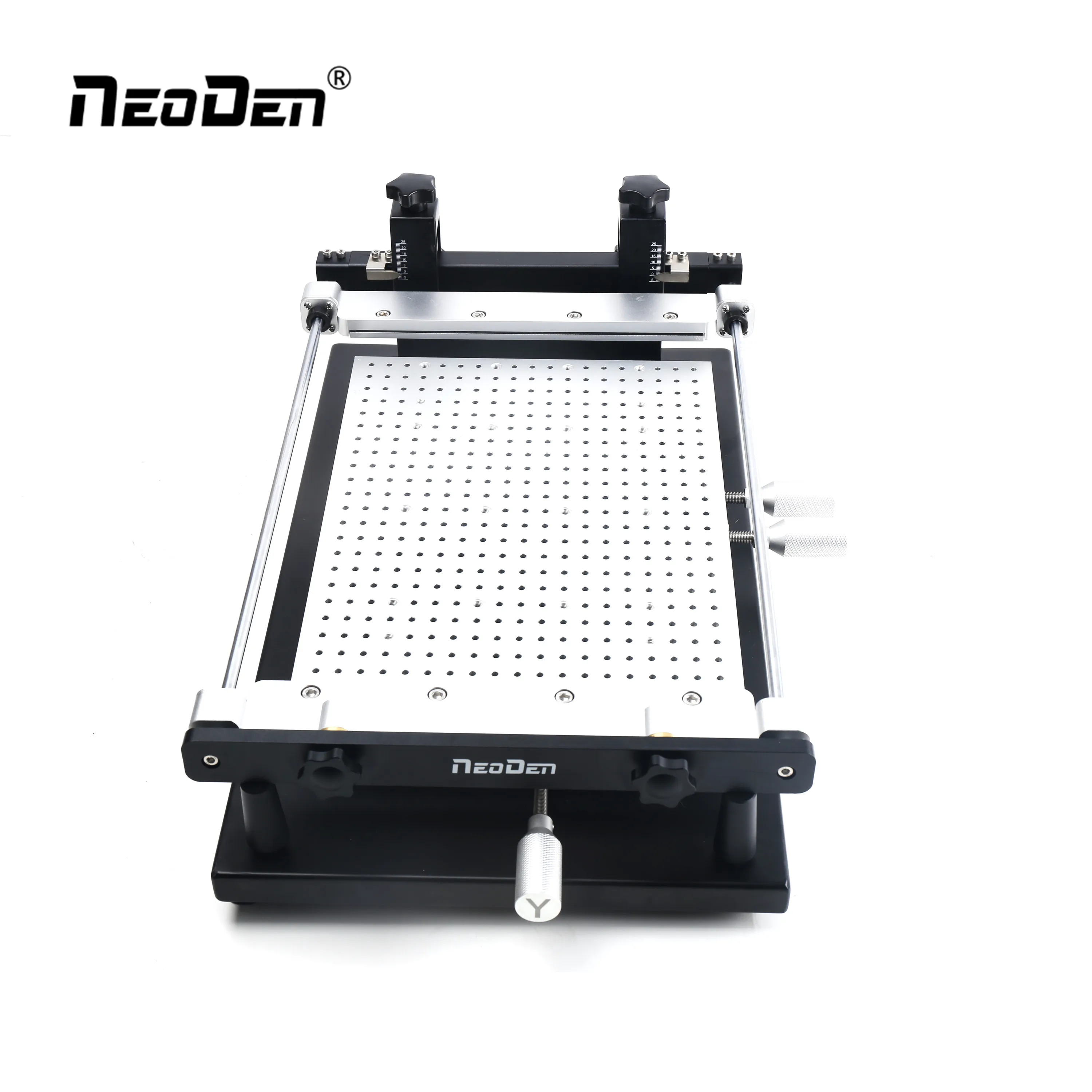

Detailed Pictures
Specification
Model | FP2636 Frameless Version | ||||||
Max PCB Size | 280*380mm | ||||||
Min PCB Size | 10*5mm | ||||||
Screen Stencil Size | 260*360mm | ||||||
Printing Speed | Labor Control | ||||||
PCB Thickness | 0~20mm | ||||||
Platform Height | 190mm | ||||||
Repeatability | ±0.01mm | ||||||
Max Rotation Angle | ±15° | ||||||
Positioning Mode | Outside/Reference Hole | ||||||
Fine Adjustment Range | Z-axis: ±15mm; X-axis: ±15mm; Y-axis: ±15mm | ||||||
Positioning Pin Size | 1mm/1.5mm/2.0mm/2.5mm/3mm | ||||||
Dimensions | 710×500×270mm | ||||||
Net Weight | 12kg | ||||||
Gross Weight | 14kg | ||||||

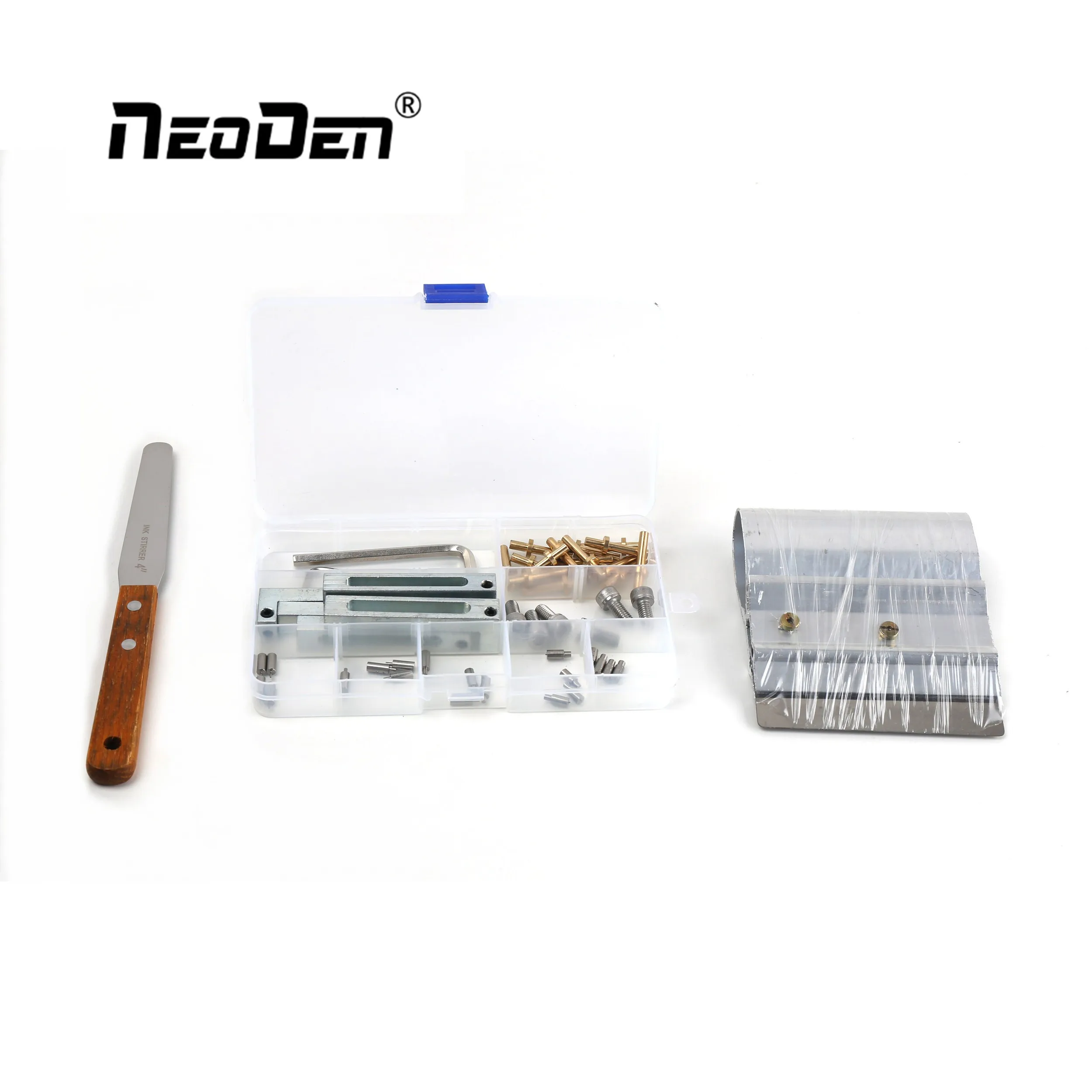

Unpacking Instruction
User Instruction
Printing Process Instruction
