Электрический Литья В нагревательной плиты алюминиевого литья под давлением подогреватель пусковой площадки с отверстиями для тепла прессы
- Категория: Heating Equipment >>>
- Поставщик: Topright,Industrial,Technology,Yancheng,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 21.33 $* | 22.22 $* |
| Aug-17-2025 | 21.47 $* | 22.26 $* |
| Jul-17-2025 | 18.83 $* | 19.26 $* |
| Jun-17-2025 | 21.84 $* | 22.20 $* |
| May-17-2025 | 18.30 $* | 19.57 $* |
| Apr-17-2025 | 21.10 $* | 22.44 $* |
| Mar-17-2025 | 20.5 $* | 21.4 $* |
| Feb-17-2025 | 20.64 $* | 21.83 $* |
| Jan-17-2025 | 20.37 $* | 21.98 $* |
Характеристики
Electric casting in hot plate aluminum die heater pad with holes for heat press machine
Product Categories
Product Description
The professional manufacturer of Cast-in heater
Cast-in heater is a tubular electric heating element for heating body, and bending molding, into the
mold with high quality metal alloy material for shell in centrifugal cast into various shapes, a round, flat, rectangular,
air-cooled, water-cooled and other special-shaped etc..
Features and Applications:
1.cast aluminum surface power density 2.5-4.5w / cm2, maximum operating temperature 400-500 °C;
2.cast copper surface power density 3.5-5.0w / cm2, maximum operating temperature 600-700 °C;
3.cast iron surface power density 4.5-6.0w / cm2, maximum operating temperature 800-850 °C.
Widely used in Extrusion industries, Injection Moulding , Vaccum Forming Compression Moulding,, mold, cable machinery, alloy die-casting machine, pipeline, chemical, rubber, petroleum and other equipment.

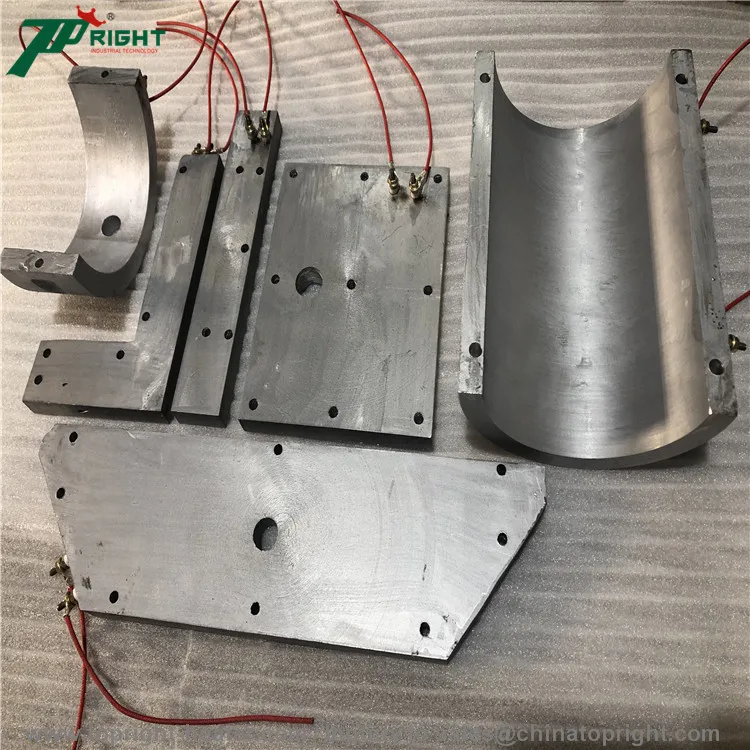

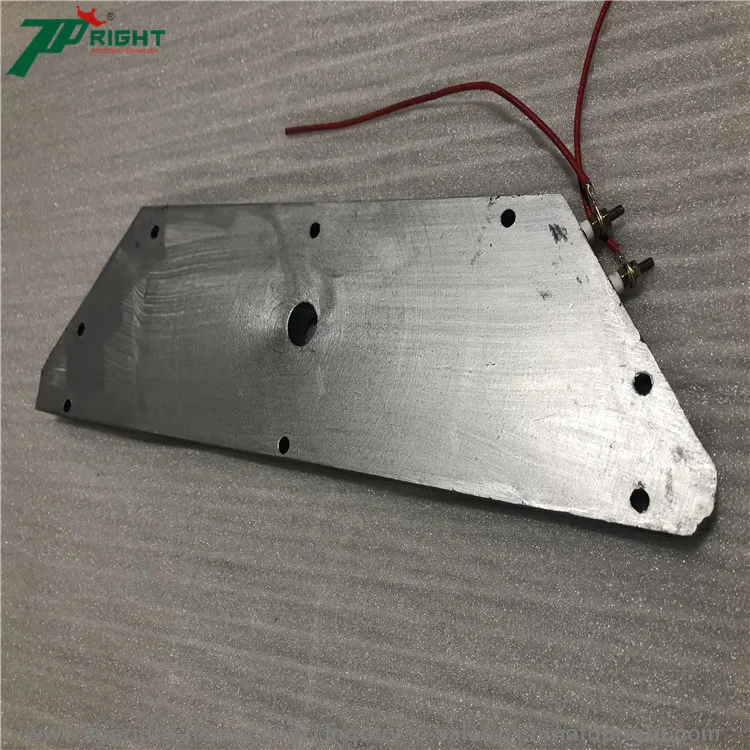

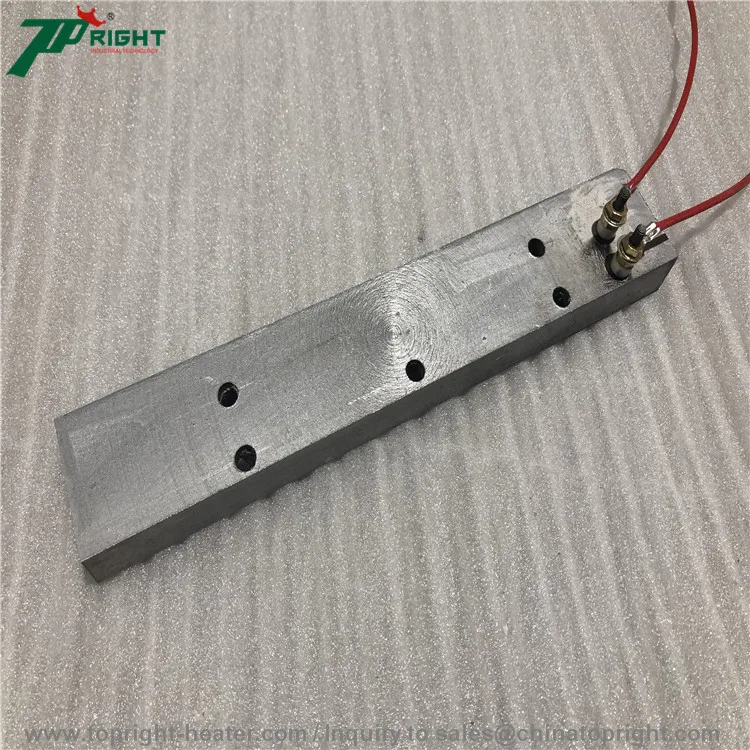

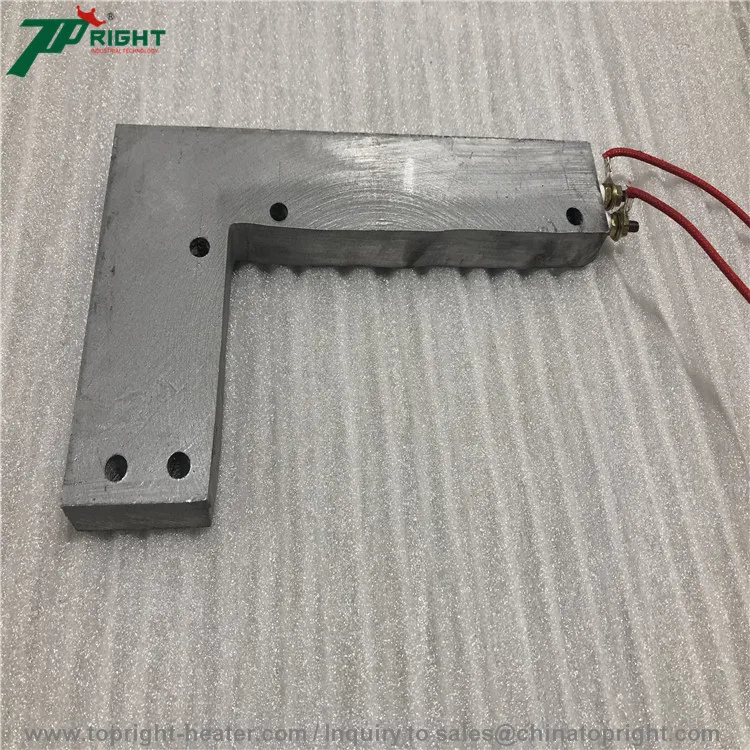

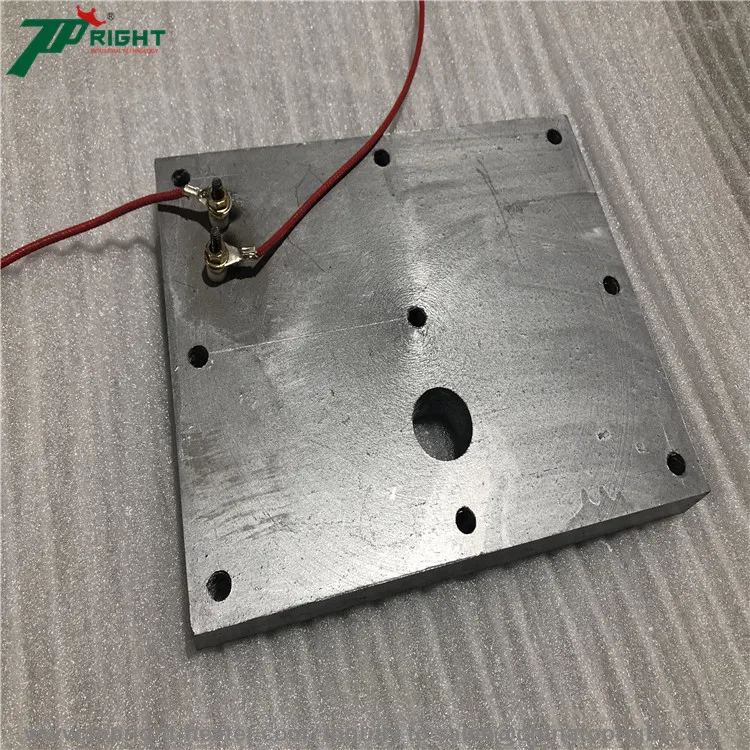

Detailed Images
Please specify the following when ordering.
1. The inner diameter (mm) and length (mm) of heaters
2. Thickness of heaters
3. Terminal length (max & min) and the distance of terminal length
4. The diameter, length of cooling tubes and the distance between them.
5. Voltage and power density
6. Gap of two pieces if applicable
7. Wiring type and position
8. Whether need air blowers
9. Content of the stamping if needed
10. Order quantity
* It’s better to provide us with the drawings/pictures
Others: position of terminal box, the position and size of the hole for connecting thermocouple OR of the incision, whether need to cast in the terminal
1. The inner diameter (mm) and length (mm) of heaters
2. Thickness of heaters
3. Terminal length (max & min) and the distance of terminal length
4. The diameter, length of cooling tubes and the distance between them.
5. Voltage and power density
6. Gap of two pieces if applicable
7. Wiring type and position
8. Whether need air blowers
9. Content of the stamping if needed
10. Order quantity
* It’s better to provide us with the drawings/pictures
Others: position of terminal box, the position and size of the hole for connecting thermocouple OR of the incision, whether need to cast in the terminal

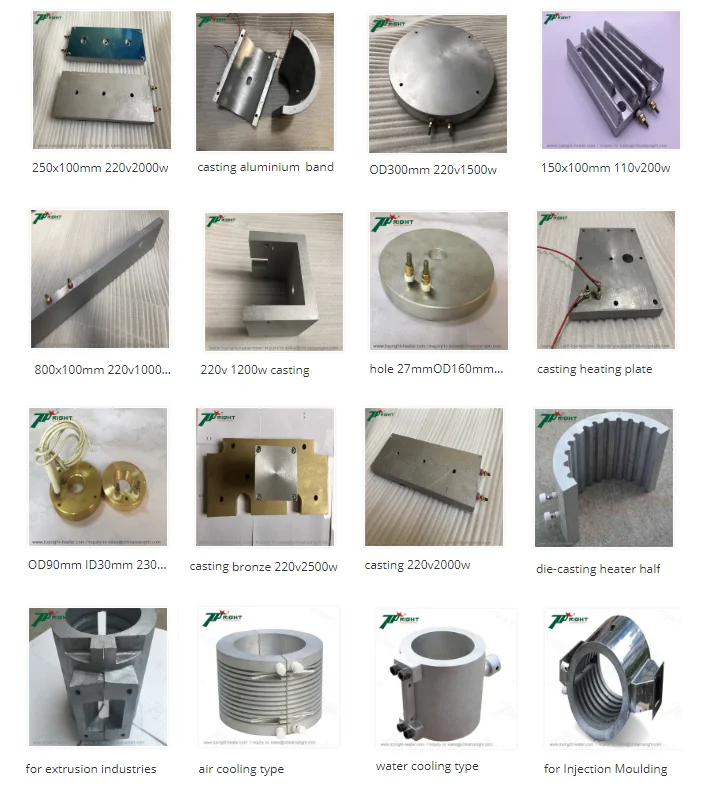

More Products
Certifications
Production
Our Company
Gold supplier of Electric Heating elements-Topright Industrial
Since 2001,Topright have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development.
More details pls link online store: www.chinatopright.com.
WEB:www.topright-heater.com
In Exhibition
Topright's products have been exported to Europe, America, Asia,Mid East etc. more than 90 countries. We supply different heating element for example silicone rubber heater, kapton heater, band heater, cartridge heater, tubular heater and ect.
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart". Topright people always attach great importance to quality controlling from the very beginning to the very end.
