1 2 3 тонны подъемный Электрический двигатель цепные подъемники бетонный кран 5 тонн
- Категория: Hoists >>>
- Поставщик: Henan,Tosta,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 595.64 $* | 625.23 $* |
| Aug-19-2025 | 590.85 $* | 620.95 $* |
| Jul-19-2025 | 495.21 $* | 520.95 $* |
| Jun-19-2025 | 580.31 $* | 609.95 $* |
| May-19-2025 | 505.78 $* | 530.12 $* |
| Apr-19-2025 | 570.12 $* | 599.89 $* |
| Mar-19-2025 | 565.35 $* | 593.10 $* |
| Feb-19-2025 | 560.33 $* | 588.57 $* |
| Jan-19-2025 | 555.28 $* | 583.30 $* |
Характеристики
Products Description

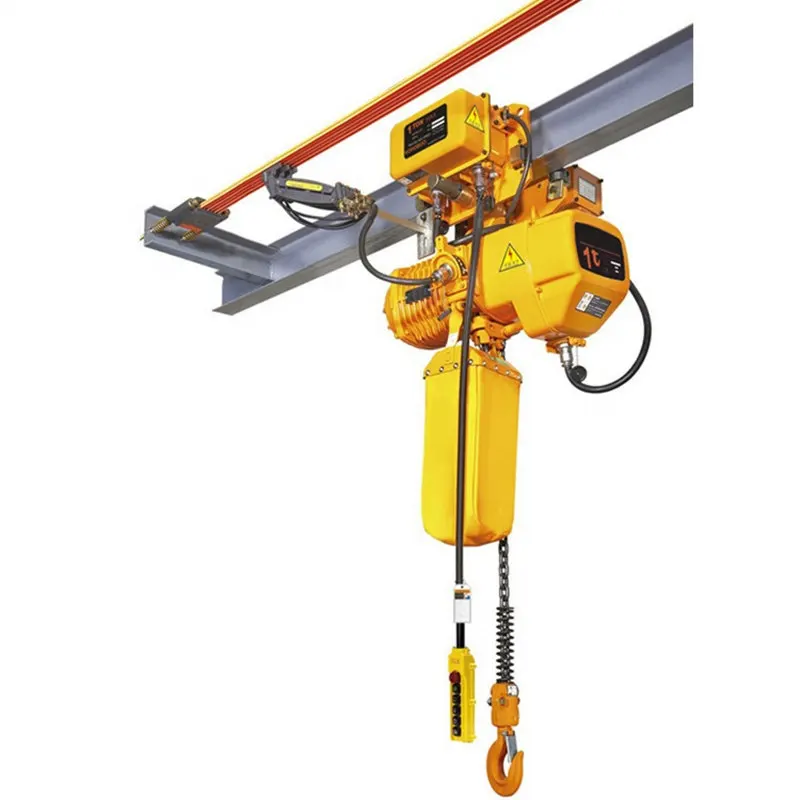

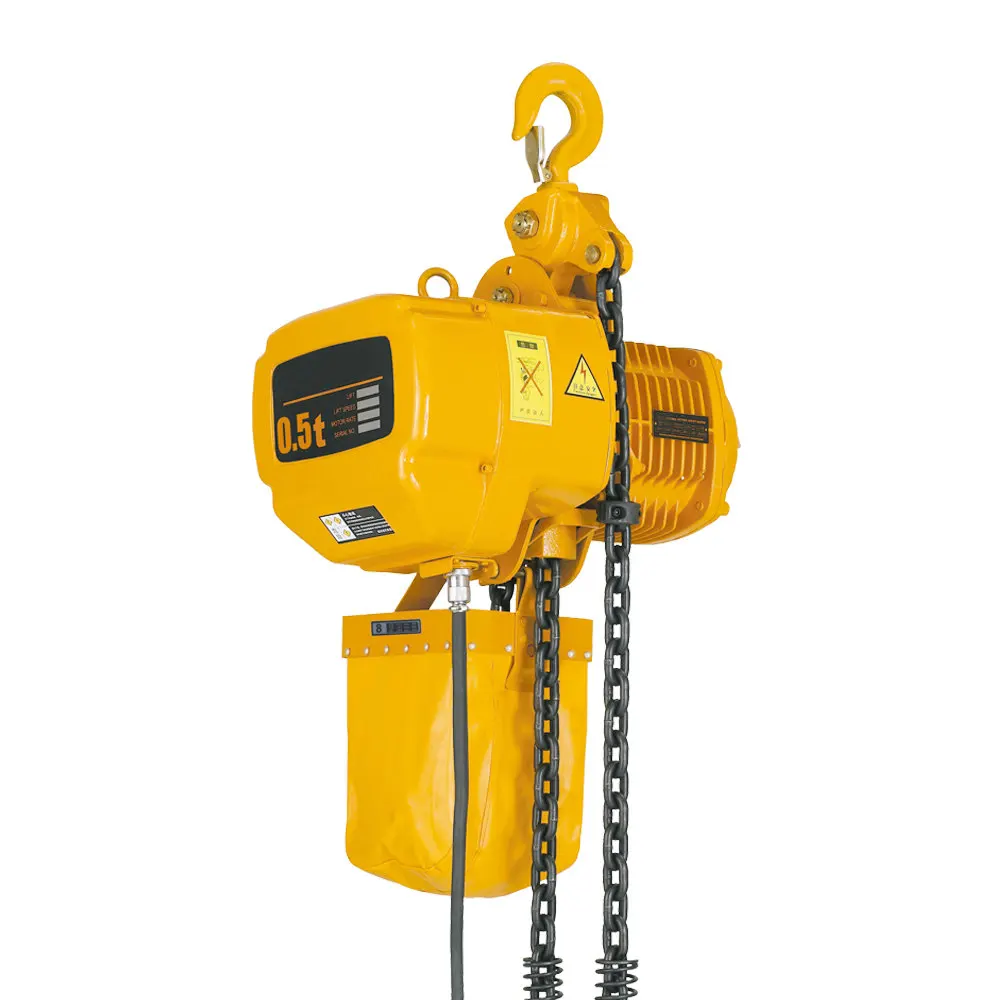

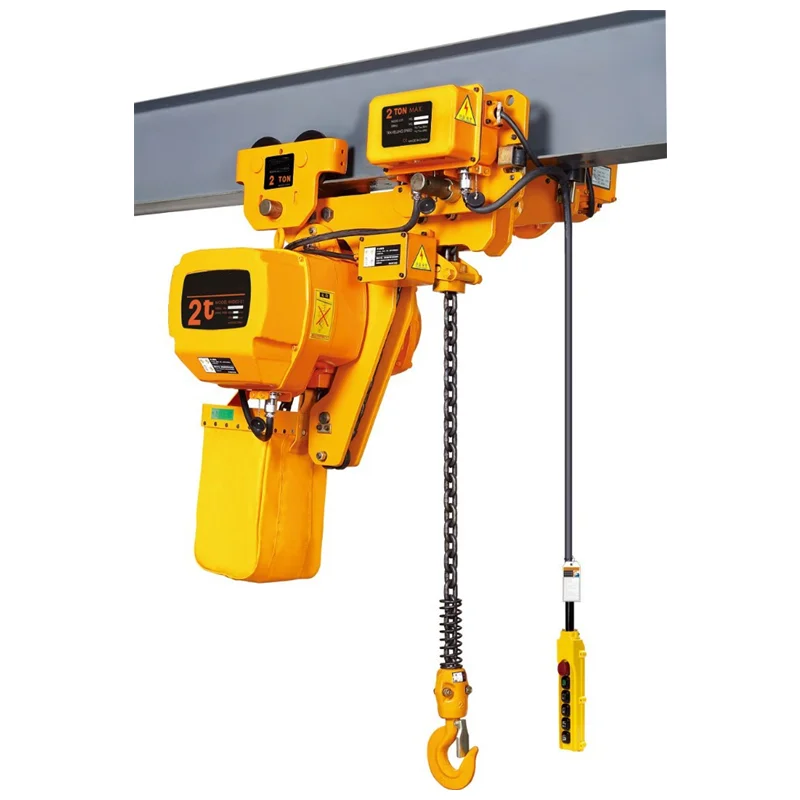

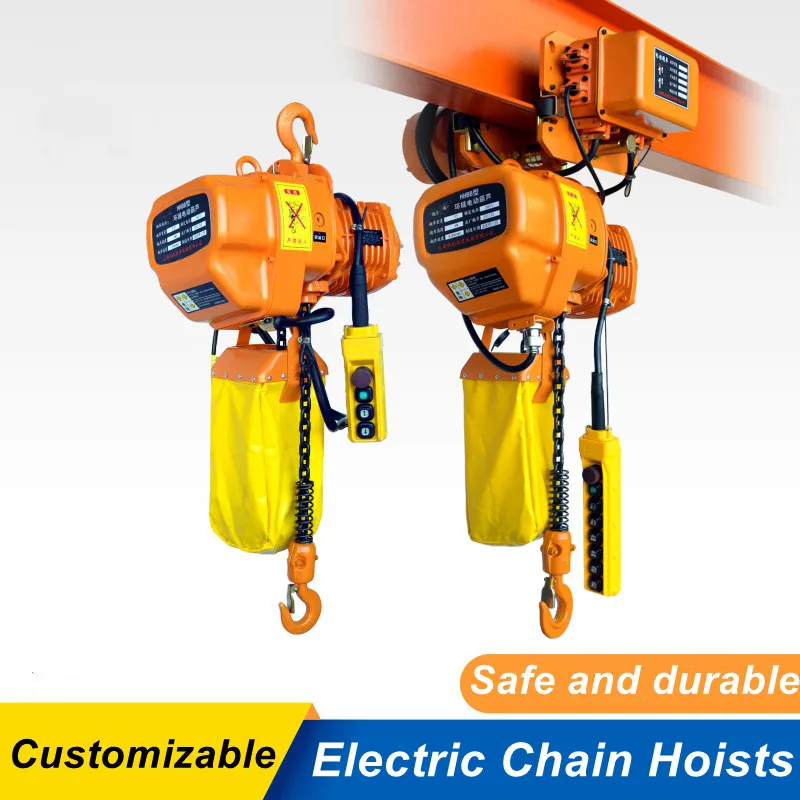

Electric Chain Hoist
Electric chain hoist is a small light lifting equipment,widely usedto lift, loading and unloading, repair equipment, hoisting goods, install on a suspended I-steel, curve track, jib crane rail and fixed lifting hoisting heavy weights.Electric chain hoist can be classified into electric chain hoist with electric trolley,electric chain hosit with manual trolley, fixed type electric chain hoist,low headroom electric chain hoist.
Detail image
Motorized Trolley
Aluminum Alloy Shell
Side Magnetic Braking Device
1. Mechanical Brake.
2.Phase Sequency Protection.
3. Electromagnetic Contactor.
4. Transformer
Hook
Push Button
Application

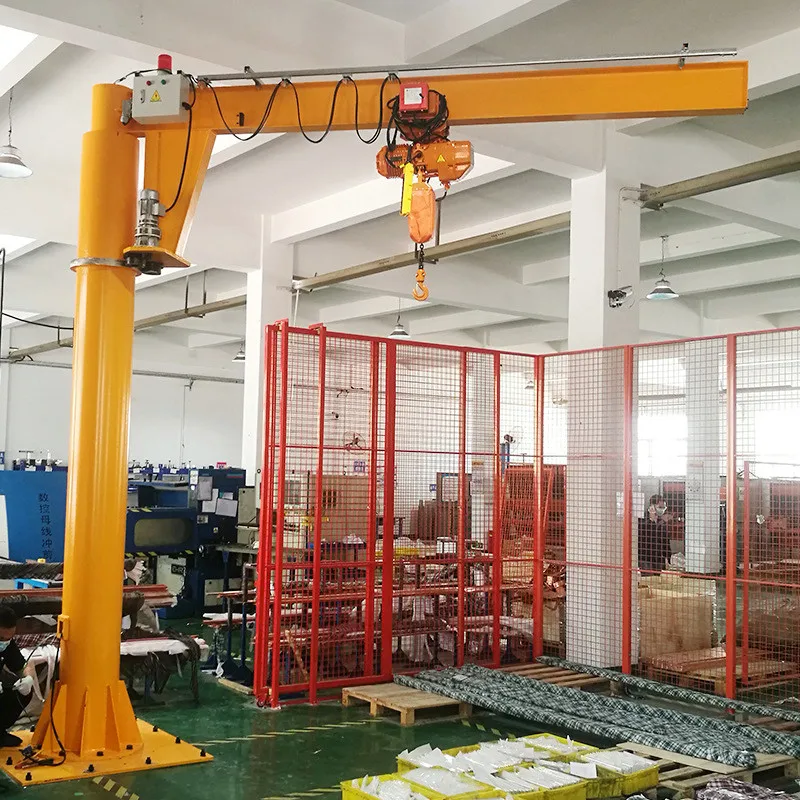

Electric chain hoist is applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces
Parameter
Product Parameters | ||||||||||||||
lift capacity(T) | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |||||||
Testing loading(T) | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn | |||||||
Motor power(kw) | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0*2 | 3.0*2 | |||||||
Lift speed(m/min) | 6.6 | 8.8 | 6.6 | 5.4 | 2.7 | 2.7 | 1.4 | |||||||
Lift chain quantity | 1 | 1 | 1 | 1 | 2 | 4 | 8 | |||||||
Chain diameter(mm) | 7.1 | 10.0 | 10.0 | 11.2 | 11.2 | 11.2 | 11.2 | |||||||
Net weight(kg) | 61 | 108 | 115 | 122 | 151 | 300 | 480 | |||||||
lift 1 more meter increase weight(kg) | 1.1 | 2.3 | 2.3 | 2.8 | 5.6 | 8.4 | 22 | |||||||
Min. Distance between hooks H(mm) | 650 | 800 | 800 | 845 | 1030 | 1400 | 1470 | |||||||
Related Products
Product packaging
1. Hoist parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Transport ways are based on reducing costs & keep safety.
2. Transport ways are based on reducing costs & keep safety.
Why Choose Us
Main Products
FAQ
Q: Can you provide custom service?
A: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Q: Are there professional technicians to assist in the installation?
A: Yes. We have a professional installation team and have been to many countries to assist in installation. If you need us to provide this service, please let us know in advance and we will provide you with the best solution.
Q: Do you provide accessories?
A: Yes, as a manufacturer, we can provide all related accessories.
Q: How do you guarantee the quality?
A: We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate.
Q: How long is your delivery time?
A: Within 10/25/40 days after receiving your advance payment; the specific time limit is subject to the specific requirements and actual time limit.
Q: How long is your warranty period?
Q: How long is your warranty period?
A: 12 months.
Q: How do you pack?
A: The main body is in a plywood box or plastic woven cloth; the accessories are in the plywood box.
