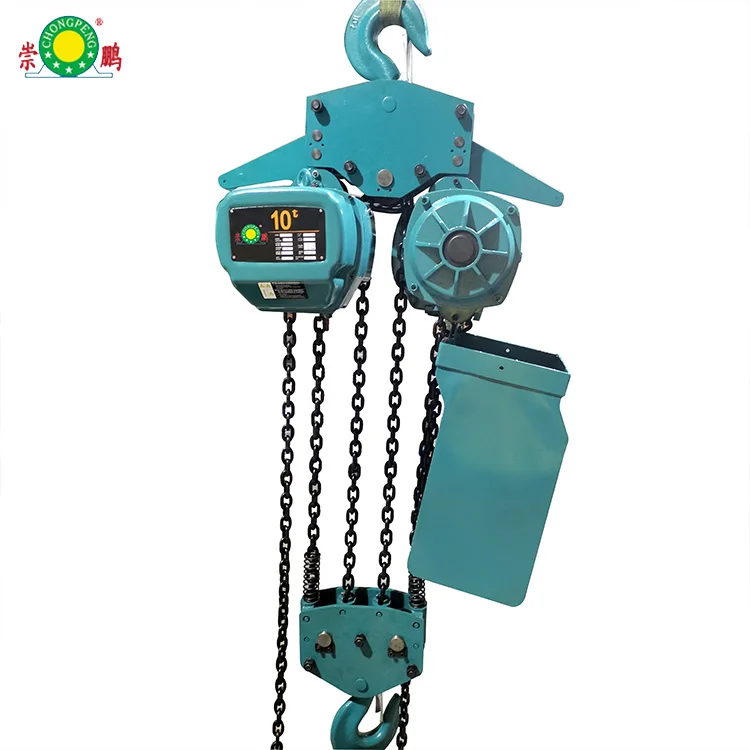

Standard low noise rail mounted type suspended lifting variable speed electric chain hoists
Product Description
Electric chain hoist has high working level, good safety performance, high reliability and low failure rate. The chain of electric chain hoist runs in sprockets, which is not easy to fall off or jump jobs, and is more stable in use. Generally speaking, the electric chain hoist can be divided into four types: fixed type,electric trolley type,manual trolley type, low-headroom electric chain hoist.
Charactoristics:Small volume,Light weight,High strength,Large braking torque,Smooth,Low noise.
Electric chain hoist characteristics:
1. Aluminum alloy shell , light but hard .
2.Single speed or dual speed as your required.
3. G80 load chain, can be used in poor invironment .
4. Hook: be hot forged with perfect strength , hard to break .
5.Push button, remote control with high quality.
6.Electric chain hoist can be equipped with rain cover , travel limiter , overload limiter.
7.Three phase electric chain hoist : voltage from 220V -690V , 50/60HZ , 3 phase.
click me! Learn more product details.
Technical Parameter
| lift capacity(T) | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| Testing loading(T) | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn |
| Motor power(kw) | 1.5 | 3 | 3 | 3 | 3 | 3.0*2 | 3.0*2 |
| Lift speed(m/min) | 6.6 | 8.8 | 6.6 | 5.4 | 2.7 | 2.7 | 1.4 |
| Lift chain quantity | 1 | 1 | 1 | 1 | 2 | 4 | 8 |
| Chain diameter(mm) | 7.1 | 10 | 10 | 11.2 | 11.2 | 11.2 | 11.2 |
| Net weight(kg) | 61 | 108 | 115 | 122 | 151 | 300 | 480 |
| lift 1 more meter increase weight(kg) | 1.1 | 2.3 | 2.3 | 2.8 | 5.6 | 8.4 | 22 |
| Min. Distance between hooks H(mm) | 650 | 800 | 800 | 845 | 1030 | 1400 | 1470 |
Different types of chain hoist:
| Manual trolley type |  | There is a manual trolley on the top, the operater can move the trolley by hands.
Loading capacity: 0.5~10KN
Click here for more information |

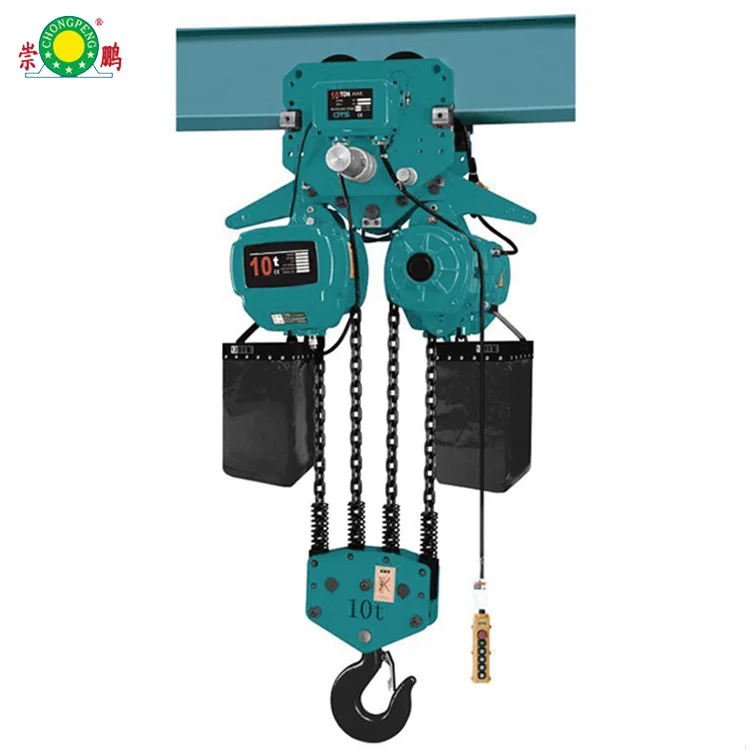

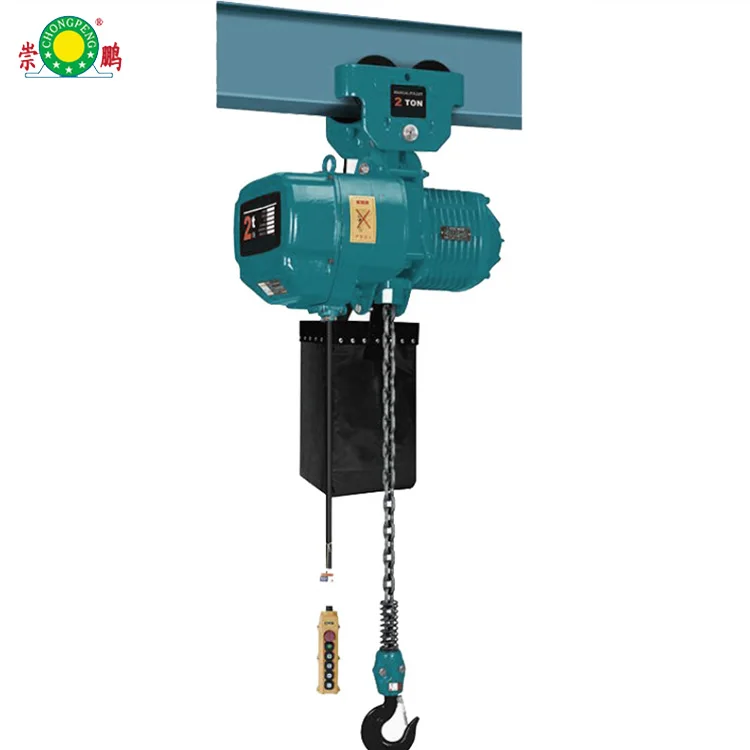

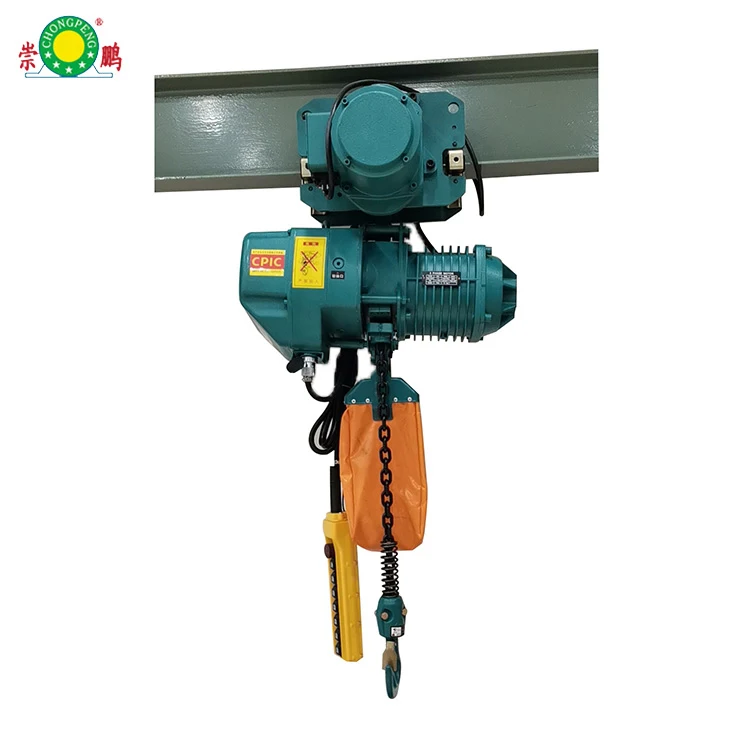

| Electric trolley type |  | The lifting and traveling mechanism are all electric.Moving them by control handle.
Loading capacity: 0.5~10KN Power supply: 200v~600v 3Phases 50Hz~60Hz
Click here for more information |

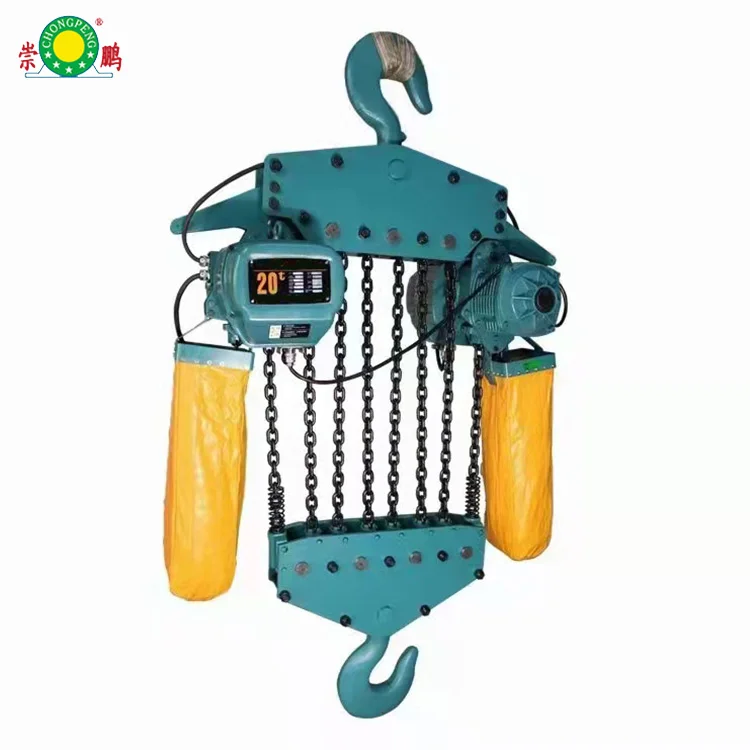

| Electric trolley type |  | The maximum standard load can reach 20T. More than 20T can also be specially made
Loading capacity: 0.5~20KN Power supply: 200v~600v 3Phases 50Hz~60Hz
Click here for more information |
| Low-headroom type |  | The low-headroom electric chain hoist are desiqned for those applications where space, is limited.
Loading capacity: 0.5~20KN Power supply: 200v~600v 3Phases 50Hz~60Hz
Click here for more information |
If you need customization, Please contact us
Application
Production Proces
Certifications
Company Information
Henan Chongpeng Machinery Co., Ltd.
Henan Chongpeng Machinery Co., Ltd. mainly engaged in the research and development, design, manufacturing, installation, import and export business of various non-standard winches,kinds of industrial cranes and hoists.
To provide innovative, intelligent, green and environmentally friendly systemic complete equipment solutions as the starting point, take responsibility for the society, create profits for customers.
Main Products
Packaging & Shipping
1.We can discuss details and solutions with you according to your needs, and produce high-quality products suitable for you.
2.The company has professional business staff to answer your questions online 24 hours a day.
3.Perfect after-sales service, solve problems for you in time
4.have a dedicated engineer to provide you with overseas guidance installation services.
1. Q: What’s your MOQ?
A: 1 Set;
2. Q: What’s your delivery period?
A: Within 20-25 days after your prepayment received;
3. Q: What’s your warranty period?
A: 12 months;
4. Q: Do you have engineer oversea installation service?
A: Yes; We have;
5. Q: What kinds of products do you have?
A: General Industrial material handing equipment,such as : Overhead Crane; Gantry Crane;Jib Crane; Electric Hoist; etc.
