32A Тип 2 для типа EV зарядный кабель автомобильной электроники автомобильное зарядное устройство 5
- Категория: New Energy Vehicle Parts & Accessories >>>
- Поставщик: Foshan,Dagreen,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 109.83 $* | 114.28 $* |
| Aug-19-2025 | 109.83 $* | 114.21 $* |
| Jul-19-2025 | 91.99 $* | 96.14 $* |
| Jun-19-2025 | 107.65 $* | 112.70 $* |
| May-19-2025 | 93.27 $* | 98.36 $* |
| Apr-19-2025 | 105.5 $* | 110.10 $* |
| Mar-19-2025 | 104.24 $* | 109.63 $* |
| Feb-19-2025 | 103.0 $* | 108.49 $* |
| Jan-19-2025 | 102.39 $* | 107.66 $* |
Характеристики

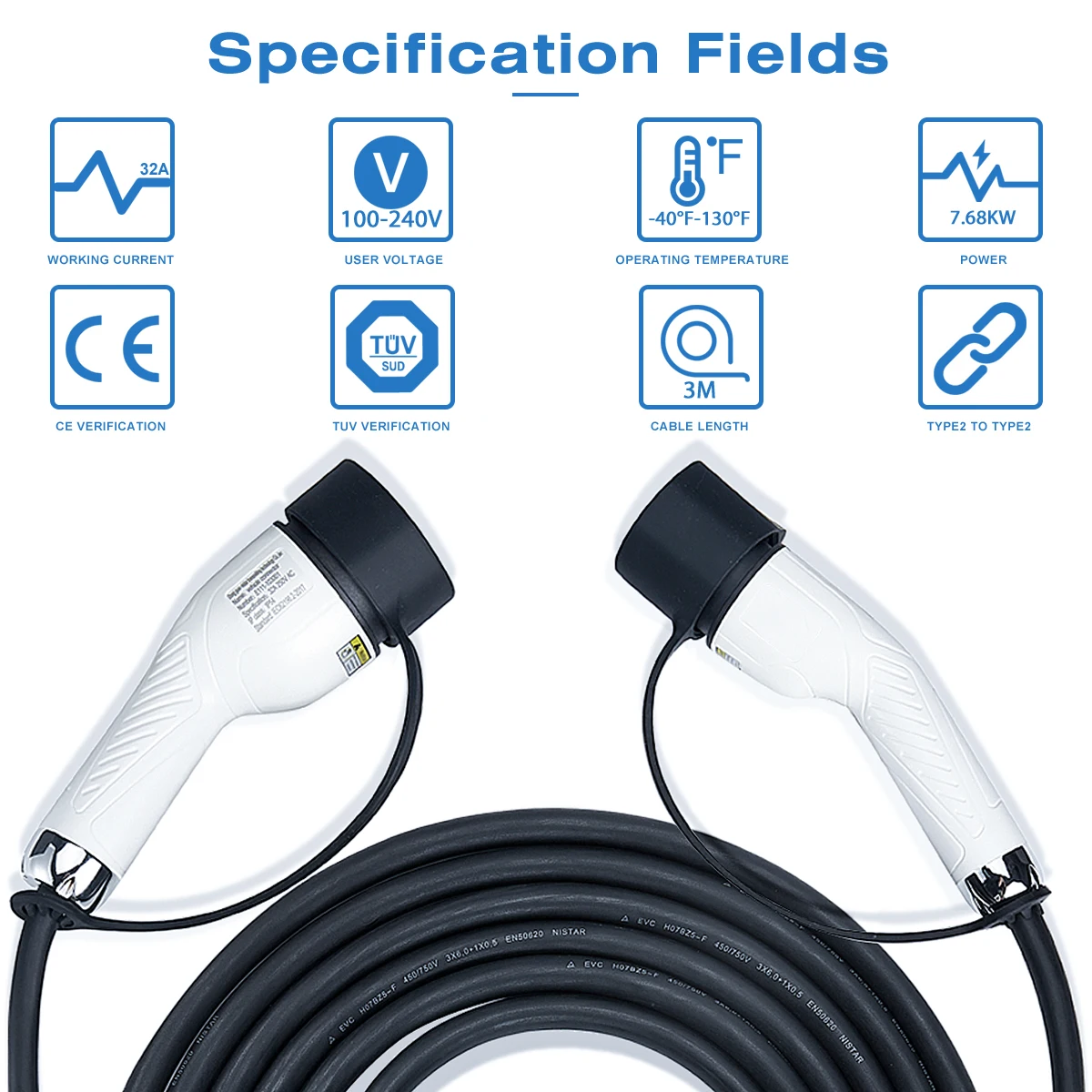

Product Description
Type 2 Rated Current | 32A | Type 2 Rated Current | 32A |
Cable | 1Phase Charging Cable | Operating Voltage | 240VAC |
Insulation Resistance | > 1000M Ω | IP Grade | IP65 |
Therminal Temperature Rise | <50K | Cable Length | 5M |
Withstand Voltage | 2000V | Mechanical Life | >10000times |
Operating Temperature | -30°C ~+ 50°C | Certificates | CE, TUV approved |

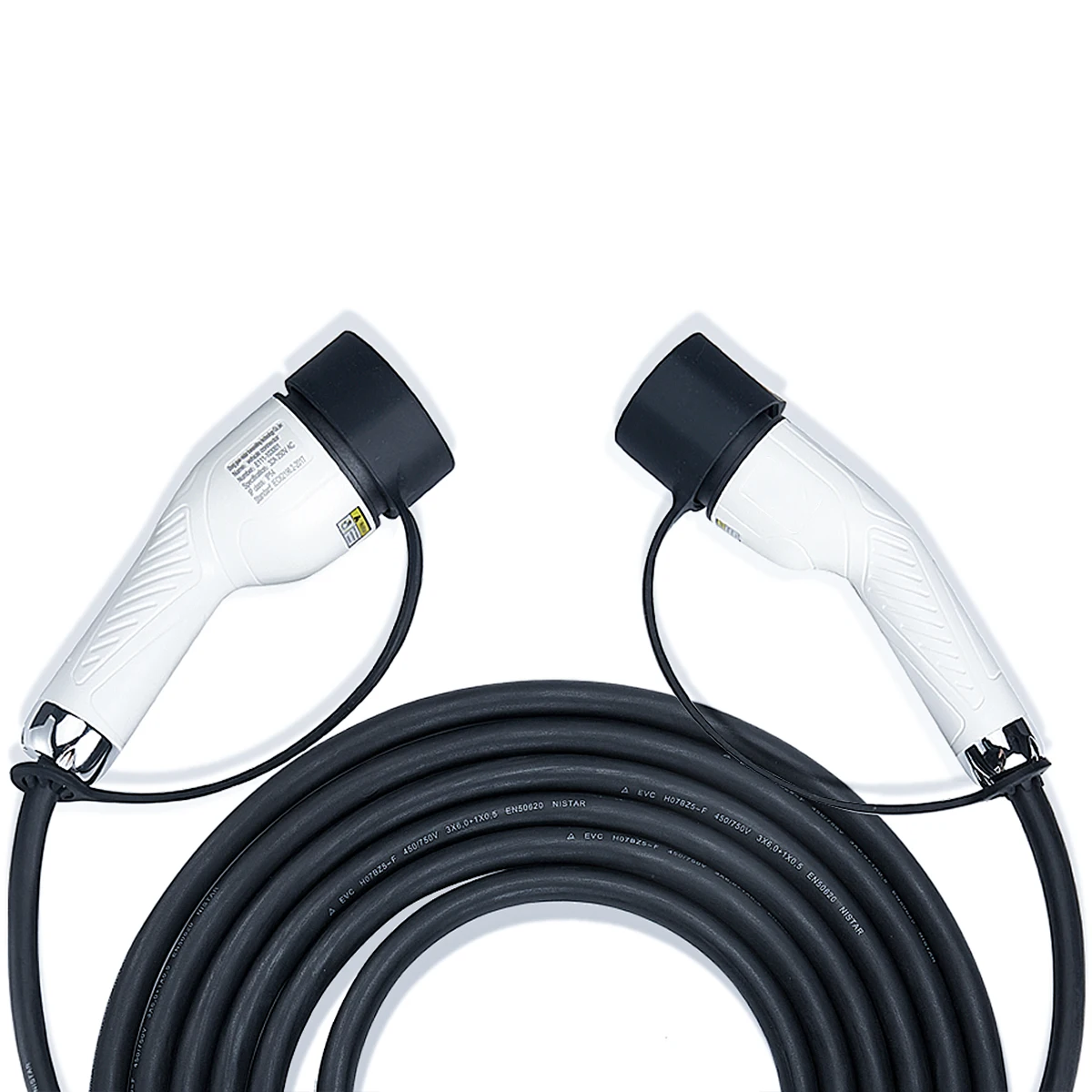

Product Name | 32A Type 2 to Type 2 EV charger cable |

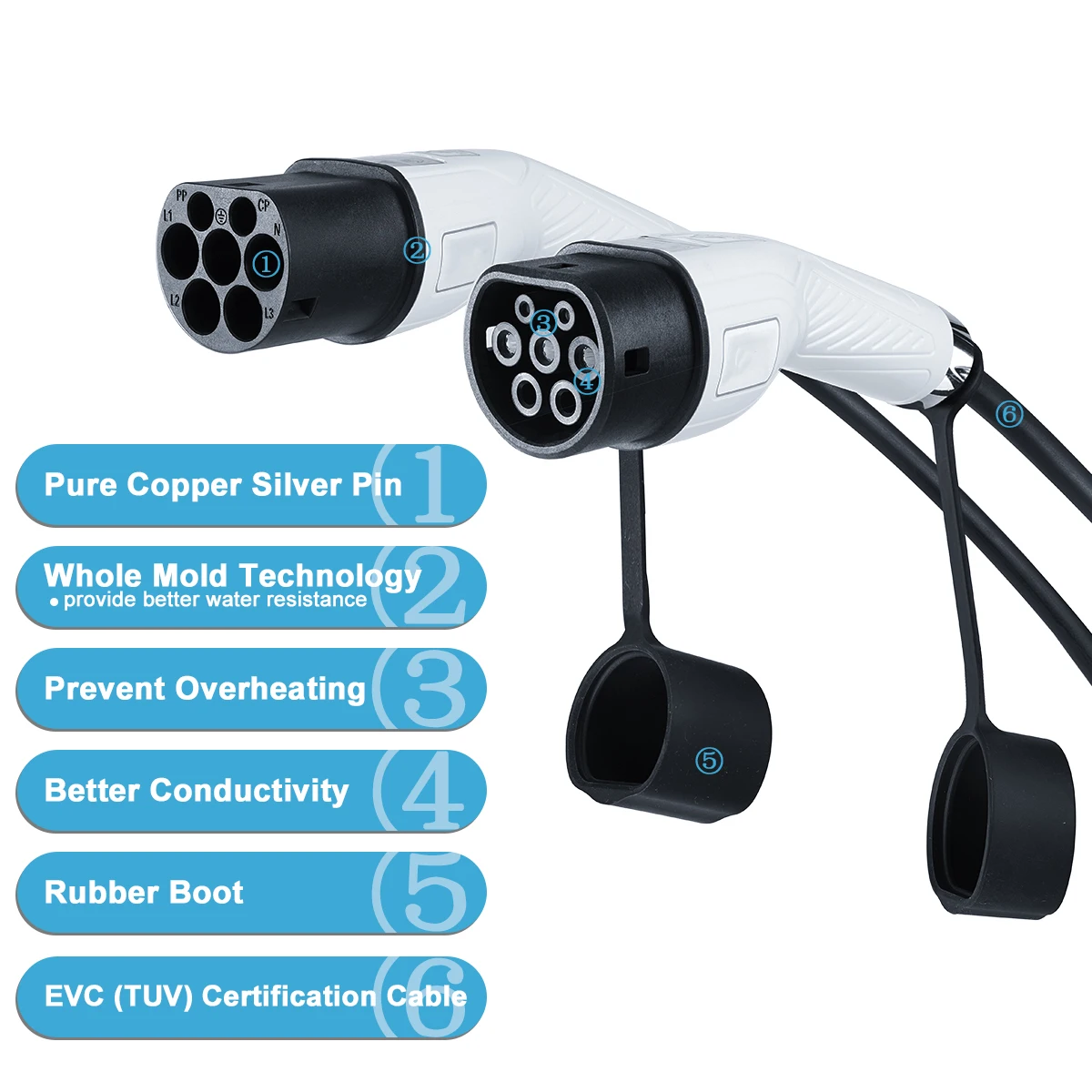

Material | Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO) Contact Pin: Copper alloy, silver or nickel plating Sealing gasket: rubber or silicon rubber |
Function | Portable Mode 2 Type 2/Type 2 electric car charging Cable IEC 62196-2(Mennekes,Type 2) EU European Standard IEC 62752:2016 IC-CPD EVSE Charging Standard |

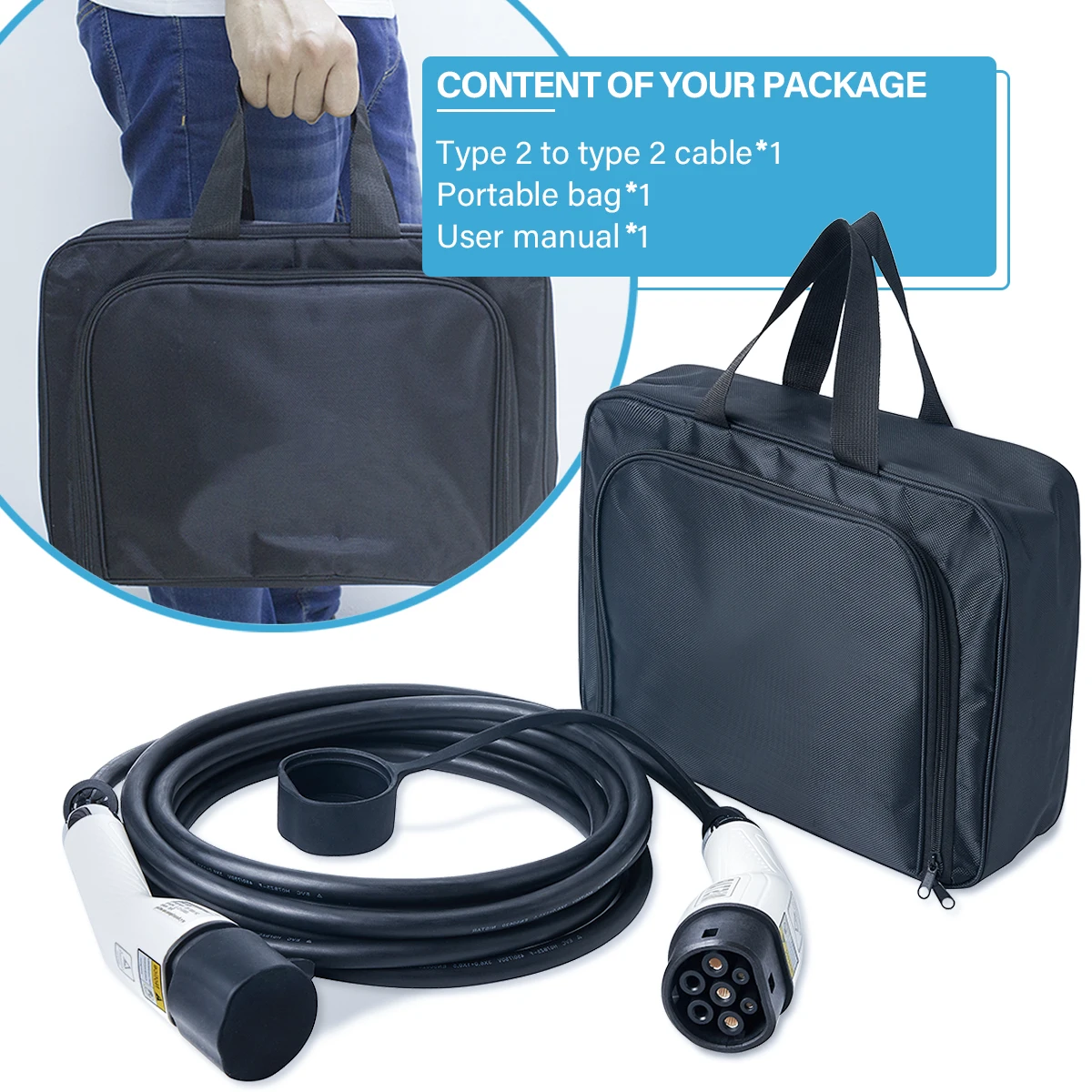

Package | 1* EV Charging Cable 1* User Manual 1* Portable Case |
Product Usage
How to use
1.Take out EV Charger Cable
2.Plug into Charging Station outlet3.Plug into Car Charging
4.Straight Cable Charging Port
Note :
Please select a suitable charging current in the charging gun ,the current can't be switched durine the charging process
After the charging olue (car end ) disconnected from the vehicle Pull out the connection plue to prevent others from touch
Please select a suitable charging current in the charging gun ,the current can't be switched durine the charging process
After the charging olue (car end ) disconnected from the vehicle Pull out the connection plue to prevent others from touch
