Строительных работ использования 3 тонны 5 тонн компакт-дисков модель электрическая лебедка с
- Категория: >>>
- Поставщик: Henan,Finework,Cranes,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.35 $* | 0.44 $* |
| Aug-16-2025 | 0.13 $* | 0.32 $* |
| Jul-16-2025 | 0.77 $* | 0.16 $* |
| Jun-16-2025 | 0.67 $* | 0.31 $* |
| May-16-2025 | 0.47 $* | 0.58 $* |
| Apr-16-2025 | 0.22 $* | 0.23 $* |
| Mar-16-2025 | 0.53 $* | 0.97 $* |
| Feb-16-2025 | 0.61 $* | 0.47 $* |
| Jan-16-2025 | 0.93 $* | 0.27 $* |
Характеристики

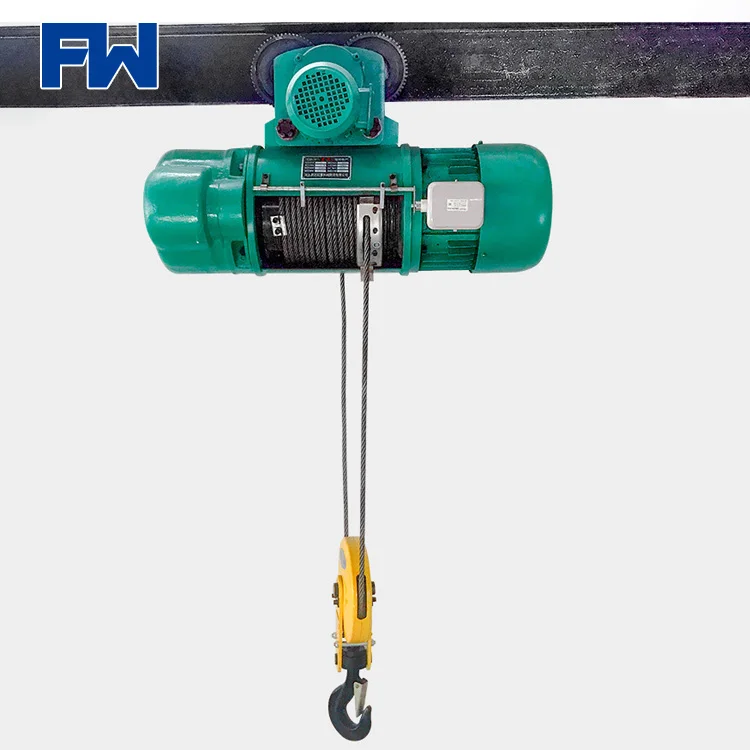

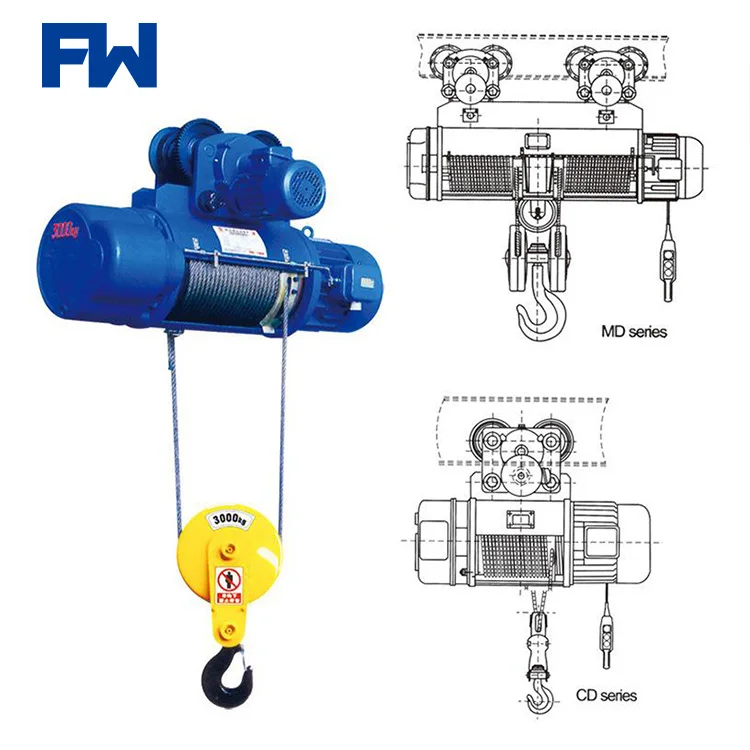

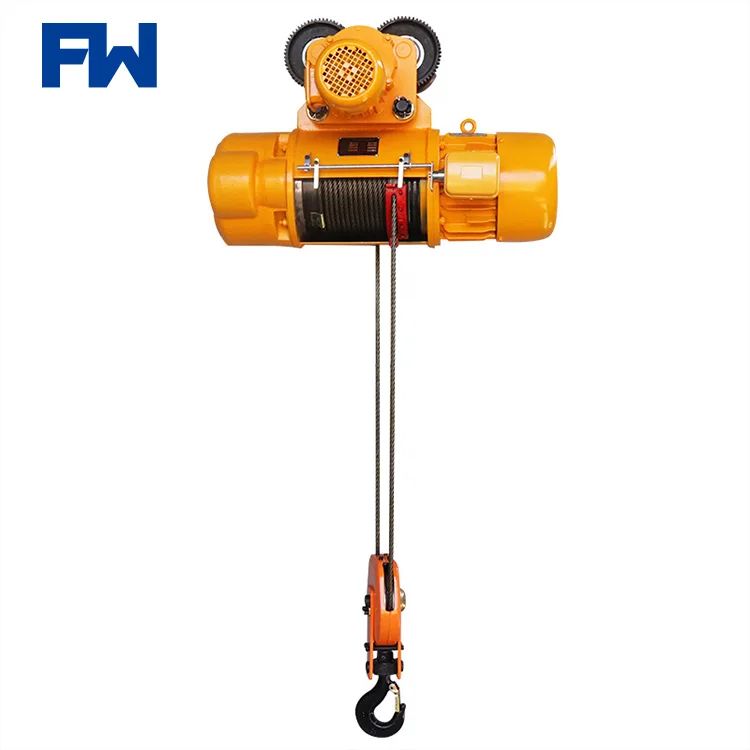

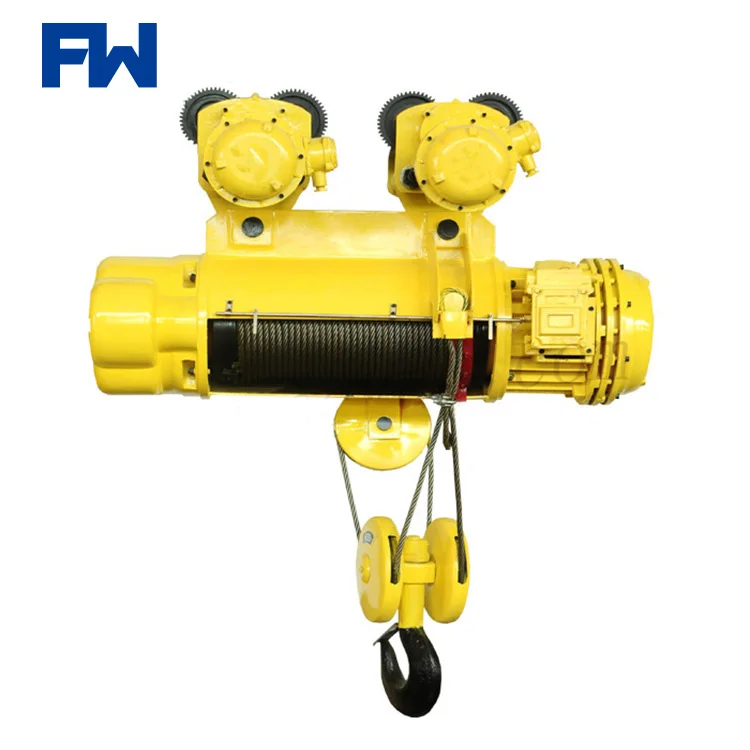

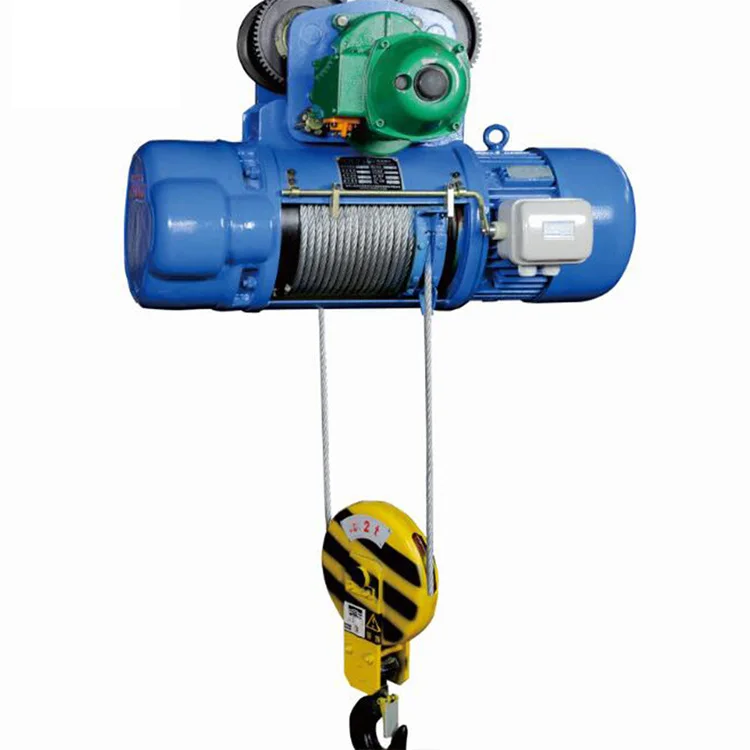

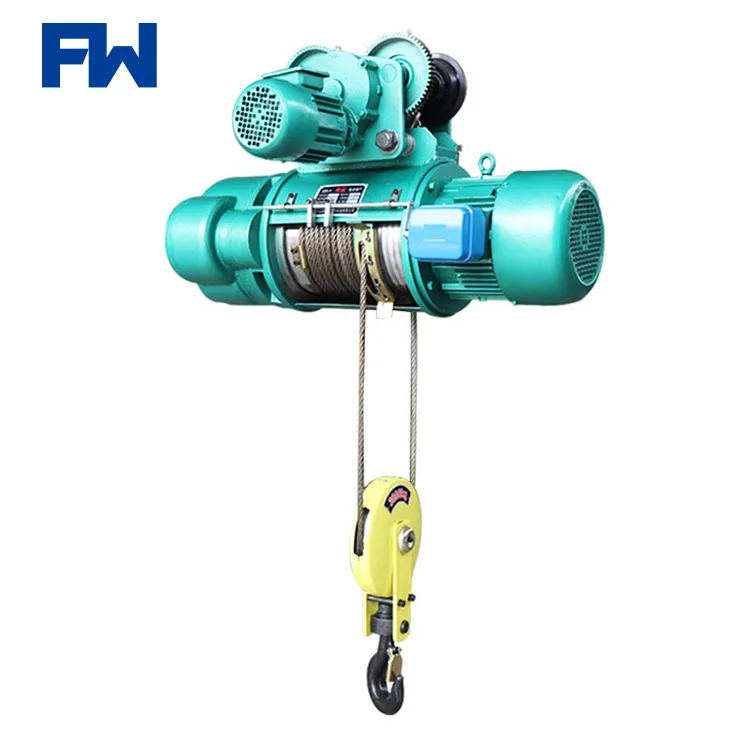

Construction works use 3 ton 5 ton CD model electric wire rope hoist
Product Description
Wire rope electric hoist is small-sized lifting equipment, which can be mounted on single beam, overhead, gantry and jib cranes, with slight modification; it can also be used as a winch. It is widely used in factories, warehoused, cargo store areas and shops. It is essential equipment in raising working efficiency and improving working conditions.
| Specification | Double Speed Electric Hoist | |||||||||
| Lifting Weight(t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 | |
| Hoisting height(m) | 3, 6, 9 | 3, 6, 9 | 6, 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 9, 12, 18 | 9, 12, 18 | |
| Hoistling speed(m/min) | 8 | 0.8/8 | 0.8/8 | 0.8/88 | 0.8/8 | 0.8/8 | 0.7/78 | 0.35/3.5 | 4 | |
| Travel speed(m/min) | 20 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20 | 20 | |
Steel wire rope | Dia(mm) | 3.6 | 4.8 | 7.7 | 11 | 13 | 15 | 15 | 17.5 | 19.5 |
| Specification | 6*19 | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | |
| Track | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32b-63c | 45b-63c | 56b-63c | |
| Type | ZD112-4 | ZD121-4 | ZD122-4 | ZD131-4 | ZD132-4 | ZD141-4 | ZD151-4 | ZD151-4 | ZD152-4 | |
| ZDS0.2/0.8 | ZDS0.2/1.5 | ZDS0.2/3.0 | ZDS0.2/4.5 | ZDS0.2/7.5 | ZDS0.2/13 | ZDS0.2/13 | ||||
Hoisting motor | Power(kw) | 0.4 | 0.8;0.2/0.8 | 1.5;0.2/1.5 | 3.0;0.4/3.0 | 4.5;0.4/4.5 | 7.5;0.8/7.5 | 13;1.5/13 | 13;1.5/13 | 18.5 |
Rotation speed (r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |
| Current(A) | 1.25 | 2.4,0.72/4.3 | 4.3,0.72/4.3 | 7.6,1.25/7.6 | 11,2.4/11 | 18,2.4/18 | 30,4.3/30 | 30,4.3/30 | 41.7 | |
| Type | ZDY110-4 | ZDY111-4 | ZDY111-4 | ZDY112-4 | ZDY112-4 | ZDY121-4 | ZDY121-4 | ZDY121-4 | ZDY121-4 | |
| Power(kw) | 0.06 | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8*2 | 0.8*2 | 0.8*2 | |
Travel motor | Rotation speed (r/min) | 1400 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Current(A) | 0.3 | 0.72 | 0.72 | 1.25 | 1.25 | 2.4 | 2.4 | 2.4 | 4.3 | |
| Power source | Three-phase AC 380V 50HZ | |||||||||
1.Design: International advanced tide compact and nice.
2.Reduce: High strength hard gear surface, inclined gear driving with low noise.
3.Motor: Inside fit plane brake, double winding pole changing control motor, incorporate with reducer, suit higher classification.
4.Wire Rope: The tensile strength is 1760N/mm2.
5.Limit Switch: Cam limit model operate safety.
Certifications
Packaging & Shipping
About Us
Henan FineWork Cranes Co.,Ltd is a professional manufacturer and service supplier of material handling equipment integrating R&D, design, manufacturing, marketing, installation and maintenance; it is also one of the most influential brand in Chinese crane industry.
Our products include EOT cranes, gantry crane, jib crane, electric hoist, and other types of cranes like explosion - proof, insulation, metallurgy and foundry, etc.
Over the years we always dedicated to develop and manufacture high quality crane and hoist, our European type cranes and electric hoists fully comply to FEM/DIN standard. We have acquired the certificates of IS09001, ISO14001, and CE, etc.
Our products have been exported to USA, Britain, Mexico, Argentina, Peru, Russia, Indonesia, Thailand, India, Vietnam, and other countries and regions.
FAQ
1.Is your products customized?
Yes.because the working condition is different, all our products are customized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.
2.What the information should i provide when i am inquiry?
the more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much appreciated.
3.How many operation methods for my selection?
The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabinet.
