Высококачественный промышленный быстродействующий индивидуальный флюидизированный Конвейерный морозильник для продуктов непрерывного взрыва

Описание и отзывы

Трекер стоимости

Характеристики

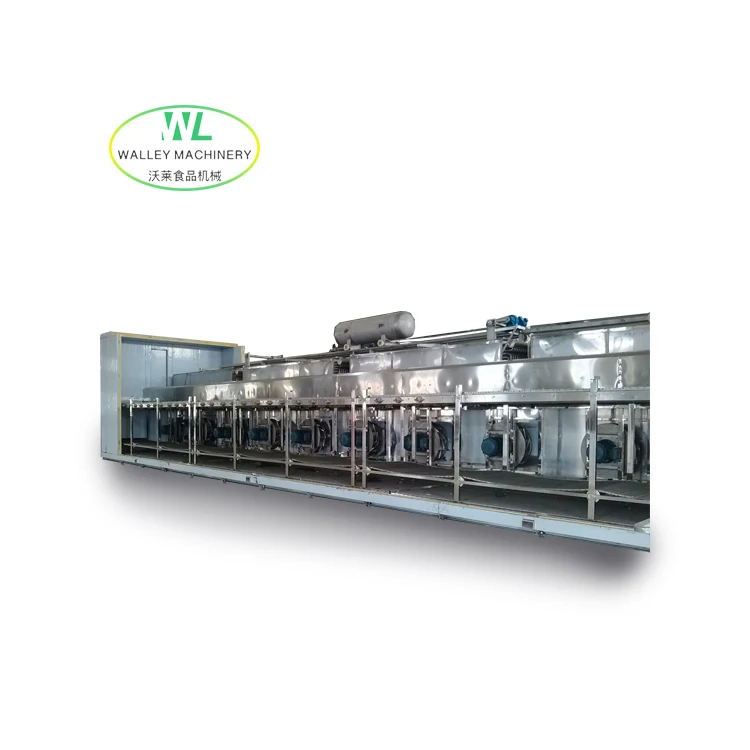

SLD fluidized quick freezer is a new product developed by our company, combining the latest technology of same products from Sweden, Americ and Canada. It is practical and efficent, realizing a real fluidized IQF effect.



1) Material conveyor adopts two stages structure. The conveyor speed and fan speed of first-freezing stage and deep freezing stage are adjusted separately, meeting the process requirement of different materials;

2) First freezing stage has a bypass pulse device, enhancing the fluidized effect. Combined with beating mechanism, preven materials from caking effectively and realize quick freezing of material;

3) Freezer has an ADS air automatic defrost device for optional. ADS device can keep frost on evaporator fin thinner than 3mm for 1 long time, ensuring 20 hours continuous running.



Model	SLD-0.5	SLD-1.0	SLD-1.5	SLD-2.0	SLD-3.0	SLD-4.0	SLD-5.0
Capacity Kg/Hr	500	1000	1500	2000	3000	4000	5000
Dimension m	7.2x3.8x3.8	8.2x4.4x3.8	10.2x4.4x3.8	11.2x4.4x3.8	13.2x4.7x4.4	16.2x4.7x4.4	20.2x4.7x4.4
Freezer Length m	5	6	8	9	11	14	18
Belt Width mm	1000	1200	1200	1200	1300	1300	1300
Input Temp. °C	+15
Output Temp. °C	-18
Freezing Temp. °C	-36+/-2
Freezing Time Min	5-50 Continually Adjustable
Coolant	R717/R22/R404A
Cold Load KW	115	165	256	320	460	615	750
Power Kw	28	42	57	66	99	105	129





Note: the above models and dimensions are only for your reference, but not are the standard ones. The size will be changed according to the different applications.
