    Product description:

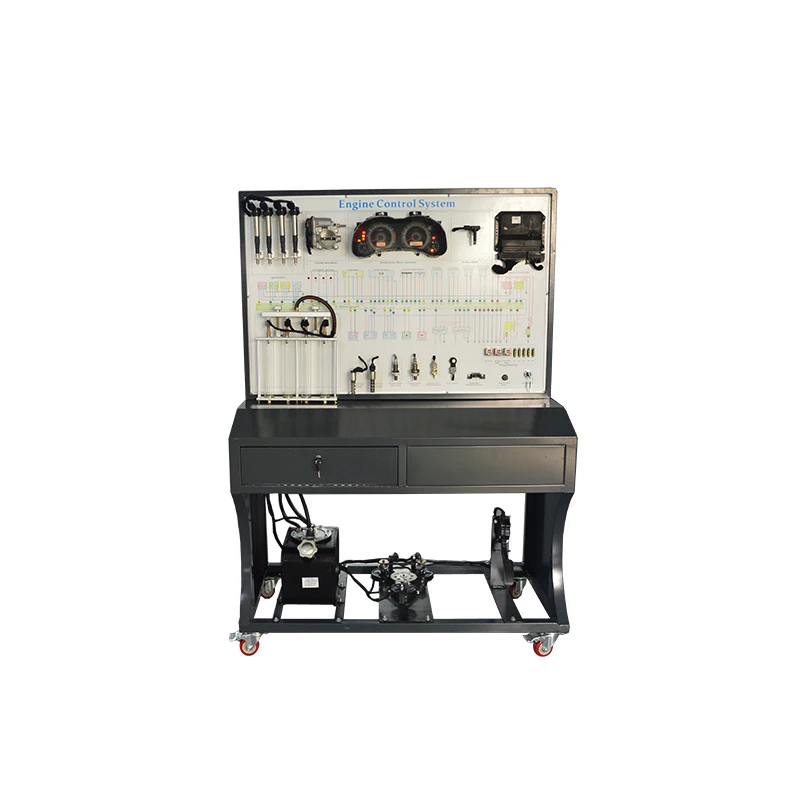

The equipment adopts the real components of Toyota's 1ZR-FE engine electronic control system, fully demonstrating the composition structure and working process of the engine electronic control system.

Functional Features

1. A real and operational electronic control system of the engine, which simulates the operation of the engine crankshaft, can produce the work of the executive components such as spark plug ignition, fuel pump operation, and fuel injection, which fully demonstrates the composition structure and working process of the engine electronic control system.
2. The measurement panel of the training platform is painted with a color inkjet circuit diagram, which is made of a 5mm thick high-strength transparent acrylic sheet mirrored on the back. It is resistant to large temperature differences, wear-resistant, moisture-proof, corrosion-resistant, not easy to deform, and has a long service life. Bright colors, not easy to fade, etc.; students can intuitively compare the circuit diagram and the real object, understand and analyze the working principle of the engine electronic control system.
3. Detection terminals are installed on the panel of the teaching board, which can directly detect the electrical signals of the circuit elements of the engine electronic control system, such as resistance, voltage, current, and frequency signals.
4. A diagnostic socket is installed on the panel of the teaching board, which can be connected to a dedicated or general-purpose car decoder to read the fault code and clear the fault code of the engine electronic control system.
5. The training platform is built with international standard aluminum alloy profiles. It has the characteristics of light weight, high strength, corrosion resistance and long life. It does not need to go through the spraying process, is more environmentally friendly, and looks more beautiful and high-end. The bench has self-locking casters. The device is mobile, safe, reliable, sturdy and durable. ,
6. The teaching board uses an ordinary 220V AC power supply, which is transformed into a 12V DC power supply by internal circuit transformation and rectification, without the need for batteries, reducing the trouble of charging, and the 12V DC power supply has the function of preventing short circuits.
