Характеристики
Products Description
In agricultural irrigation, the source water used may be river water, lake water, rain water, etc. These waters often contain
various particulate impurities. If they are directly applied to sprinkler irrigation and drip irrigation systems, they may block
sprinklers. Therefore, the filtering equipment must be carefully selected according to the water source, water quality, and the size of the flow channel of the irrigator. Commonly used filters in irrigation systems include centrifugal filters, screen
filters, disc filters, sand filters and so on.
![agriculture irrigation]()
![18]()
![15]()
![14]()
![9]()
![16]()
various particulate impurities. If they are directly applied to sprinkler irrigation and drip irrigation systems, they may block
sprinklers. Therefore, the filtering equipment must be carefully selected according to the water source, water quality, and the size of the flow channel of the irrigator. Commonly used filters in irrigation systems include centrifugal filters, screen
filters, disc filters, sand filters and so on.
Centrifugal filter:The centrifugal filter is based on the principle of centrifugal sedimentation and density difference. When the water flow enters the equipment tangentially from the inlet of the desander under a certain pressure, it produces a strong rotating movement. Due to the different forces under the action of buoyancy and fluid drag, the low-density clean water rises and is discharged from the overflow port, and the dense sand is discharged from the bottom sand discharge port to achieve the purpose of sand removal. In a certain range and conditions, the higher the water inlet pressure of the desander, the higher the desander rate, and multiple units can be used in parallel.
Screen filter:
The screen filter uses a screen to filter some large particles in the water. It can be divided into manual cleaning type and
self-cleaning screen filter.
A self-cleaning strainer (or self-cleaning filter) is a type of water filter which utilizes system pressure to clean itself. Aida
self-cleaning strainers will remove unwanted particles from a water source in the 10-4,000 micron range and at flow rates ranging from 10gpm up to many thousands of gpm in large applications. They are often referred to as automatic self-cleaning strainers because unlike many systems, the technology requires no routine maintenance. In a self-cleaning strainer, basic bi-annual or annual inspection (depending on particle load) replaces the need for daily, weekly or monthly shutdowns.
self-cleaning screen filter.
A self-cleaning strainer (or self-cleaning filter) is a type of water filter which utilizes system pressure to clean itself. Aida
self-cleaning strainers will remove unwanted particles from a water source in the 10-4,000 micron range and at flow rates ranging from 10gpm up to many thousands of gpm in large applications. They are often referred to as automatic self-cleaning strainers because unlike many systems, the technology requires no routine maintenance. In a self-cleaning strainer, basic bi-annual or annual inspection (depending on particle load) replaces the need for daily, weekly or monthly shutdowns.

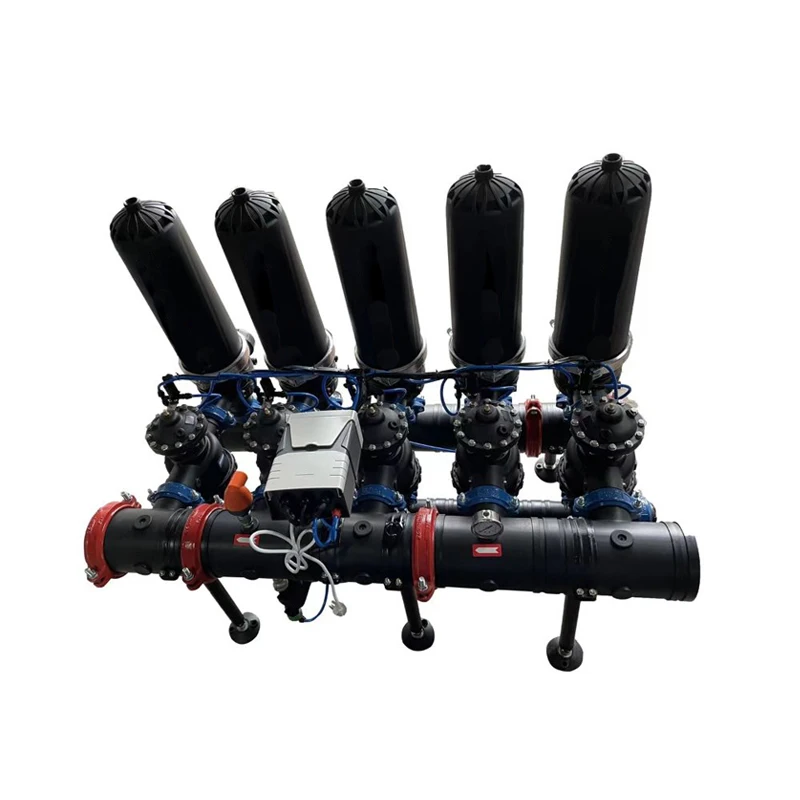

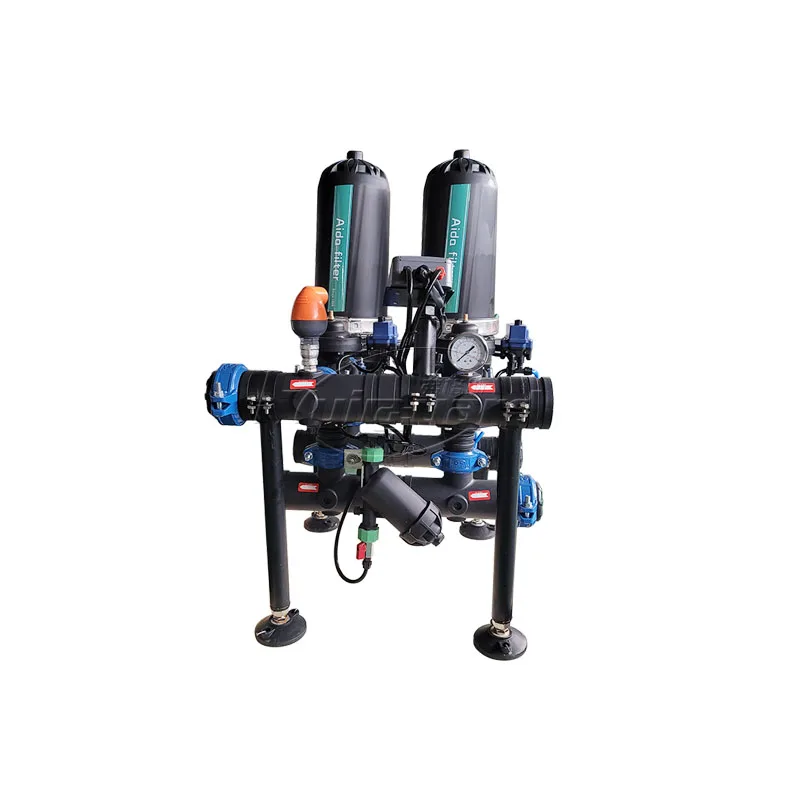

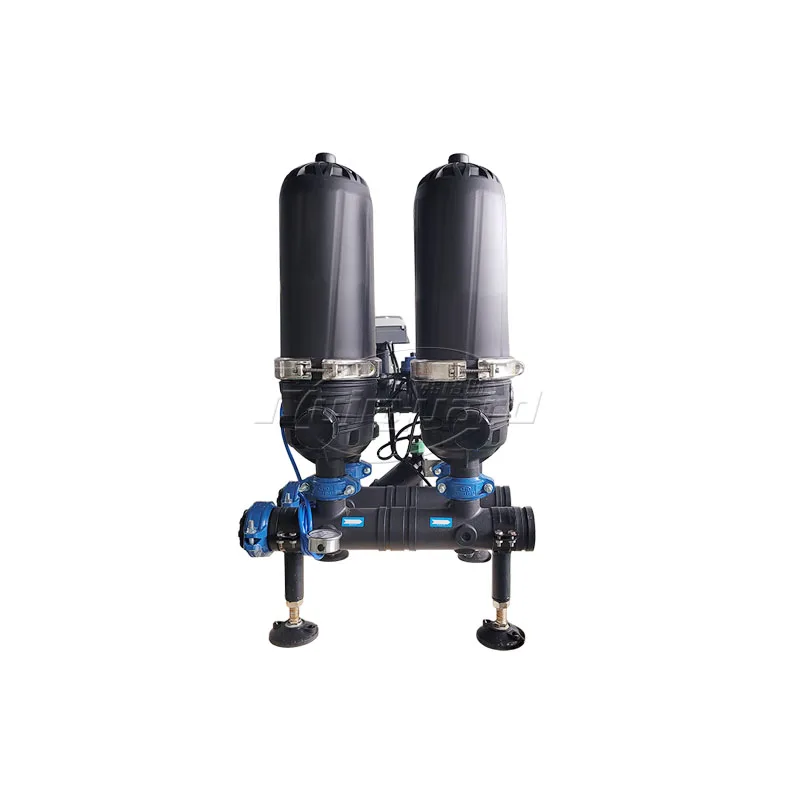

Disc filter:
ADLF series disc filter is composed of a group of discs with grooves on both sides. The intersection formed by the groove edge can intercept the solids in the water, effectively remove the organic and inorganic substances in the raw water, and has a high catching ability for soft impurities and fiber soft impurities. At the same time, it has the functions of surface interception and deep condensation, which greatly improves the filtering effect. At the same time, due to the characteristics of high efficiency backwashing, automatic continuous operation, low water consumption, small area taken and reliable operation, the backwashing process of the filter system is alternately carried out, and the automatic switching between working and backwashing states can ensure continuous water output and low system pressure loss. Therefore, the technical advantages of the automatic backwashing disc filter are very obvious.
Sand filter:
FluidGuard ADSYS series quartz sand filter, scientific name: shallow medium filter, using quartz sand as the filter medium, under a certain pressure, the water with higher turbidity is filtered through a certain thickness of granular or non-granular quartz sand, effectively intercepting and removing Suspended solids, organic matter, colloidal particles, microorganisms, chlorine, smell and some heavy metal ions in the water will eventually achieve a high-efficiency filtration equipment that reduces water turbidity and purifies water. Quartz sand filter is generally used as the pretreatment of reverse osmosis equipment and ultrafiltration equipment, mainly to intercept and adsorb sediment, colloid, metal ions and organic matter. Commonly used filter materials are quartz sand, activated carbon, anthracite, manganese sand and so on. It is widely used in agricultural irrigation, chemical industry, petroleum, metallurgy, mining and other industries.
Reference for Agricultural Irrigation Filter System Scheme
Company Information
Zhengzhou Fluidland Equipment Corp. specializes in the R&D,manufactuering,distributing of machinery equipment,we focus on filtration line for 18 years with superior technical team,excellent after-sale service.Fluidland passed through ISO9001-2000 quality certificate,always insist on the principle “Quality is everything” to best serve worldwide client throughout the way.Our main products are Oil filter, Water filter and Air filters covering power plant, paper mill, petrochemical,textile, railway, cement, electronics industry, etc.Most our products are exported to the America,eastern southern asia and africa for 26 countries.We Fluidland commited to supplying filters at competitive price,superior quality, timely delivery. Heartily hope to establish stable and strategic partnership with porfessionals worldwide.
Packaging & Shipping
Our Services
Pre-sale service
1.We have stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 5-10 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
FAQ
1.What kinds of filter do you produce?
It covers for air filter,oil filter,fuel filter for coal industry filter, power plant filter, steel mill filter,mining filter and refrigeration compressor.
2.How is the quality of filters?
We have our own brand”FLUIDLAND”,with more than 20 patent products ,and it is very famous in the filtration industry.
3.Do you Accept OEM service?
Yes! we can manufacture according to your requirement.
4 .Can you design filters according to the working condition?
Yes. We have professional R&D department including more than 15 engineers, and we can design the more suitable filters for you.
5.What's your Delivery Time?
Normally within 4-7 working days after order confirmation.
6.How do you pack products?
Normally,plastic bag inside and carton outside .We'll do according to customers' requirement.
