600 Вт до 2400 настраиваемый переменная частота Вибрирующая пластина погружения
- Категория: Cleaning Equipment Parts >>>
- Поставщик: Shenzhen,Jiayuanda,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.75 $* | 0.59 $* |
| Aug-16-2025 | 0.55 $* | 0.99 $* |
| Jul-16-2025 | 0.40 $* | 0.85 $* |
| Jun-16-2025 | 0.96 $* | 0.25 $* |
| May-16-2025 | 0.61 $* | 0.78 $* |
| Apr-16-2025 | 0.92 $* | 0.97 $* |
| Mar-16-2025 | 0.98 $* | 0.68 $* |
| Feb-16-2025 | 0.96 $* | 0.99 $* |
| Jan-16-2025 | 0.50 $* | 0.7 $* |
Характеристики
Product Description

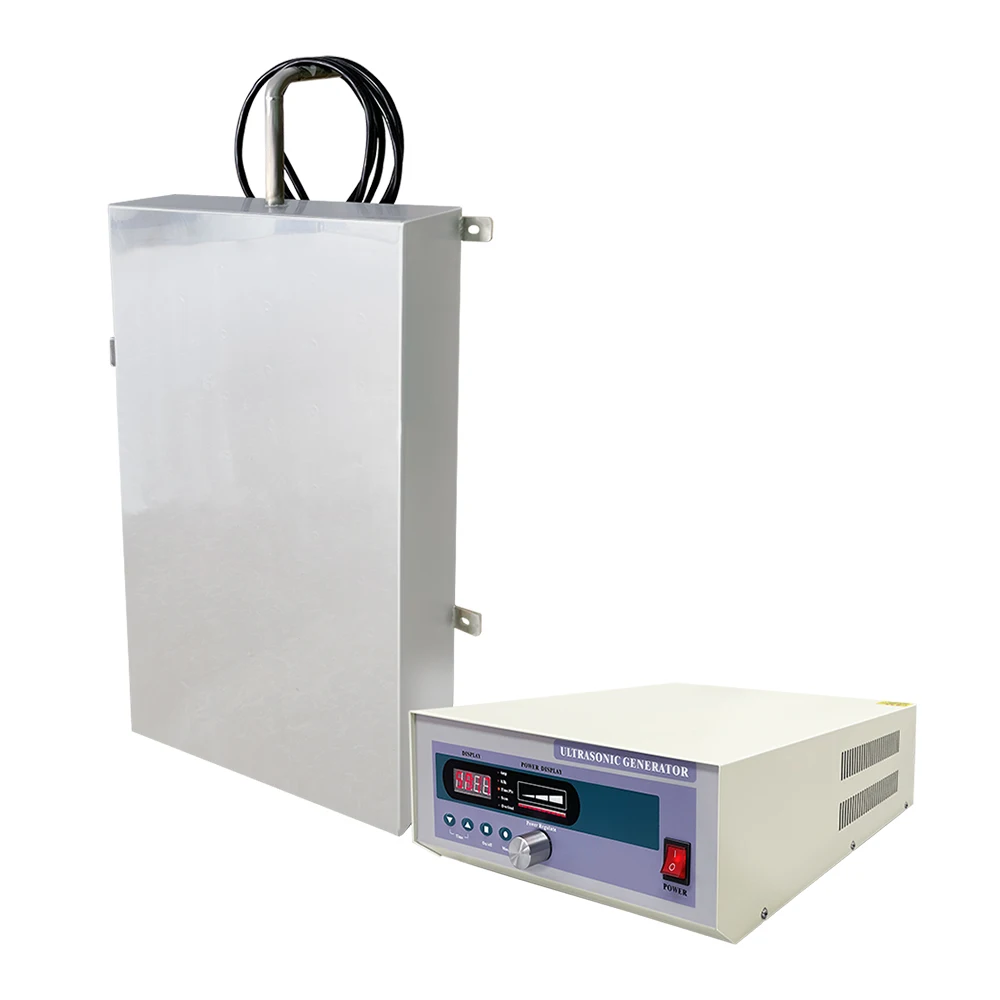

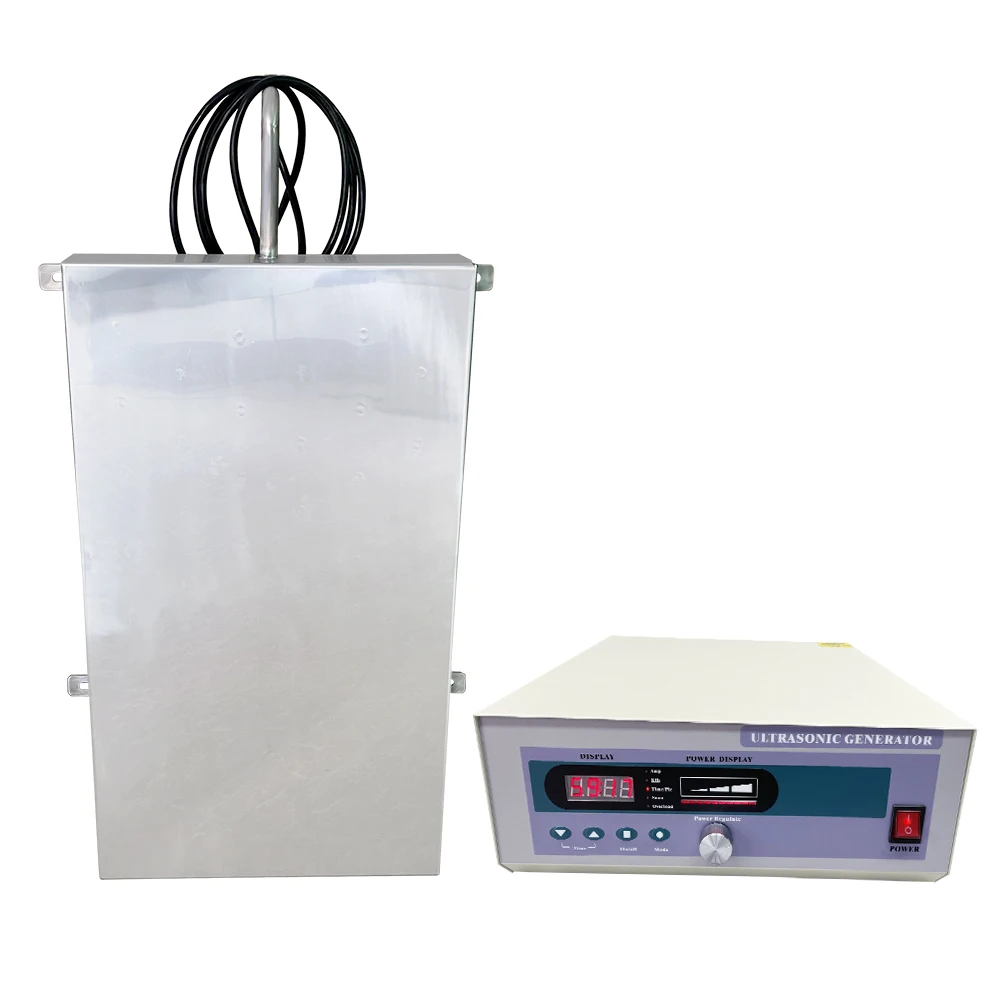

600W to 2400W Customizable Variable Frequency Vibrating Plate Immersion Ultrasonic Transducer
Immersible Ultrasonic Transducer Cleaning
1. The ultrasonic vibration plate is composed of two parts: the vibration plate and the ultrasonic generator. When the standard type of ultrasonic cleaning machine is not suitable for a specific working environment, in addition to special specifications can be customized. It is also possible to use an input-type vibration plate device to be converted into an ultrasonic cleaning machine, so that the equipment cost can be saved and the cleaning effect can be achieved.
2. The vibration plate is made of all stainless steel structure resistant to alkali and acid, and the surface of the vibration plate is plated with hard chromium. The ultrasonic transducer adopts high-quality and high-performance products with high electro-acoustic conversion efficiency.
3. The split structure is adopted, and the high-frequency wire with socket is used for connection between the vibration plate and the ultrasonic generator, which is convenient for use and maintenance.
4. The installation arrangement is flexible, and the ultrasonic radiation surface can be arranged on the bottom, side or top surface of the cleaning tank as required.
5. Ultrasonic vibration plates can be customized according to customer requirements. Ultrasonic vibration plates are suitable for cleaning before cleaning electroplating parts, watch parts, hardware machinery parts, polyester filter elements, semiconductor wafers, tools, lenses, spectacle frames, jewelry, jewelry, glass, utensils It is widely used in various industries.
2. The vibration plate is made of all stainless steel structure resistant to alkali and acid, and the surface of the vibration plate is plated with hard chromium. The ultrasonic transducer adopts high-quality and high-performance products with high electro-acoustic conversion efficiency.
3. The split structure is adopted, and the high-frequency wire with socket is used for connection between the vibration plate and the ultrasonic generator, which is convenient for use and maintenance.
4. The installation arrangement is flexible, and the ultrasonic radiation surface can be arranged on the bottom, side or top surface of the cleaning tank as required.
5. Ultrasonic vibration plates can be customized according to customer requirements. Ultrasonic vibration plates are suitable for cleaning before cleaning electroplating parts, watch parts, hardware machinery parts, polyester filter elements, semiconductor wafers, tools, lenses, spectacle frames, jewelry, jewelry, glass, utensils It is widely used in various industries.
High-quality stainless steel material
All stainless steel structure, acid and alkali resistant, beautiful and durable

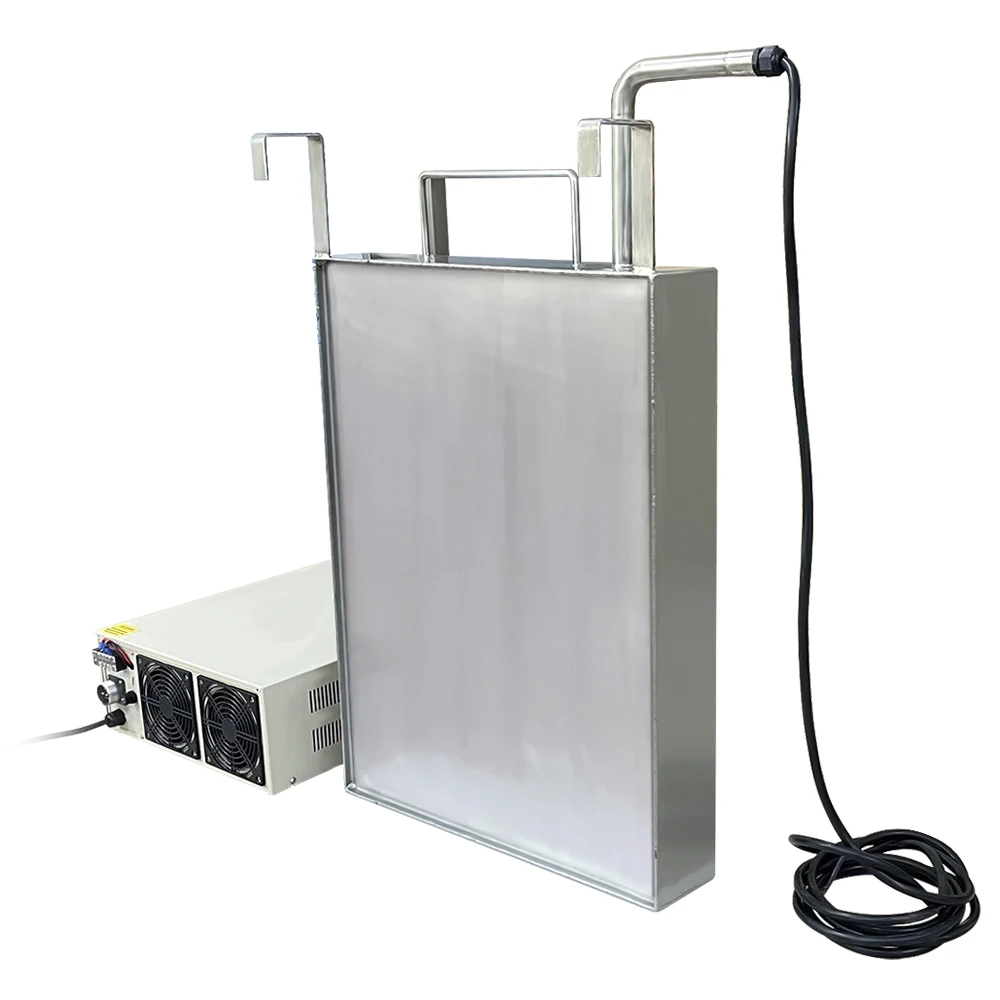

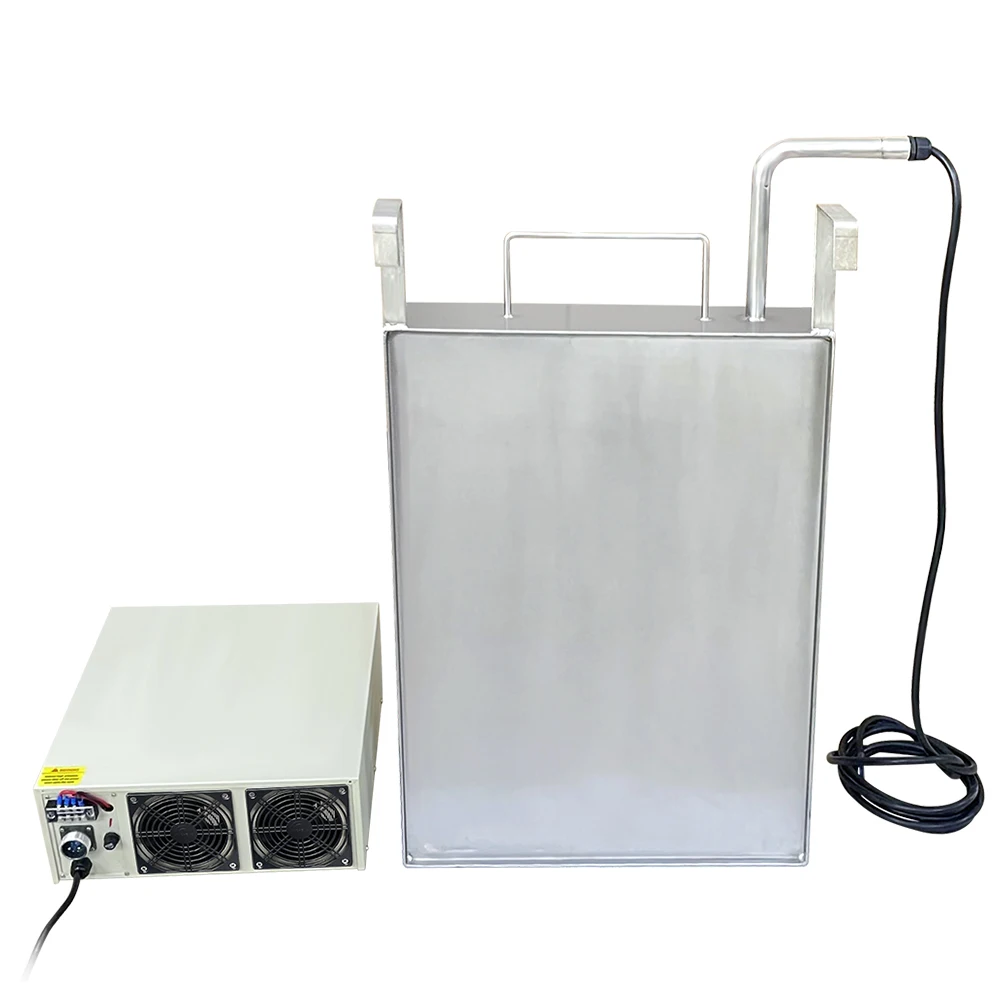

The ultrasonic vibration plate and the ultrasonic generator are separated and connected by a high-frequency wire base, which is convenient for use and maintenance.
The ultrasonic vibration plate and the ultrasonic generator are separated and connected by a high-frequency wire base, which is convenient for use and maintenance.
Split structure
The installation arrangement is flexible, and the radiating surface of the vibration plate can be installed on the bottom, side or top surface of the cleaning tank according to needs.
Specification
Model number | Ultrasonicpower | Ultrasonic frequency | Immersible transducer size | Max temperature | Vibration plate material |
JYD-1012P | 600W | 25/28/40/68/80/ 100/132/170/200KHz Vibrating plate chrome coated | 350*300*100mm | 90℃ | 304/316L stainless steel Thickness: 2.0-3.0mm Cable length: 5m (customized) |
JYD-1018P | 900W | 450*300*100mm | 90℃ | ||
JYD-1024P | 1200W | 550*400*100mm | 90℃ | ||
JYD-1030P | 1500W | 580*400*100mm | 90℃ | ||
JYD-1036P | 1800W | 600*500*100mm | 90℃ | ||
JYD-1042P | 2100W | 650*550*100mm | 90℃ | ||
JYD-1048P | 2400W | 700*600*100mm | 90℃ |
The side shock ultrasonic vibration plate is suitable for cleaning all kinds of workpieces.
Immersion ultrasonic vibration plate, this product is suitable for cleaning before cleaning electroplating parts, watch parts, hardware machinery parts, polyester filter elements, semiconductor silicon wafers, tools, lenses, spectacle frames, jewelry, jewelry, glass, utensils and other industries, applications Wider.

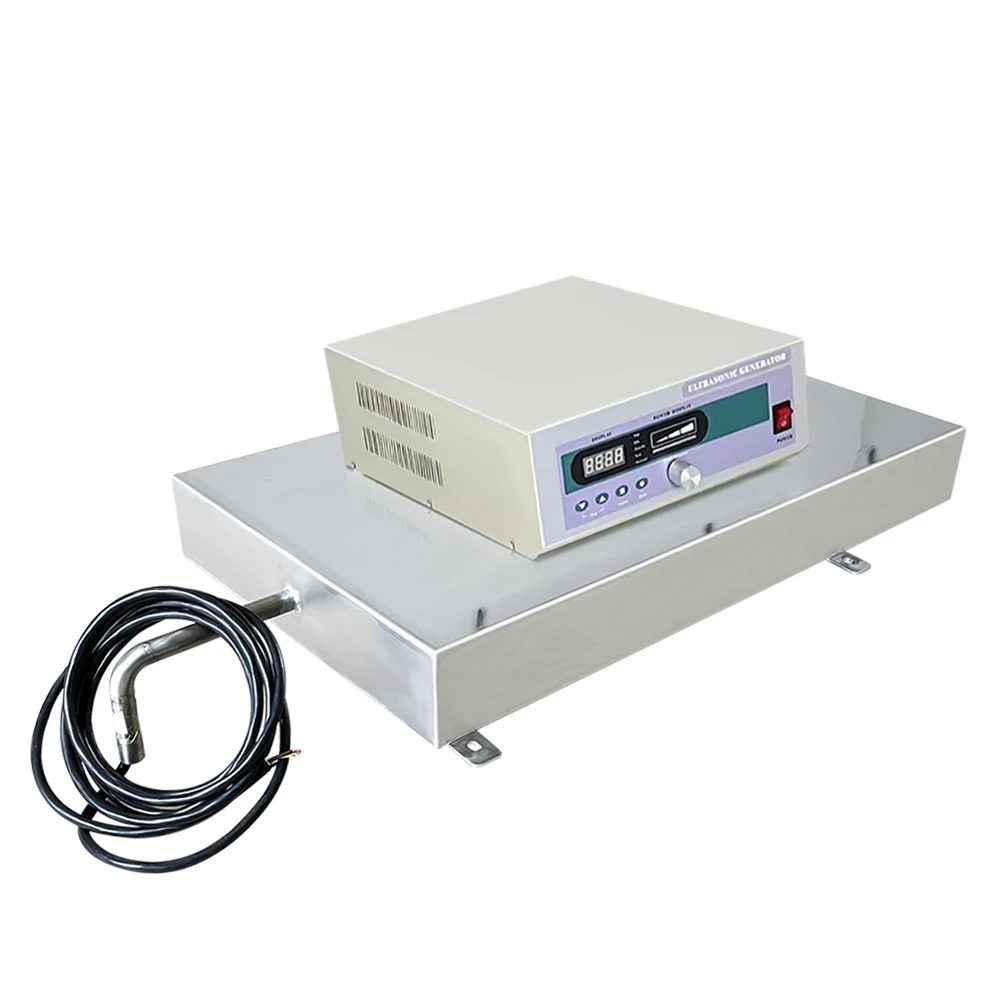

Bottom type / Side type / Wall type / Flange type
Size and installation way can be custom by required!!!
Why Choose Us

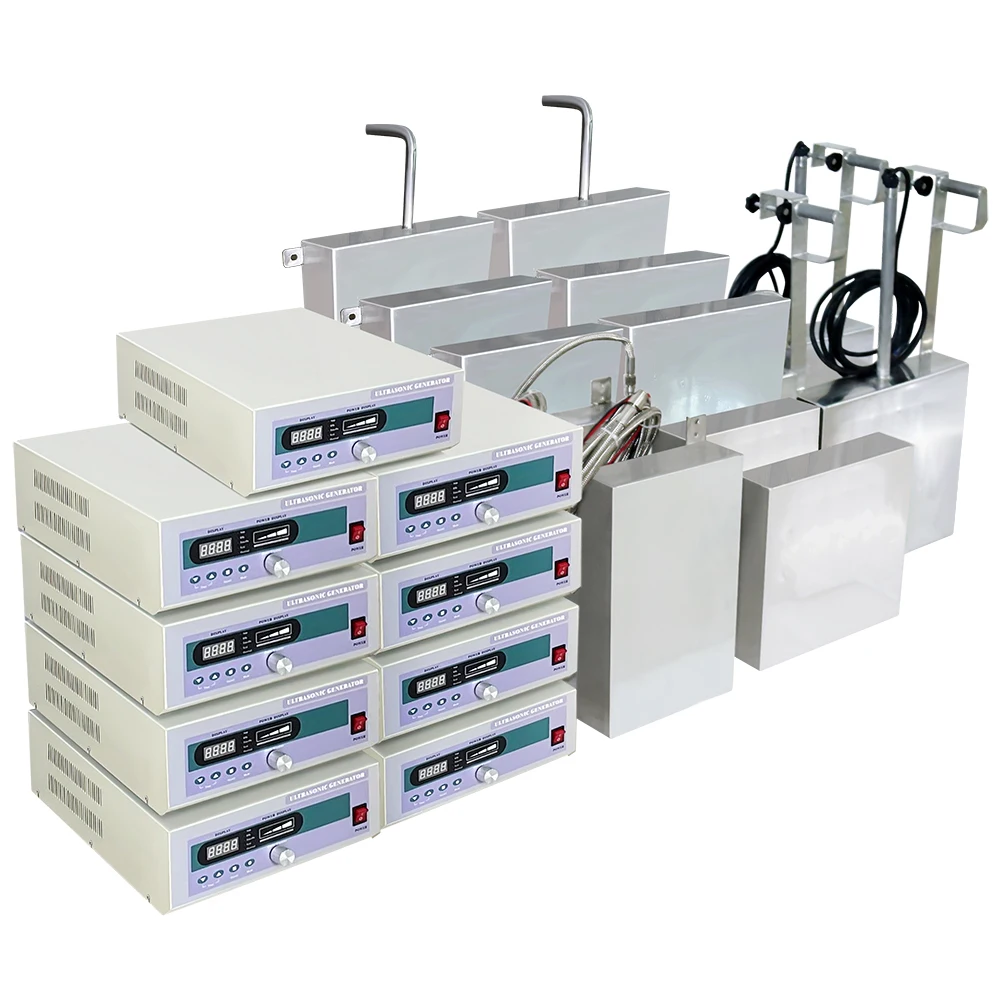

Various Ultrasonic Cleaning Generator
