Автоматическая машина для MSS-420Y коробок rb185 изготовления жестких машины подарочных
- Категория: Packaging Forming Machines >>>
- Поставщик: Ruian,Mosun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 132685.86 $* | 139319.71 $* |
| Aug-18-2025 | 131570.82 $* | 138149.86 $* |
| Jul-18-2025 | 110385.13 $* | 115904.50 $* |
| Jun-18-2025 | 129340.97 $* | 135807.49 $* |
| May-18-2025 | 112615.25 $* | 118246.2 $* |
| Apr-18-2025 | 127110.60 $* | 133466.20 $* |
| Mar-18-2025 | 125995.4 $* | 132295.52 $* |
| Feb-18-2025 | 124880.25 $* | 131124.39 $* |
| Jan-18-2025 | 123765.33 $* | 129953.61 $* |
Характеристики

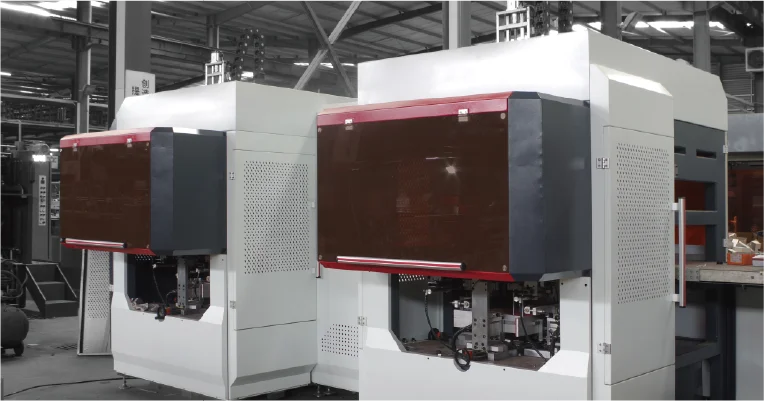

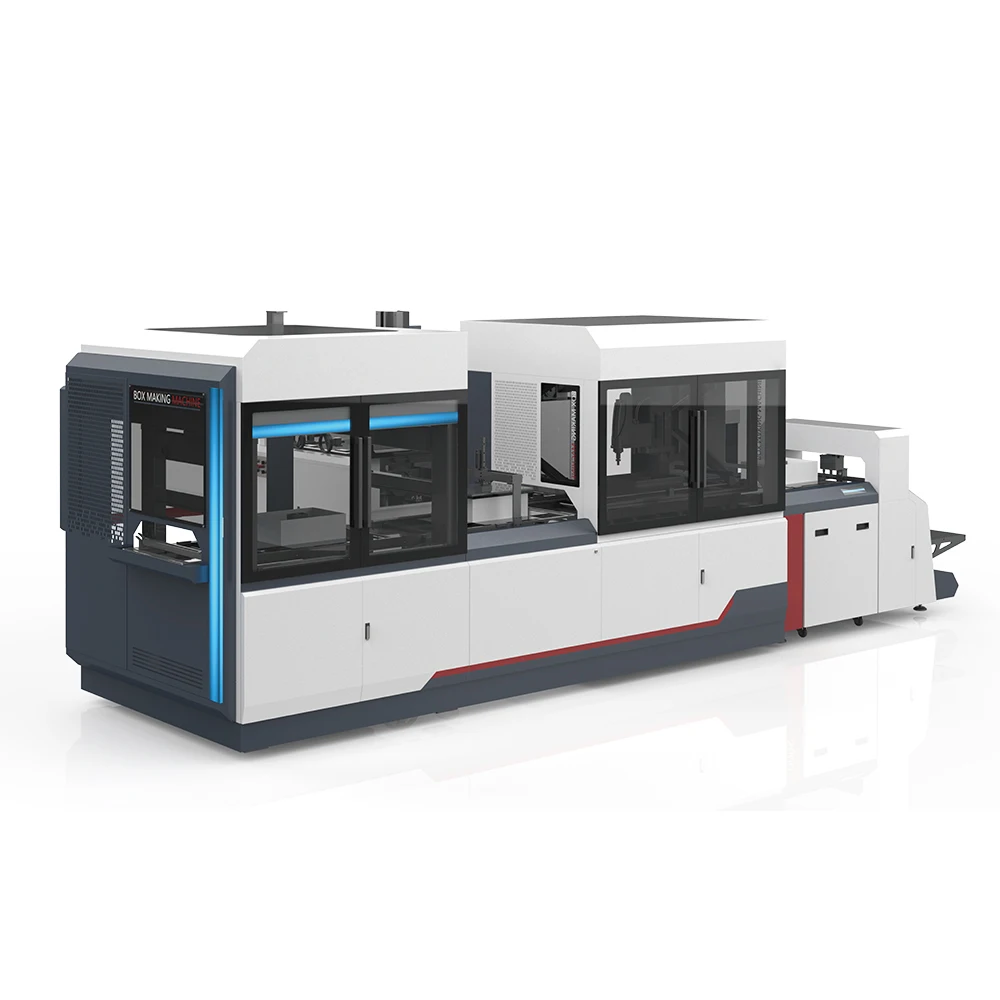

Product Appearance
Products Description
USAGE:
The machine is mainly suitable for some high-quality boxes, such as apple mobile phone box, jewelry gift box, cosmetics box and other high-end gift boxes.
FACTURERS:
1. The box type is flexible
2. Wide market application
3. More beautiful appearance
2. Wide market application
3. More beautiful appearance
SIZE MARKING CHART:
Model | MSS-420Y-S | MSS-420Y | |
Paper Size(AxB) | Amin:95mm Amax:610mm Bmin:180mm Bmax:850mm | 190-1030mm | |
Paper Thickness | 80-300g/m² | 100-630mm | |
Carton Size | Wmin:60mm Wmax:350mm Lmin:100mm Lmax:450mm Hmin:15mm Hmax:150mm | L min 100mm L max 420mm W min 50mm W max 320mm H min 15mm H max 150mm | |
Cardboard Thickness | 0.8-3mm | ||
Folding Size | Rmin:10mm Rmax:160mm | 2-1100mm | |
Fold Ear Depth | 10-90mm (optional 140mm) | ||
Manipulator Model | YK600XG-200 | ||
Position Precision | ≤±0.1mm | ||
Production Speed | ≤35pcs/min | ≤18pcs/min | |
Stacking Height of Tissue Paper | 480mm | ||
Stacking Height of Cardboard | 1000mm | ||
Gas Source Requirement | 50L/min 0.8Mpa | ||
Total Power of Equipment | 45KW/AC380V | ||
Equipment Size | 9800*4000*3400mm | 7200*4000*3400mm | |
Details Images

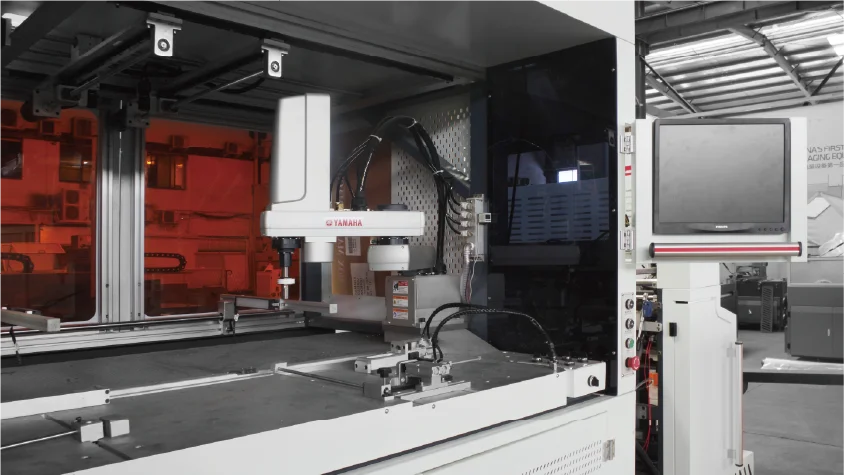

POSITION PART
WARPPING PART

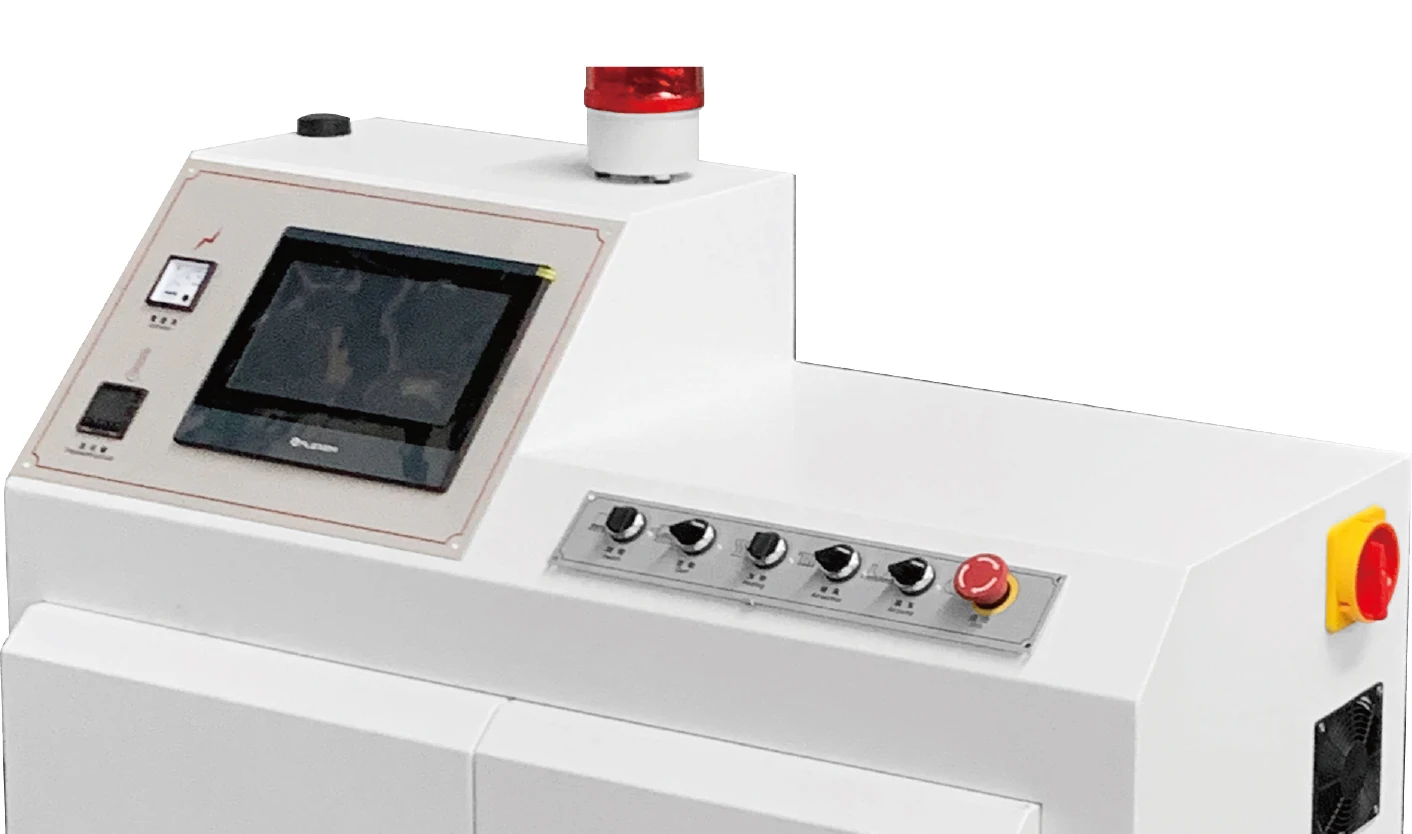

MAIN CONTROLLER PART
Sample
Exhibition

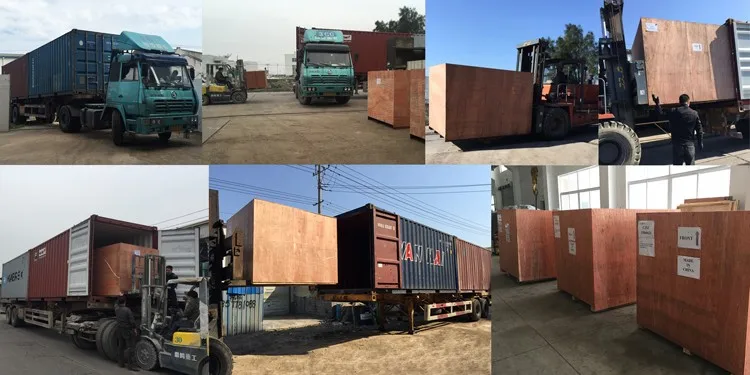

Packing & Delivery
Customer Feedback
Contact Information
