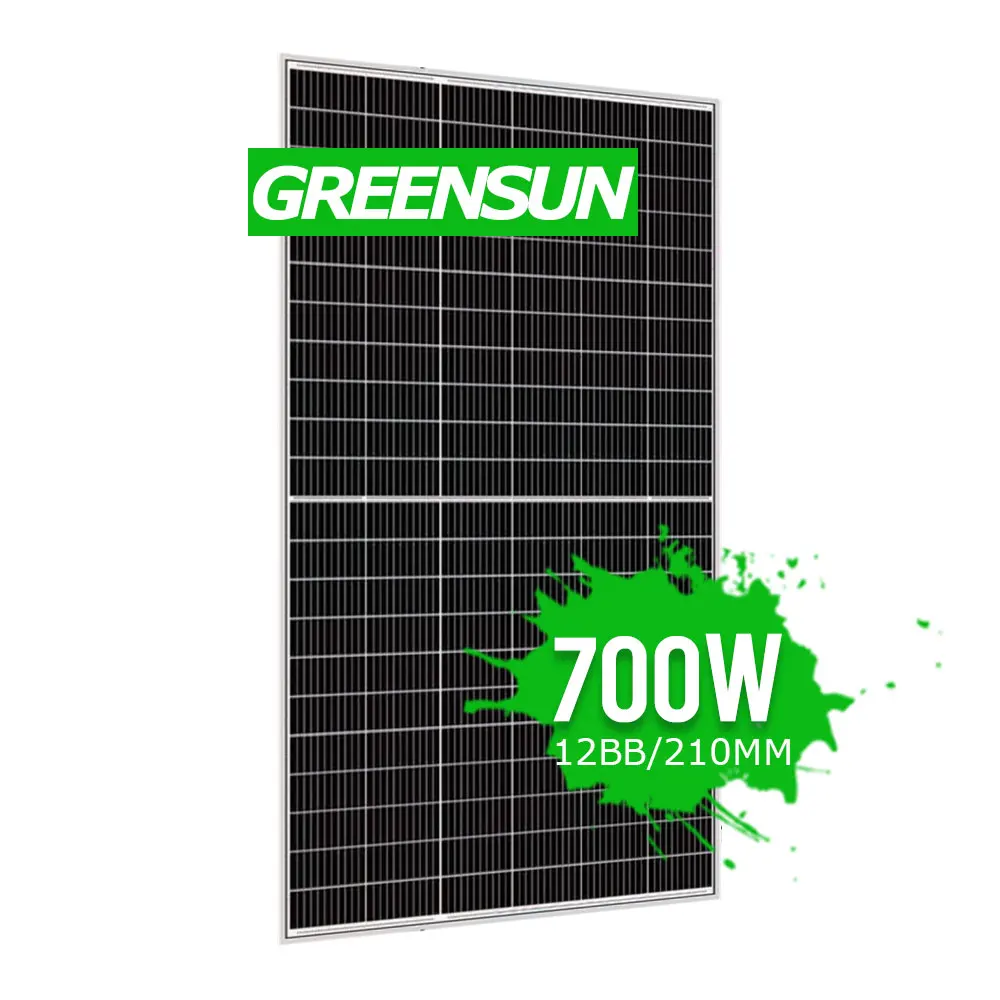

Лидер продаж 2021 солнечная панель 700 Вт полуэлементный перс моно солнечный PV Модуль 680 690 800 солнечных
- Категория: Solar Energy Products >>>
- Поставщик: Hefei,Greensun,Solar,Energy,Tech,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.34 $* | 0.70 $* |
| Aug-16-2025 | 0.18 $* | 0.60 $* |
| Jul-16-2025 | 0.24 $* | 0.75 $* |
| Jun-16-2025 | 0.77 $* | 0.67 $* |
| May-16-2025 | 0.19 $* | 0.90 $* |
| Apr-16-2025 | 0.65 $* | 0.82 $* |
| Mar-16-2025 | 0.86 $* | 0.34 $* |
| Feb-16-2025 | 0.97 $* | 0.59 $* |
| Jan-16-2025 | 0.19 $* | 0.53 $* |
Характеристики
Product Description
Model | GSM 66M-685 | GSM 66M-690 | GSM 66M-695 | GSM 66M-700 | |||
Solar Cell | 210mm 132cells | ||||||
Rated Maximum Power(Pmax) [W] | 685 | 690 | 695 | 700 | |||
Open Circuit Voltage(Voc) [V] | 46.35 | 46.51 | 46.66 | 46.81 | |||
Maximum Power Voltage(Vmp) [V] | 39.13 | 39.28 | 39.43 | 39.58 | |||
Short Circuit Current(Isc) [A] | 19.01 | 19.12 | 19.23 | 19.34 | |||
Maximum Power Current(Imp) [A] | 17.5 | 17.56 | 17.62 | 17.68 | |||
Module Efficiency [%] | 22.1 | 22.3 | 22.5 | 22.7 | |||
Power Tolerance | 0~+5W | ||||||
Temperature Coefficient of Isc(α_Isc) | +0.04%/℃ | ||||||
Temperature Coefficient of Voc(β_Voc) | -0.25%/℃ | ||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.34%/℃ | ||||||
STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | ||||||
Grade A Materials
210MM 12BB PERC Mono Half Cells
* PERC Half Cells
* Higher Power Output
* Less Shading Effect
* Appearance Consistency
Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
Frame
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional

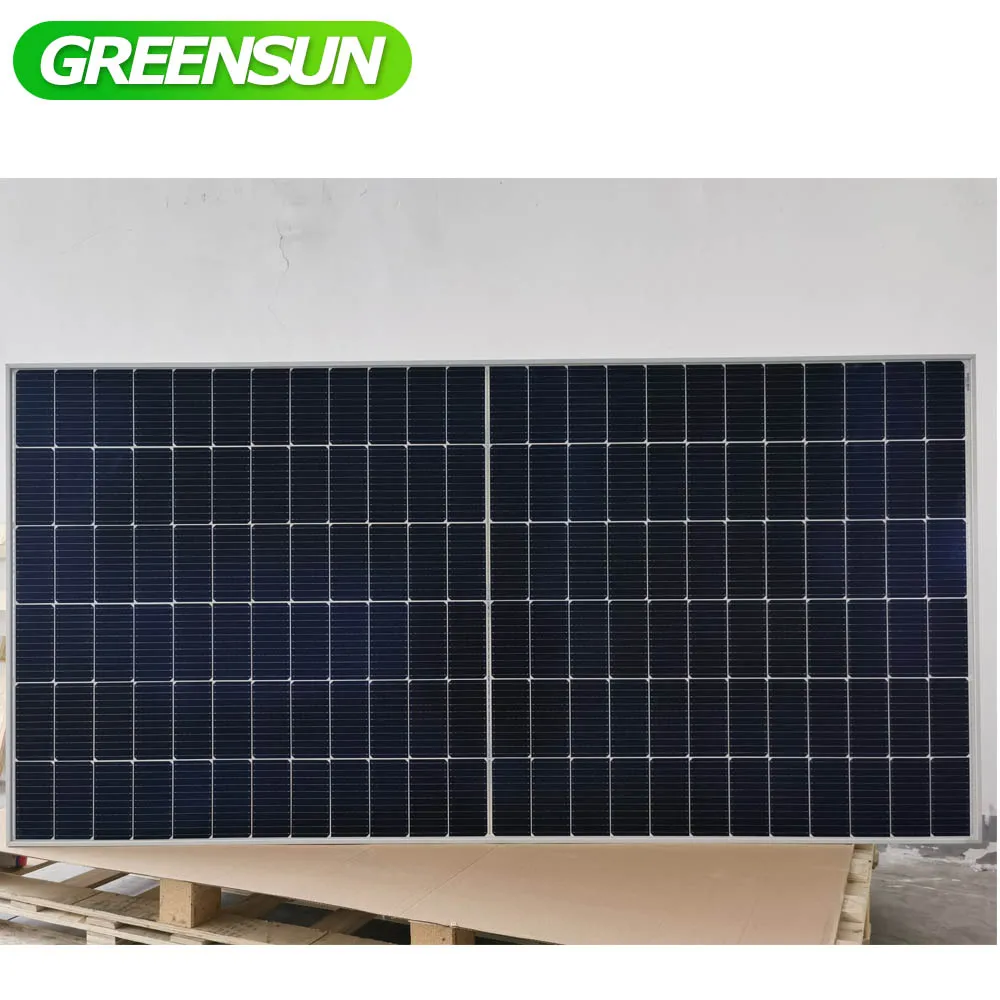

Production
PERC Solar Cells
12bb 210mm size solar cell
Grade A quality
More than 21% efficiency
10 Bus Bar, Anti PID

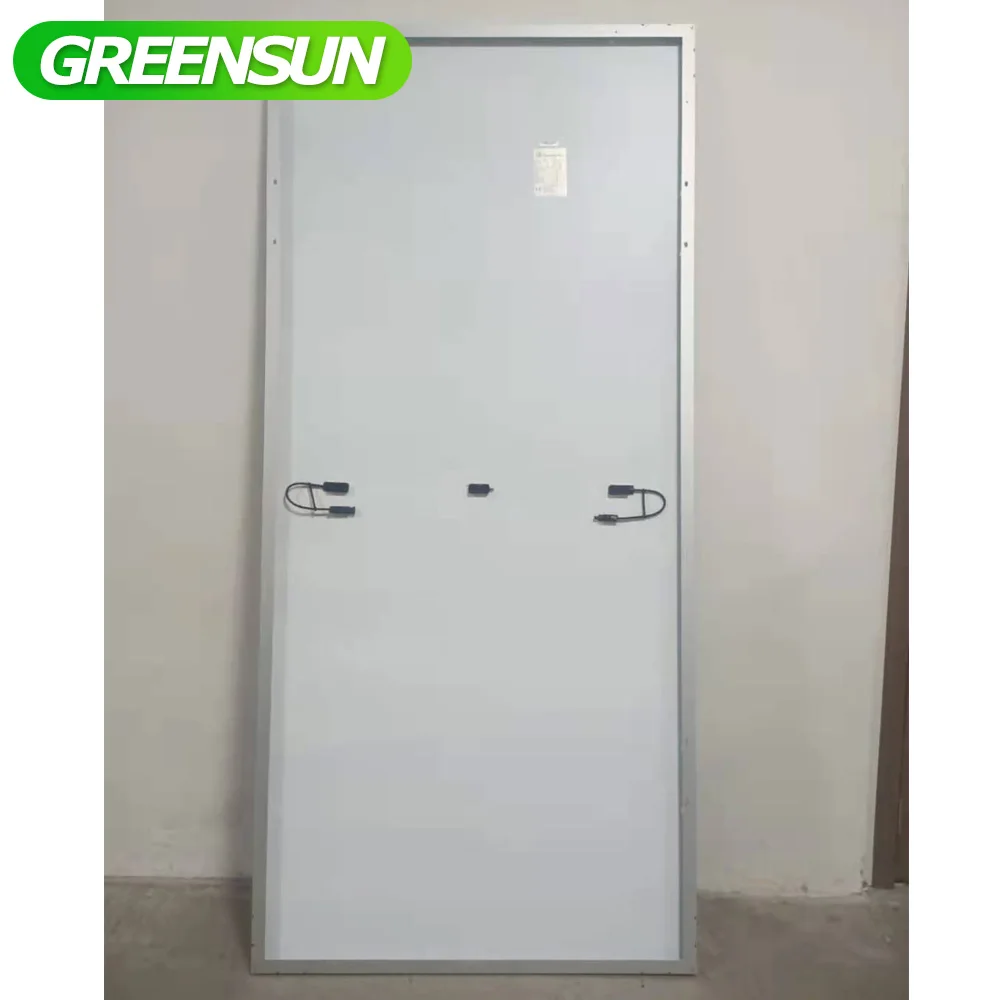

Junction Box
IP68 water proof junction box
Silver or Black frame
Max DC 1500V
25 Years warranty
Factory
Packing & Transport
Packing Method: Customized Wooden&Carton with Pallet(offer 100% protection during transportation)
Container(120Cells solar panel) | 40'HC |
PCS/Pallet | 31 |
PCS/Container | 620 |
Container(132Cells solar panel) | 40'HC |
PCS/Pallet | 31 |
PCS/Container | 558 |
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation ,Air transportation , Land transportation and Express .
Payment&Warranty
Payment Terms | EXW | 30% T/T in advance, paid the balance before shipment | |||||
FOB | |||||||
CNF | |||||||
CIF | |||||||
LC | L/C amount above 300,000 usd, we can accept L/C at sight | ||||||
West Union | Accpetable | ||||||
Delivery Time | 7~15days after receiving payment for one container | ||||||

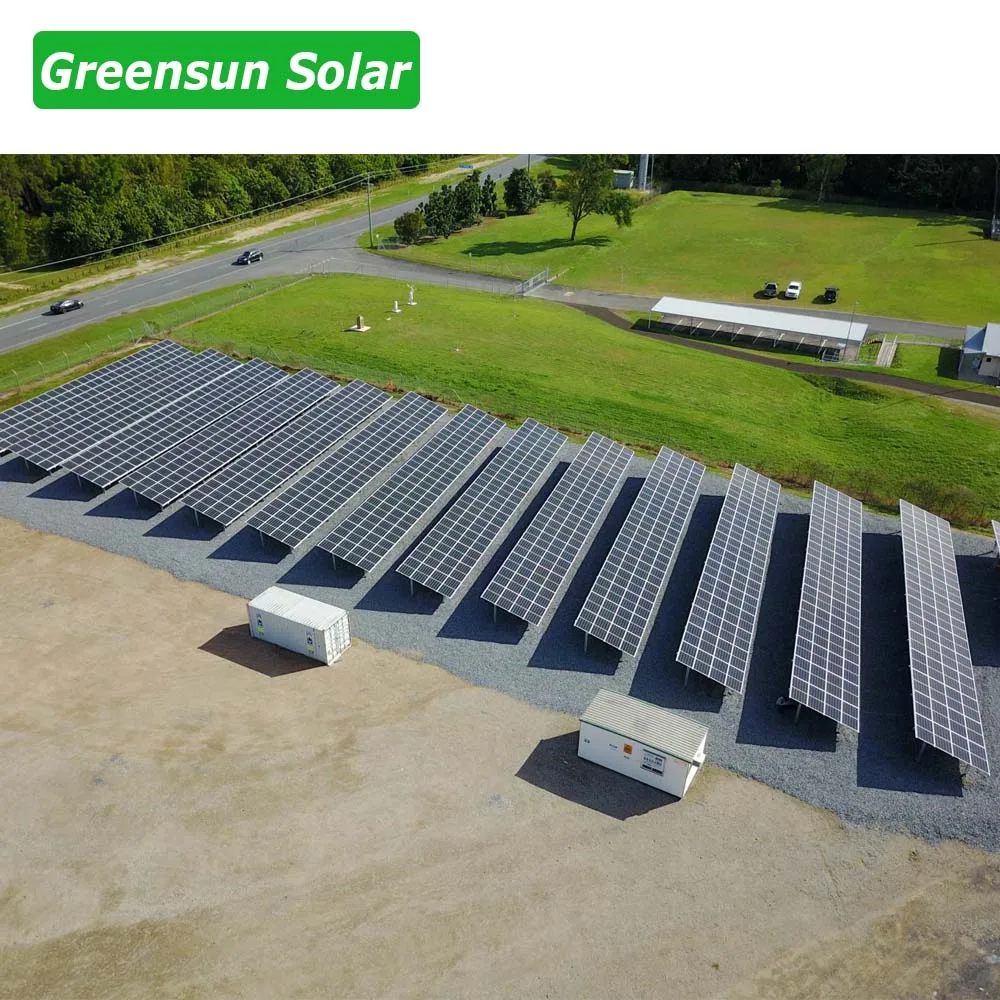

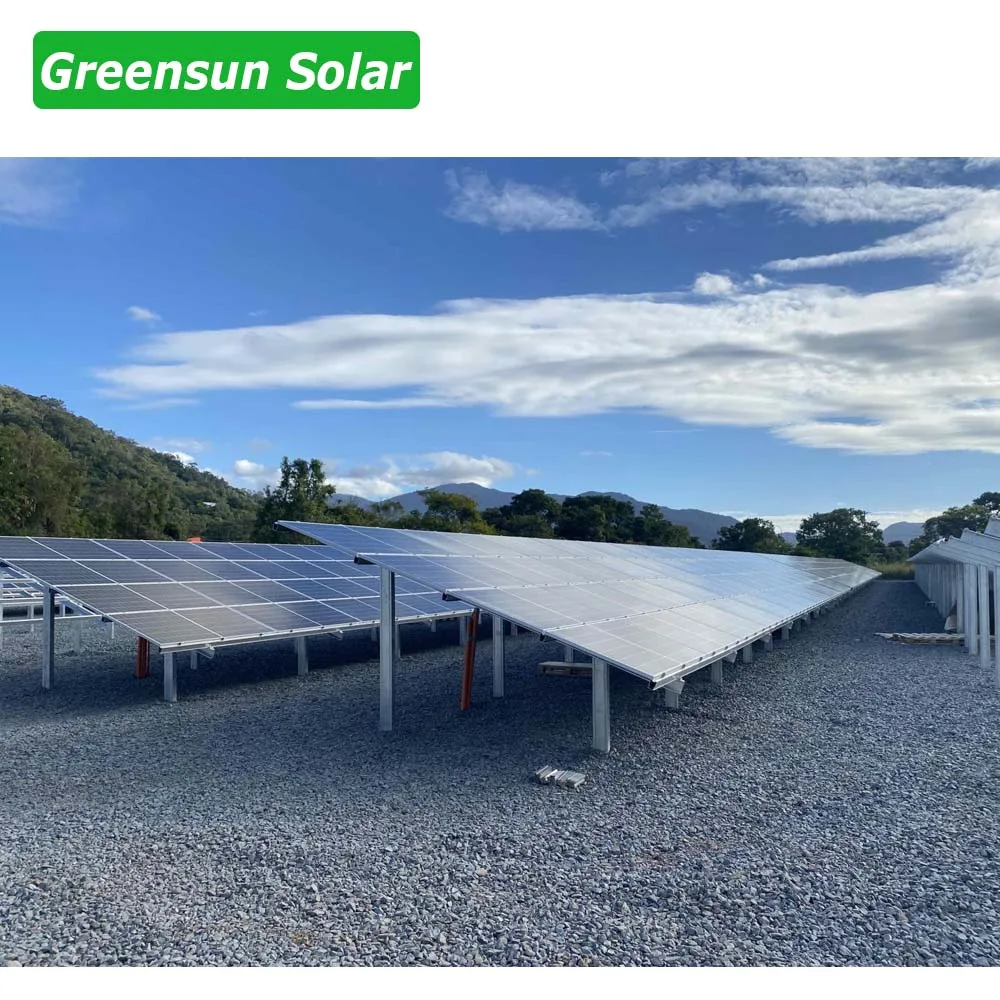

Project
5KW Residential Solar Power System in Poland
220KW Solar Power Plant in Sweden
500KW in Poland 300KW in United Sates
2MW Solar Power Plant in Germany
