SURRI 5.5M 3/H наклонная опора туннели шахта Машина Для Распыления Бетона

Описание и отзывы

Трекер стоимости

Характеристики

SURRI Slope support tunnels mine Concrete Spraying Machine shotcrete machine



1.Introduce of SURRI small Slope support tunnels mine Concrete Spraying Shotcrete Machine



Shotcrete machine is a small size slope protection concrete refractory shotcrete machine which uses of air pressure in the machine to the dry/wet material through the hose to the water nozzle.

SPZ series electric dry powder shotcrete machine is a high yield, continuous feed dry powder shotcrete or refractory casting device.It is as comfortable in an underground mining environment as it is on a construction site.

The sandblasting machine adopts rotor feeding system, which enables continuous operation, long service life and low maintenance cost.A variety of hoses and nozzles are available to meet various shotcrete requirements.





2. Features of Slope support tunnels mine Concrete Spraying Machine shotcrete machine



1) Environmental:It can reduce the dust concentration around the machine and the spraying gun when the wet shotcrete machine work,so as to lower the harm to workers’ health.

2) rebound less to strengthen sprayed layer.

3) It can greatly improve the spray quality and the uniformity of concrete--because the water & cement ratio is easy to control when wet Shotcreting, and the concrete curing degree is higher.

4)Unique vibrating hopper feeds the concrete into the dosing system smoothly.

5)Standardized dosing pump can add exactly concrete accelerator.

6)We can change the color according to your actual requirements.

7)Custom the voltage motor based on your country.

8 )The tread of mine rail wheel have 600mm or 900mm for your choice.



3. technical parameters of Slope support tunnels mine Concrete Spraying Machine shotcrete machine



Type	SPz-5	SPz-6	SPz-7
Jetting capacity	5.5m3/h	6m3/h	7.5m3/h
Transmission distance	200m	200m	200m
Diameter	∅20	∅20	∅20
Cement sand ash ratio	0.4	0.4	0.4
Working pressure	0.2-0.4mpa	0.2-0.4mpa	0.6-0.8mpa
Power	5.5kw	5.5kw	5.5kw
size	1520x820x1280mm	1830x1118x1288mm	1600x900x1370mm
weight	500kg	500kg	800kg

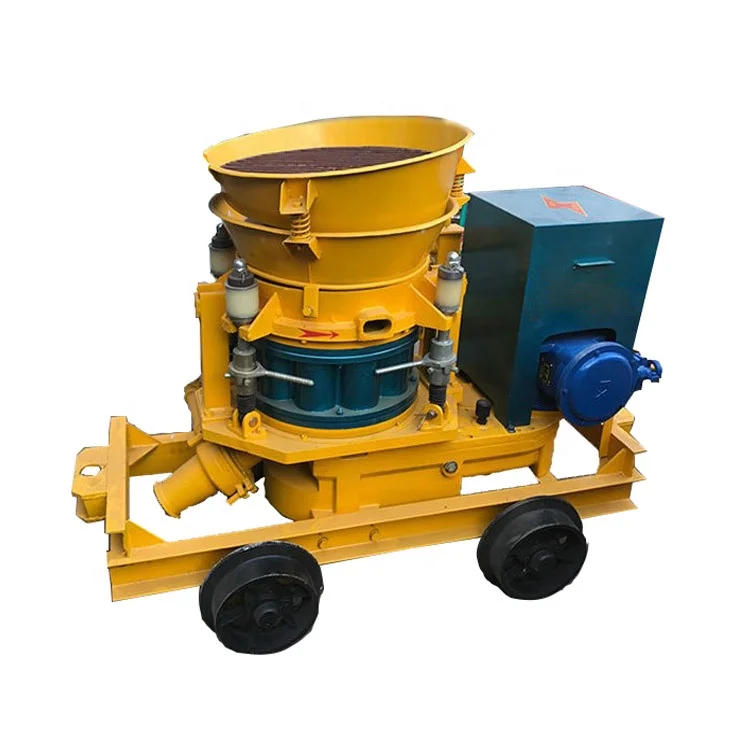

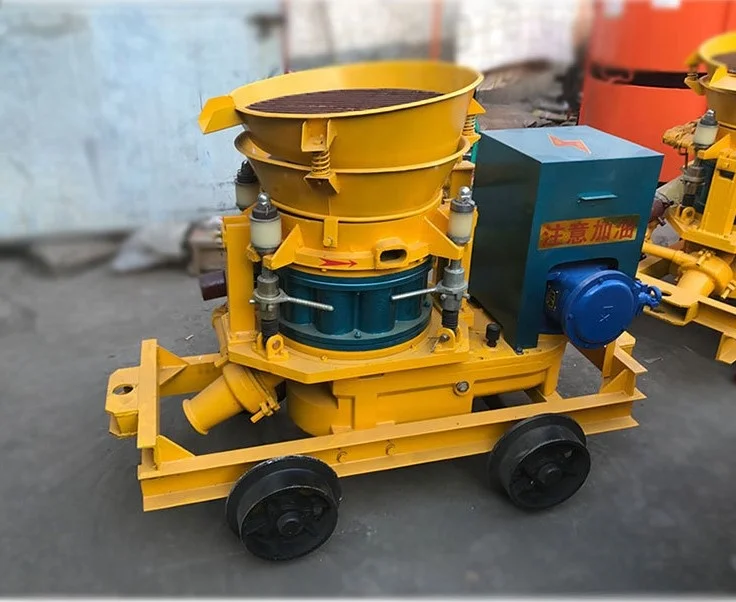

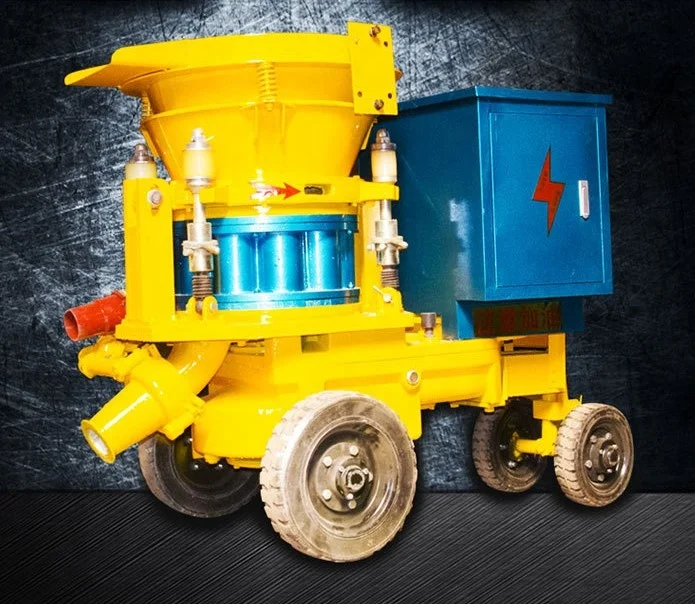

4. details pictures of the small Slope support tunnels mine Concrete Spraying Shotcrete Machine
