2m/s print speed 400W Laser jet unit for bottle drinks
US $6500-$8500
Высокоэффективная лазерная маркировочная машина для лазерной печати на алюминиевых пластиковых стеклянных бутылках с экстрактором
- Категория: >>>
- Поставщик: Zhangjiagang,Jiede,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 6426.32 $* | 6747.34 $* |
| Aug-15-2025 | 6372.43 $* | 6691.25 $* |
| Jul-15-2025 | 5346.90 $* | 5613.68 $* |
| Jun-15-2025 | 6264.84 $* | 6577.65 $* |
| May-15-2025 | 5454.40 $* | 5727.9 $* |
| Apr-15-2025 | 6156.40 $* | 6464.53 $* |
| Mar-15-2025 | 6102.43 $* | 6407.86 $* |
| Feb-15-2025 | 6048.24 $* | 6350.53 $* |
| Jan-15-2025 | 5994.38 $* | 6294.79 $* |
Характеристики
Product Description

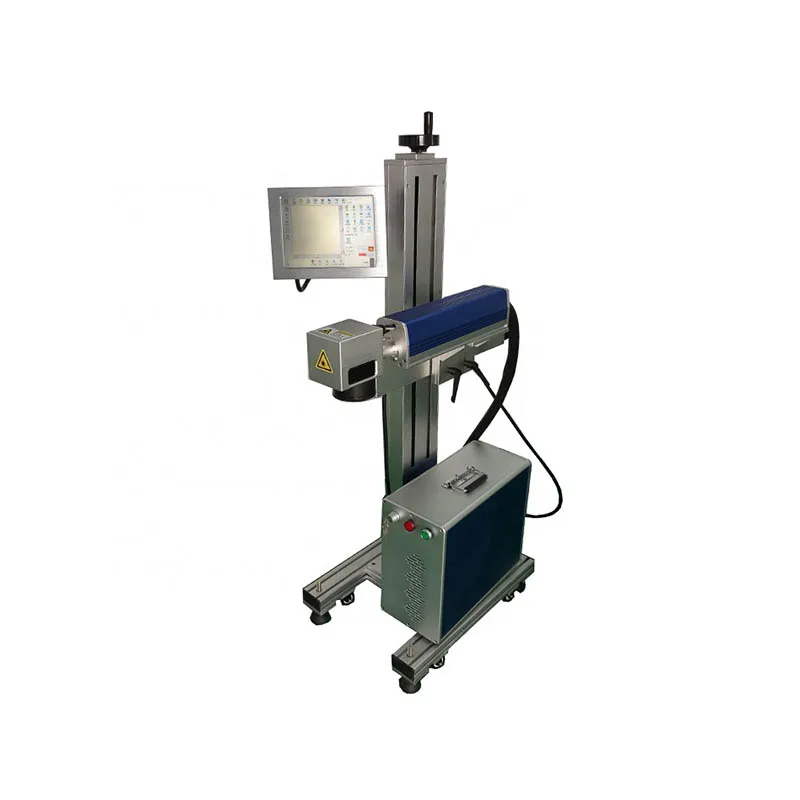

Color laser printer 20w 30w 50w fiber laser marking machine for metal jewelry laser engraving etching machine

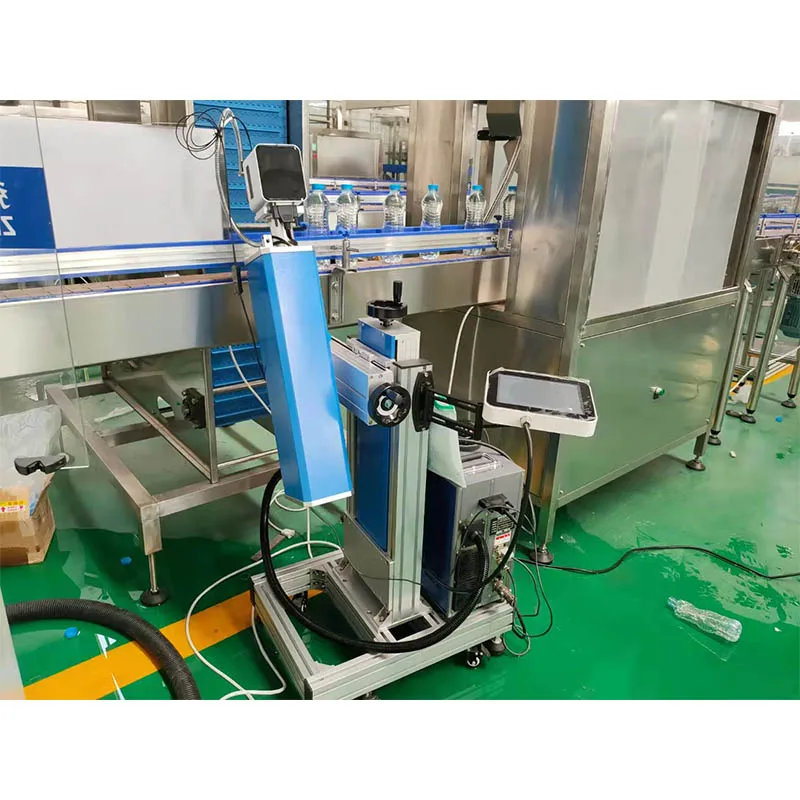

Coding on PET bottles
Marking on glass bottles
Marking on plastic films
NO.1
Fiber laser source
MAX Brand (Raycus, IPG optional)
Lifespan:100,000hours
Fiber laser source
MAX Brand (Raycus, IPG optional)
Lifespan:100,000hours
NO.2
Galvanometer scanning head
SINO-Galvo Brand
Higher scanning speed and marking accuracy
Galvanometer scanning head
SINO-Galvo Brand
Higher scanning speed and marking accuracy
NO.3
High quality field lens
High energy conversion rate
High quality field lens
High energy conversion rate
NO.4
Laser marking gun and red light indicator
Higher scanning speed and marking accuracy
Laser marking gun and red light indicator
Higher scanning speed and marking accuracy
NO.5
Laser marking master card
EZCAD card from JCZ
Designs and graph will be converted into digital signals by laser marking control card and transmitted into Galvanometer scanning head
Laser marking master card
EZCAD card from JCZ
Designs and graph will be converted into digital signals by laser marking control card and transmitted into Galvanometer scanning head
NO.6
Laser power supply
For fiber laser source and Galvanometer scanning head
Stable performance with long lifespan
Laser power supply
For fiber laser source and Galvanometer scanning head
Stable performance with long lifespan
NO.7
Control switch
laser button
Control switch
laser button
Product Characteristics
CO2 Laser printer for PET bottle time expiry date coding printing
CO2 Laser Printer/CO2 Laser Marking Machine--- For products in assembly line & manually coding, printing and marking.Jiede CO2 laser marking machines are powerful and versatile, they deliver flexible, high speed, high quality coding across a wide variety of materials with the ability to produce multiple lines of text. Our laser marking machines are designed to fit in limited spaces and integrate into a variety of production lines. We now have the users all over the world. Our honored clients use laser marking machine to printing on plastic (PET) bottles, printing on paper labels and printing on glass bottles.
CO2 Laser Printer/CO2 Laser Marking Machine--- For products in assembly line & manually coding, printing and marking.Jiede CO2 laser marking machines are powerful and versatile, they deliver flexible, high speed, high quality coding across a wide variety of materials with the ability to produce multiple lines of text. Our laser marking machines are designed to fit in limited spaces and integrate into a variety of production lines. We now have the users all over the world. Our honored clients use laser marking machine to printing on plastic (PET) bottles, printing on paper labels and printing on glass bottles.
What are the benefits of CO2 lasers?
* Applies high-contrast marks at ultra-fast speeds on nonmetallic products, wood, PET, plastic glass and other industrial products；
* The marking performances are clearly and accurately positioned and code precision that does not adversely impact product aesthetics；
* Virtually no maintenance and a source life expectancy of up to 30,000 hours (MTBF) delivers high performance and long-lasting reliability；
* Line speed of 900m/min meet the demands of high-speed packaging operations；
* 498mm wide marking window provides more time to print, increasing product throughput and maximizing productivity
* Applies high-contrast marks at ultra-fast speeds on nonmetallic products, wood, PET, plastic glass and other industrial products；
* The marking performances are clearly and accurately positioned and code precision that does not adversely impact product aesthetics；
* Virtually no maintenance and a source life expectancy of up to 30,000 hours (MTBF) delivers high performance and long-lasting reliability；
* Line speed of 900m/min meet the demands of high-speed packaging operations；
* 498mm wide marking window provides more time to print, increasing product throughput and maximizing productivity
Technical Parameters | ||||||||
Name | CO2 laser printer | System | Zonto | |||||
Laser watt | 20W/30W/50W/100W | Laser wavelength | 9.3μm 10.6μm | |||||
Laser source | CO2 Laser | Field Lens | CARMAN HAAS | |||||
Laser device | JR, DAVI, optional | Touch control screen size | 10 inches | |||||
Marking speed | ≤7000mm/s | Minimum character size | ≤0.4mm | |||||
Minimum line width | ≤0.1mm | Cooling way | Air cooling | |||||
Marking range | 70*70mm，110*110mm, optional | Rated power | ≤800W | |||||
Repeated positioning precision | 0.01mm | Power supply | Taiwan MEANWELL power | |||||
Power requirements | 220V±10 50/60Hz | Net weight | 60.8KG | |||||
Language | English/ Optional | Packing size | 1410*680*620mm | |||||
More application areas:
Wine glass bottle
Bear paper sticker
Tablet carton box
Paper label
Wooden
Medicine paper box
Packing & Delivery
Company Introduction
Company Customer
Our Advantage & Service
FAQ
Q1: What is your company’s main products?
A:Filling Machine, Canned Food Production Line, Palletizers, Sterilizers, Labeling Machine ,Capping Machine,Case Packer,Conveyor etc.If this is not the machine you want, please visit our other machines.
Q2:Are you manufacturer or trading company?
A:We are manufacturers and we have our excellent service team all over the world.We offer excellent after-sales service.
Q3:Where are you located? Is it convenient to visit you?
A:We are located in Shanghai. Traffic is very convenient.
Q4:How can you guarantee quality?
1.We are Alibaba Gold Enterprise.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE etc.
Q5: Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can
make new machine according to your requirements.
Q6: Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your worker if needed.
Q7: Why our customers trust and choose us?
1.Manufacturer
2.We have stocks
3.Delivery fast
4.Senior engineer
5.Competitive price
6.High quality
7.Strict Quality Control
8.Over 10 years experience
9.Provide Test
10.Varity of goods
11.Excellent after-sales services
12.Advanced machinery and equipment
Q8:If you will send a inquiry, what we should know:
1. what's your product?
2. what's your product size? like diameter and height?
3. how many pcs do you want to process each hour?
4. what's the sterilization time and temperature?
5. what's the cooling temperature you need?
A:Filling Machine, Canned Food Production Line, Palletizers, Sterilizers, Labeling Machine ,Capping Machine,Case Packer,Conveyor etc.If this is not the machine you want, please visit our other machines.
Q2:Are you manufacturer or trading company?
A:We are manufacturers and we have our excellent service team all over the world.We offer excellent after-sales service.
Q3:Where are you located? Is it convenient to visit you?
A:We are located in Shanghai. Traffic is very convenient.
Q4:How can you guarantee quality?
1.We are Alibaba Gold Enterprise.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE etc.
Q5: Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can
make new machine according to your requirements.
Q6: Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your worker if needed.
Q7: Why our customers trust and choose us?
1.Manufacturer
2.We have stocks
3.Delivery fast
4.Senior engineer
5.Competitive price
6.High quality
7.Strict Quality Control
8.Over 10 years experience
9.Provide Test
10.Varity of goods
11.Excellent after-sales services
12.Advanced machinery and equipment
Q8:If you will send a inquiry, what we should know:
1. what's your product?
2. what's your product size? like diameter and height?
3. how many pcs do you want to process each hour?
4. what's the sterilization time and temperature?
5. what's the cooling temperature you need?
