Низкотемпературный коммерческий тепловой насос для циркуляции фтора горячей

Низкотемпературный коммерческий тепловой насос для циркуляции фтора горячей

Категория: Heat Pump Water Heaters >>>
Поставщик: Henan,Xingzhihua,Environmental,Protection,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.33 $*	0.81 $*
Aug-15-2025	0.12 $*	0.51 $*
Jul-15-2025	0.36 $*	0.93 $*
Jun-15-2025	0.50 $*	0.23 $*
May-15-2025	0.61 $*	0.42 $*
Apr-15-2025	0.28 $*	0.71 $*
Mar-15-2025	0.93 $*	0.71 $*
Feb-15-2025	0.46 $*	0.8 $*
Jan-15-2025	0.70 $*	0.95 $*

Характеристики

Specification

Commercial low temperature fluorine cycle technical parameter
Model			KF210-LC
Rated working condition (20℃)	Heating capacity	9200W
		Input power / current	2370W/10.7A
		COP	3.88W/W
		Hot water production capacity	210L/h
Nominal working condition（7℃)	Heating capacity	9000W
Nominal working condition（7℃)		Input power / current	2650W/12.5A
Maximum effluent temperature			55℃
Power specifications			220/50Hz
Operating temperature range			-25～43℃
cryogen			R410A
Fluorine channel interface			DN13+DN8
Heat exchanger	Water side	Stainless steel high efficiency heat exchanger / hydraulic module
Heat exchanger		Wind side	Finned heat exchanger
Noise			56dB(A)
Fan type			Axial flow fan
Air outlet form			Side out
Overall dimension			900×330×840mm
Net weight			72kg
Rated working condition：Under the ambient temperature of 20 ℃, feed water for 15 ℃ and heat it to 55 ℃； Nominal working condition：The test results were obtained when the ambient temperature was 7 ℃, the inlet water was 9 ℃ and heated to 55 ℃: The above parameters are for reference only. See the nameplate of the product body for details

Product Description

Variable frequency cold water heat pump unit

Features:

Commercial hot water selling points
High efficiency heat exchanger, large heat exchange area, higher efficiency and faster;
Precise temperature control and intelligent defrosting control, using Zhigao patented intelligent defrosting Technology (patent: cn102937352a);
Modular networking and modular operation;
Power failure memory and automatic start function when calling;
Twelve protection functions, fault self diagnosis and information prompt, faster and more convenient after-sales maintenance;
Static heating can be realized, with higher heating efficiency and faster water outlet;
Without fear of severe cold (replenishing qi and increasing enthalpy), you can enjoy bathing and comfortable life all year round;
Applicable to: centralized hot water fields (such as schools, governments, hospitals, factories, hotels, villas, beauty salons, etc.)

Applicable to: centralized hot water fields (such as schools, governments, hospitals, factories, hotels, villas, beauty salons, etc.)

Without fear of severe cold (replenishing qi and increasing enthalpy), you can enjoy bathing and comfortable life all year round;

Specification

Technical parameters of variable frequency cold water heat pump unit（new design）
Model			LSZCN-7/DF3
Rated working condition (7℃,45)	Heating capacity	8200W
		Input power / current	2400W/11.2A
		COP	3.36W/W
Refrigeration condition (35℃)	Refrigerating capacity	7000W
		Input power / current	2397W/11A
		COP	2.92W/W
Power specifications			220V/50Hz
Operating temperature range			-15～43℃
cryogen			R410A
Waterway interface			DN25(内牙)
Rated water flow			1.21m³/h
Heat exchanger	Water side	High efficiency tank / plate replacement
Heat exchanger		Wind side	Tube fin heat exchanger
Noise			≤59dB(A)
Fan type			Axial flow fan×1
Air outlet form			Side out
Overall dimension			1030×380×803mm(Base foot)
Net weight			93kg
Rated working condition: measured at ambient temperature of 7 ℃ / 6 ℃ and outlet water of 45 ℃; Refrigeration condition: measured at ambient temperature of 35 ℃ and effluent temperature of 7 ℃； The above parameters are for reference only. See the nameplate of the product body for details

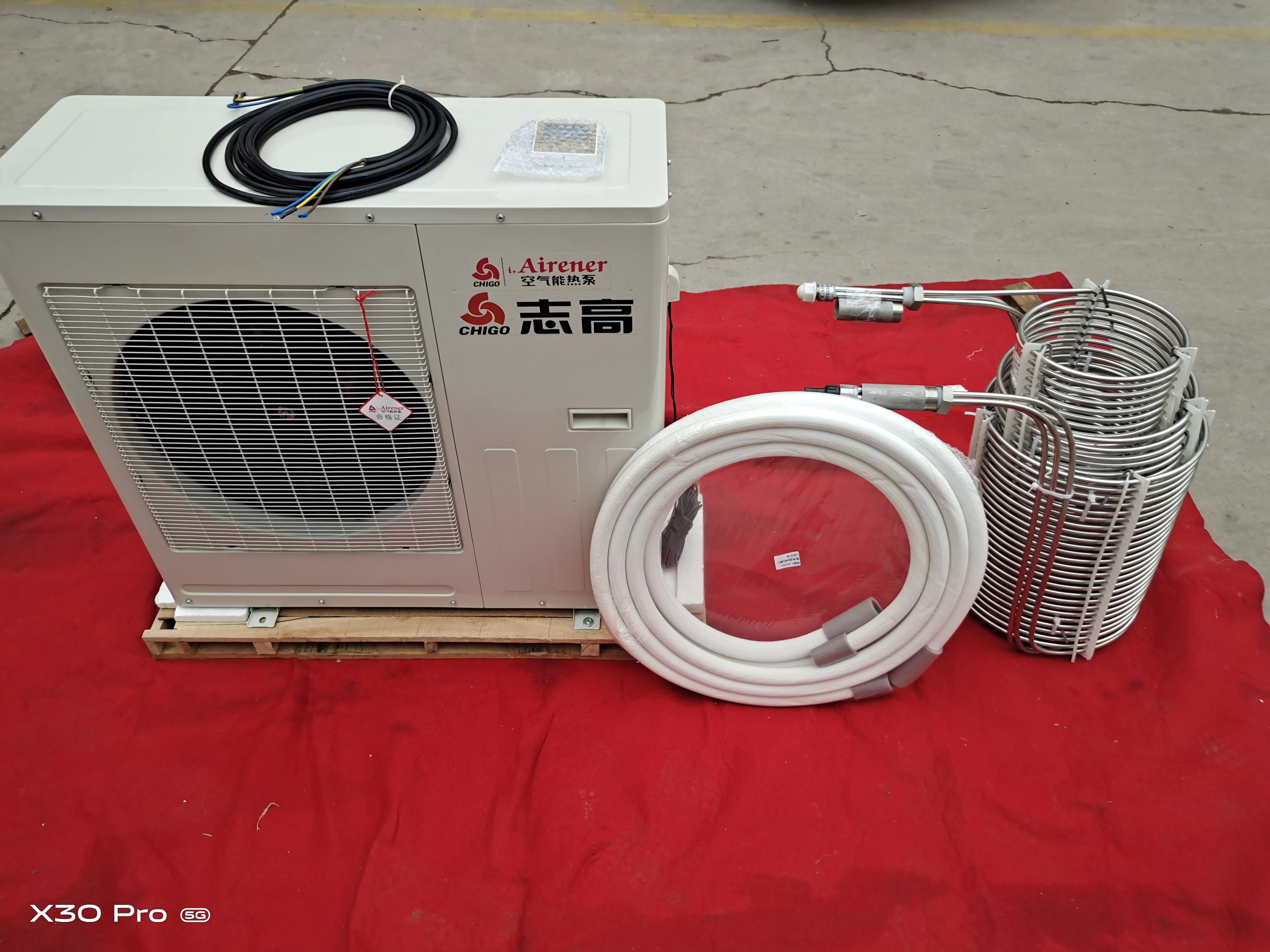

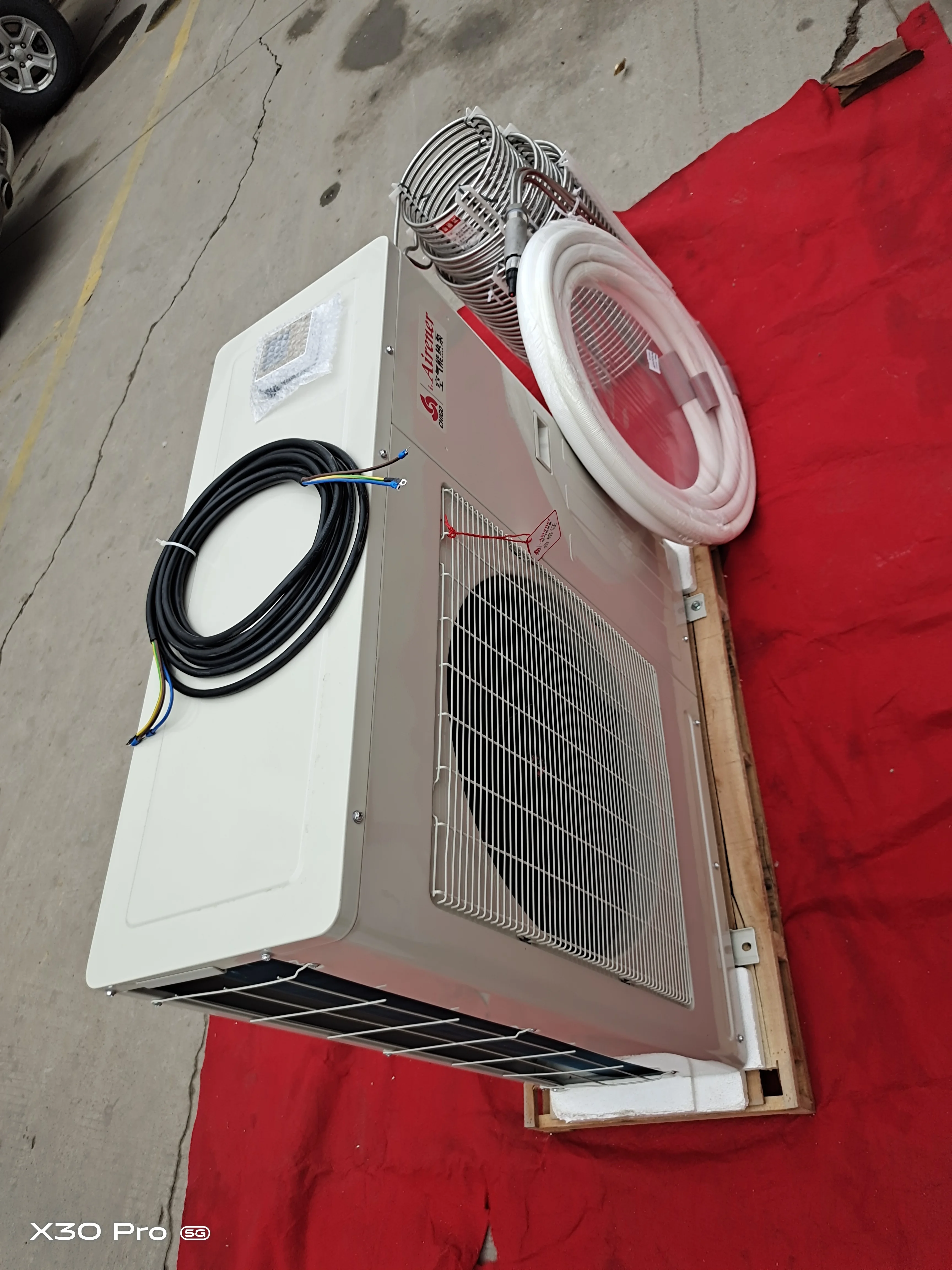

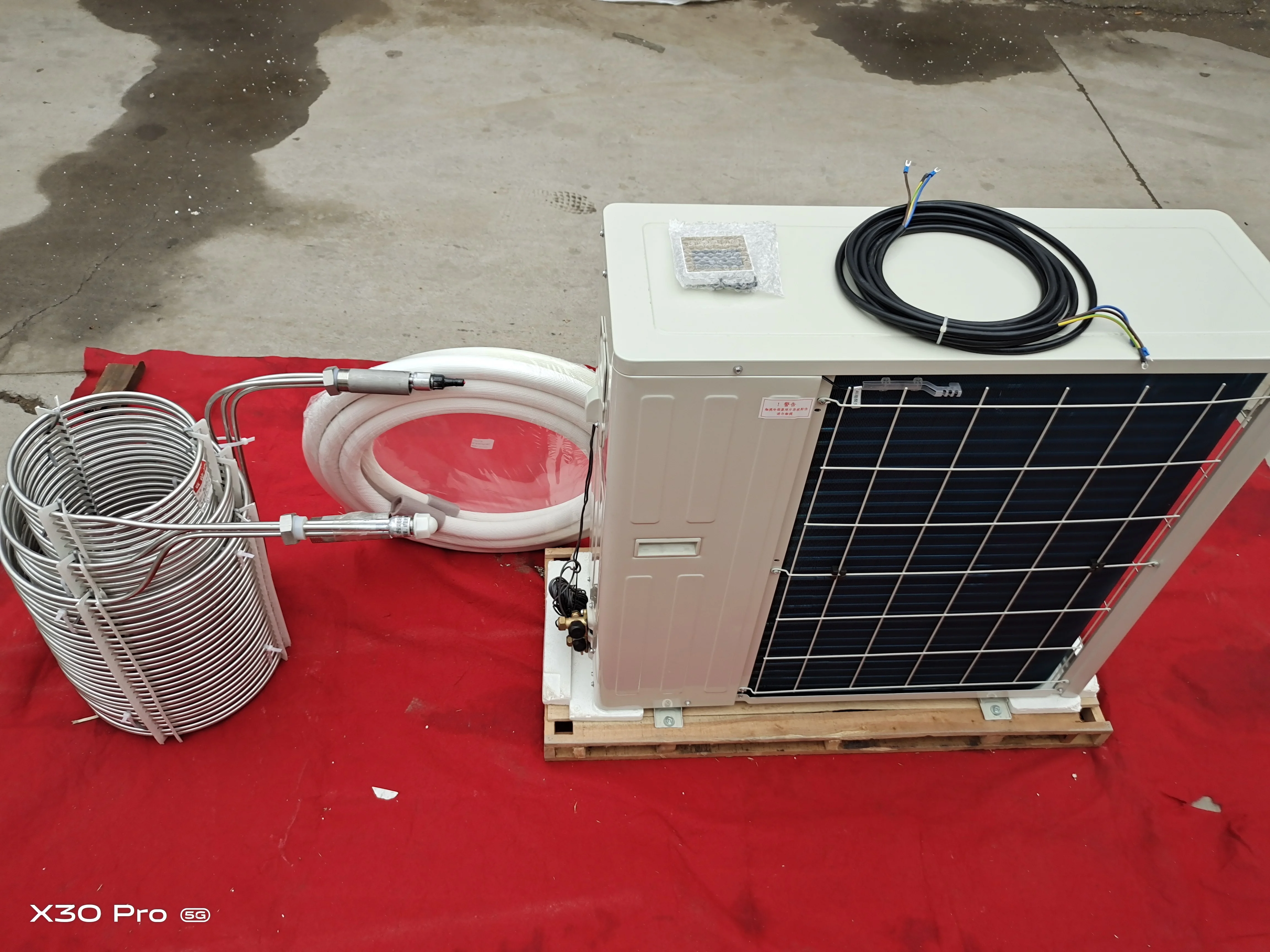

Details Images

Packing & Delivery

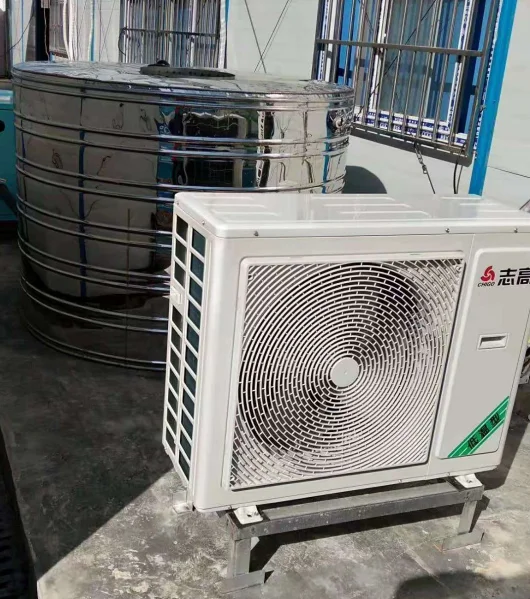

Working Site

Company Profile

CHIGO New Energy,(established in 2003, with three main modern manufacturing factory covering 580,000 square meters, 1,200,000 units production ability and over 1,500 employees. Chigo New Energy is fully committed to export service for overseas market.With strong R&D engineers and heat pump experts .Chigo New Energy is dedicated to supplying high efficiency energy-saving solution for household & commercial applications,which has developed advanced & unique technology and takes the leads of Floor Heating EVI & Inverter Heat Pump, Swim Pool Heat Pump,Central Hot Water Heat Pump, Fan Coil Unit and Geothermal Heat Pump.

With the core value of “Integrity, Responsibility, Appreciation”, the development concept of “Healthy and sustainable”, Chigo takes the social responsibility actively, promotes new energy products worldwide and insists donating itself to the society’s harmony and sustainability. Chigo always trys its best to fulfill the mission of “let sunshine change life, and let green color return to the world”.

Producing Line
Chigo Headquarter have 5 main professional installation teams, which are full of efficiency and ability.

Every team member is devote to work and provide the best quality of our product.

Certifications

FAQ

Q: Are you heat pump supplier of trading company or manufacturer ?

A: We are R&D and manufacturer factory. With 400,000 sq meters modern factory in Guangzhou City . with OEM service provided, MOQ> 20 Units. heat pump air to water china heat pump air to water china.

Q: How long for your heat pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: Do you also provide other kinds of heat pump?
A: ASHP of EVI(9KW-132KW) / Swim Pool(5KW-150KW) / Domestic Hot Water Heat Pump(80L-300L tank size)etc... h
eat pump air to water china heat pump air to water china.
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shippment. AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
