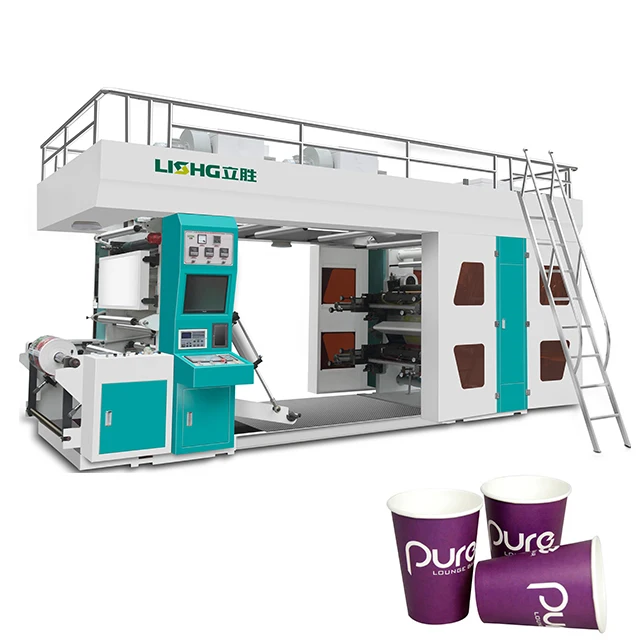

4 color kraft paper pp woven bag beverage packaging roll to central impression flexo printing machine servo
- Категория: Flexographic Printers >>>
- Поставщик: Wenzhou,Lisheng,Printing,&,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.16 $* | 0.11 $* |
| Aug-16-2025 | 0.73 $* | 0.97 $* |
| Jul-16-2025 | 0.40 $* | 0.65 $* |
| Jun-16-2025 | 0.77 $* | 0.55 $* |
| May-16-2025 | 0.6 $* | 0.41 $* |
| Apr-16-2025 | 0.47 $* | 0.72 $* |
| Mar-16-2025 | 0.67 $* | 0.78 $* |
| Feb-16-2025 | 0.97 $* | 0.48 $* |
| Jan-16-2025 | 0.69 $* | 0.49 $* |
Характеристики
Product Description

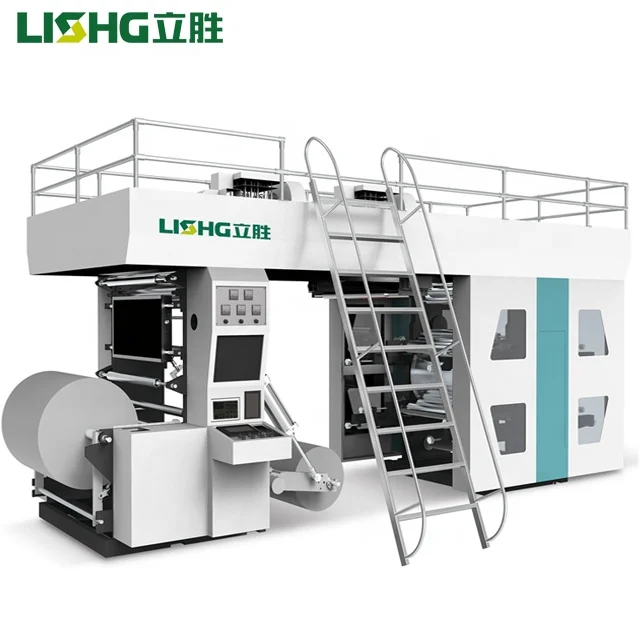

This central impression (central drum)flexographic printing machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.
Model | YTC-41000 | ||||
Structure type | Central impression(central drum) | ||||
Max. material feeding width | 1000mm | ||||
Max. printing width | 960mm | ||||
Colors | CMYK, 4 colors | ||||
Material | Film. PVC.OPP.PE.BOPP.PE.NY.PET.CPP.etc | ||||
Thickness of plate | 1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm Customized is available | ||||
Printing length | Standard is 400mm, Customized is available from 300-1000mm | ||||
Maximum machine speed | 150m/min | ||||
Printing speed | 80-120m/min | ||||
Register precision | Longitudinal registration≤0.1mm Transversal registration≤0.1mm | ||||
Heating method | Electricity heating | ||||
Max. oven temp. | Max. 80℃(room temp. 20℃） | ||||
Gear module | 1.5mm | ||||
Web fixing method for un/rewinder | Safety chuck+ Air expanding shaft | ||||
Max.unwinder/rewinder dia. | 1000mm | ||||
Adhesive tape thickness for stick printing cylinder | 0.38mm | ||||
Suitable Ink | Water based ink / Solvent ink | ||||
Machine weight | 5300kg | ||||
Machine Size | 5700x2350x2950mm | ||||
HS code | 844316009 | ||||
Sample pictures
Plastic film printing effect
Non woven fabric printing effect
Paper printing effect
Main Features
1) Central impression type printing machine with better color registration. Due to the big drum, the printed material is
supported by the big drum, and greatly improving color registration, especially with extensible materials.
2) All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, increase
the registration precision.
3) Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
4) The machine is equipped with blower and heater; and the heater employed central temperature control system,
automatic temperature controller, and separated heat source.
5) The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6) Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7)Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance,
beating small, achieves finally perfect printing effect.
8)Accurate printing effect achieved by special gear transmission device.
9)The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.
supported by the big drum, and greatly improving color registration, especially with extensible materials.
2) All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, increase
the registration precision.
3) Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
4) The machine is equipped with blower and heater; and the heater employed central temperature control system,
automatic temperature controller, and separated heat source.
5) The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6) Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7)Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance,
beating small, achieves finally perfect printing effect.
8)Accurate printing effect achieved by special gear transmission device.
9)The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.

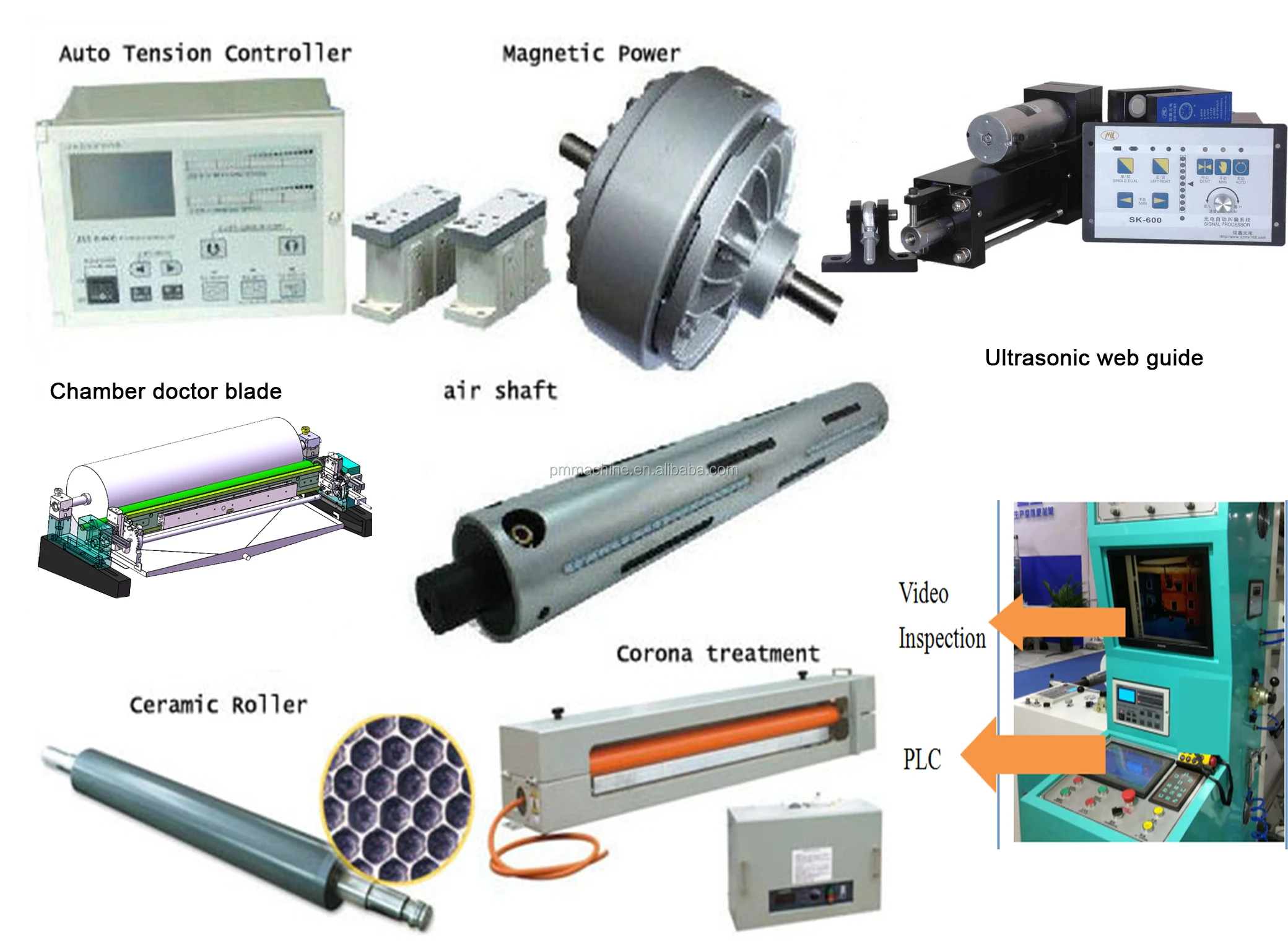

Details Images
Feeding Material Part
1.Automatic stop machine when break the material. When machine stop, keep tension and avoid the material loose or line deflection.
2.Single unwinding system, equipped with air shaft , EPC and automatic tension control system with magnetic brake.
3.Roller core diameter: 76mm
4.Discharge maximum diameter: 1000mm
5.Pneumatic load and unload to transport and loading material.
Printing Sections
1.Printing consists of: central drum, plate roller, ceramic anilox roller, single doctor blade and chamber doctor blade.
2.Plate roller circumference: 300-800mm.
3.Print material: resin plate or rubber plate.
4.Transmission: central drum with big gear drive the printing station.
2.Plate roller circumference: 300-800mm.
3.Print material: resin plate or rubber plate.
4.Transmission: central drum with big gear drive the printing station.
Drying System
1.Use hot air drying, intelligent constant temp control.
2.Drying units are installed after the printing units, and air volume can be adjusted by independent damper/panel.
3. The dryting system after the printing it is about 30kw.
3. The dryting system after the printing it is about 30kw.
Rewinding Part
1.Single unwinder system, equipped with air shaft , EPC and automatic tension control system with magnetic brake.
2.Roller core diameter: 76mm
3.Discharge maximum diameter: 1000mm
4.Different material and weight have different design.
3.Discharge maximum diameter: 1000mm
4.Different material and weight have different design.
5.Pneumatic load and unload to transport and loading material.
PS: Above configurations just for your reference. Know more details please connect with us! Thanks and best regards!
Certifications
Packing&Shipping
Usually is film packaging, wooden also can be customized.
After Sales Service
Related Products
Every machine will be tested before shipment. And send video, sample, and container load photo one by one.
1.Are you a factory or trading company?
A: We are a factory, the real manufacturer not trader.2.Where is your factory and how can I visit it?
2.Where is your factory and how can I visit it?
A: Our factory is located in Ruian City, Zhejiang Province, China about 40 minutes by plane from Shanghai ( 5 hours by train)
3.What is your after-sale service?
A: We have been in flexo printing machine business for many years, we will send our professional engineer to install and test
machine. Beside, we can also provide online support, video technical support, matching parts delivery, etc. So our after-sales
services is always reliable.
4.How to get machines price?
A: Pls provide following information:
1)The color number of printing machine;
2)Material width and effective print width;
3)What material to print;
4)The photo of printing sample.
Our Services
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
The buyer paid tickets ( go and back to wenzhou), and pay 100usd/day during the install and testing period!
A: We are a factory, the real manufacturer not trader.2.Where is your factory and how can I visit it?
2.Where is your factory and how can I visit it?
A: Our factory is located in Ruian City, Zhejiang Province, China about 40 minutes by plane from Shanghai ( 5 hours by train)
3.What is your after-sale service?
A: We have been in flexo printing machine business for many years, we will send our professional engineer to install and test
machine. Beside, we can also provide online support, video technical support, matching parts delivery, etc. So our after-sales
services is always reliable.
4.How to get machines price?
A: Pls provide following information:
1)The color number of printing machine;
2)Material width and effective print width;
3)What material to print;
4)The photo of printing sample.
Our Services
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
The buyer paid tickets ( go and back to wenzhou), and pay 100usd/day during the install and testing period!
