PRODUCTS DESCRIPTION

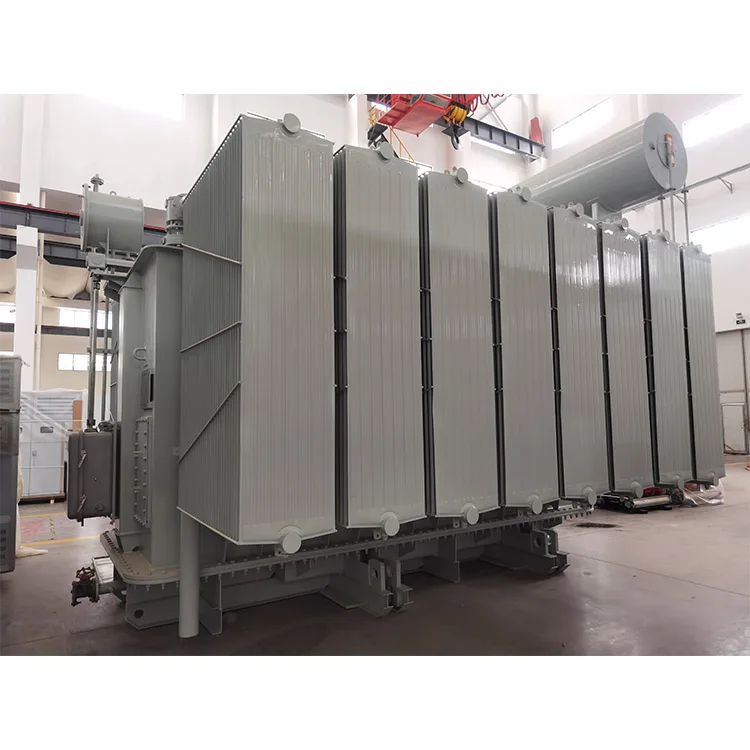

Ryan Electric can produce High Voltage Oil Immersed Power Transformers up to 180 MVA,110 kV in own production facilities. Ryan Electric is fully equipped with senior engineers, facilities and tool to meet all kinds of customer’ requirements in design, production, tests, site assembly and maintenance. Each transformer is designed with a tailor-made approach, taking into account its application and environmental working conditions.


Manufacturing Process Features
Precise core ensures low losses and minimal no-load noise

High-grade, cold-rolled silicate steel are precision-cut with computer-controlled machines, then will be computerized assembled into cores, to ensure compliance with even the smallest tolerances. The mitered step-lap technique ensures superior flux distribution at the joints, resulting in exceptionally low losses and minimal no-load noise.
Scientific Winding Arrangement to achieve high mechanical strength and long reliability
Transformer windings are subject to continuously high electrical and mechanical loads. Disk and cylindrical coils with transposed conductors of copper wire guarantee high mechanical strength and long operational reliability. Disk coils for high voltages consist of continuously wound coils. The continuous winding keeps soldering points to a minimum.
Voltage tapping system Available
Ryan transformers allow you to safely adjust the voltage to grid conditions. It can either be changed in the de-energized state by means of a de-energized tap changer or adjusted in steps under load using on-load tap changers.
Leak-proof Tank with light weight
Ryan’s tank is structurally light and leak-proof, and must withstand mechanical stresses. First-class corrosion protection is
therefore a basic requirement for long tank life.

Product Advantages
1) Partial discharged: The partial discharge is less than 80pC under 1.5 times of rated voltage;
2) Noise: Products of 63MVA and below is lower than 58 dB (AN);
3) Power loss: no-load loss is 30% lower than that of IEC standard;
4) Reliability: All in-service products have no damages or oil leakage occurred;



Rated Capacity
(kVA)
Level 1(S22 Type)
Level 2(S20 Type)
Level 3(S13 Type)

Short-circuit
impedance%
No-load loss
(kW)
Load loss
(75℃)
(kW)
No-load loss
(kW)
Load loss
(75℃)
(kW)
No-load loss
(kW)
Load loss
(75℃)
(kW)
6300
4.1
32
4.8
32
5.9
33
10.5
8000
4.9
38
5.8
38
7.1
40
10000
5.8
45
6.8
45
8.4
48
12500
6.8
53
8.7
53
9.9
56
16000
8.3
65.7
9.8
65.7
12
69
20000
9.7
79
11.4
79
14.1
84
25000
11.4
94
13.5
94
16.6
99
31500
13.5
111
16
111
19.7
117
40000
16.2
133
19.1
133
23.5
141
50000
19.4
158
22.9
158
28.2
166
63000
22.9
187
27
187
33.3
198
75000
26
212
30.7
212
37.8
224
12~14
90000
29.9
245
35.4
245
43.5
258
120000
37.3
303
44.1
303
54.2
320
150000
44.1
359
52.1
359
64.1
379
180000
49.5
411
58.5
411
72
434


PRODUCTS CATEGORIES




COMPANY INFORMATION




CERTIFICATIONS




PRODUCTION PROCESS




PACKAGING SHIPPING




FAQ




Q: Are you a manufacturer or trading company?
A: Ryan Electric is a leading and professional manufacturer of Cast Resin transformer, Oil Immersed Transformer and Package Compact Substation since 2007.
Q: What's your advantage compared with other suppliers?
A: As an esteemed power transformer manufacturer in China, our transformer have been awarded and certified by ASTA certification. With high reputation in market, our transformers have been exported to more than 20 different countries.
Q: What are preferred Terms of Payment?
A: T/T, L/C
Q: OEM and ODM available?
A: Yes, we supply customized solution to clients.
Q: What’s your delivery lead-time?
A: Usually, it will take about 15 workdays after deposit of payment.
Q: How long is the warranty of your product?
A: Our warranty period is usually one year. But, the warranty period can be extended on base your project requirement.
