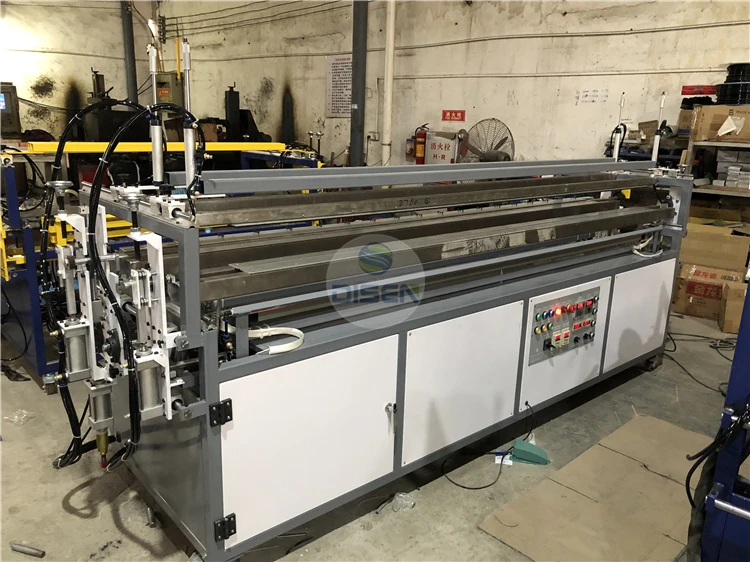

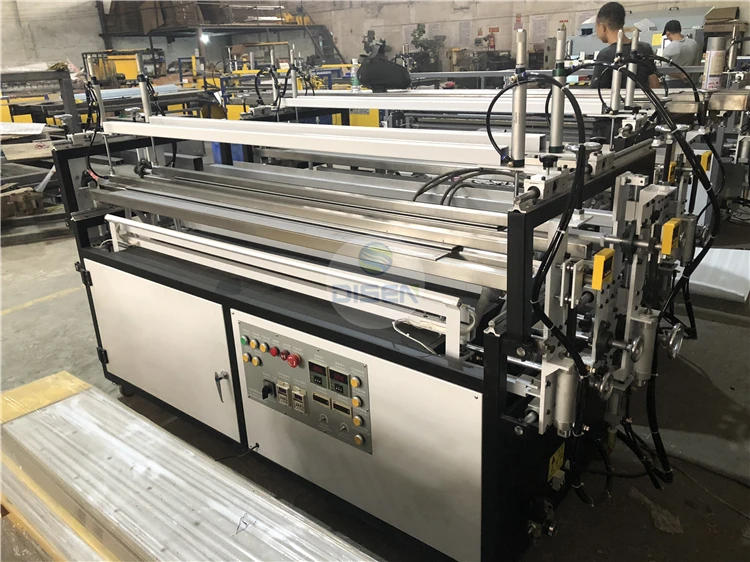

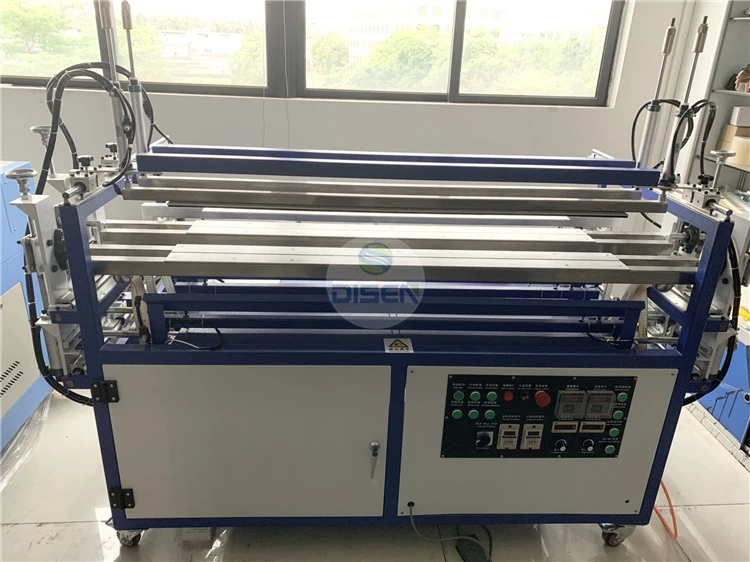

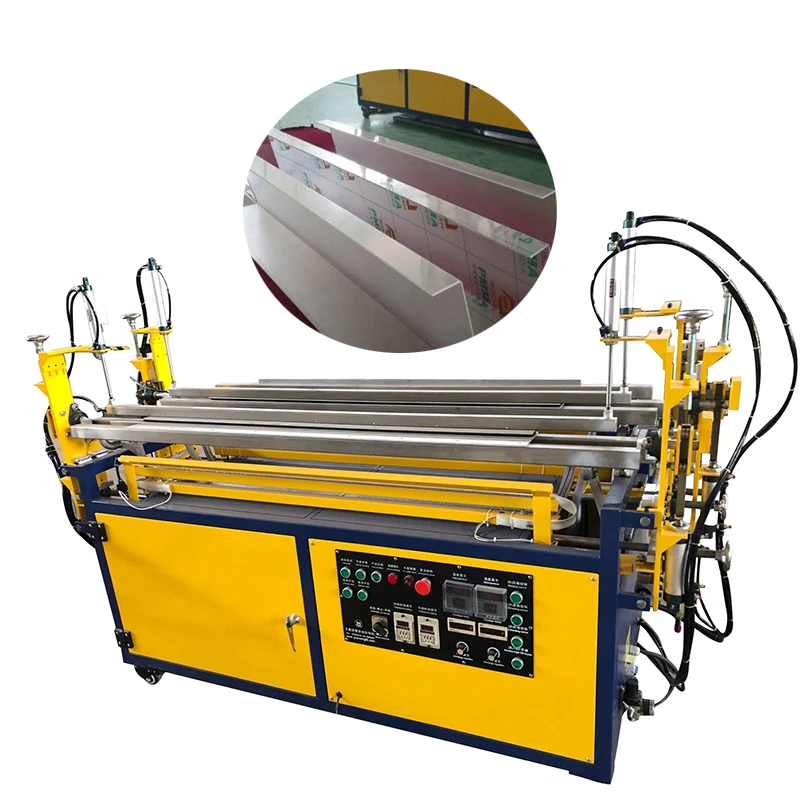

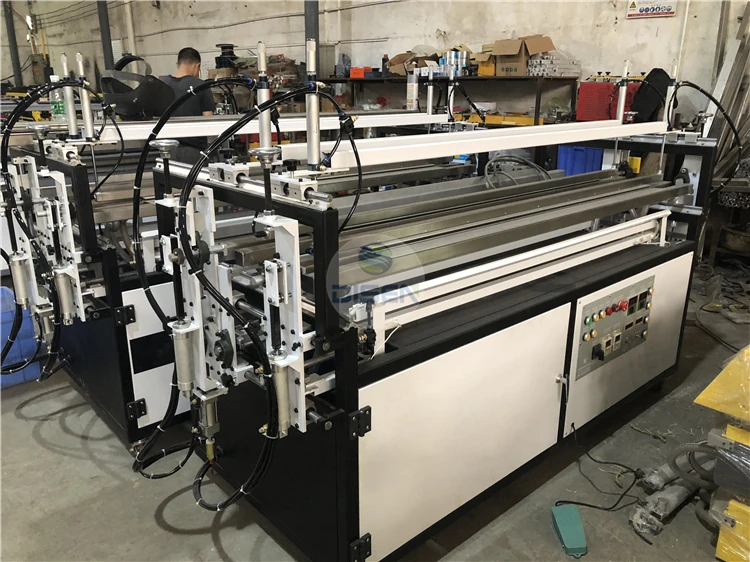

Factory price automatic 3d letters making acrylic bending machine size 1350 mm 1800mm

Model

DSA-JW1500

DSA-JW2400

Power supply

220V 50-60HZ

Power

1 heating tube 1200w
2 heating tubes 2400w

1 heating tube 1500w
2 heating tubes 3000w

1 heating tube 2400w
2 heating tubes 4800w

Foldable length

Infinite length
120cm in width

Infinite length
150cm in width

Infinite length
240cm in width

Cooling method

Water circulation cooling and air cooling

Dimensions

200*110*150cm

230*110*150cm

320*110*150cm

Net weight

300kg

350kg

480kg

Product name

Acrylic automatic bending machine

Application materials

PVC, PE, PP, PET, HIPS and other plastic materials

Positioning mode

cylinder automatic positioning mode

Processing thickness

0.8-6MM

System configuration

precision mechanical control

Temperature adjustment

0-300℃

Cooling system

equipped with water circulation cooling and air cooling system

Foldable angle

30-175 degrees, adjustable

Double pipe spacing

(150MM-550MM) adjustable

Application

Used in the hot bending process of plexiglass, acrylic, plastic board, PC, PVC, PP and other materials.

Operation mode

button panel display operation + foot control start configuration

Scope of application: used for acrylic, plexiglass, PC PVC PE PS and other plastic sheet, craft products, decorative lighting jewelry hot bend.

Main advantages of automatic bending machine:
1. High processing efficiency, mass production, and labor saving.
2. Configure the button operation panel to select the automatic and manual two-state bending, which is simple and practical.
3. New configuration, high-strength molding device, set heating time and temperature, and instant automatic bending is completed.
4. This machine is widely used to meet the bending needs of different angles.
