Характеристики
Product Description

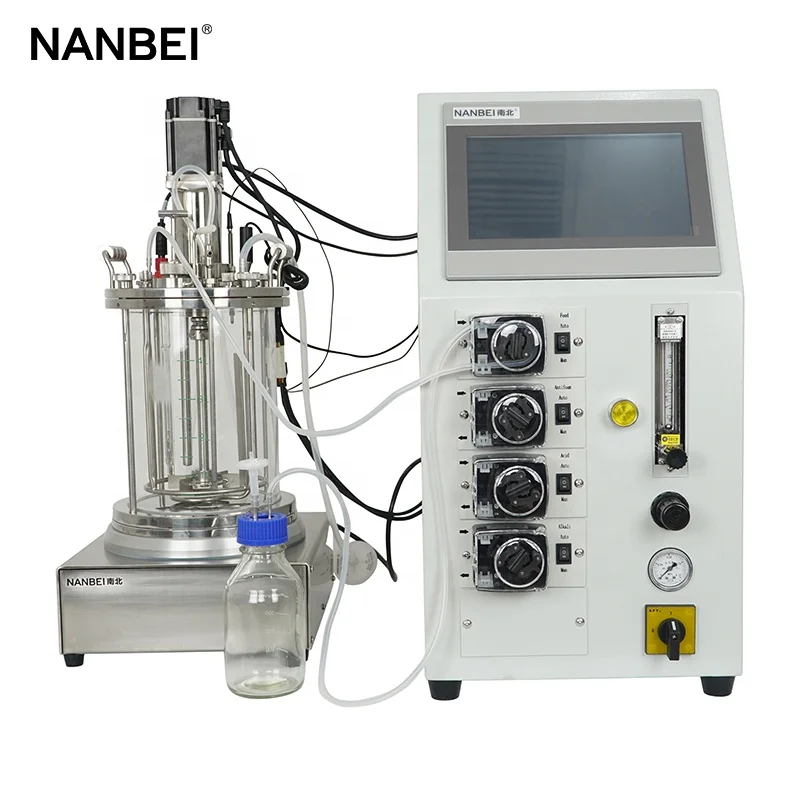

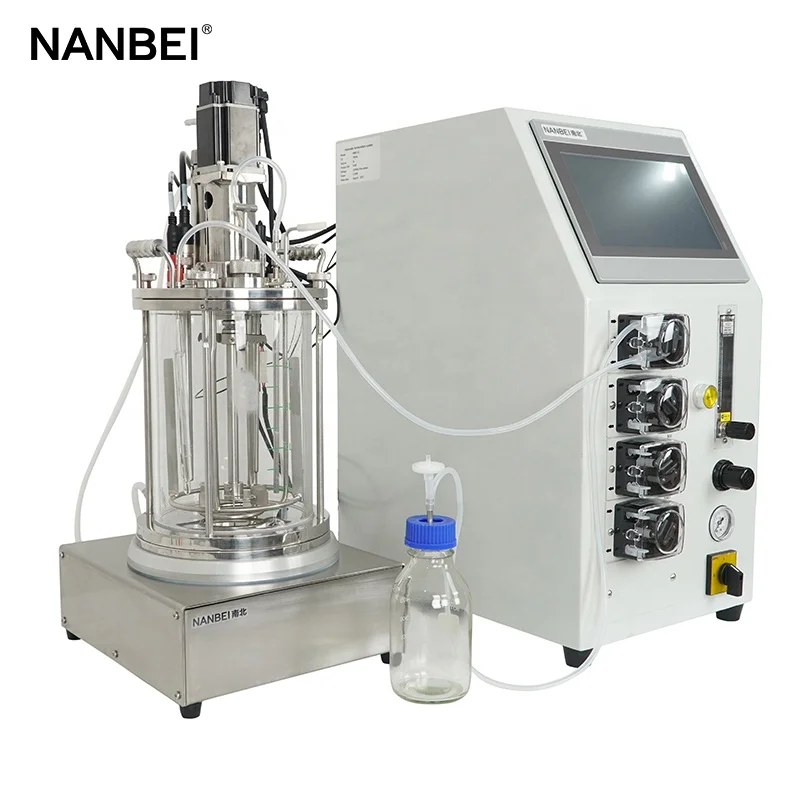

5L Off-site sterilization magnetically stirred glass fermentation tank
Model: NBIO-5L
Volume: 5 liters
Material: 316L stainless steel + borosilicate glass
Stirring method: bottom magnetic drive mechanical stirring or top mechanical stirring
Sterilization method: off-position autoclave sterilization
Basic configuration: temperature, speed, PH, dissolved oxygen, defoaming, feeding, tank pressure
Volume: 5 liters
Material: 316L stainless steel + borosilicate glass
Stirring method: bottom magnetic drive mechanical stirring or top mechanical stirring
Sterilization method: off-position autoclave sterilization
Basic configuration: temperature, speed, PH, dissolved oxygen, defoaming, feeding, tank pressure
Indicators and configuration:
Nominal volume: 0.5/1/2/3/5/7/10 liters (optional)
Diameter to height ratio: 1:2 (can be changed);
Filling factor: 70%

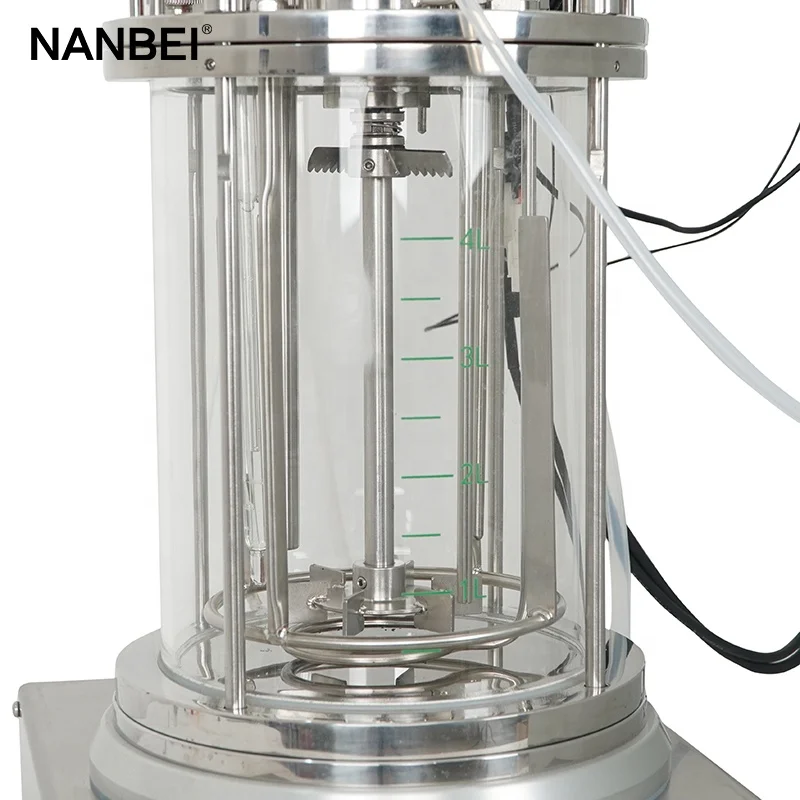

Tank system: The tank cover and tank bottom are made of SUS316L high-quality stainless steel, and the tank body is made of high-temperature resistant silicon borosilicate glass, with a liquid loading coefficient of 70%, advanced process structure and simple operation.
Stirring system: It adopts an upper suspension strong magnetic stirring system, no mechanical seal, no thimble at the bottom, high-quality aluminum alloy motor and imported speed regulator to ensure stable speed; high-performance stirring blade, defoaming blade, stepless speed regulation. The inner parts of the tank are all installed on the tank cover, which is very convenient for maintenance and cleaning; the special standard blade for fermentation, the blade height is adjustable, and different types of stirring blades can be replaced according to the special requirements of the fermentation process. The design of the separation of the motor and the tank body greatly reduces the tank body weight, makes the operation easier and more convenient, and saves a lot of manpower. The magnetic stirring system adopts special permanent magnet materials, unique processing technology, and never demagnetizes. The maximum stirring speed will not be lower than 980rpm during the life of the fermentation tank. The maximum speed can also be reached in high-viscosity media, and the control range can be set automatically. 50~1000rpm±5rpm.
Ventilation control: manual control, flow meter display. Including rotameter, imported membrane air sterilization filter, filtration accuracy up to 0.02μm
Temperature control: jacketed water bath electric heating, automatic control, temperature control cooling water temperature +5℃~65℃±0.2℃

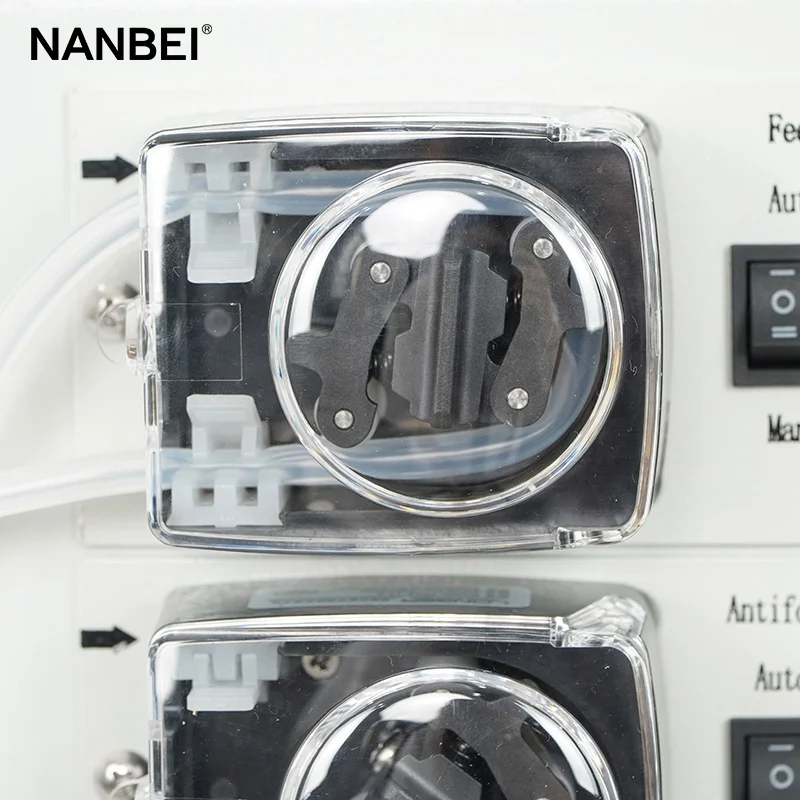

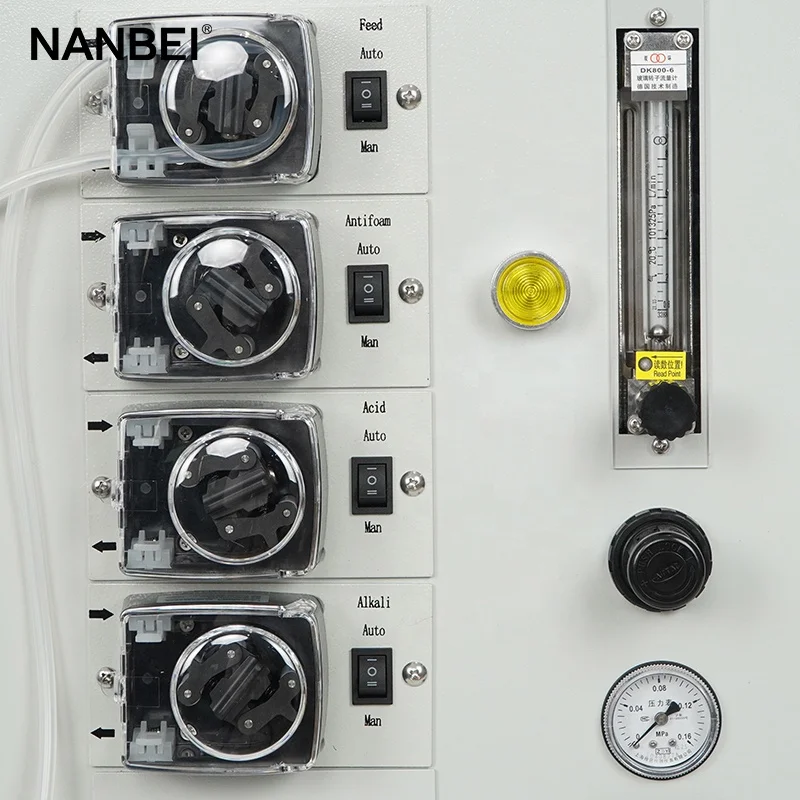

Foam control: automatic PID measurement and control and alarm, peristaltic pump automatically adds defoamer
Feeding control: PID automatic setting peristaltic pump switch control, automatic feeding and metering.
pH control: using original imported Swiss Mettler electrodes (compatible with high-quality domestic electrodes), the peristaltic pump automatically adds acid and alkali to accurately control pH, display range: 0.00~14.00±0.01, automatic control range: 2.00~12.00±0.05
DO control: adopt the original imported Swiss Mettler electrode (compatible with high-quality domestic electrode), and the speed (air flow, feeding, etc. optional) associated control, 0-150 ± 3%, display accuracy 0.1%
Pressure control: manual control (automatic control is optional), instrument display

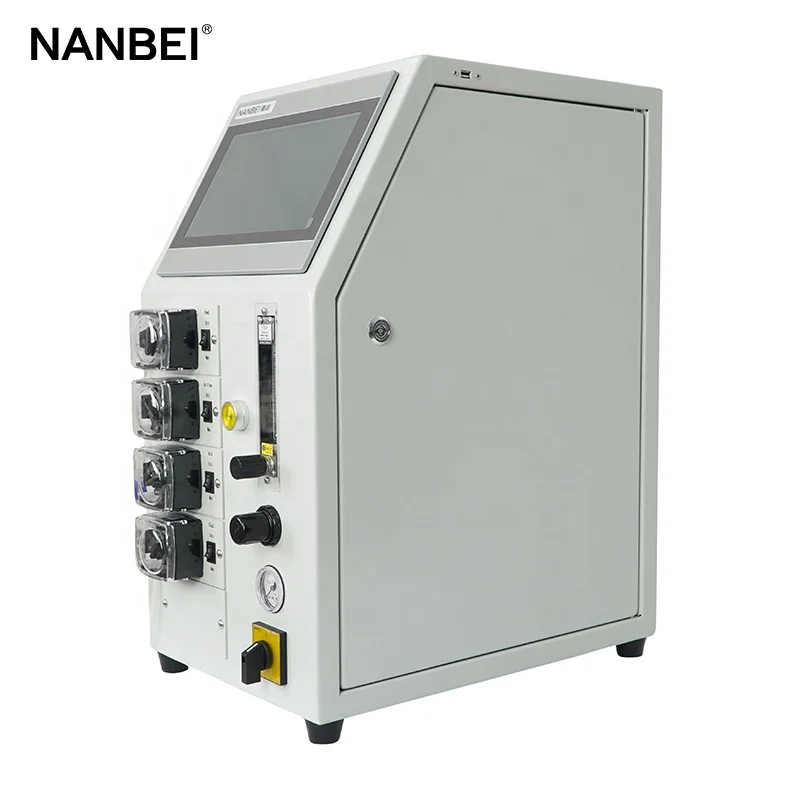

Control system: A single tank can use BIOTECH-7000 biological process controller supplemented by BIOTECH-FCS fermentation monitoring software. You can observe the fermentation changes on the spot or remotely monitor the fermentation process; if multiple or multi-stage fermentation tanks are used The BIOTECH-3000/6000/8000/9000 biological process controller can be used to achieve more measurement and control functions.
Nominal volume: 0.5/1/2/3/5/7/10 liters (optional)
Diameter to height ratio: 1:2 (can be changed);
Filling factor: 70%
Tank system: The tank cover and tank bottom are made of SUS316L high-quality stainless steel, and the tank body is made of high-temperature resistant silicon borosilicate glass, with a liquid loading coefficient of 70%, advanced process structure and simple operation.
Stirring system: It adopts an upper suspension strong magnetic stirring system, no mechanical seal, no thimble at the bottom, high-quality aluminum alloy motor and imported speed regulator to ensure stable speed; high-performance stirring blade, defoaming blade, stepless speed regulation. The inner parts of the tank are all installed on the tank cover, which is very convenient for maintenance and cleaning; the special standard blade for fermentation, the blade height is adjustable, and different types of stirring blades can be replaced according to the special requirements of the fermentation process. The design of the separation of the motor and the tank body greatly reduces the tank body weight, makes the operation easier and more convenient, and saves a lot of manpower. The magnetic stirring system adopts special permanent magnet materials, unique processing technology, and never demagnetizes. The maximum stirring speed will not be lower than 980rpm during the life of the fermentation tank. The maximum speed can also be reached in high-viscosity media, and the control range can be set automatically. 50~1000rpm±5rpm.
Ventilation control: manual control, flow meter display. Including rotameter, imported membrane air sterilization filter, filtration accuracy up to 0.02μm
Temperature control: jacketed water bath electric heating, automatic control, temperature control cooling water temperature +5℃~65℃±0.2℃
Foam control: automatic PID measurement and control and alarm, peristaltic pump automatically adds defoamer
Feeding control: PID automatic setting peristaltic pump switch control, automatic feeding and metering.
pH control: using original imported Swiss Mettler electrodes (compatible with high-quality domestic electrodes), the peristaltic pump automatically adds acid and alkali to accurately control pH, display range: 0.00~14.00±0.01, automatic control range: 2.00~12.00±0.05
DO control: adopt the original imported Swiss Mettler electrode (compatible with high-quality domestic electrode), and the speed (air flow, feeding, etc. optional) associated control, 0-150 ± 3%, display accuracy 0.1%
Pressure control: manual control (automatic control is optional), instrument display
Control system: A single tank can use BIOTECH-7000 biological process controller supplemented by BIOTECH-FCS fermentation monitoring software. You can observe the fermentation changes on the spot or remotely monitor the fermentation process; if multiple or multi-stage fermentation tanks are used The BIOTECH-3000/6000/8000/9000 biological process controller can be used to achieve more measurement and control functions.
Details Images
Specification
Product Name | 5L Off-site sterilization magnetically stirred glass fermentation tank |
Application | Microbial fermentation |
Capacity | 5L |
Sterilization method | Off-site sterilization |
Stirrer | magnetic stirrer |
Standard Probe | PH,DO,Temperature,Defoaming probes |
Nominal volume | 0.5/1/2/3/5L |
Diameter-height ratio | 1:2 |
Filling factor | 70% |
Tank material | borosilicate glass |
