Новый дизайн машина для извлечения масла Ванильная
- Категория: Pharmaceutical Machinery >>>
- Поставщик: Wenzhou,Ace,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 11662.51 $* | 12245.6 $* |
| Aug-18-2025 | 11564.28 $* | 12142.96 $* |
| Jul-18-2025 | 9702.85 $* | 10187.30 $* |
| Jun-18-2025 | 11368.82 $* | 11936.18 $* |
| May-18-2025 | 9898.2 $* | 10393.14 $* |
| Apr-18-2025 | 11172.4 $* | 11731.82 $* |
| Mar-18-2025 | 11074.58 $* | 11628.16 $* |
| Feb-18-2025 | 10976.57 $* | 11525.54 $* |
| Jan-18-2025 | 10878.89 $* | 11422.57 $* |
Характеристики

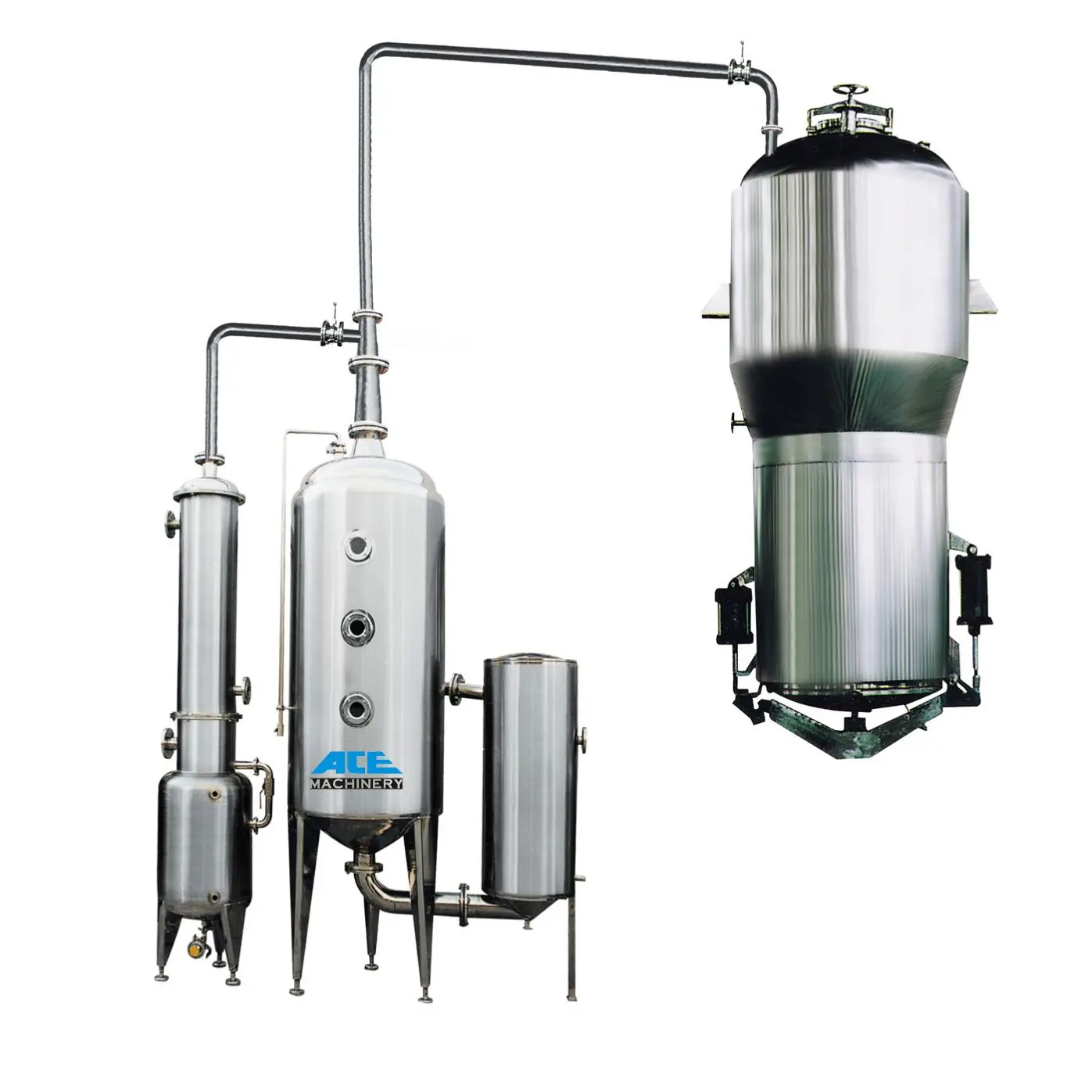

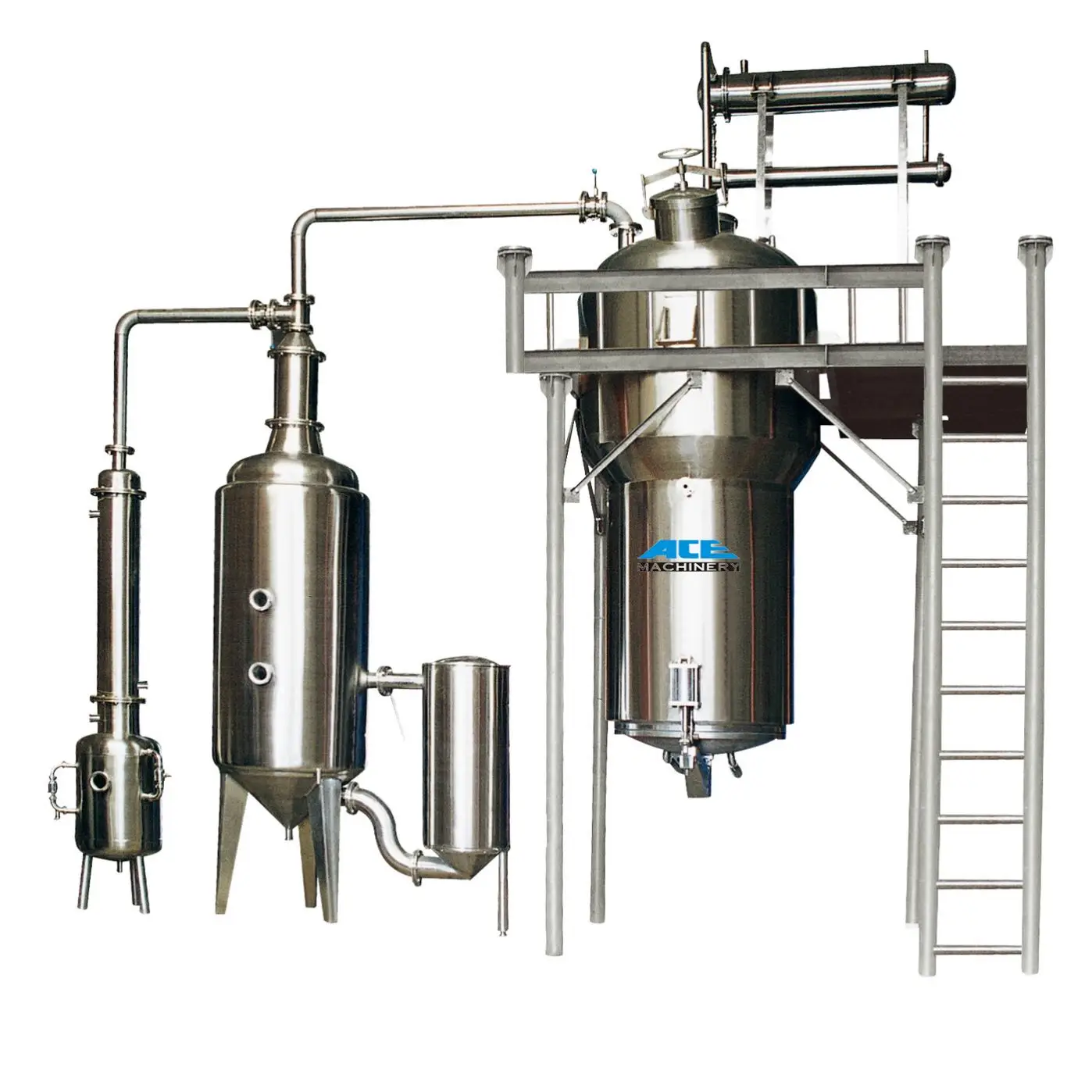

New Design Oil Extracting Machine Vanilla Rose Essential Oil Extracting Machine
Custom Made Extraction and concentration machine, 20 Years Of Experience. Reasonable Price And Best Service, CE Certificated Products.Sold to Over 180 Countries.Advanced Technology.Contact us for the offer.
Video
Products Description
Description
The device is used to extract the herb, flower, seed, fruit, fish etc. It can be used for food and chemical industries in normal pressure, micro-pressure, water frying, heat cycling, cycling leaking, redolent oil extract and organically solvent recycle.
There are four kinds of the extracting tanks series: the mushroom type extracting tank, the Upside-down taper type extracting tank, the vertical cylinder type extracting tank and the normal taper type.
There are four kinds of the extracting tanks series: the mushroom type extracting tank, the Upside-down taper type extracting tank, the vertical cylinder type extracting tank and the normal taper type.
Main Features
1. The Multifunctional Extraction Tank Herbal Extractor consists of extractor, tubular heater, evaporator, condenser, oil-liquid separator, oil collector, medicine liquid pump, weighing vent, liquid storage tank, filter, vacuum pump, and electric cabinet. Defoamers are fixed in the steam outlet of the extractor and evaporator. The units without steam heating can be fixed with oil heating system.
2. It can be operate to hot recyling distill and condense, normal extraction, concentration, precipitation and percolation.
3. It can work in the condition of negative pressure, atm. and positive pressure. It can apply to distill water, ethanol and solvent, up to GMP standard.
4. The group has great advantages in multi-function, high efficiency, energy saving, and wide operation arrange. It pioneers in comprehensive capacity in nationwide; it is the pilot equipment in distilling natural herbal medicine, especially fit for research institution, universities and collages, and factory pilot experiment, or distilling valued medicine, or low temperature fresh herbal. It has been widely used in factories.
2. It can be operate to hot recyling distill and condense, normal extraction, concentration, precipitation and percolation.
3. It can work in the condition of negative pressure, atm. and positive pressure. It can apply to distill water, ethanol and solvent, up to GMP standard.
4. The group has great advantages in multi-function, high efficiency, energy saving, and wide operation arrange. It pioneers in comprehensive capacity in nationwide; it is the pilot equipment in distilling natural herbal medicine, especially fit for research institution, universities and collages, and factory pilot experiment, or distilling valued medicine, or low temperature fresh herbal. It has been widely used in factories.
Technical Parameters | ||||||||||||
Volume (L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 | ||||||
Design Pressure in the Tank(Mpa) | 0.09 | |||||||||||
Design Pressure in the Jacket(Mpa) | 0.3 | |||||||||||
Diameter of Feeding Inlet(mm) | 400 | 400 | 400 | 500 | 500 | 500 | ||||||
Heating Area (m²) | 3 | 4.7 | 6 | 7.5 | 9.5 | 12 | ||||||
Condensing Area (m²) | 1 | 1 | 1.5 | 2 | 2 | 3 | ||||||
Cooling Area (m²) | 6 | 10 | 12 | 15 | 18 | 20 | ||||||
Filtering Area (m²) | 3 | 3 | 3 | 5 | 5 | 6 | ||||||
Diameter of Drainage Door (mm) | 800 | 800 | 1000 | 1200 | 1200 | 1200 | ||||||
Energy Consumption (kgs/hr) | 245 | 325 | 345 | 645 | 720 | 850 | ||||||
Equipment Weight (kgs) | 1800 | 2050 | 2400 | 3025 | 4000 | 6500 | ||||||

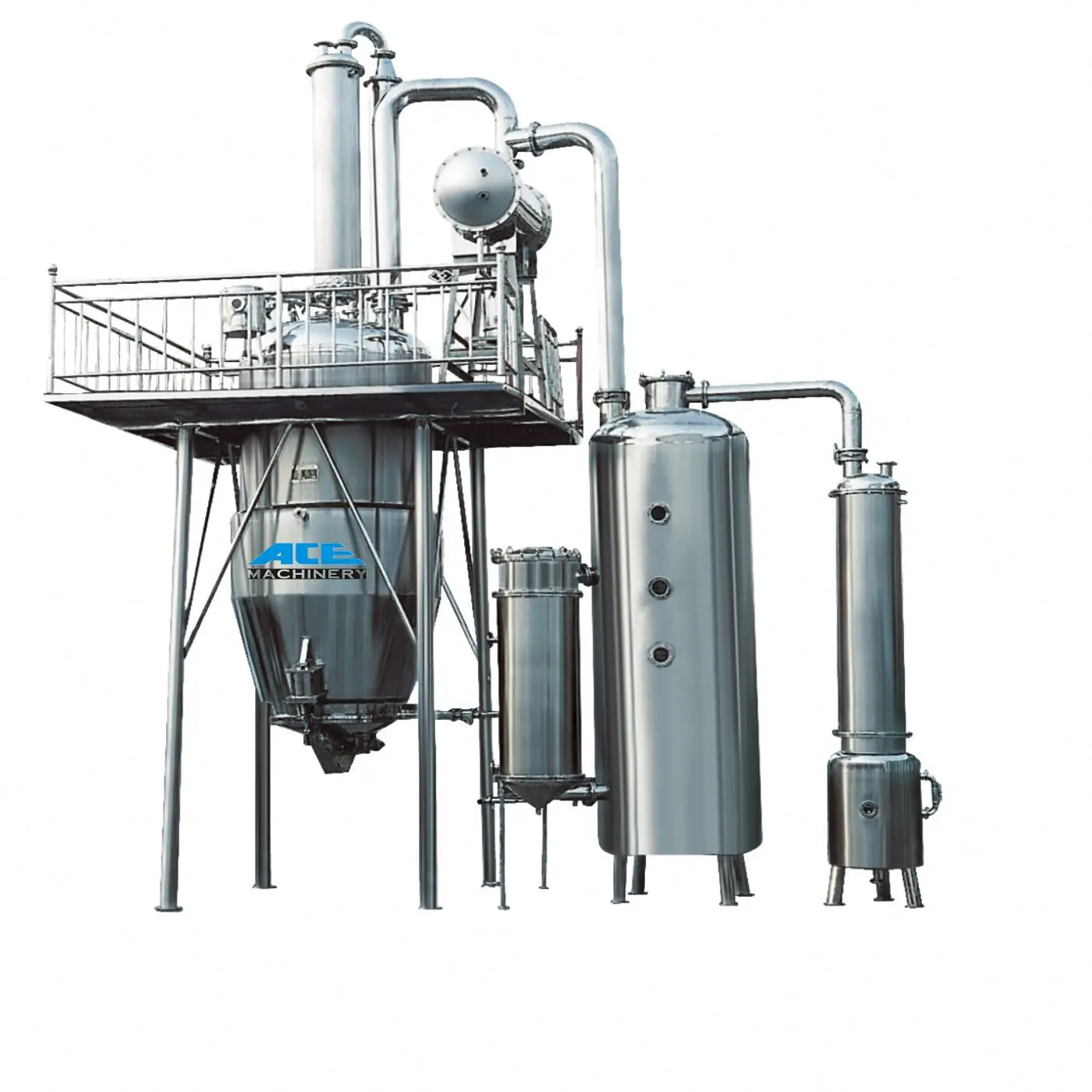

Extraction Concentration Recovery Machine
Description
tional herbs ultrasonic Extraction and Concentration Equipment is suitable for herbs, health care products, bio-pharmaceuticals, cosmetics, food and other industries, normal temperature and pressure extraction, ultrasonic extraction, ultrasonic recycling extraction and ultrasonic countercurrent extraction and other processes. This device can be ultrasonic dynamic continuous countercurrent recycling extraction, suitable for pharmaceutical, biological products business, enterprises, laboratories and pharmaceutical factory R & D department of many varieties, production use.
Model | ACE-50 | ACE-100 | ACE-200 | ACE-300 | |||
Volume L | 50 | 100 | 200 | 300 | |||
Evaporation capacity kg/h | 20 | 50 | 80 | 100 | |||
Motor power kw | 0.55 | 0.75 | 0.75 | 1.1 | |||
steam consumption kg/h | 25 | 60 | 90 | 120 | |||
System vacuum Mpa | -0.06 to -0.08 | ||||||
Jacket pressure Mpa | 0.09~0.03 | 0.09~0.03 | 0.09~0.03 | 0.09~0.03 | |||
Compressed air Mpa | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | |||
Steam temperature ℃ | 100~125 | ||||||
Features:
1. Combined with extracting and concentrating, so as to make it easy to operate. It's polished in both internal and external side, which is in accordance with GMP requirements.
2. It's mainly made up of extracting tank, condenser, cooler, oil-water separator, filter, concentrator and liquid-recycling tank etc.
3. This ultrasonic Extraction and Concentration Equipment is manufactured with our technicians’ many years research and development, which can complete several kinds of experiments. and there're many ways to operate it. Its pipeline is specially installed.
4. It is manufactured on the seal condition in the whole process. Complete the extracting and concentrating in one time with less solvent consumption and less extracting and concentration time.
5. The optional stirrer device can be installed accordingly, as request by clients, we can provide manual, semi-auto and fully-auto types. There are electric heating and steam heating you can choose.
2. It's mainly made up of extracting tank, condenser, cooler, oil-water separator, filter, concentrator and liquid-recycling tank etc.
3. This ultrasonic Extraction and Concentration Equipment is manufactured with our technicians’ many years research and development, which can complete several kinds of experiments. and there're many ways to operate it. Its pipeline is specially installed.
4. It is manufactured on the seal condition in the whole process. Complete the extracting and concentrating in one time with less solvent consumption and less extracting and concentration time.
5. The optional stirrer device can be installed accordingly, as request by clients, we can provide manual, semi-auto and fully-auto types. There are electric heating and steam heating you can choose.
evaporation concentrator
single effect vacuum concentrator
The single effect external circulation vacuum concentrator is composed of heater, evaporator, defoamer, condenser, cooler and
liquid receiving tank. The parts that contact materials are all made of stainless steel.The equipment is applicable to evaporation
and concentration of liquid materials in pharmacy, food, chemical industry and light industry etc. industries. The concentrating
time is short and the evaporating speed is high, which can well protect the heat sensitive materials from being damaged.
liquid receiving tank. The parts that contact materials are all made of stainless steel.The equipment is applicable to evaporation
and concentration of liquid materials in pharmacy, food, chemical industry and light industry etc. industries. The concentrating
time is short and the evaporating speed is high, which can well protect the heat sensitive materials from being damaged.
Double effect external circulation vacuum concentrator
1.Secondary steam is used to effectively save running energy consumption and reduce operating costs.
2.Compared with other types
of evaporator such as falling film evaporator, the investment cost of this equipment is relatively low.
3.It has a wide range of
applications and can be used for evaporation and concentration of different material liquids in different industries.
4.The equipment is made of stainless steel 304 or 316L,clean and hygienic,beautiful and durable.
5.The equipment has stable performance,
simple operation and convenient cleaning.
of evaporator such as falling film evaporator, the investment cost of this equipment is relatively low.
3.It has a wide range of
applications and can be used for evaporation and concentration of different material liquids in different industries.
4.The equipment is made of stainless steel 304 or 316L,clean and hygienic,beautiful and durable.
5.The equipment has stable performance,
simple operation and convenient cleaning.

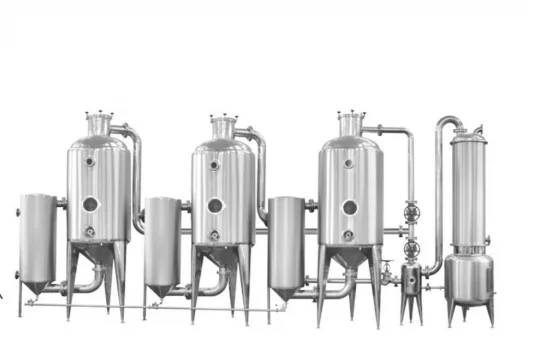

Three effect external circulation vacuum concentrator
(1) Recyclable alcohol concentration is about 80%
(2) Single effect, double effect, three effects can be repeated and cans
(3)Intermittent, continuous feeding
(4) Good heat transfer performance, high evaporation efficiency and good energy saving
(3)Intermittent, continuous feeding
(4) Good heat transfer performance, high evaporation efficiency and good energy saving
(5)Three-effect simultaneous evaporation,
the secondary steam is more fully utilized, and the total energy consumption can be reduced
by about 50% compared with the single effect.
the secondary steam is more fully utilized, and the total energy consumption can be reduced
by about 50% compared with the single effect.
(6) Condensation cooling area is large, and the recovery effect is good

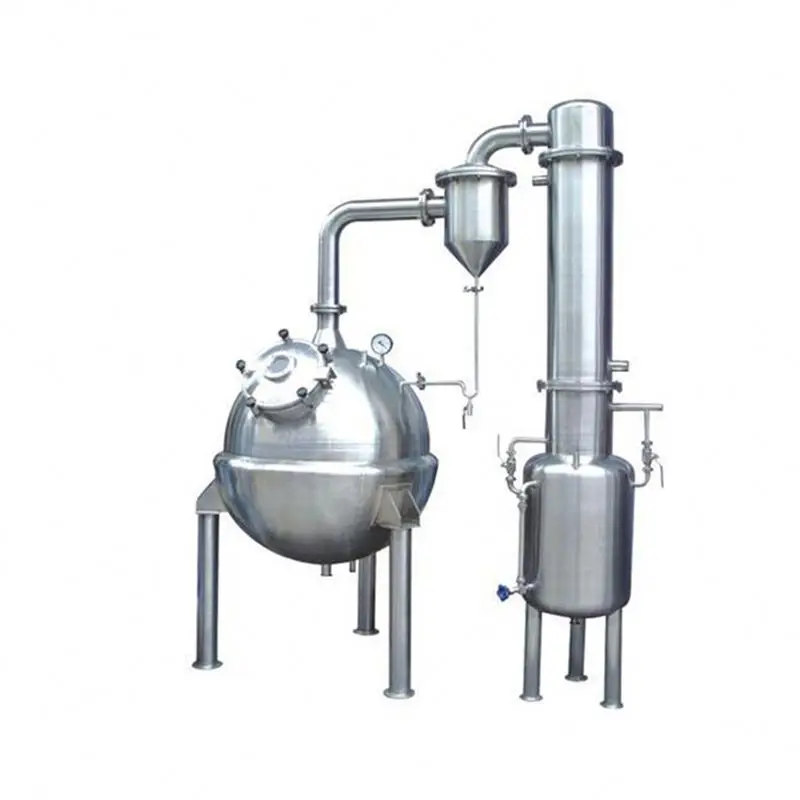

spherical syrup vacuum concentrator
The Spherical Syrup Vacuum Concentrator is composed of heater, evaporator, defoamer, condenser, cooler and liquid receiving tank. The parts that contact materials are all made of stainless steel. The equipment is applicable to evaporation and concentration of liquid materials in pharmacy, food, chemical industry and light industry etc. The concentrating time is short and the evaporation speed is high, which can better protect the heat sensitive materials from being damaged.
