Стальная машина для полировки квадратных труб для алюминиевых труб
US $46000-$50000
Шлифовальная машина для обработки кромок металлических пластин нержавеющей
- Категория: Metal Polishing Machine >>>
- Поставщик: Anhui,Advanced,Grinding,Tools,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 26180.49 $* | 27489.74 $* |
| Aug-18-2025 | 25960.48 $* | 27258.83 $* |
| Jul-18-2025 | 21780.67 $* | 22869.49 $* |
| Jun-18-2025 | 25520.63 $* | 26796.82 $* |
| May-18-2025 | 22220.33 $* | 23331.17 $* |
| Apr-18-2025 | 25080.6 $* | 26334.57 $* |
| Mar-18-2025 | 24860.94 $* | 26103.2 $* |
| Feb-18-2025 | 24640.35 $* | 25872.13 $* |
| Jan-18-2025 | 24420.22 $* | 25641.27 $* |
Характеристики
Product Description
In any cutting, drilling, laser, mill, and other machining processes, burrs, hot slag, and scum will be produced at the edge of the workpiece, so it is particularly important to choose the correct deburring machine.

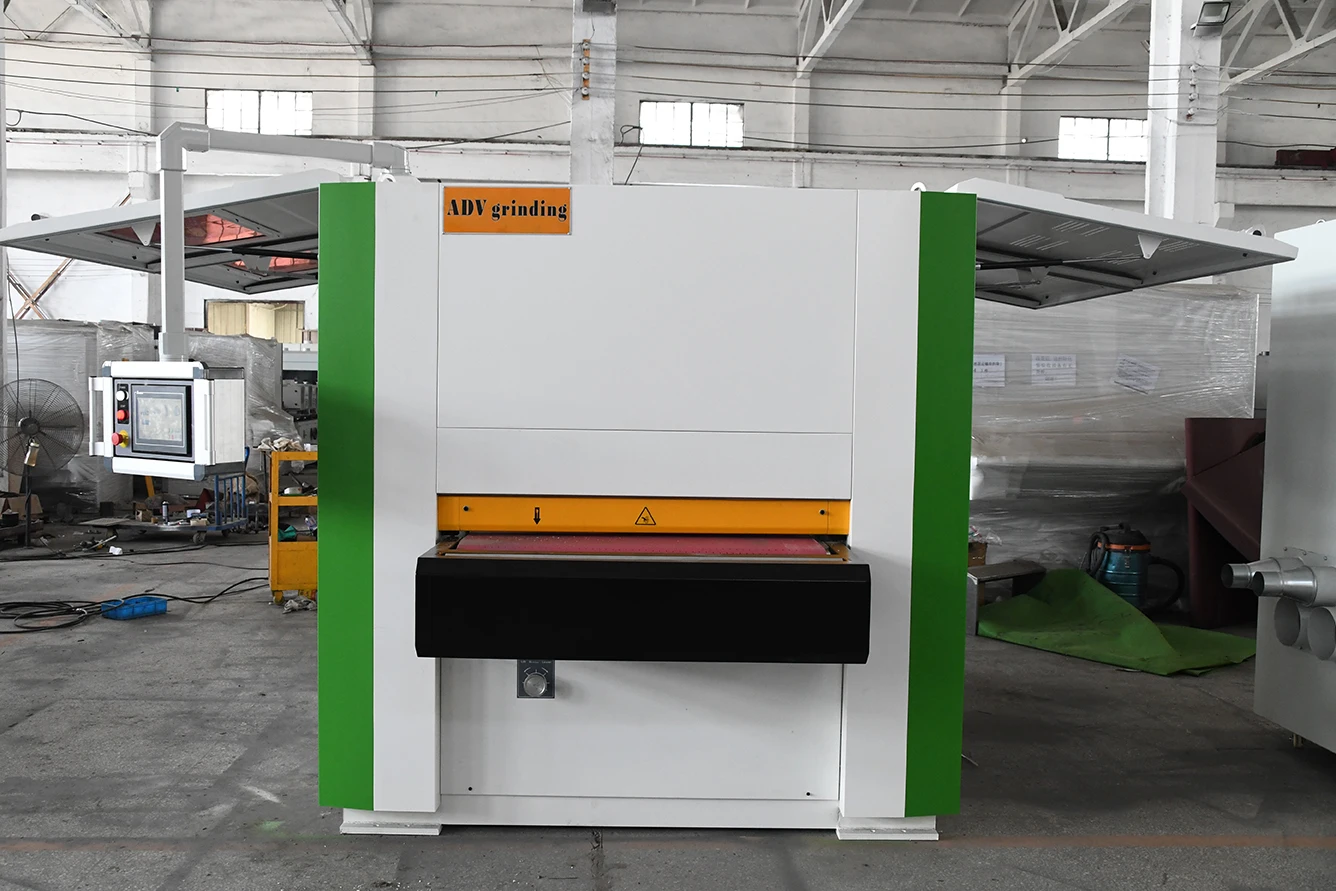

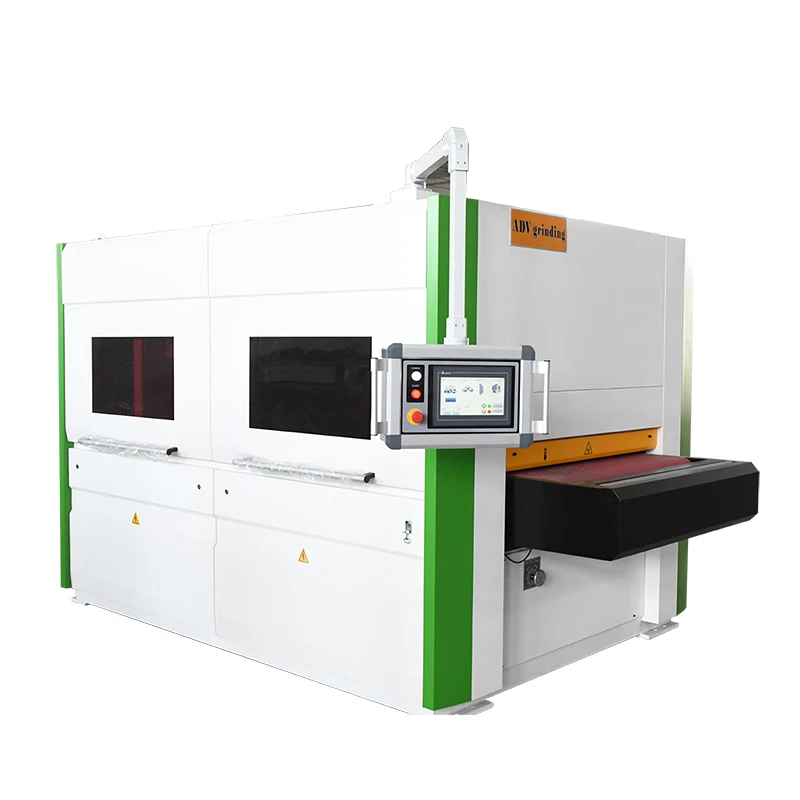

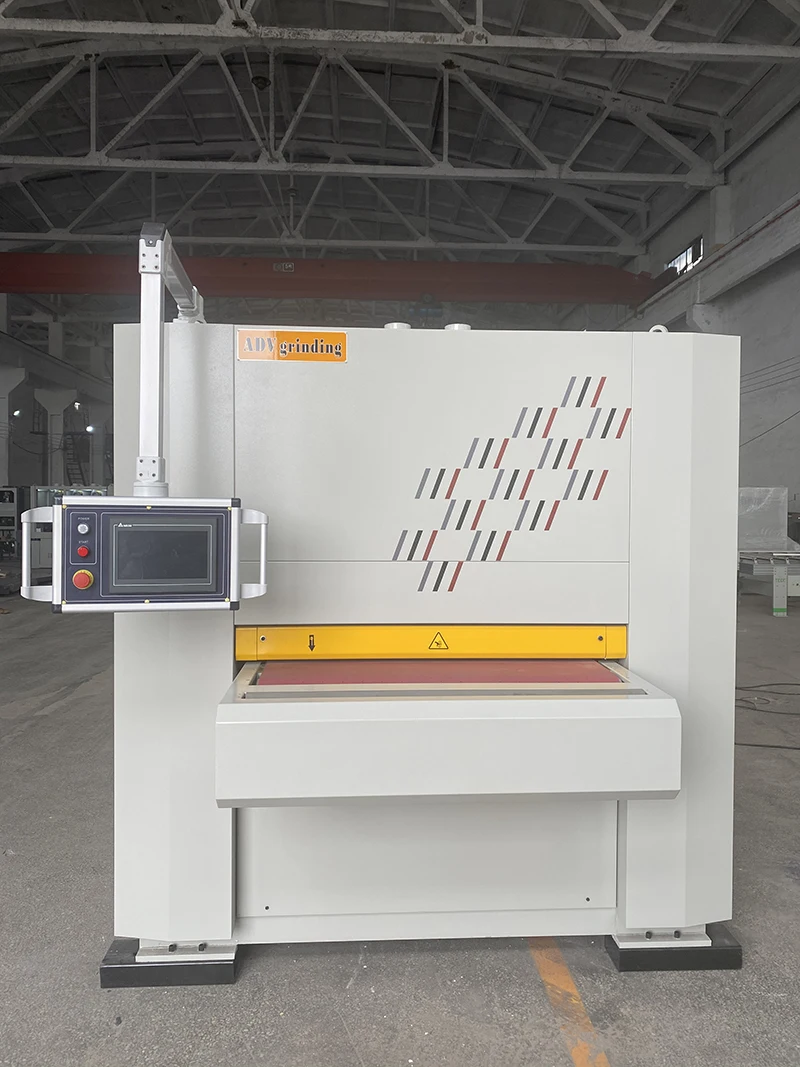

ADV-508RW Deburring machine with working width 1400mm(Abrasive belt+Rotary brush)The standard available width is 650mm,800mm, 1100mm, 1400mm, or customized.
Automatic feeding guide and machine frame：
Details Images

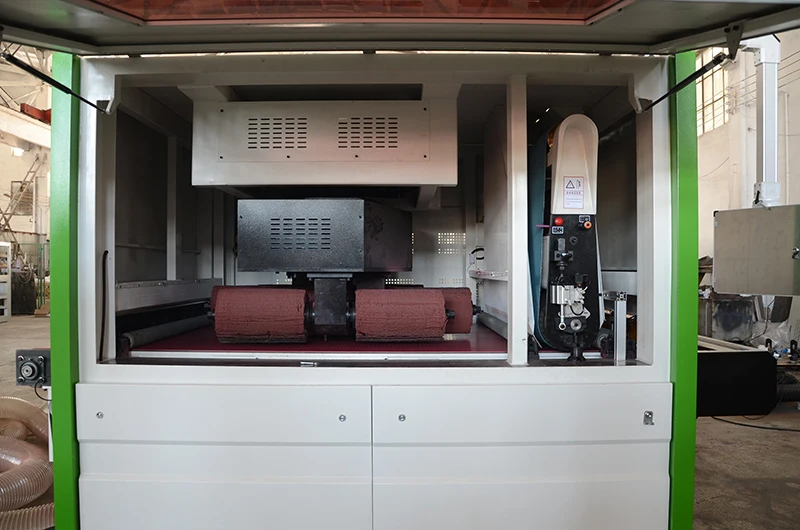

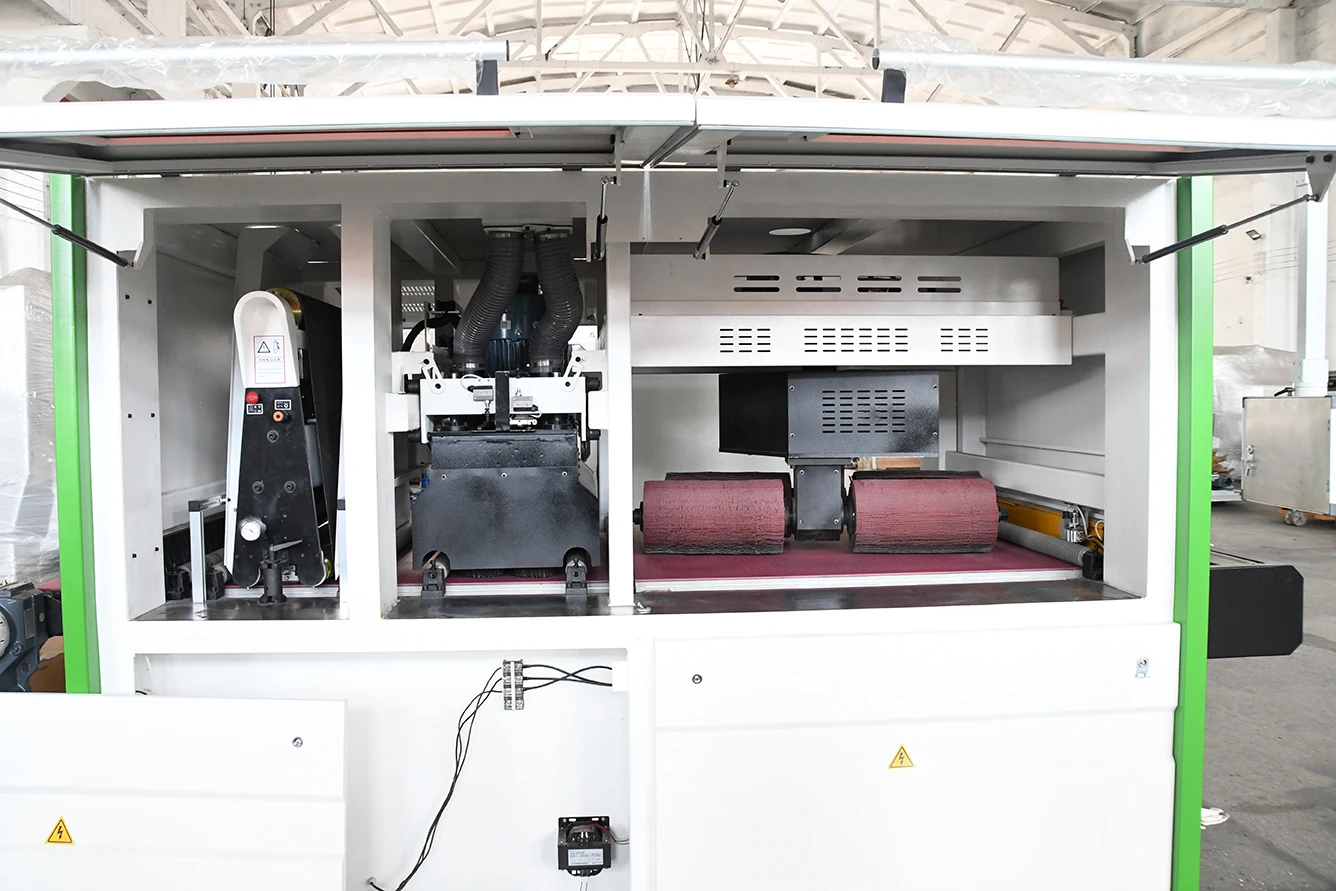

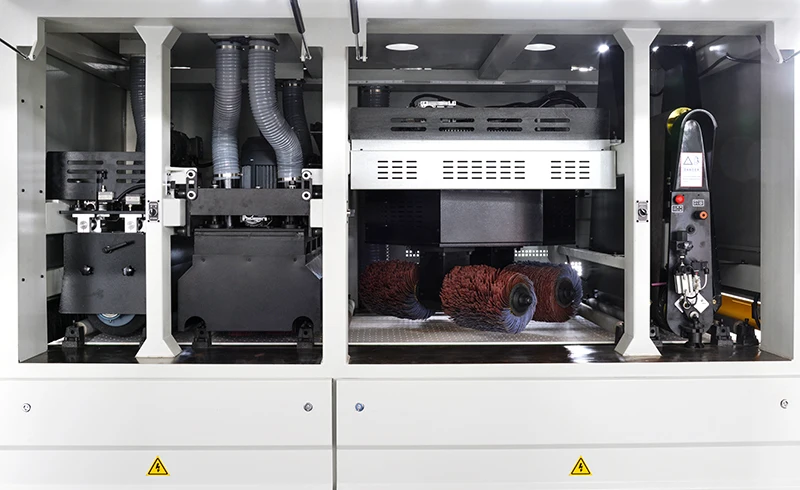

Two kinds of rotating brushes with different materials:(Number of abrasive belts optional)
Functions and advantages of deburring machine：
2.Special customized type tensioning cylinder with a large bore and high stability;
3.Independent bearing hanging plate, easy to adjust;
4.Automatic thickness measurement function, automatically locate the thickness of the plate;
5.Damping belt deviation knob, adjust the deviation of the belt, the operation is simple and convenient.
6.The deburring machine can be used in the wet process or dry process.
3.Independent bearing hanging plate, easy to adjust;
4.Automatic thickness measurement function, automatically locate the thickness of the plate;
5.Damping belt deviation knob, adjust the deviation of the belt, the operation is simple and convenient.
6.The deburring machine can be used in the wet process or dry process.
7.Convenient operation, touch screen operation panel, LED light source inside the equipment, easy to observe the processing status of the workpiece.
8. The automatic deburring machine has different combinations of grinding heads, which are for different requirements of workpieces.For laser cutting stamping parts，it can do deoxidizing, grinding, deburring, polishing and edge rounding.
Vacuum adsorption belt and ordinary conveyor belt are optional
Before deburring and after：
PRODUCT CONFIGURATION：
Siemens high power engine
Siemens PLC touch screen
NSK bearings
Specification
Spindle Speed | 2800r/min |
Feed Speed | 0.5-5m/min frequency speed |
Machine Size | 2150*2250*2400mm |
Available Width | 30-1400mm |
Available Thickness | 0.5-100mm |
Belt Size | 2200*1420 mm |
No.1 Motor Power | 22 kw(abrasive belt) |
No.2 Motor Power | 15 kw(1 sets of 8 rotary brush) |
Delivery Motor Power | 4 kw |
Lift Motor Power | 0.55 kw |
Water pump power | 0.75kw(for coolant filter system,optional part) |
Warranty | 2years |
For more parameter information, please click here
Deburring machine different combinations：
Company Profile
ADV is a new brand opened in the end of 2018, but the factory already has 25 years of designing and producing deburring machine, grinding machine and polishing machines. The original intention is to create a brand which is most reliable in China and most famous in the world. We made a plan to finish it within 5 years. We will take priority for all products we were and are selling out and best service for each order. We do believe in our original intention and
keep moving to achieve it!
Anhui Advanced Grinding Tools Company has been adhering to the concept of excellent quality and reasonable price. We are committed to optimize the supply chain, strictly control the quality, supervise the production and debugging process of machines, and ensure the delivery of high-quality products to customers. In addition, we have experienced sales and service personnel to provide customers with high-quality pre-sale, after-sales and technical support services.
The company actively explore foreign markets, advocate the business philosophy of integrity management, promote the development of customers is our driving force. Our products are exported to Europe, America and Southeast Asia.
The company actively explore foreign markets, advocate the business philosophy of integrity management, promote the development of customers is our driving force. Our products are exported to Europe, America and Southeast Asia.
Certifications
Exhibition
Packing & Delivery
Ports:
Shanghai Port / Ningbo Port / Customer Demand
Our Services
1, Overseas after-sales service is available.
2, Two years warranty.
3, Foundation drawings, manual book, electric wiring diagram, electric manual book, and maintenance book, etc. provided.
4, We visit each country every year for free technical instructions.
2, Two years warranty.
3, Foundation drawings, manual book, electric wiring diagram, electric manual book, and maintenance book, etc. provided.
4, We visit each country every year for free technical instructions.
Our overseas service photo show:
FAQ
