350-800 Вт драйвер кодировщика AGV контроллер сервопривода
- Категория: >>>
- Поставщик: UU,Motor,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 179.66 $* | 188.75 $* |
| Aug-19-2025 | 177.55 $* | 186.53 $* |
| Jul-19-2025 | 149.35 $* | 156.29 $* |
| Jun-19-2025 | 174.96 $* | 183.35 $* |
| May-19-2025 | 152.6 $* | 160.43 $* |
| Apr-19-2025 | 171.7 $* | 180.38 $* |
| Mar-19-2025 | 170.24 $* | 179.48 $* |
| Feb-19-2025 | 168.36 $* | 176.89 $* |
| Jan-19-2025 | 167.39 $* | 175.84 $* |
Характеристики
Product Description
Model Number: | ASMD4820A |
input voltage: | 15-60v DCV |
Output current: | 20A , max 70A |
Output power： | ≤1200w |
Matching motor： | Equipped with incremental encoder、Linear Hall |
Working mode： | Torque, speed, position closed loop mode |
Speed regulation accuracy： | ±0.1% |
Protection function： | Over voltage, under voltage, over current, over temperature, short circuit protection, Hall signal fault, position out of tolerance and other alarm functions |
Safety notice
1. Please read the instructions carefully before installing and cabling
2.Prevent dust, corrosive gas, conductive objects, liquids and inflammable substances from intrusion, and maintain
good heat dissipation conditions.
3.The cable connection must be carried out under the condition of power disconnection to prevent electric shock.4.Please check and ensure the cabling is accurate before switching on the power supply. Please confirm that the
input power is in line with the rated voltage and polarity of the driver.
5 .The damage caused by over rated voltage and reverse polarity is not within the scope of warranty.Please ensure
5 .The damage caused by over rated voltage and reverse polarity is not within the scope of warranty.Please ensure
that the terminals of the drive are plugged out after the indicator lights are off.
6. Please do not carry out high voltage and insulation performance test on the driver at random.
7.Please do not connect the electromagnetic contactor and the electromagnetic switch to the output circuit.
6. Please do not carry out high voltage and insulation performance test on the driver at random.
7.Please do not connect the electromagnetic contactor and the electromagnetic switch to the output circuit.
Product introduction

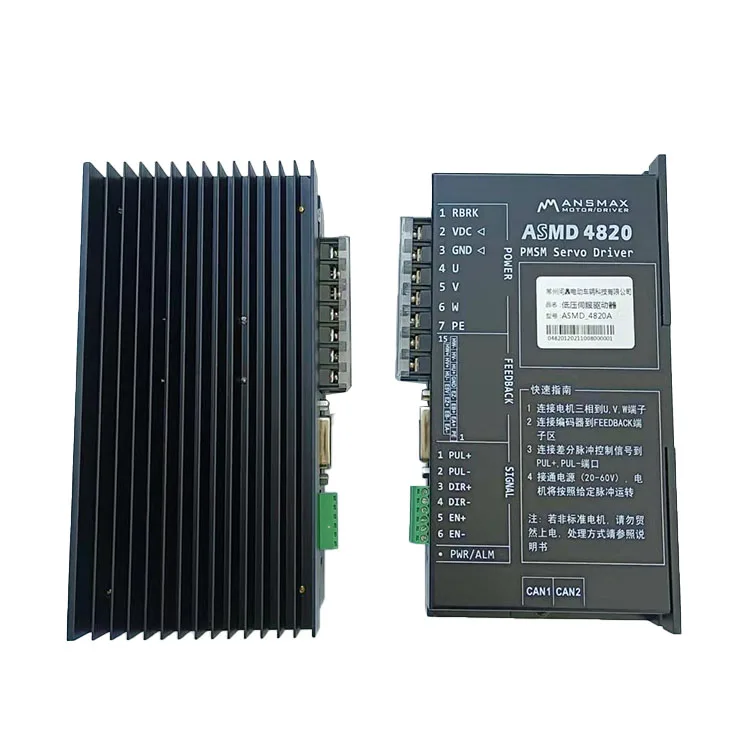

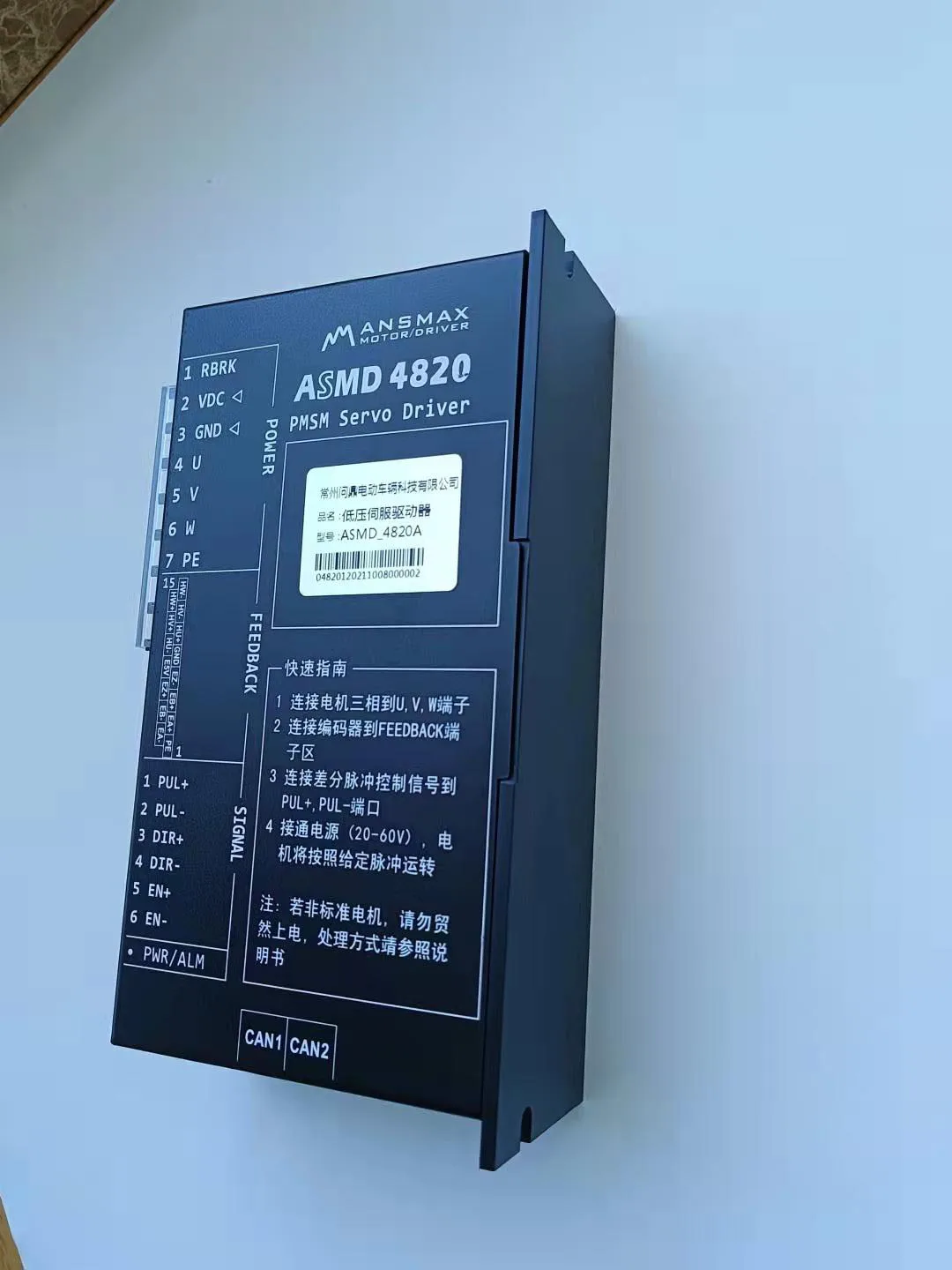

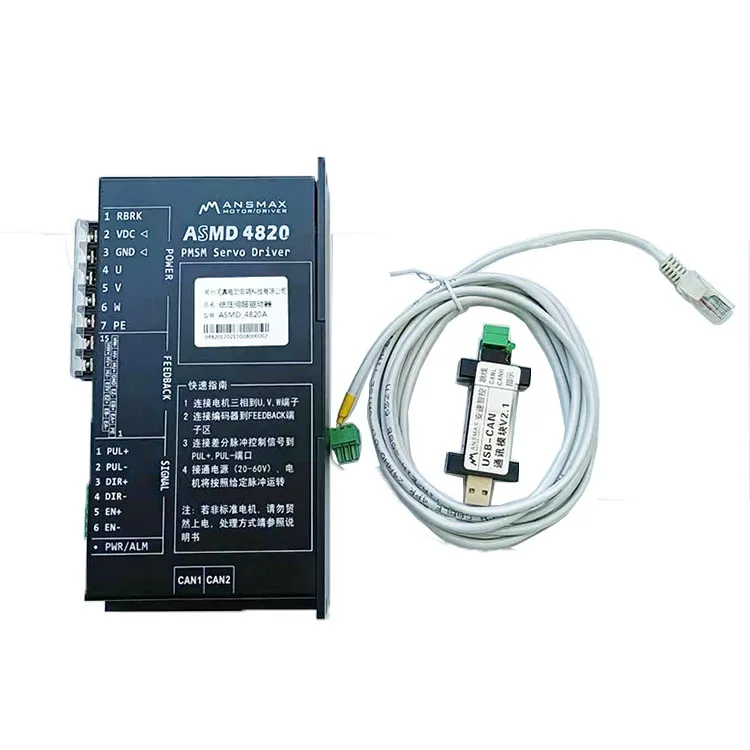

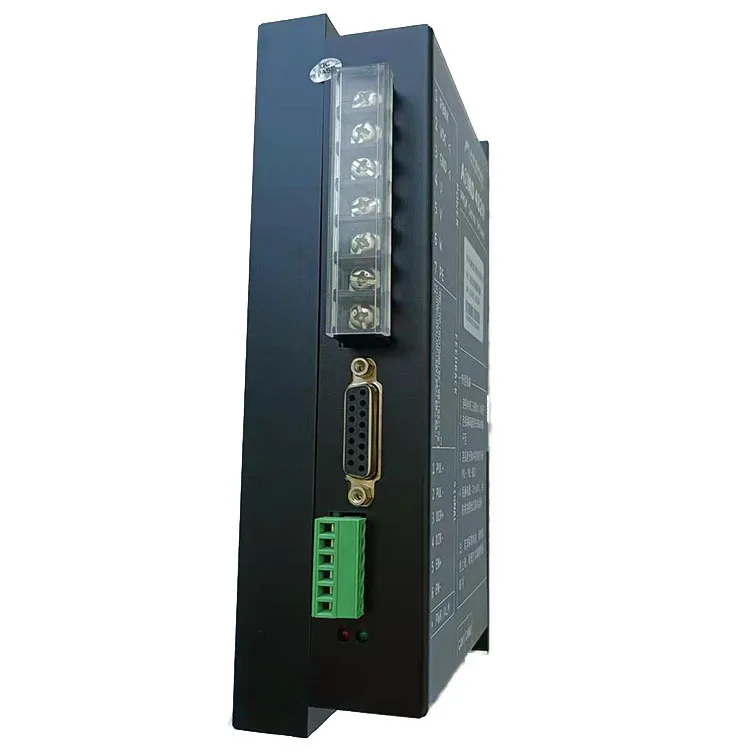

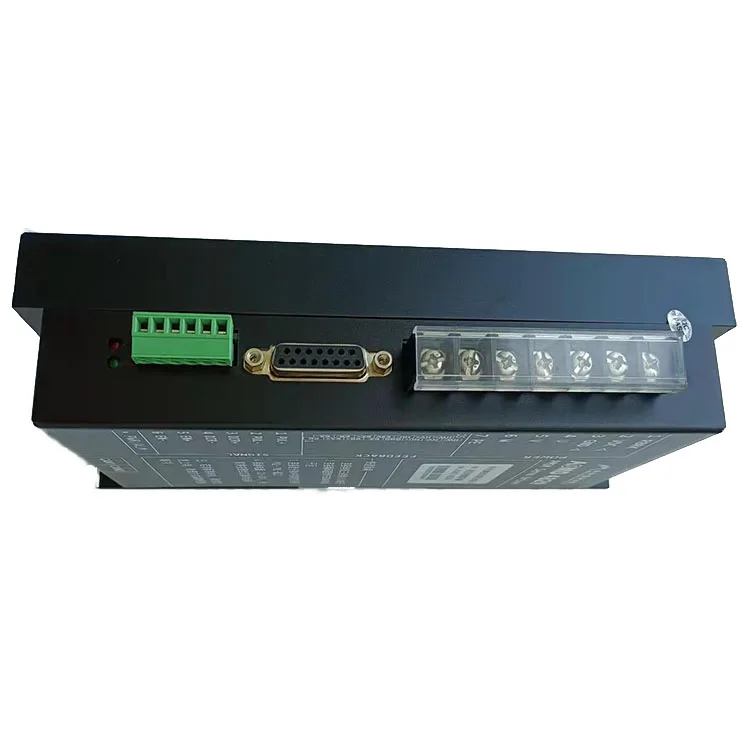

ASMD 4820 A, the low voltage servo driver, with advanced all digital special motor control processor and high speed precise vector control algorithm, is suitable for accurate torque, speed and position control of low voltage permanent magnet synchronous motor with rated voltage in 15-60 V and 100-1200 W at rated power. It provides a control port
compatible with stepper motor, which is an ideal alternative product to upgraded performance for stepping control systems. In some of the use of low-voltage permanent magnet synchronous motor, it achieves high performance control requirements similar to high voltage AC servo and has great cost advantages. In addition， there are many advantages such as variable speed adjustment ,wide speed range,complete functions,complete hardware and software for parameter configuration.The products are widely used in many automatic control fields,such as inkjet printer,engraving machine,small CNC machine tool,automatic assembly equipment and so on.
compatible with stepper motor, which is an ideal alternative product to upgraded performance for stepping control systems. In some of the use of low-voltage permanent magnet synchronous motor, it achieves high performance control requirements similar to high voltage AC servo and has great cost advantages. In addition， there are many advantages such as variable speed adjustment ,wide speed range,complete functions,complete hardware and software for parameter configuration.The products are widely used in many automatic control fields,such as inkjet printer,engraving machine,small CNC machine tool,automatic assembly equipment and so on.
