Характеристики
Products Description

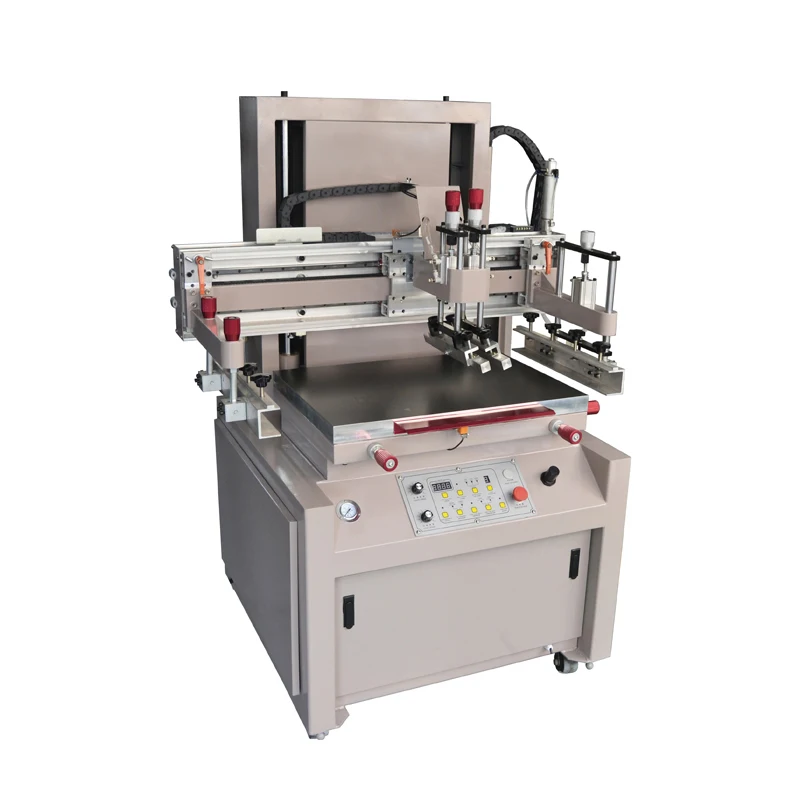

Vertical Flatbed Vacuum Table Screen Printing Machine 4060
Vertical Flatbed Vacuum Table Screen Printing Machine 4060
1.Squeegee carriage on Hard Chrome Plated solid steel shaft with linear bearing motion.
2. Adjustable screen frame holder
3. Variable printing stroke length
4. Single/Double stroke selection
5. Parallel screen frame movement(Convenient for spot UV varnish and low viscosity inks to avoid ink spillage all over the screen)
6. Peel off mechanism (To achieve fine reproduction of halftone dots and avoid smudging, bleeding and smearing)
7.Adjustable squeegee angle from 0 to 30º
8.Aluminium extruded squeegee holder & coater for even pressure
9.Bed movement for registration x, y, & Rotary ±10 mm
10.Emergency Rod / Stop for safety of operator
11.Castor wheels for easy mobility
12.Printing operation by foot switch or automatic cycle, with dwell timer 0-10 sec.
2. Adjustable screen frame holder
3. Variable printing stroke length
4. Single/Double stroke selection
5. Parallel screen frame movement(Convenient for spot UV varnish and low viscosity inks to avoid ink spillage all over the screen)
6. Peel off mechanism (To achieve fine reproduction of halftone dots and avoid smudging, bleeding and smearing)
7.Adjustable squeegee angle from 0 to 30º
8.Aluminium extruded squeegee holder & coater for even pressure
9.Bed movement for registration x, y, & Rotary ±10 mm
10.Emergency Rod / Stop for safety of operator
11.Castor wheels for easy mobility
12.Printing operation by foot switch or automatic cycle, with dwell timer 0-10 sec.
Details Images
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Product Paramenters
Model | TX4060ST |
Printing area | Printing size |
Vacuum bed | 500*700mm |
Max screen printing size | O.D 700*1000mm |
Substrate height | 25 mm |
Vacuum bed adjustment | ±20 mm |
Printing capacity | 1000pcs/hour |
Air source | 0.4~0.6Mpa |
Voltage | AC220V/380V50/60Hz |
Power | 2.1kW |
Weight | 492kg |
Dimension | 123cm*95cm*158cm |
Product photos
Shopping bags/cloths | Label/Heat transfer paper | Glass/acrylic/aluminum | Membrane switch |
Packing&Delivery
Safety and Fast Transportation
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：3~15 business days after received the payment.
4. Delivery means: By sea from Shanghai
3. Delivery date：3~15 business days after received the payment.
4. Delivery means: By sea from Shanghai
Company Profile
Zhejiang Taoxing Intelligent Equipment Technology Co., Ltd. Established in 2008 and have a team of experienced engineers and sales and after-sales service teams. We have our own factory in Haining,Zhejiang,where manufacture full series of high-quality screen printing machines,Drying Tunnel,book binding machine,mask machine and other machine.
Foreign Cooperative Partners
Photo of Factory
our servuce
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*custom contact us
* Sample testing support.
* View our Factory.
*custom contact us
After-Sales Service
*1 year warranty
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our Team
Exhibition
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment with more than 20 years experience, committed to
supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the
competitiveness of our products and services.
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All Taoxing products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales
service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
To provide you with the best printing solutions
A: We are a professional manufacturing factory specialize in printing equipment with more than 20 years experience, committed to
supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the
competitiveness of our products and services.
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All Taoxing products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales
service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
To provide you with the best printing solutions
