Металлическая внешняя цилиндрическая шлифовальная машина
- Категория: Cylindrical Grinding Machines >>>
- Поставщик: Xuzhou,Elsen,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 15470.47 $* | 16244.64 $* |
| Aug-15-2025 | 15340.4 $* | 16107.5 $* |
| Jul-15-2025 | 12870.94 $* | 13514.15 $* |
| Jun-15-2025 | 15080.51 $* | 15834.3 $* |
| May-15-2025 | 13130.42 $* | 13787.46 $* |
| Apr-15-2025 | 14820.55 $* | 15561.92 $* |
| Mar-15-2025 | 14690.81 $* | 15425.64 $* |
| Feb-15-2025 | 14560.5 $* | 15288.80 $* |
| Jan-15-2025 | 14430.42 $* | 15152.50 $* |
Характеристики
Products Description
The left and right guide rail adopts P-V structure, which is scraped by high precision manual, so that the whole system products have high precision and high stability.
The front and rear feed guide rail of grinding wheel can choose roller and wire rail structure.
Classic control mechanism, simple, safe and reliable.
M1350, M1450,M1363 series worktable and grinding wheel guide rail adopts high stable hydrostatic guide rail, high rigid dynamic and static pressure spindle.
Universal workhead can be adjusted at any angle within 90 degrees counter clockwise to adapt to chuck grinding internal and external conical workpiece.
Model | Unit | MW1320 | M1332 | M1332A |
Max length ground ( O.D) | mm | 500, 750 | 1000,1500 | 2000,3000 |
Center height | mm | 135 | 180 | 180 |
Dia ground (O.D) | mm | 8-200 | 8-320 | 8-320 |
Max weight of workpiece | kg | 100 | 150 | 500 |
Center taper | MT | 4 | 5 | 5 |
Spindle speed/stepless | r/min | 50HZ:25-260 | 50HZ:25-190 | 50HZ:26-190 |
Max dimension of wheel | mm | 500x50x203 | 600x75x305 | 600x75x305 |
Wheel peripheral velocity | m/s | 35 | 35 | 35 |
Hand feed per rev | mm | Rough:2 Fine:0.5 | Rough:2 Fine:0.5 | Rough:2 Fine:0.5 |
Hand feed per gra | mm | Rough:0.01 Fine:0.0025 | Rough:0.01 Fine:0.0025 | Rough:0.01 Fine:0.0025 |
Max swing angle of table-cockwise | ° | 3 | 3 | 3 |
Max swing angle of table-anticlockwise | ° | 9（500） 8（750） | 7（1000） 6（1500） | 5（2000） 3（3000） |
Longitudinal speed range of table | m/min | 0.1-4 | 0.1-4 | 0.1-4 |
Center taper | MT | 4 | 4 | 5 |
Quill travel | mm | 30 | 30 | 30 |
Wheelhead motor power | kw | 5.5 | 11 | 11 |
Workhead motor power | kw | 1.1 | 1.5 | 2.2 |
Roundness | um | 3 | 3 | 5 |
Cylindricity | um | 5(500) 8(750) | 8 | 10 |
Roughness | um | Ra0.2 | Ra0.2 | Ra0.32 |
Gross weight | T | 4.1(500) 4.3(750) | 4.6(1000) 5.1(1500) | 5.7(2000) 7.1(3000) |
Machine packing | mm | 2350x2030x2050 (500) | 3260x1900x2050 (1000) | 5300x1900x2050 (2000) |
2750x2030x2050 (750) | 4260x1900x2050 (1500) | 7300x1900x2050 (3000) |
Standard Accessories Cooling warer tank External circle dresser Grinding wheel chuck and handle tools Standard grinding wheel Balance shaft Open center frame Leveling pad iron Working light Center Internal round abrasives(only M14 series) | Optional Accessories Grinding wheel balancing frame Closed center frame Device end dresser Device circular dresser Magnetic separation Paper bag filter Grinding center device | ||||||

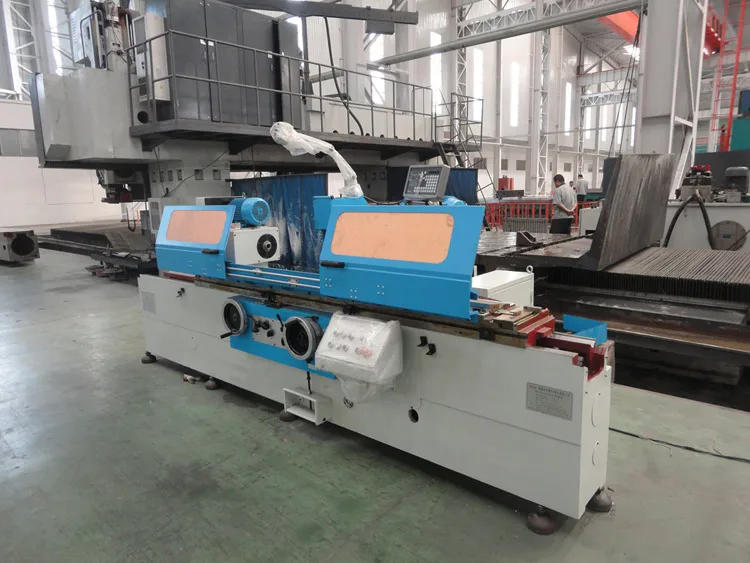

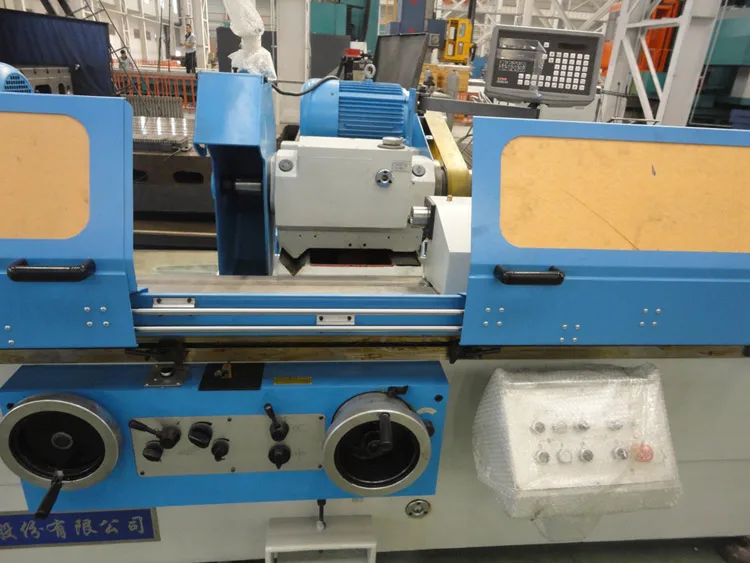

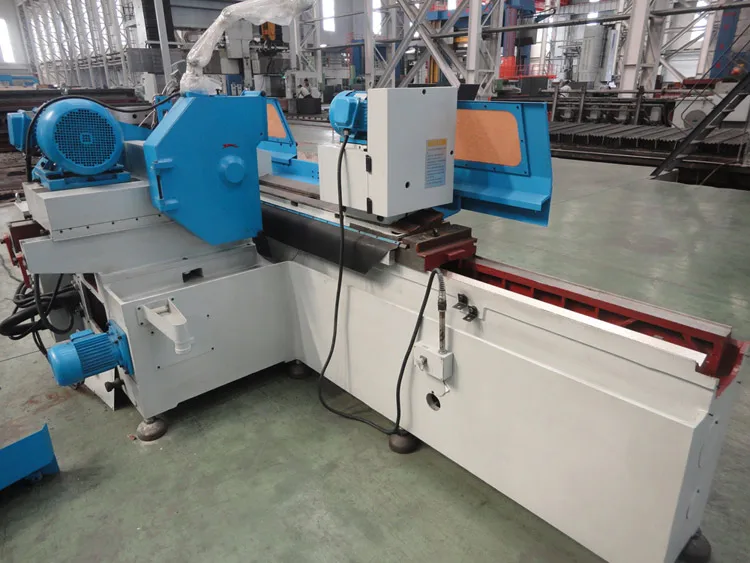

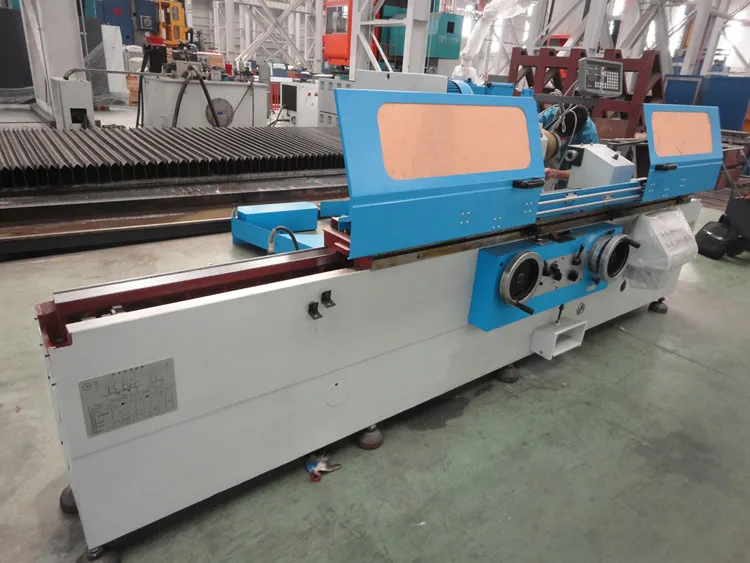

Machine Details
Recommend Products
Company Information
Package and Shipping
FAQ
1: Are you a manufacture?
A: Yes,we are a real manufacture.Welcome to visit our factory!
2: What is your payment terms?
A: Our payment terms is 30% T/T in advance,70% balance T/T before shipment.
3: Can you offer customized service ?
A: Machines listed on our website are just part of our conventional models, we can also provide customized service according to your requirements.
4: How can I choose the most suitable machines ?
A: Please tell me your need specifications ,we can introduce the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will introduce the most suitable machines for you .
5: Can you offer the training ?
A: Yes, we can provide a cost-free training,Teach you how to operate our machine, some common problems, and how maintain the machine etc. It would be great honor to us.
6: How about your after-sales service ?
A: Machines overall warranty is two years.During the normal using,we can send you the machine's components for free,not damaged on purpose.Our engineers are available to service overseas, we will offer lifetime service for machine.
