High Speed YAMAHA YSM20R Pick and Place LED Machine SMT
High Speed YAMAHA YSM20R Pick and Place LED Machine SMT
High Speed YAMAHA YSM20R Pick and Place LED Machine SMT
High Speed YAMAHA YSM20R Pick and Place LED Machine SMT
High Speed YAMAHA YSM20R Pick and Place LED Machine SMT
High Speed YAMAHA YSM20R Pick and Place LED Machine SMT
High Speed YAMAHA YSM20R Pick and Place LED Machine SMT

High Speed YAMAHA YSM20R Pick and Place LED Machine SMT


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 0.40 $* 0.96 $*
Aug-17-2025 0.3 $* 0.64 $*
Jul-17-2025 0.32 $* 0.91 $*
Jun-17-2025 0.4 $* 0.66 $*
May-17-2025 0.0 $* 0.77 $*
Apr-17-2025 0.15 $* 0.31 $*
Mar-17-2025 0.9 $* 0.63 $*
Feb-17-2025 0.72 $* 0.2 $*
Jan-17-2025 0.21 $* 0.48 $*

Характеристики

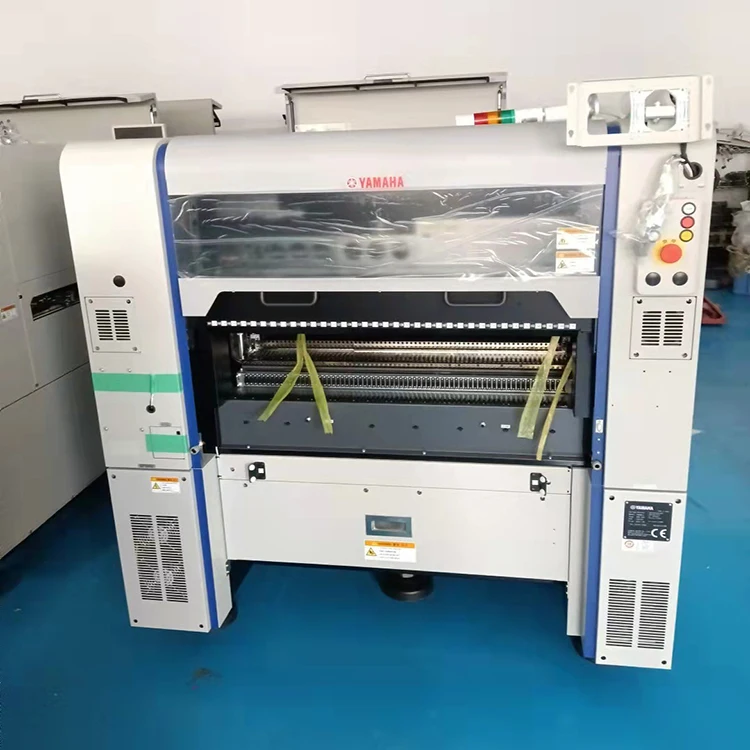

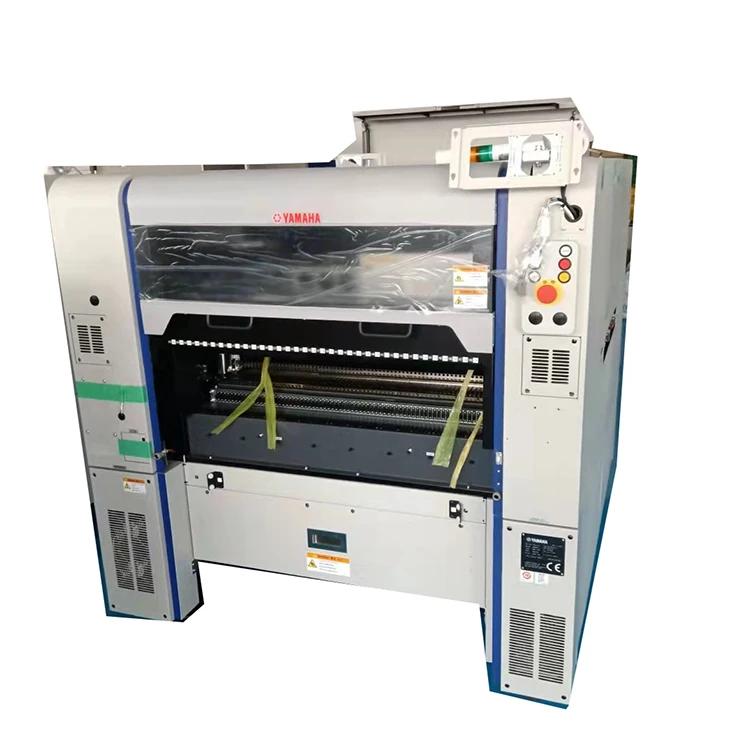

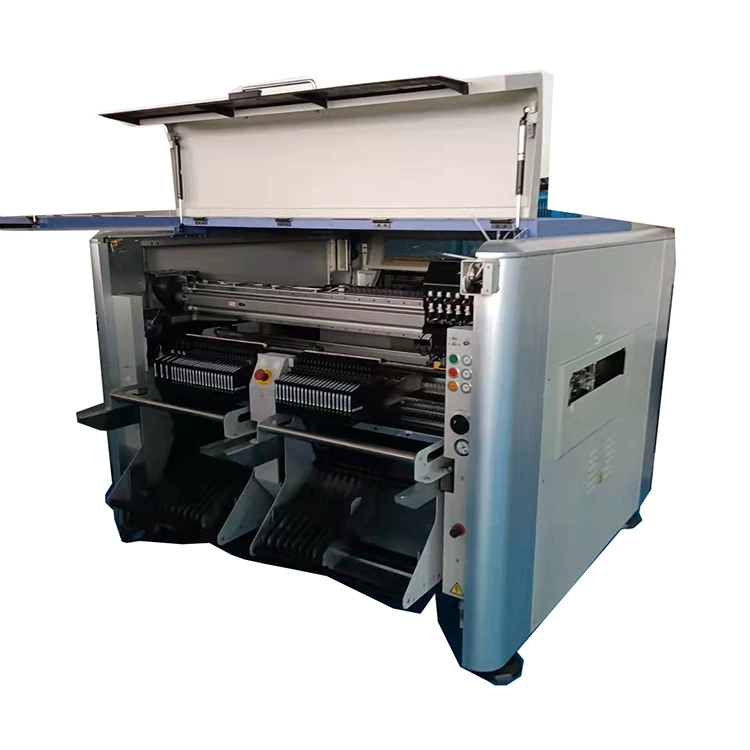

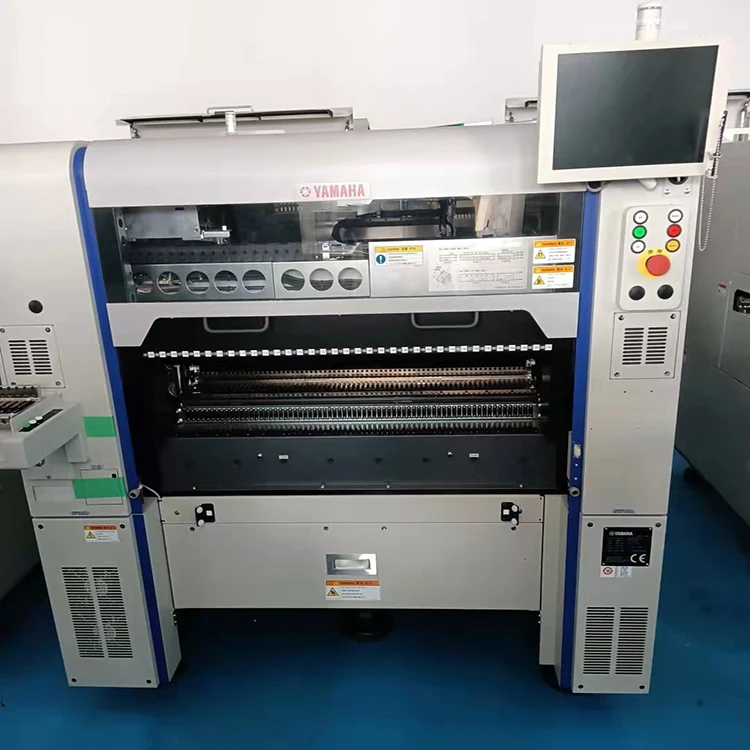

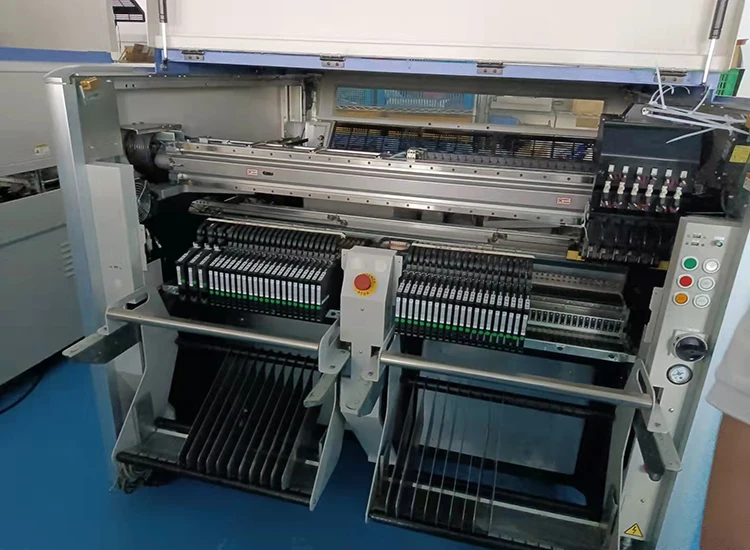

Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine


YSM20R 01.jpgYSM20R02.jpgYSM 20R03.jpg












Product Description





















































Model




YSM20R








Applicable PCB



Single lane
L810 x W490 to L50 x W50
Dual stage Note: For X-axis 2-beam option only
1PCB conveyance: L810 x W490 to L50 x W50
2PCB conveyance: L380 x W490 to L50 x W50







Head / Applicable components




High-Speed Multi (HM) Head *

0201mm to W55 x L100mm, Height 15mm or less

Odd-shaped components (FM: Flexible Multi) head:

03015mm to W55 x L100mm, Height 28mm or less




Mounting capability

(under optimum conditions as defined by Yamaha Motor)



X axis 2-beam: High-speed multi-purpose
(HM: High-speed Multi) head x 2
95,000CPH





Mounting accuracy



±0.035mm (±0.025mm) Cpk more than 1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)







Number of component Types



Fixed plate: Max. 140 types (conversion for 8mm tape feeder)
Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder)
Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)



Power supply



3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz



Air supply source



0.45MPa or more, in clean, dry state



External dimension (excluding projections)



L 1,374 x W 1,857 x H1,445mm (Main unit only)



Weight



pprox. 2,050kg (Main unit only)





Packaging & Shipping


 PACKING7
