PP PS PET PLA Plastic Thermoforming machine for Food Container box trays lids packaging products


Поделиться:


Цена:141 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 167790.54 $* 176180.56 $*
Aug-15-2025 166380.66 $* 174699.74 $*
Jul-15-2025 139590.79 $* 146570.10 $*
Jun-15-2025 163560.47 $* 171738.9 $*
May-15-2025 142410.31 $* 149531.12 $*
Apr-15-2025 160740.53 $* 168777.53 $*
Mar-15-2025 159330.64 $* 167297.26 $*
Feb-15-2025 157920.60 $* 165816.6 $*
Jan-15-2025 156510.38 $* 164336.23 $*

Характеристики







Product parameters


Model
TTF-700A
Forming Area
700mm x 550 mm
Forming Depth (Max.)
120mm
Sheet thickness
0.2-2.0mm
Forming Speed (Max.)
30times/min
Air pressure
0.6-0.8mpa
Air consumption
3.6 m³/min
Water consumption
0.7 m³/h
Sheet width (Max.)
730mm
Suitable Sheet
PP, PS, HIPS, PET, PVC, PLA etc.
Power supply
AC 380V, 50Hz, Three-phase, Four-wire
Used power
95Kw
Rated power
190Kw
Heating power
118Kw
Procedure
Forming-cutting-stacking
Dimension
L13000*W4700*H2750mm
Weight
About 19T


MAIN ELECTRICAL COMPONENTS
MAIN PARTS
BRAND
Filter
CKD (Japan)
Forming valve
MAC (USA)
Temperature control module
WEST (UK)
Proximity switch
ROCKWELL (USA)
AC contactor\\Circuit breaker\\Button
SCHNEIDER (France)
Intermediate relay
IDEC (Japan)
Intermediate Relay Base
OMRON (Japan)
Vacuum Pump
ELMO RIDTSCHLE (Germany)


Products Description




APPLICATION

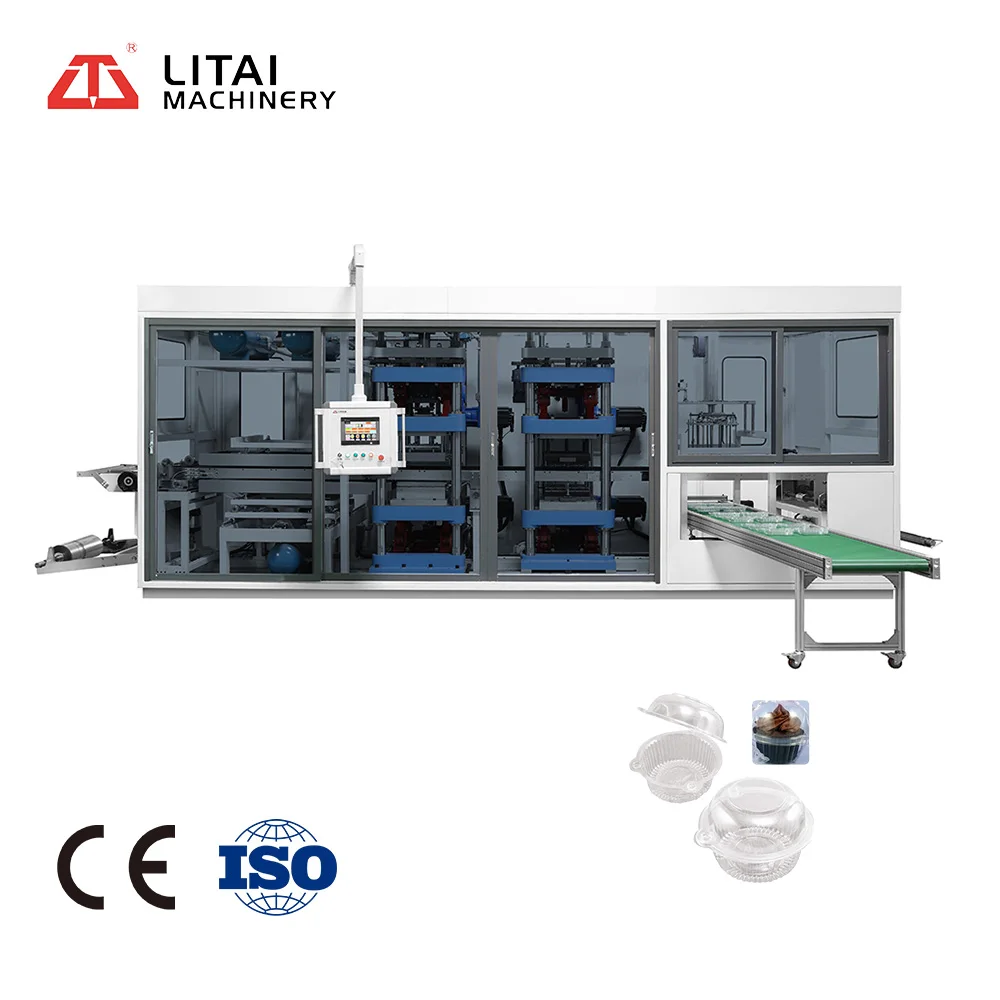

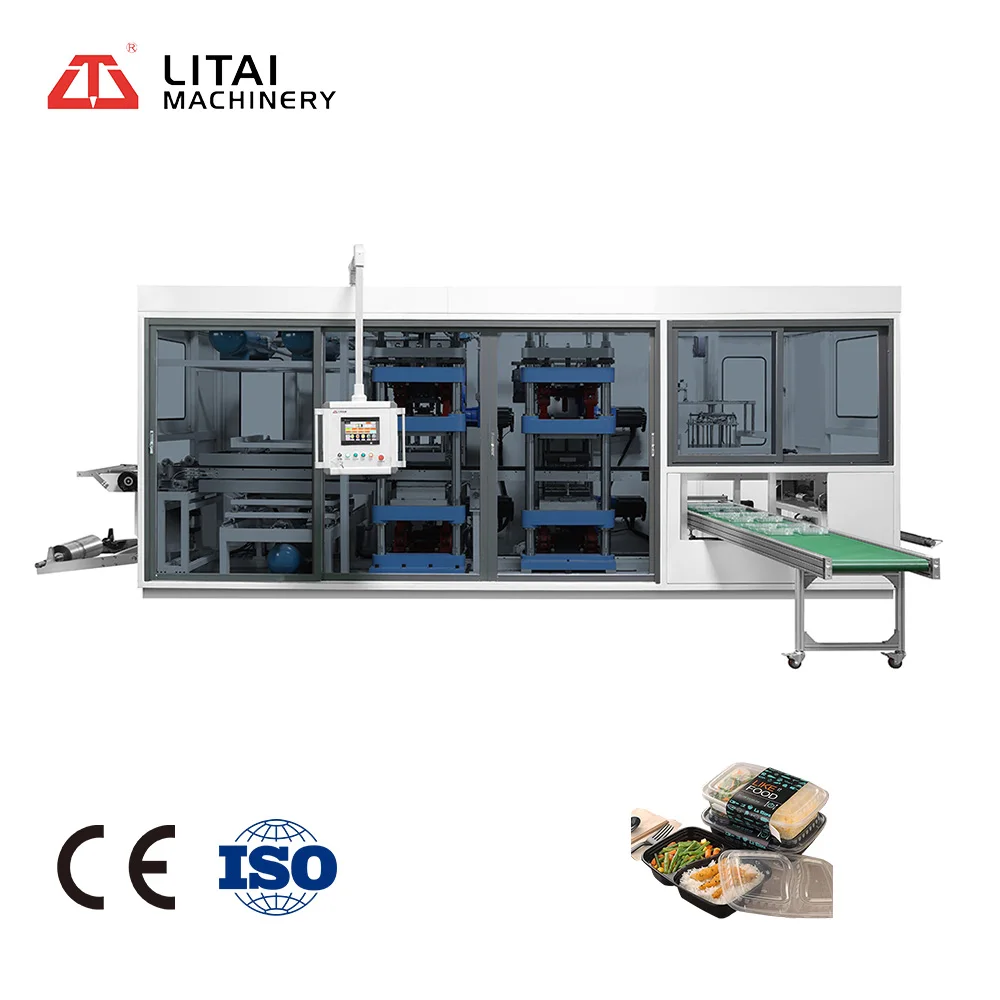

TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.




Cosmetic tray
Common uses for a plastic thermoformed tray include packaging inserts or shipping trays. Depending on the end use, plastic materials used to manufacture a tray can vary. For shipping, storage, and material handling trays, less costly materials can be used to provide a durable and protective tray without the need for clarity.

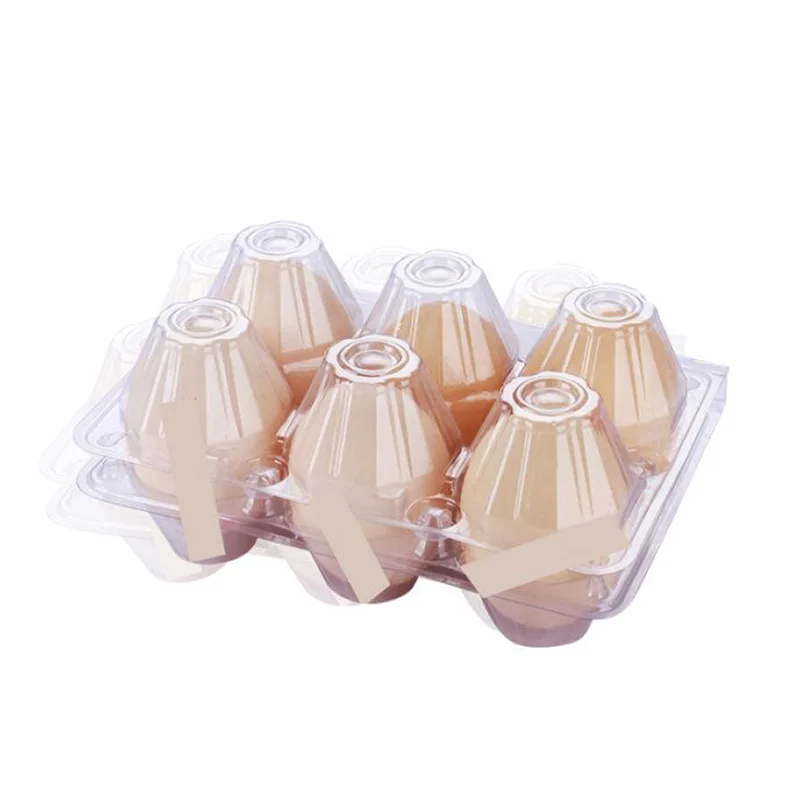

Egg tray
The egg tray can be made PET or PVC plastic material. There are 4,6,8,9,10,12,15,30 cells tray. The diameter of it is 4 cm , 4.3 cm, 4.6 cm. It can be printed as your requirement.

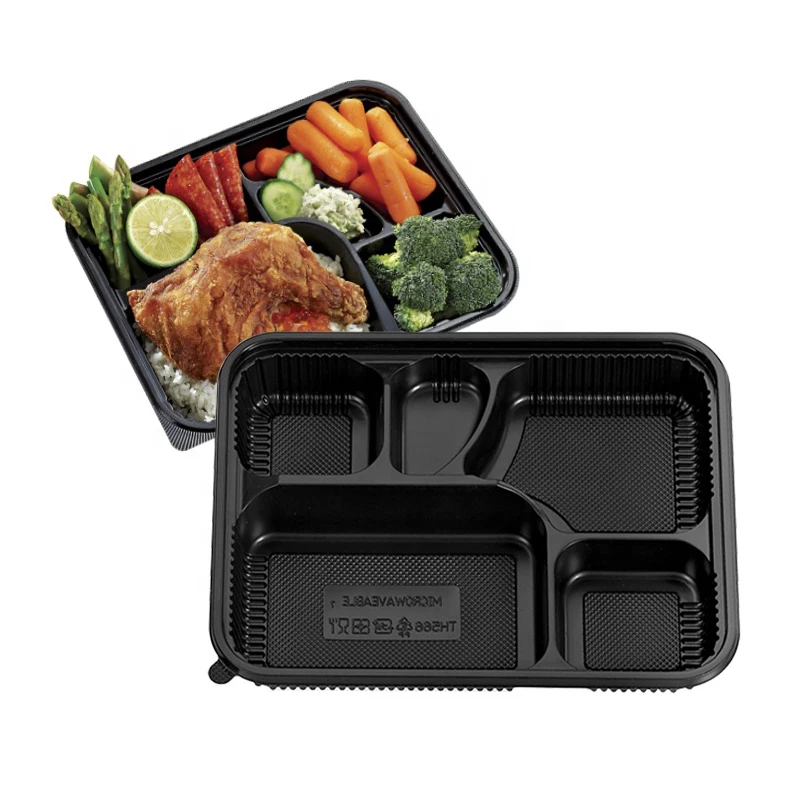

Disposable lunch box
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Plastic fruit box
Our machine can manufacture 100% new food grade non-toxic and odorless material, which has high transparency and environmental friendliness.
Accurate lid makes our products lock tightly,which is not loose,leakage,strict and fresh.The thicker material box
shape does not change when stacking up.
Coffee cup lid
Our machine supports 100% biodegradable and compostable materials: our fiber thermal cover is made of 100% plant-based materials,
which is completely environmentally friendly. We are honored to provide you with an innocent alternative that is easy to compost and biodegradable. While reducing plastic waste, you can also better enjoy your favorite hot drinks!
Plastic bowl
Elastic thermoforming is the preferred process for manufacturing plastic parts because it is ideal for producing large numbers of low-cost plastic parts with high tolerance accuracy, repeatability and almost no completion.

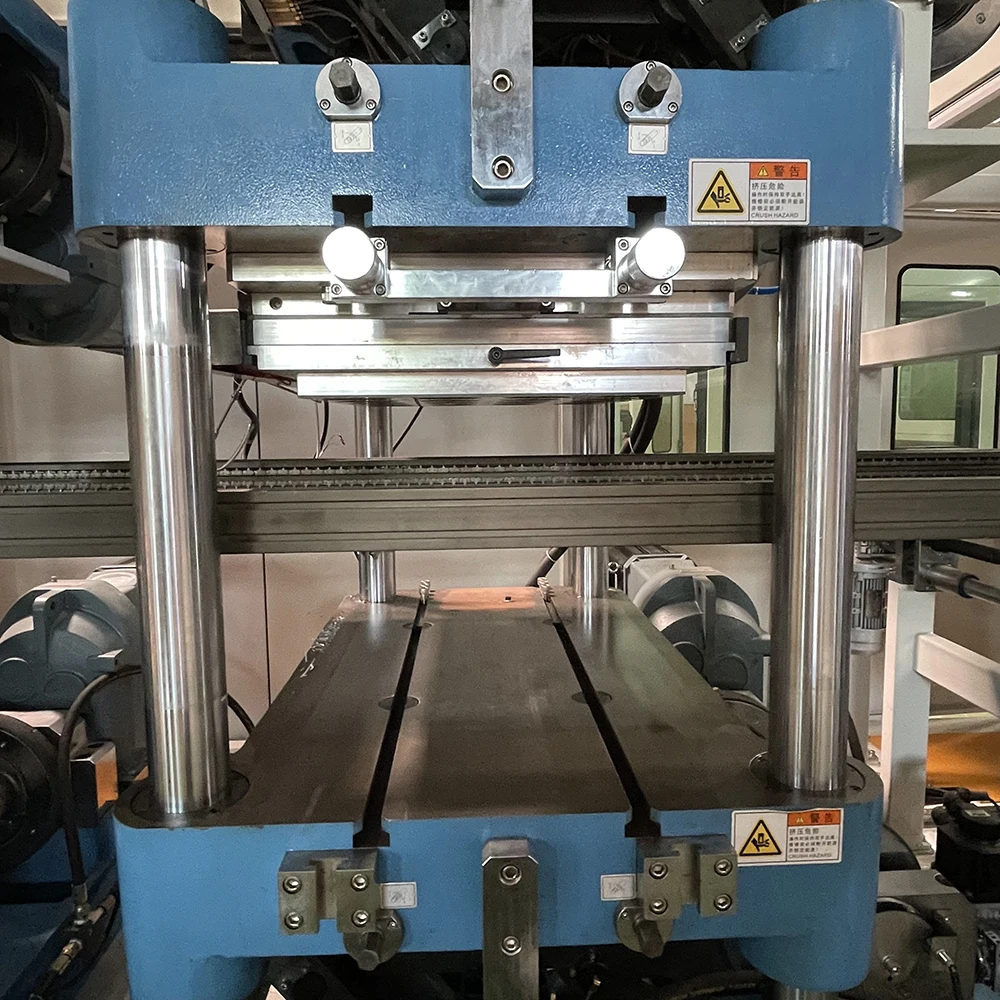

Punching station
Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant, and extend equipment life.


Working station
Working station, sheet feeding and rolling part all completely driven by servo motor system, more accurate and efficient.


Ceramic heater
The ceramic heater (Germany·ELSTEIN) added vacuum insulation cotton, it shows quick response rate, short processing time, and save energy.


Console
Industrial manual interface (Delta) has storage function. All parameters can be stored in recipes, it is convenient for the next-time operation.


SUMMARY OF MACHINE

1. Every station is driven by the eccentric crank linkage structure.

2. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.

3. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.

4. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1℃.

5. Each servo motor has overload protection for machine’s overworking.

6. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.

7.There is an alarm function of the sliding doors.




About US






Certificate




Exhibition






Packaging shipping




FAQ


Q1: Are you a factory or trading company?

A1: We are a factory, and we export our machines to more than 80 countries since 2001.

Q2: How long is the warranty period?

A2: We have a professional QC department in charge of products' quality.

Q3: How long is the warranty period?

A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.

Q4: How to install the machine?

A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
