3-х фазный тихий 100 кВА 100kva дизель-генератор-натриевый вкладыш GCL 80 кВт 80kw группа электрические генераторы Динамо generador
- Категория: Generators >>>
- Поставщик: Fujian,Epos,Electric,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.63 $* | 0.51 $* |
| Aug-20-2025 | 0.89 $* | 0.20 $* |
| Jul-20-2025 | 0.46 $* | 0.4 $* |
| Jun-20-2025 | 0.68 $* | 0.87 $* |
| May-20-2025 | 0.45 $* | 0.63 $* |
| Apr-20-2025 | 0.91 $* | 0.28 $* |
| Mar-20-2025 | 0.92 $* | 0.19 $* |
| Feb-20-2025 | 0.93 $* | 0.36 $* |
| Jan-20-2025 | 0.65 $* | 0.27 $* |
Характеристики

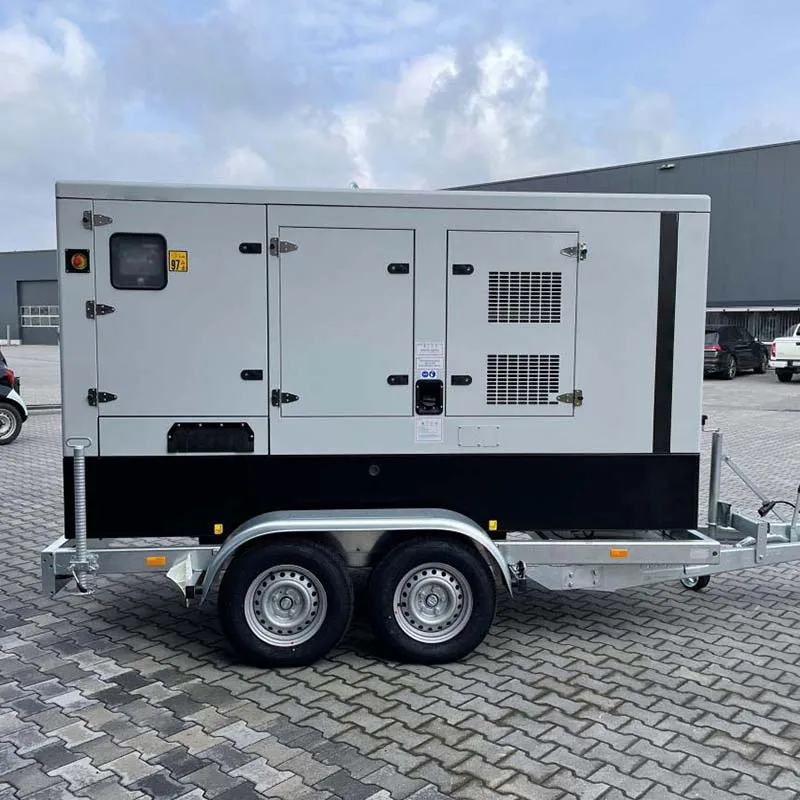

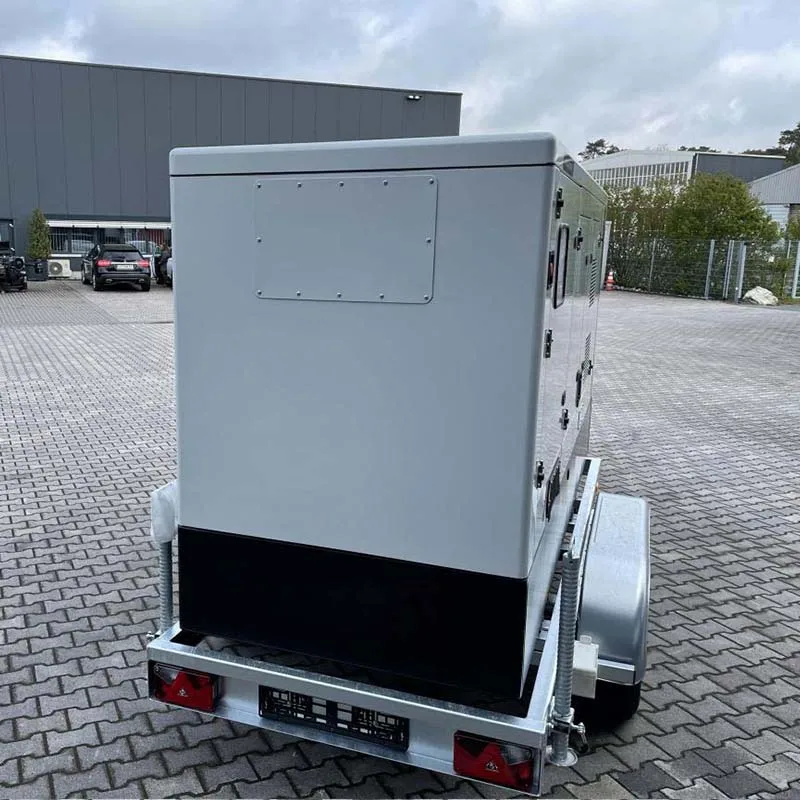

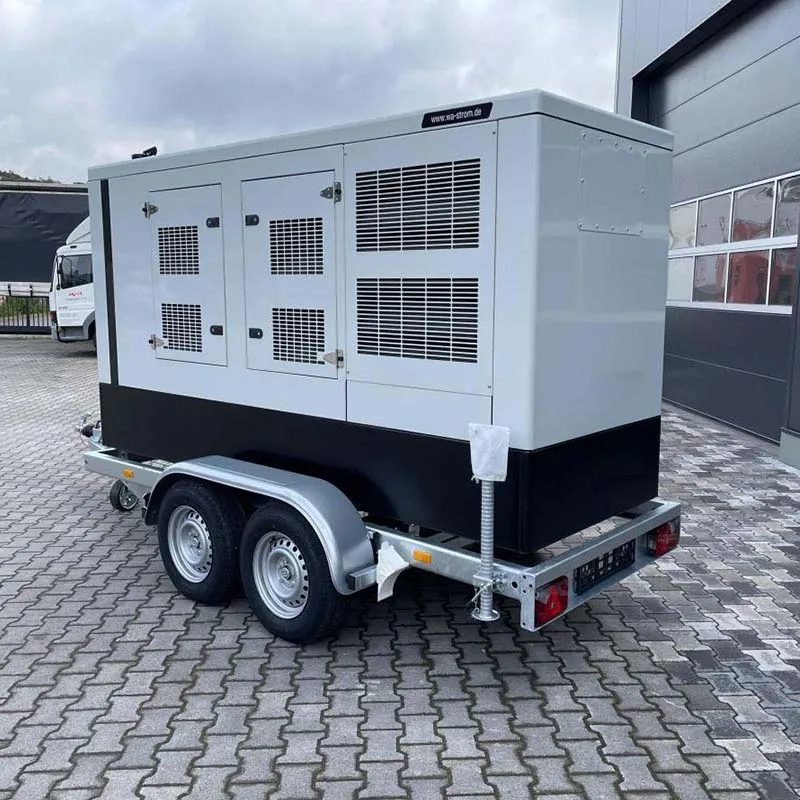

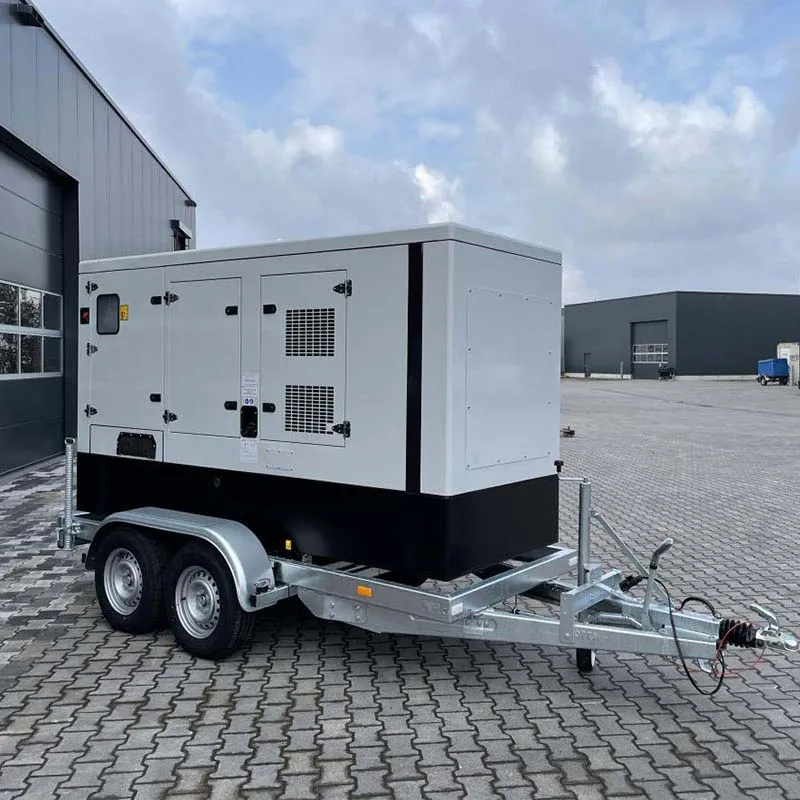

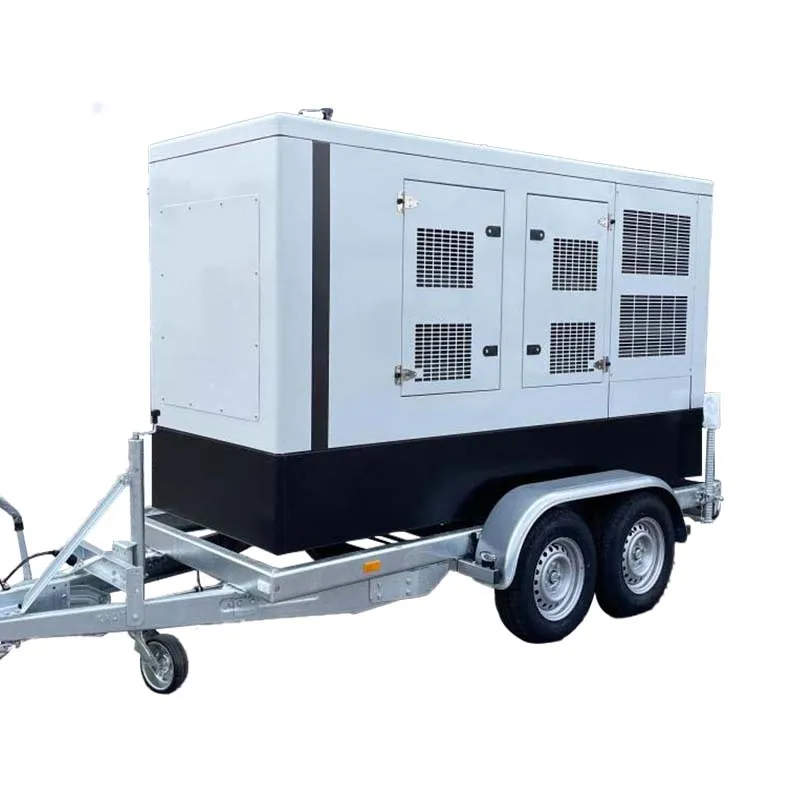

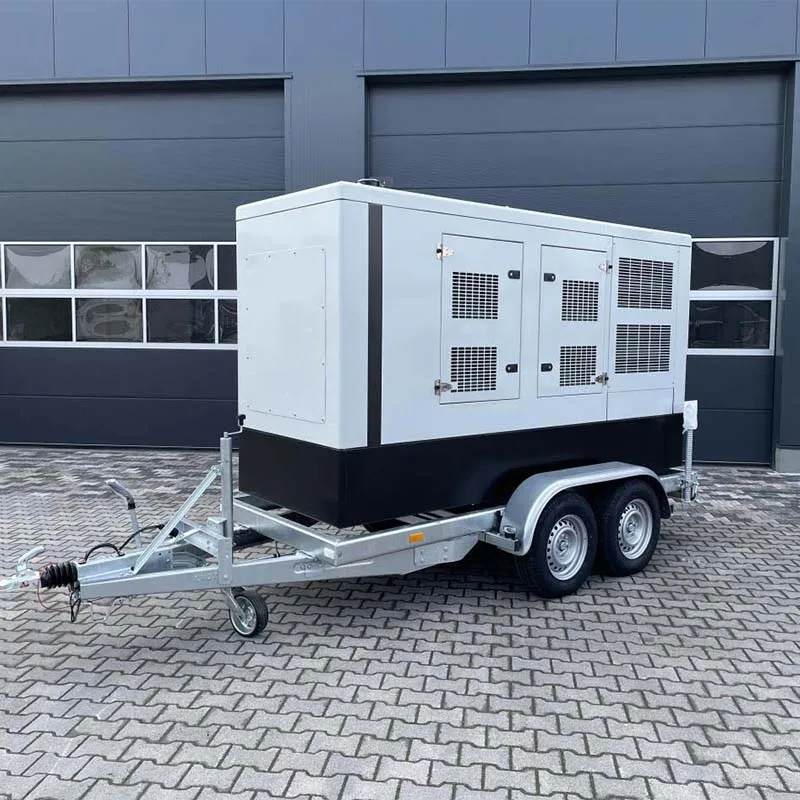

3 phase silent 100 kva 100kva diesel generator price for sale 80 kw 80kw groupe electric generators dynamo generador electrico
Products Description
Characteristic | Value | |
Power generator EMEAN model | VG-F110 with soundproof hood | |
Article no. | VG-F110 with hood | |
Three-phase - 400 V. | ||
(Maximum power) kW / kVA | 88kw/110kva | |
(Continuous output) kW / kVA | 80kw/100kva | |
Performance data | ||
Voltage volts | 400/230/380 | |
Frequency Hz | 50/60 | |
Power factor cos ϕ | 0.8 | |
Engine | ||
Manufacturer | FAW (Optional Cummins.perkins, Weifang, Yuchai, etc.) | |
Model | CA6DF2D-14D | |
Fuel | Diesel | |
Speed rpm | 1500/1800 | |
Cylinder | 6 | |
Cooling system | water | |
Starter | electric | |
Consumption | ||
Fuel consumption at 75% load (l / h) | 14.4 | |
Fuel capacity tank (l) | 168.0 | |
Running time at 75% load (h) | 11.6 | |
Measures and Weight | ||
Length (mm) | 2800 | |
width (mm)) | 1100 | |
Height (mm) | 1500 | |
Weight, dry (kg) | 1500 | |
Protection classes | ||
Great | H | |
IP protection class | 23 | |
Noise emission Optional | ||
Sound pressure in 7 m DB (A) | 60-75 | |
Manual control - MCP | Automatic control panel - ACP | |
A manual control is mounted on the generator including displays, monitoring and connectors with protective devices. | Mounted in the control unit of the power generator Control AC03 for control and Monitoring for emergency power operation. Lockable Door with viewing window in front of the Control panel. | |
◆ Start / stop and preheating by means of a key switch ◆ Not-Emergency stop button | ◆ Operating modes: Off, manual, automatic, test ◆ Button for mains and generator switch control ◆ emergency stop ◆ Remote start ◆Control voltage main switch ◆ battery charge retention ◆ RS232 interface ◆ Audible alarm ◆ Password protection for parameter settings | |
◆ Alternator failure ◆ Low oil pressure ◆ engine temperature ◆ Earth fault current | ◆ Motor protection: Low oil pressure, Engine temperature ◆ Generator: under / over voltage, overload, under /Overfrequency, start failure, battery voltage | |
◆ alternator ◆ alternator ◆ High engine temperature ◆ short-circuit release (3-pole circuit breaker) | ◆ Motor protection: Low oil pressure, Engine temperature ◆ Generator: under / over voltage, overload, ◆ 3-pole circuit breaker ◆Earth fault current | |
◆ voltmeter (1-phase) ◆ ammeter (1-phase) ◆ Hour meter | ◆ Grid parameters voltage, frequency ◆ Grid power and CosPhi ◆ Generator voltage (3-phase true RMS) ◆ generator frequency ◆Generator power and Cosphi (kW, kVA, kVAr) ◆ battery voltage ◆ Operating hours and engine statistics ◆ all available motor parameters and speed ◆ tank capacity% | |
◆ Lockable door with viewing window in front of the control panel | ◆ Lockable door with viewing window in front of the Control panel | |
Optional | ||
◆ 1x 63A - 400V / 5-pole CEE ◆ 1x 32A - 400V / 5-pole CEE ◆ 2x 16A - 230V / 3-pole CEE ◆ 1x 16A - 230V / SCHUKO | ◆ 1x 63A-400V / 5 pole CEE ◆ 1x 32A-400V / 5 pole CEE ◆ 2x 16A-230V / 3 pole CEE ◆ 1x 16A-230V / SCHUKO | |
Stromgenerator_EMEANG_SW_ Manuel_Panel_01 | Stromgenerator_EMEAN_GSW_ Automatic_Schalttafel_ACP_01 | |
SILENT CANOPY TECHNOLOGY
HIGH-DENSITY WAVE SOUND-ABSORBING COTTON
1. When sound waves pass through cotton, they are reflected by countless fibers,superimposed on each other, and collide.The sound wave energy is converted into heat energy, so that the intensity of thesound wave is weakened and the sound disappears.
2. Mute sponge Mute sponge, thickness 33 mm
Product configuration and details
Control panel | ||
Branded high quality digital controlpanel rise the reliability and stabilityof the genset | ||
AUTOMATIC SHUTDOWN AND FAULT CONDITIONS Under/over speed; fail to start High engine temperature; fail to stop Low oil pressure; charge fail Under/over generator volts; over current Under/over generator frequency; emergency stop Under/over mains frequency Under/over mains voltage Low/high battery volts | ||
ABB
ABB and SchneiderBreaker
Automatic TransferSwitch
ATS for auto start when utility power off
Radiator
As your different life and enviromentdemand, we supply you the optionsspare parts whatever cold or hot area.our generator can be operated atouside temperatures between -40℃and +50℃ ,without starting aid :-15℃;with starting aid:-40°℃.
Reliable starting even at ice -coldtemperatures.
Reliable starting even at ice -coldtemperatures.
AGM Start-Stop Battery
Primary Function:
Engine starts more frequently.
Limited extended period of engine shut off;Start-Stop Function:
Great Start-Stop performance.
Advanced energy management system.Plus regenerative function.
Engine starts more frequently.
Limited extended period of engine shut off;Start-Stop Function:
Great Start-Stop performance.
Advanced energy management system.Plus regenerative function.
SOUND SUPPRESSOR
The high-grade rubber shock absorber between diesel engine,alternator and frame, it reduce the vibration,reduce the damage for parts,prolong the servicelie of the unit, double screw design more solid and durable and prvent the loose when running,and to reduce the vibration noise
PerkIns Englne | Termlnal Wlre Box | Alr Intake |
International branded engine have longer uselife with global after-sale service. | Regular internal wire connection to convenientmaintain. | Ventilation compartment ensuring steady airintake with reduce noise levels. |
Cable Wlnlng | Raln Cover | Acess |
Cable wire with insulation tube to use moresafely. | Strong materials cover to avoid rain anddopant in the genset to make sure generatorwork regularly. | Large canopy doors for convenient maintainand inspection purposes |
Why Choose Us
our service
Pre-sales service: our salesperson will help you match suitable products and prices
After-sales service: Guarantee one year or
1000 operating hours from the date of installation (whichever comes first). During the warranty period, our company provides free
of charge the wearing parts caused by our product quality or raw material problems, except for the wearing parts caused by the
customer's improper operation. After the expiry date, our company will provide the generator to make up the spare parts for
maintenance
After-sales service: Guarantee one year or
1000 operating hours from the date of installation (whichever comes first). During the warranty period, our company provides free
of charge the wearing parts caused by our product quality or raw material problems, except for the wearing parts caused by the
customer's improper operation. After the expiry date, our company will provide the generator to make up the spare parts for
maintenance
Fujian Epos Electric Machinery Co., Ltd.
devote itself into researing,maufac-ruing and installing superb diesel generator sets ,power range from 10kva to 2500kva, 5KW to 2000kw .include silent type,mobile type,container type,mobile power station,multiple parallel,remote control and so on.As the ideal emergency standby power equipment,diesel generator sets are widely
devote itself into researing,maufac-ruing and installing superb diesel generator sets ,power range from 10kva to 2500kva, 5KW to 2000kw .include silent type,mobile type,container type,mobile power station,multiple parallel,remote control and so on.As the ideal emergency standby power equipment,diesel generator sets are widely
used in industrialand,miningenterprises,communication,army,ports,highway,railway,hotels etc places. With the compelling quality and service,we has built a good reputation with customers in the area of diesel generator sets.
