Ночная маркировка телекоммуникационные башни защита от солнечных лучей низкоинтенсивный светодиодный самолет солнечный кран сигнальная
- Категория: Aviation Obstruction Lights >>>
- Поставщик: Hunan,Chendong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 95.65 $* | 100.47 $* |
| Aug-16-2025 | 94.49 $* | 99.79 $* |
| Jul-16-2025 | 79.11 $* | 83.97 $* |
| Jun-16-2025 | 93.39 $* | 98.96 $* |
| May-16-2025 | 81.3 $* | 85.67 $* |
| Apr-16-2025 | 91.48 $* | 96.17 $* |
| Mar-16-2025 | 90.45 $* | 95.90 $* |
| Feb-16-2025 | 90.10 $* | 95.58 $* |
| Jan-16-2025 | 89.43 $* | 93.66 $* |
Характеристики
Contact Us
Ms. Sophia Guo| Sales Engineer
Hunan Chendong Technology Co.，Ltd
T:+86-0731-85563165 85563265
Fax: +86-0731-85563365
Phone/WhatsApp: +86-13929493960
Fax: +86-0731-85563365
Phone/WhatsApp: +86-13929493960
Skype:sophia.guo88
A:No.101,#4 Building, XinCheng Science and Technology Park, West of Yuelu Ave., Hi-Tech Development Zone,Changsha city, Hunanprovince, China.
W:http://www.cdt-en.com/
E: sophia@chendongtech.com
A:No.101,#4 Building, XinCheng Science and Technology Park, West of Yuelu Ave., Hi-Tech Development Zone,Changsha city, Hunanprovince, China.
W:http://www.cdt-en.com/
E: sophia@chendongtech.com
Product Description

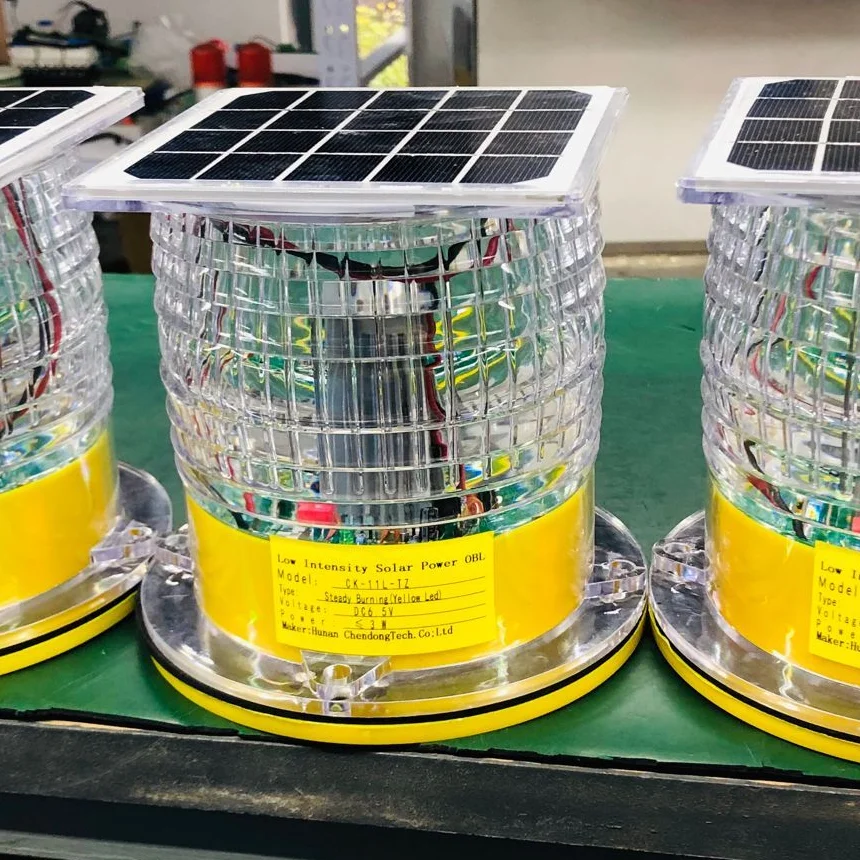

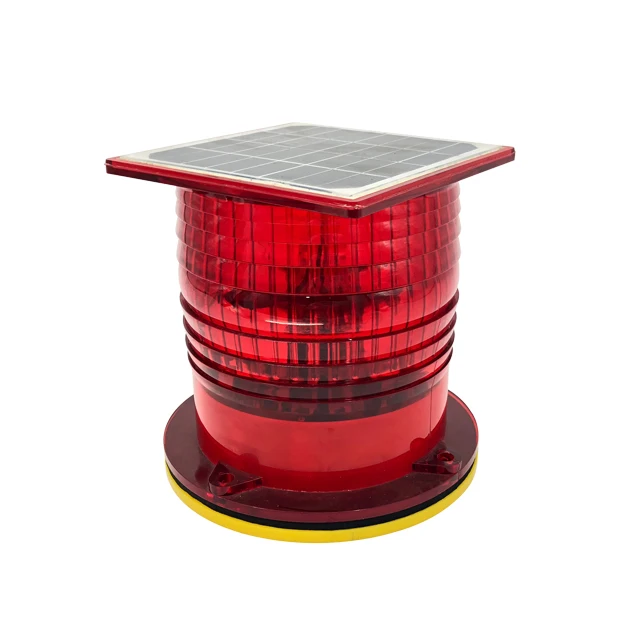

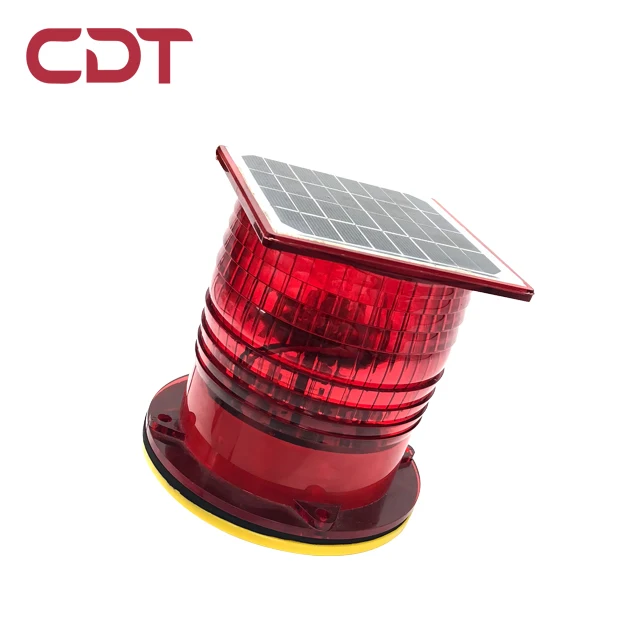

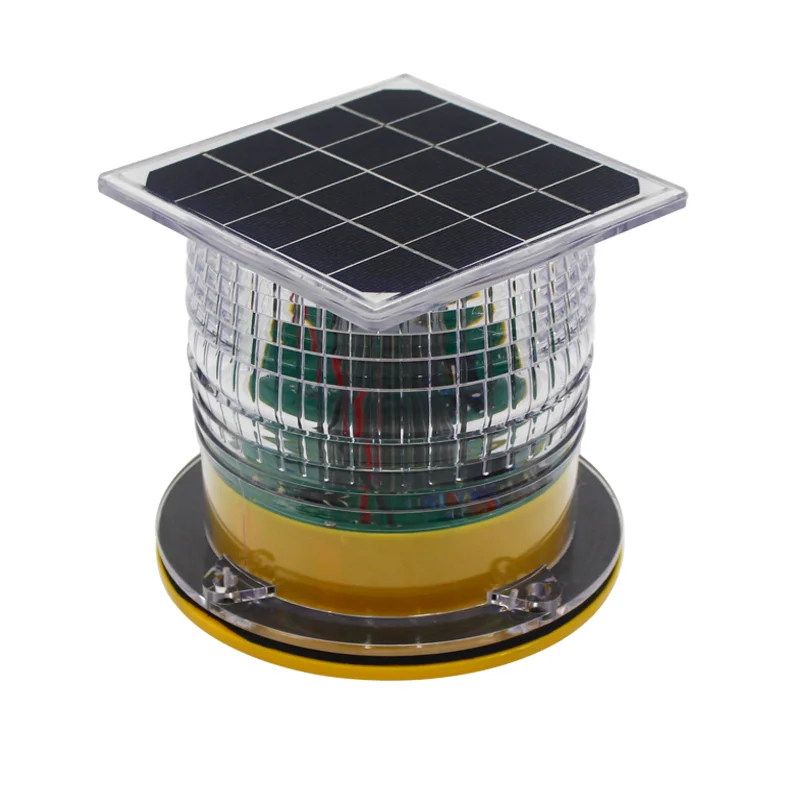

Night Marking Telecommunication Towers Solar Obstruction Light Low Intensity LED Aircraft Solar Crane Warning Light
Low Intensity Solar Warning Lights (LIOL) with solar panel, multi LED type. In compliance with ICAO Annex 14 Type A, Type B and FAA L-810.
As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Light can be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.This beacon is the simplest device according to ICAO standards. It provides steady burning red light with two types of intensity: ≥10cd for Type A, ≥32cd for Type B and≥32cd for Type E (flashing red light).
In particular, the Low Intensity Lights with solar panel are used for night-time signalisation where the power supply does not arrive or where it is very weak.
Item | Parameter |
Name | Solar Crane Warning Light |
Model | CK-11L-TZ |
Operating Voltage | DC3.7V |
Power consumption | ≤3W |
Flashing frequency | Steady Burning |
Light intensity | 10cd |
Life span | ＞100,000 hours |
Emitting color | Red |
Beam angle | 360° horizontal,>3° vertical |
Overall size | 167mmx167mmx162mm |
Installation size | Φ150-4*M12 |
Ingress protection | IP65 |
Lightning protection level | 5KA |
Light controlled sensitivity | 100Lux |
Operating temperature | -30℃～60℃ |
Net weight | 1.2KG |
Wind load | 80m/sec. |
Using Rainy / Cloudy Day | 1-2 days |
Specification
1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission
up to 90%, quite high impact resistance and fit the bad environment very well.
2. ABS+PC alloy with paiting by spraying plastics,the structure is high strengh,resistance to corrosion.
3. Special battery for solar energy, free maintenance and high reliability, lifetime more than 3
years.
4. Based on the single chip computer micro power control, could control the charge and
discharge precisely.
5. Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%),
lifetime more than 20 years.
6. Using Fresnel lens optical design, range further.
7. Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and
high efficiency.
8. Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control
light intensity level.
9. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5
times, Imax 15KA so that the light is suitable to harsh environment.
10. Integral structure, protection lever of Ip65.
Company Profile
FAQ
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Exhibition
