New condition rotary open mine blasting down-the-hole drilling
- Категория: Mine Drilling Rig >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1190.49 $* | 1250.83 $* |
| Aug-16-2025 | 1180.64 $* | 1239.66 $* |
| Jul-16-2025 | 990.43 $* | 1040.80 $* |
| Jun-16-2025 | 1160.61 $* | 1218.33 $* |
| May-16-2025 | 1010.15 $* | 1061.6 $* |
| Apr-16-2025 | 1140.63 $* | 1197.28 $* |
| Mar-16-2025 | 1130.14 $* | 1187.45 $* |
| Feb-16-2025 | 1120.67 $* | 1176.45 $* |
| Jan-16-2025 | 1110.12 $* | 1166.51 $* |
Характеристики

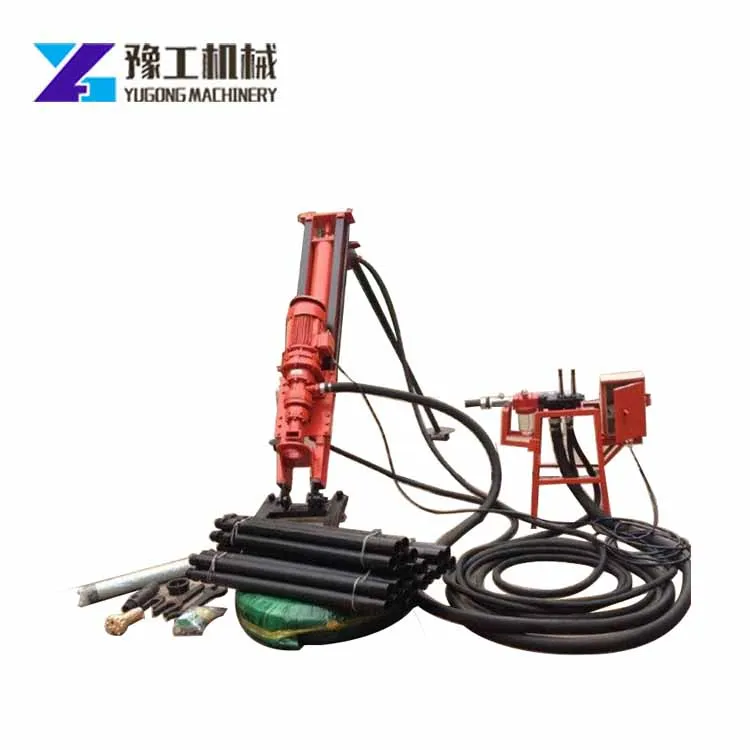

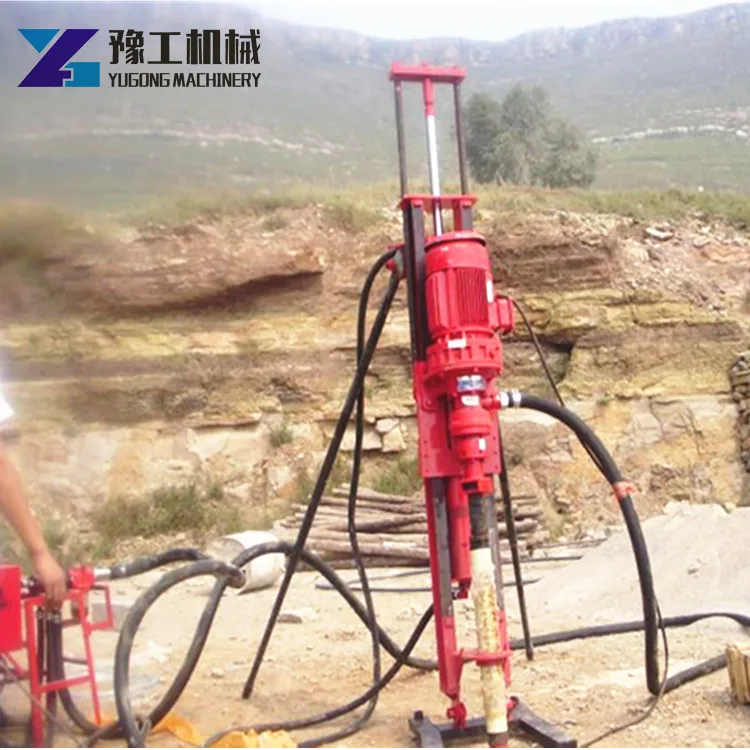

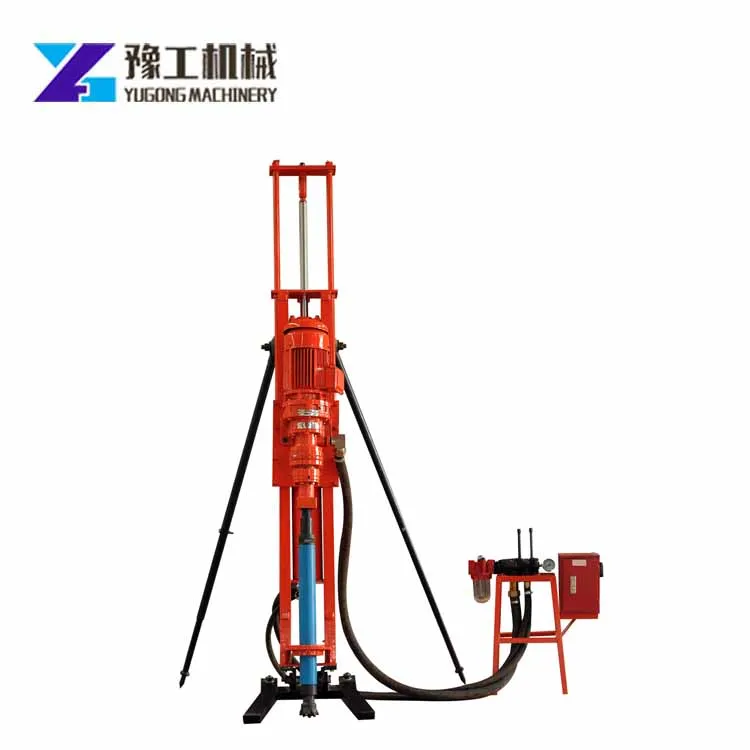

New condition rotary open mine blasting down-the-hole drilling rig
Product Description
we are specialized in water well rig, anchor drilling rig, dth drill machine portable drill rigs core drilling rig is mainly used to drill rocks, stones, floor, etc. in mining and road construction, water conservancy, national defense and other projects.
It’s your necessary and ideal machine in drilling work.
1. Compact Structure and Easy Operation.
2. High Efficiency and Stable Performance.
3. Low Noise and High Speed Drilling while Working.
4. Easy to Install and Disassemble in Working Sites.
5. Small and Light, suitable to drill in all kinds of environments.
Technical Parameters
Model | YG70/80 | YQ100 | YQ120 | |
Drilling Diameter | 50-90mm/90-120mm | 90-130mm | 90-130mm | |
Max Drilling Depth | 15m | 25m | 40m | |
Power | 3kw | 4kw | 5.5kw | |
Voltage | 380V | 380V | 380V | |
Drilling Pipe | OD | 42mm | 50mm | 60mm |
Quantity | 15pcs | 20pcs | 20pcs | |
Impactor OD | 42mm | 50mm | 60mm | |
Drilling rotate speed | 110r/min | 110r/min | 110r/min | |
Working air pressure | 0.5-0.7Mpa | 0.5-1.0Mpa | 0.5-1.0Mpa | |
Air Consumption | 4.5m3/min | 6m3/min | 10m3/min | |
Cylinder diameter | 90mm | 140mm | 140mm | |
Propulsion stroke | 1070mm | 1070mm | 1070mm | |
Max propelled force | 3600N/8000N | 9600N | 9600N | |
Rated speed | 1440r/min | 3200r/min | 1440r/min | |
Dimension | 1740*260*420mm | 2280*440*550mm | 2230*380*550mm | |
Weight | 280/320kg | 470kg | 460/480kg | |
Packaging & Shipping
Packing and Shipping
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
Our Services
After-Sales Service
1. One-year warranty, life long maintenance.
2. Elaborate Customer Consulting Service
3. Technical assistance during pre/in/after-sales.
Company Information
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
Certifications
