Зарядное устройство для литий-ионных свинцово-кислотных аккумуляторов 48 В 30
- Категория: On Board Chargers >>>
- Поставщик: Nanjing,Pengtu,Power,Supply,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 167.63 $* | 175.25 $* |
| Aug-19-2025 | 165.92 $* | 173.14 $* |
| Jul-19-2025 | 139.13 $* | 146.35 $* |
| Jun-19-2025 | 162.77 $* | 170.99 $* |
| May-19-2025 | 141.28 $* | 148.62 $* |
| Apr-19-2025 | 160.93 $* | 168.97 $* |
| Mar-19-2025 | 158.29 $* | 166.56 $* |
| Feb-19-2025 | 157.61 $* | 165.42 $* |
| Jan-19-2025 | 155.66 $* | 163.25 $* |
Характеристики
Product Overview

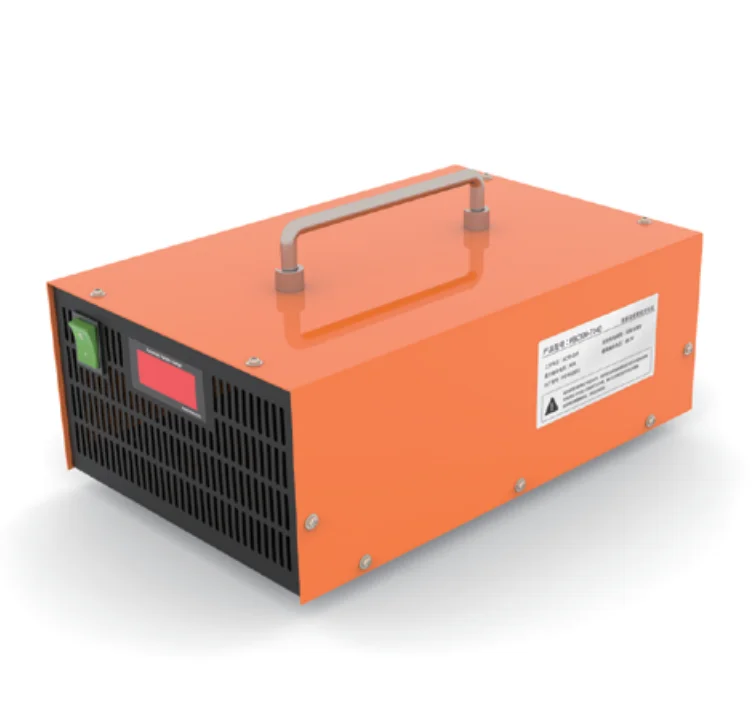

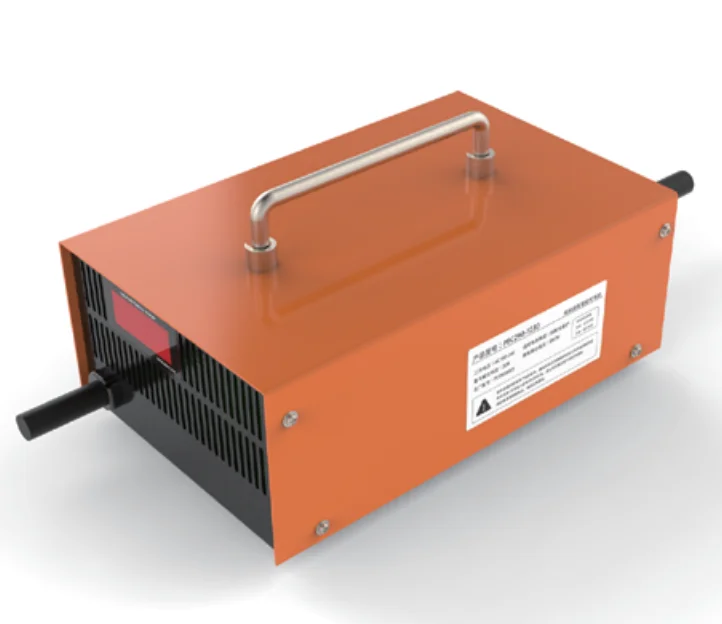

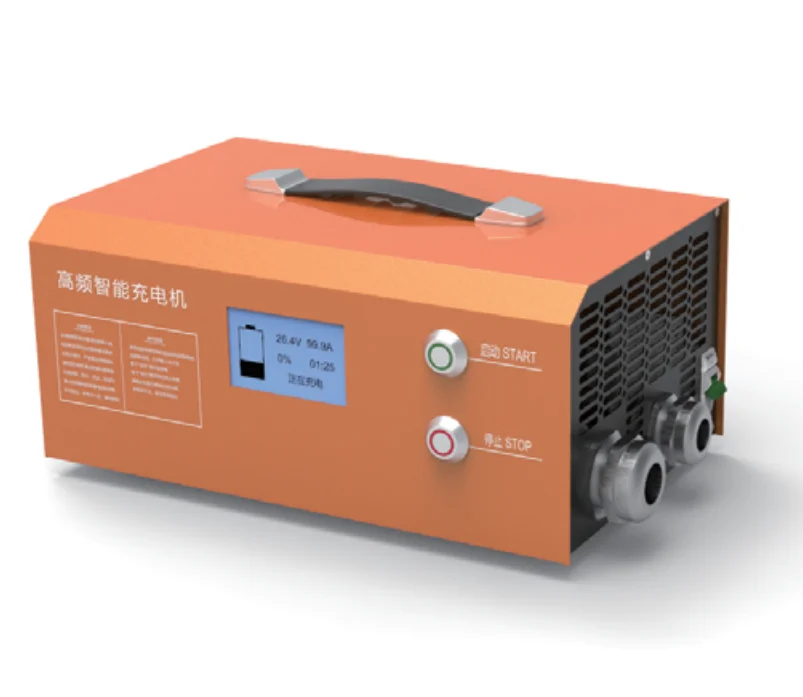

PBC290 Series 2500W digital display high frequency resonant battery charger
This series charger adopts MCU intelligent control method. They are suitable for liquid-rich lead-acid batteries, maintenance-free lead-acid battery, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. Widely used in cycling charge of battery pack in the E-sweeper, E-sighting car, E-golf cart, communication, electricity, ship, etc.
FEATURES AT A GLANCE
. MCU intelligent control
. Fully charge automatic shutdown
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Ac input voltage range | 180-260VAC/90-260VAC （for option）; 45-65HZ |
2 | AC max input current | 13A@220VAC |
3 | Noise | ≤65dB |
4 | Net weight | 4.5kg±0.3kg |
5 | Working temperature | -20°C~＋55°C |
6 | Storage temperature | -40°C~＋95°C |
7 | Max efficiency | 91% |
Mechanical Drawing
Model List
Item | Battery Rated Voltage | Max output current |
PBC290-2450 | 24V | 50A |
PBC290-2460 | 24V | 60A |
PBC290-4830 | 48V | 30A |
PBC290-4835 | 48V | 35A |
PBC290-6030 | 60V | 30A |
PBC290-6035 | 60V | 35A |
PBC290-7230 | 72V | 30A |
Protective function
. Output over current protection
. Output over voltage protection
. Output short circuit protection
. Output no-load protection
. Output reverse connection protection
. Output short circuit protection
. Output no-load protection
. Output reverse connection protection
. Input over current protection
. Input over voltage protection
. Input under voltage protection
. Fully charge automatic shutdown
. Over temperature protection
In order to confirm if our charger is suitable for your battery pack, please send the following infomations to us by email:
(1) battery type:
(2) number of cells in series:
(3) capacity of battery pack(AH):
(4) The maximum charge voltage:
(5) AC input volt:
(6) with CAN or enable:
(7) if with CAN, tell us the BMS brand
AC cable and DC cable: matching socket without AC/DC cable.
(1) battery type:
(2) number of cells in series:
(3) capacity of battery pack(AH):
(4) The maximum charge voltage:
(5) AC input volt:
(6) with CAN or enable:
(7) if with CAN, tell us the BMS brand
AC cable and DC cable: matching socket without AC/DC cable.
Certifications
Company Profile
Product packaging
Our services
Shipping:
We Ship to Worldwide, except APO/FPO.
Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.
Delivery time depends on destination and other factors, it may takes up to 20 business days
Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.
Warranty and Guarantee:
24 months Warranty. Buy with confidence!
Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid.
If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
Other Policies:
We are not responsible for any custom duty or import tax.
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms.
We Ship to Worldwide, except APO/FPO.
Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.
Delivery time depends on destination and other factors, it may takes up to 20 business days
Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.
Warranty and Guarantee:
24 months Warranty. Buy with confidence!
Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid.
If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
Other Policies:
We are not responsible for any custom duty or import tax.
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms.
Professional Custom 48v 30a battery charger lifepo4 lithium li ion lead acid agm battery charger 48V for forklift with display
