JPT 3W 5W UV laser marking machine with rotary for glass paper
- Категория: Laser Marking Machines >>>
- Поставщик: Liaocheng,Dongchangfu,Ketai,Laser,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.82 $* | 0.14 $* |
| Aug-20-2025 | 0.2 $* | 0.26 $* |
| Jul-20-2025 | 0.17 $* | 0.96 $* |
| Jun-20-2025 | 0.85 $* | 0.40 $* |
| May-20-2025 | 0.1 $* | 0.13 $* |
| Apr-20-2025 | 0.31 $* | 0.38 $* |
| Mar-20-2025 | 0.30 $* | 0.76 $* |
| Feb-20-2025 | 0.78 $* | 0.90 $* |
| Jan-20-2025 | 0.53 $* | 0.12 $* |
Характеристики
Products Description
Could you tell us the information below, so we can give you more customized solution:
1. What do you mark? metal or non-metal
Fiber laser is usually for marking metal part and uv laser is usually for marking non-metal part.
2. What is your marking area?
Usually our marking area is 50mm*50mm-300mm*300mm
3. Do you want mark on flat surface or curved surface?
Standard models can mark on flat surface, if you want mark on curved surface, you need a rotary fixture
4. What is your marking depth?
All laser marking depth is less than 1mm, but if you keep marking and marking, it will be deeper.
1. What do you mark? metal or non-metal
Fiber laser is usually for marking metal part and uv laser is usually for marking non-metal part.
2. What is your marking area?
Usually our marking area is 50mm*50mm-300mm*300mm
3. Do you want mark on flat surface or curved surface?
Standard models can mark on flat surface, if you want mark on curved surface, you need a rotary fixture
4. What is your marking depth?
All laser marking depth is less than 1mm, but if you keep marking and marking, it will be deeper.
Product | UV laser marking machine |
Power | 3w, 5w |
Laser Wavelength | 355nm |
Min line width | 0.01mm |
Beam quality | M2<1.1m2 |
Repetition precision | ±0.003mm |
Pulse width | 10-50ns |
Marking area | 110*110mm-300*300mm |
Marking speed | ≤7000mm/s |
Marking depth | <0.3mm |
Cooling way | water cooling |
Working Temperature | 10℃ 0-35℃ No Condensation |
Gross power | 600W |
Operating voltage | 220V/110V,50HZ/60HZ |
Dimension | 1400*650*800mm |

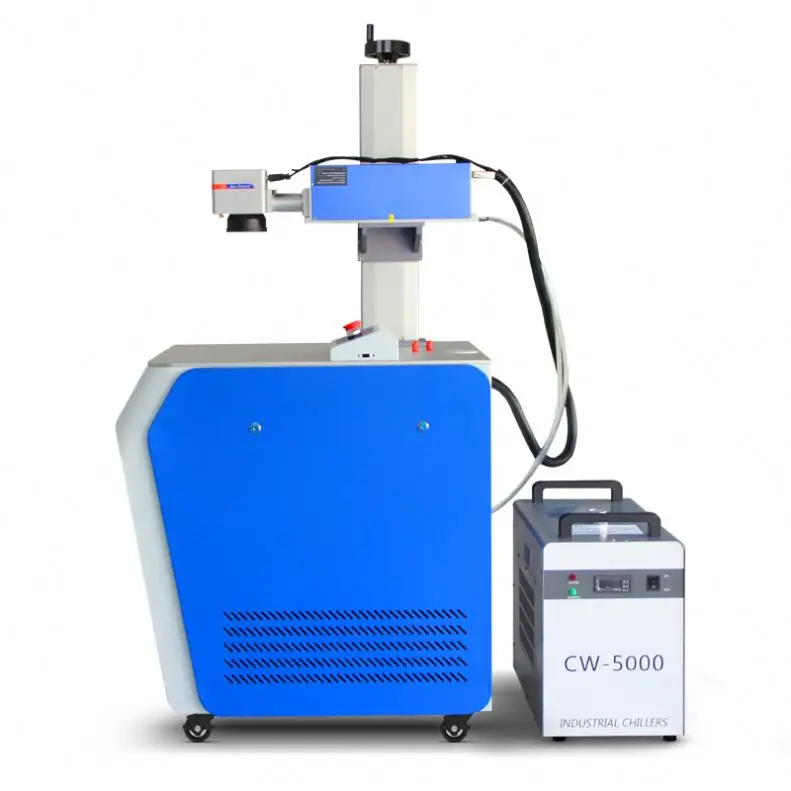

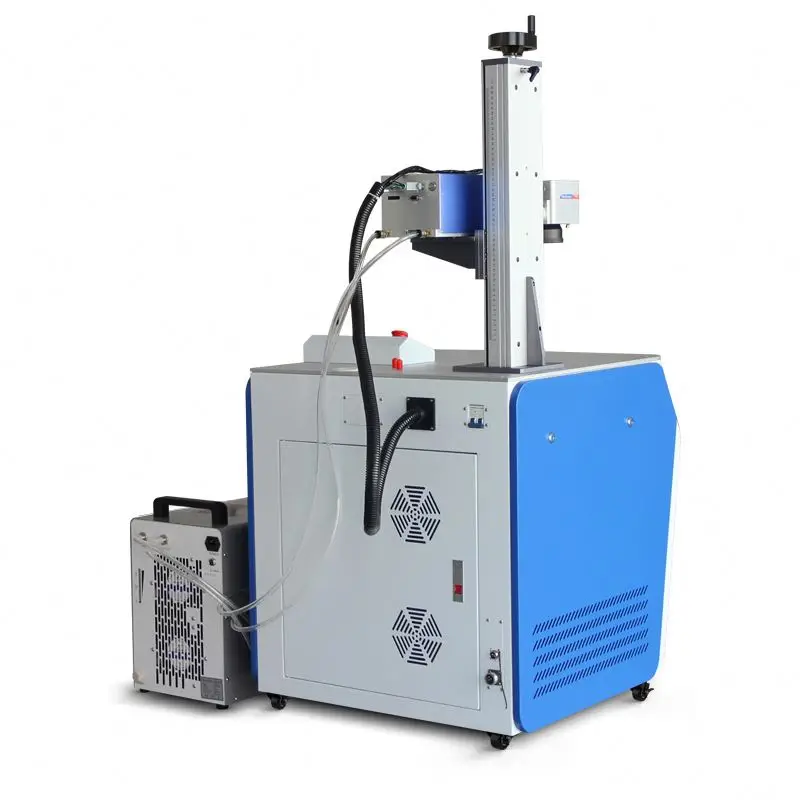

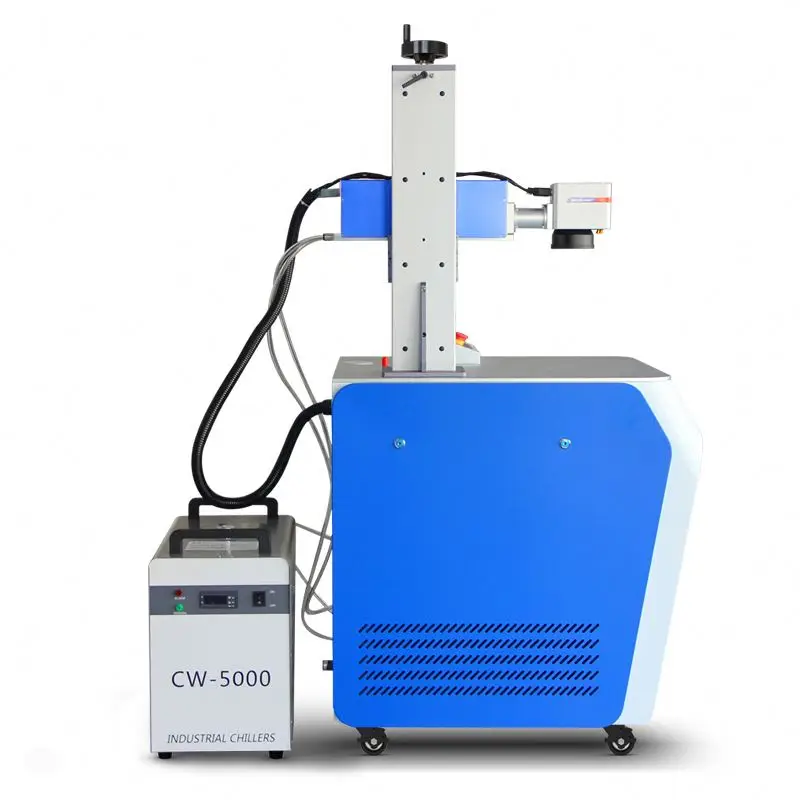

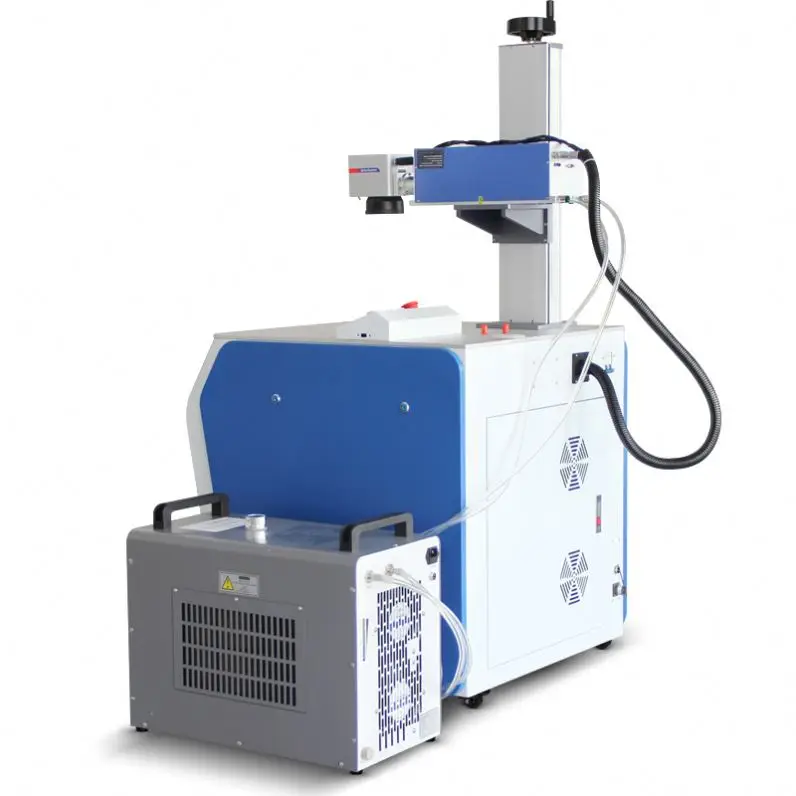

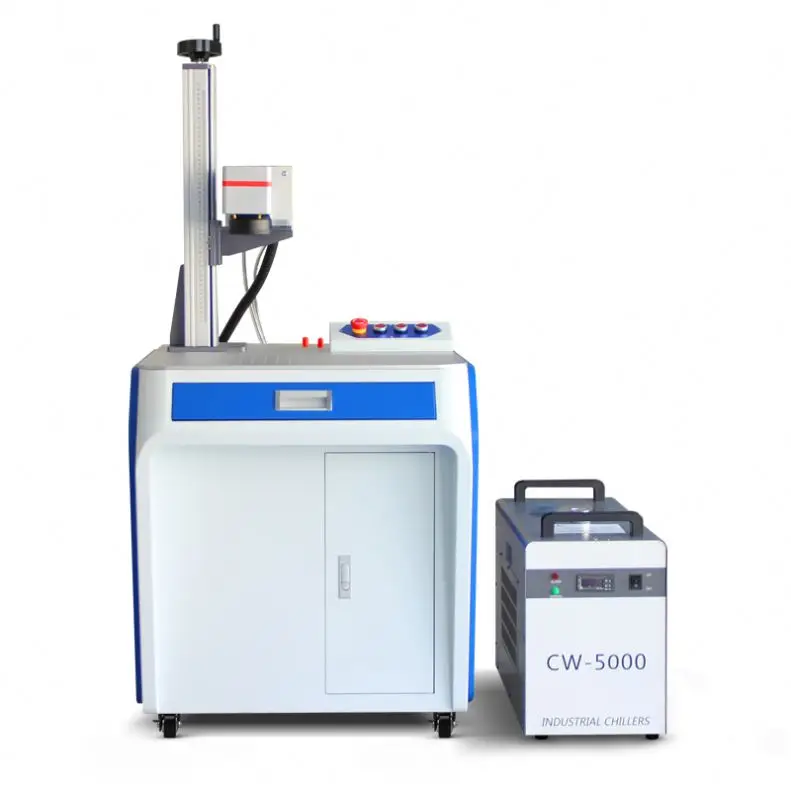

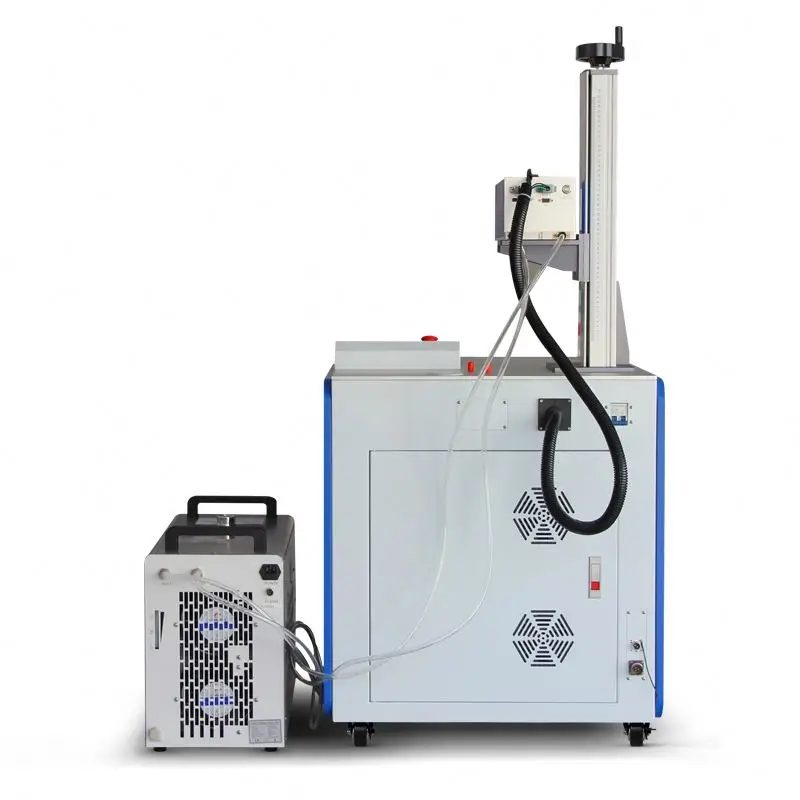

Details Image
Features:
UV Fiber Laser marking machine: Open worktable, easy to load the material.
Application Materials:
UV Fiber laser marking machine can work with all metal and nonmetal marking applications, such as Stainless
Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as
ABS, Nylon, PES, PVC, Makrolon,etc.
UV Fiber Laser marking machine: Open worktable, easy to load the material.
Application Materials:
UV Fiber laser marking machine can work with all metal and nonmetal marking applications, such as Stainless
Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as
ABS, Nylon, PES, PVC, Makrolon,etc.
Sampls
Applicable Industries:
Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Package and shipping
1.We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam,to protect the machine from shaking.For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Air-Worthy Packing or Sea Packing which comply with international standard.
2.Air-Worthy Packing or Sea Packing which comply with international standard.
Company Profile
Liaocheng ketai laser equipment co.,ltd. Which is a provincial hitech and municipal science technology demonstration enterprise. Our main product include laser engraving machine, laser cutting machine, and fiber marking machine.
Our brand is ketai KT, now the main model we produce is KT-40, KT-3020, KT-3040, KT-3050, KT-4060, KT-5070/6090, KT-1224, KT-1290/1390, KT-1312, KT-1325, KT-1610/1810/1812, KT-1530, KT-10F/20F/30F/50F, and can customize the machine according to your need.
The products widely used in craft gift industry, clothes industry, leather industry, logo embroidery industry, advertisement industry, seal industry, packing industry, plate making industry, furniture making industry, knife mold manufacturing industry, digital and electrical appliance industry etc, and have been widely sold to more than 40 countries. Welcome all walks of friends come to visit and work with us.
Our brand is ketai KT, now the main model we produce is KT-40, KT-3020, KT-3040, KT-3050, KT-4060, KT-5070/6090, KT-1224, KT-1290/1390, KT-1312, KT-1325, KT-1610/1810/1812, KT-1530, KT-10F/20F/30F/50F, and can customize the machine according to your need.
The products widely used in craft gift industry, clothes industry, leather industry, logo embroidery industry, advertisement industry, seal industry, packing industry, plate making industry, furniture making industry, knife mold manufacturing industry, digital and electrical appliance industry etc, and have been widely sold to more than 40 countries. Welcome all walks of friends come to visit and work with us.
