Steam Heating Ammonium Phosphate Fertilizer Rotary Vacuum

Описание и отзывы

Трекер стоимости

Характеристики

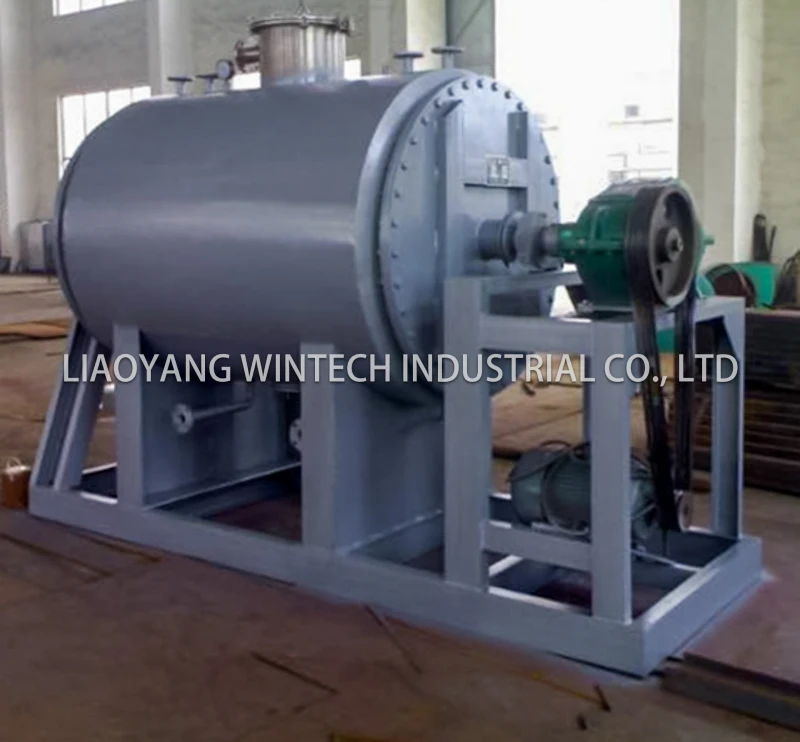

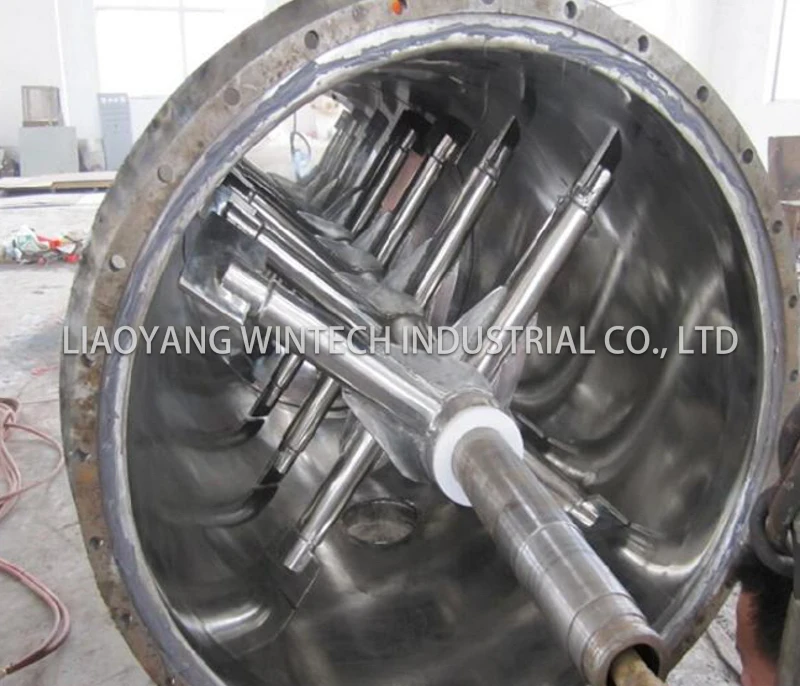

Vacuum paddle dryer is an batch drier with conducts heat.The cylindrical shell is provided with a heating jacket, and a rake agitator is attached to the horizontal axis, with one half of the rake blades moving to the left and the other half to the right.Shaft speed of 7--8r/min shaft can be positive and negative rotation, every 5--8min to reverse once, by the dry material from the upper part of the shell is added in the middle, the material in the constant rotation of the rake tooth stirring, indirect heating, light group gasification, pumped away by the vacuum pump.Generally after more than ten hours of material dry.

Application

Working principle

Raw material enters from inlet, and constantly rotates stirring paddle,it material contacts with the shell wall surface constantly,the material is heated by steam and and the water is evaporated and discharged by the vacuum pump in time, the machine can also use the heat of the media in the jacket and paddles at the same time, the heat transfer area is larger,and heating efficiency is also increased.

Features

(1) strong adaptability, wide application because the rake vacuum dryer using jacket heating, high vacuum exhaust, so almost all different properties, different state of the material are adapted.

(2) the product quality is good because in the drying processat lower temperature.

(3) small steam consumption.

(4) easy to operate it, less labor cost.

Technical Parameter

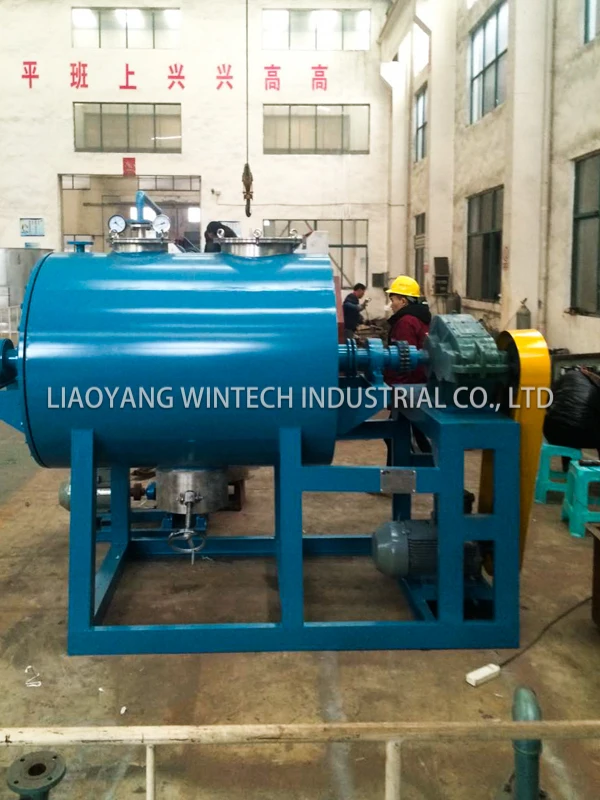

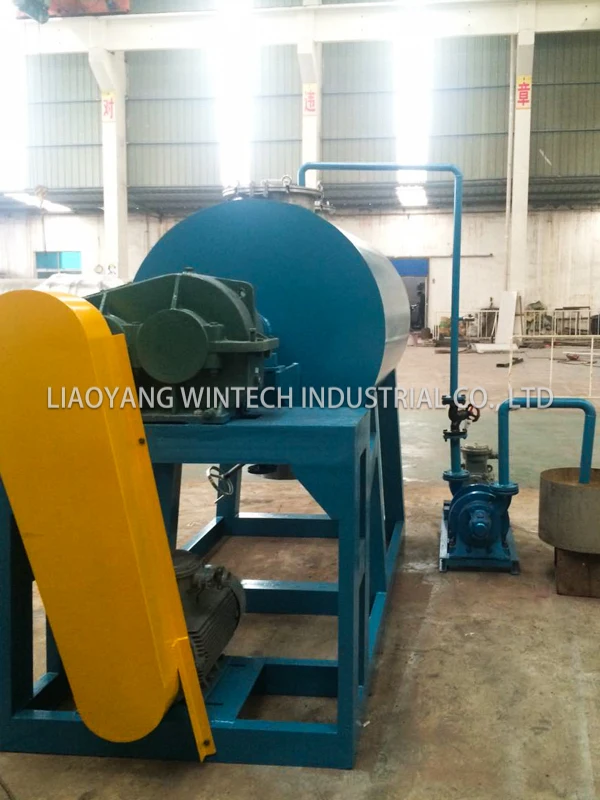

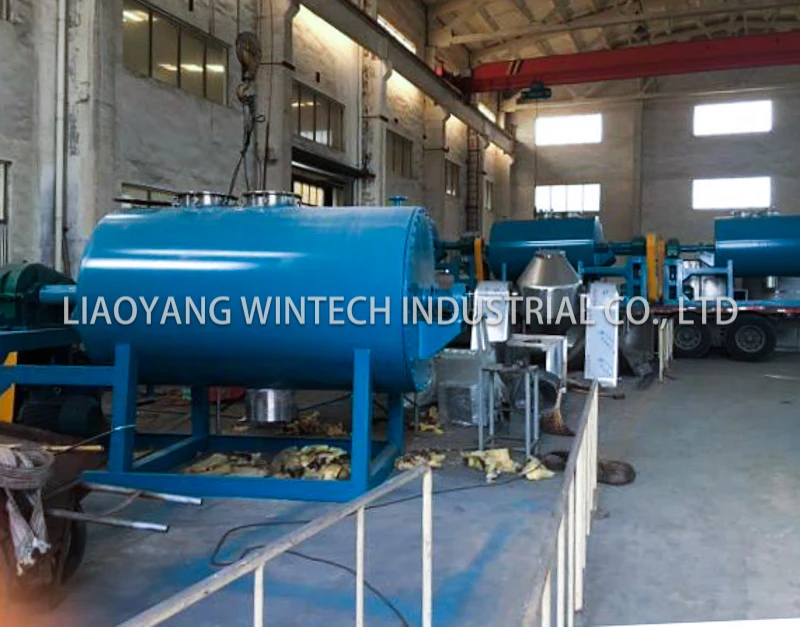

More Pictures















Certificates

We seek excellence. We are motivated and innovating day by day in order to offer solutions to our customers,provide our experience and create value in long-term relationships.

Customers' visiting

Welcome to our factory and we are always ready here to provide following professional service and high quality machine for you.

About company

LIAOYANG WINTECH INDUSTRIAL CO., LTD is a drying equipment processing and manufacturing supplier as the main industry, the main products are all kinds of Dryers,Granulators,Centrifuges, CO2 Supercritical Extraction Equipment, and corresponding supporting equipments, eg. food line, pharmaceutical line, chemical line. At the same time to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
