Характеристики
Products Description
Our machine can recycle ground film, waste cloth, waste fiber and waste PET plastic bottles.
Model | Diameter (mm） | Max. Speed (rpm) | Motor (kW) | Throughput (kg/h) |
SAT65 | 62.6 | 400 | 55 | 200-300 |
SAT75 | 71.4 | 400 | 110 | 400-500 |
SAT95 | 93 | 400 | 132 | 600-700 |
SAT110 | 108 | 400 | 220 | 900-1100 |
SAT135 | 133 | 400 | 315 | 1500-1600 |
SAT175 | 170 | 400 | 400 | 2200-2500 |
Screw Elements
Barrels/Liners
High Torque Gearbox
Heating System
Cooling System
Safty Production
Advanced for PET Recycling
Special Feeding System
Can handle crushed cloth, yarn, fiber, bottle flakes, scrap from PET sheet / strap / lump. Raw material treatment:
> Removes metal using S+S separator (mad in German), With sensitivity ≥0,9mm for ferrous and nonferrous metal.
> Remove the dust or sand by round classifier.
> If the moisture of the flakes is more than 1%, we provide one hopper dryer before feeding.
> Removes metal using S+S separator (mad in German), With sensitivity ≥0,9mm for ferrous and nonferrous metal.
> Remove the dust or sand by round classifier.
> If the moisture of the flakes is more than 1%, we provide one hopper dryer before feeding.

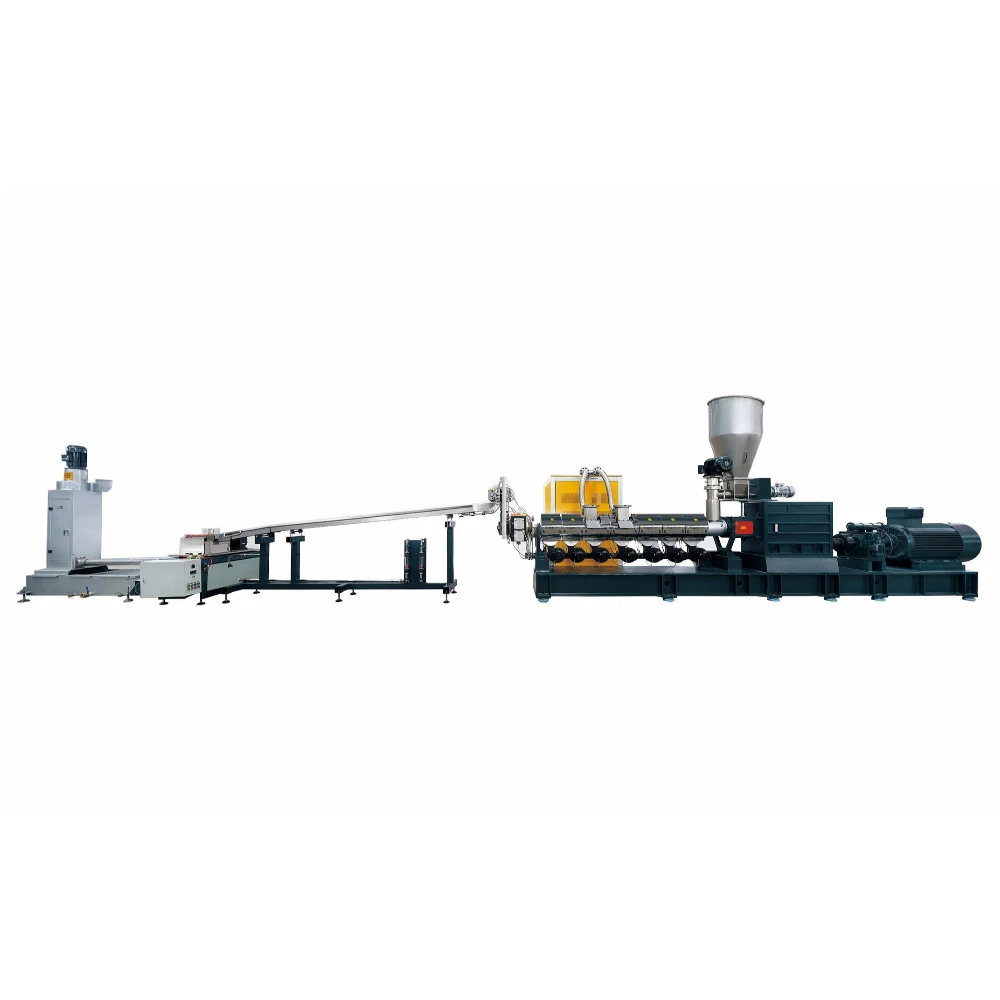

Co-rotating Twin Screw Extruder with High Torque Gearbox
Our high torque of gearbox 10.3 Nm. /cm3 can process PET at lower temperatures and a lower speed but, at the same time, produce higher output.
Strong Vacuum
- The vacuum system is used for removing moisture and volatiles from the PET and is assembled with vacuum pumps & collecting tank.
- With PLC and HMI control for interlock, a vacuum level less than 0.3Kpa.is achievable this is very close to the ultimate
vacuum.You can produce PET with an IV drop less than 5%, which is about 0.05dl/g.
- With PLC and HMI control for interlock, a vacuum level less than 0.3Kpa.is achievable this is very close to the ultimate
vacuum.You can produce PET with an IV drop less than 5%, which is about 0.05dl/g.

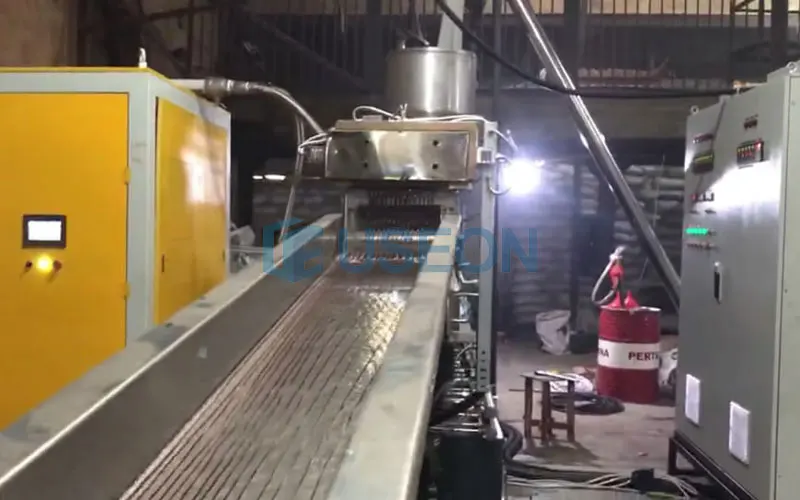

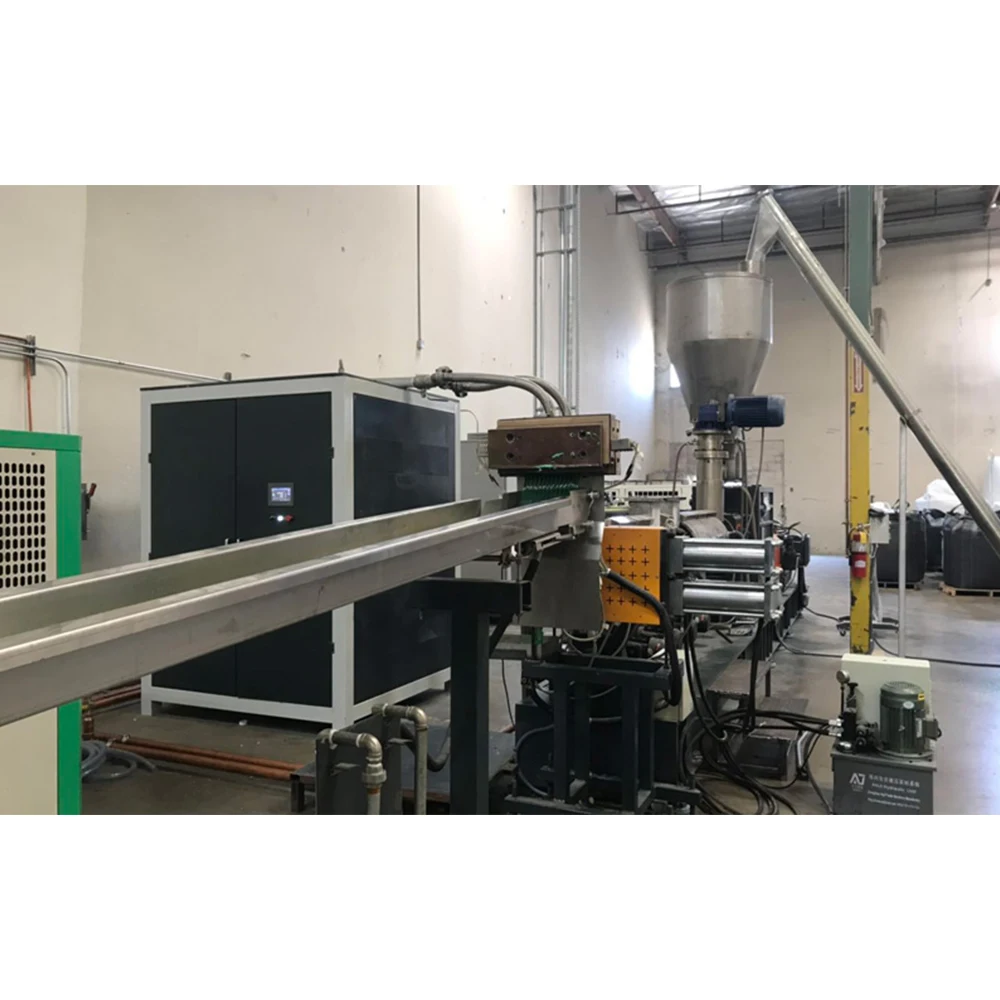

Under Water Strand Pelletizing
The strands go into the pelletizer by the water flow, and even if the strand breaks during filter changing, there will be no waste after startup.
We can control the temperature of the final pellets, allowing for crystallization if required. Later this will save the energy
when heating up the pellets.
We can control the temperature of the final pellets, allowing for crystallization if required. Later this will save the energy
when heating up the pellets.
PET Extrusion & Recycling Solutions
PET bottle flakes recycling and pelletizing line
Our new PET bottle flakesrecycling technology enablesthe processto get rid of pre-drying step.The combination of twin
screw extruder and high efficient vacuum system streamlines the whole process, yet keeps the final pelletsin good quality.
screw extruder and high efficient vacuum system streamlines the whole process, yet keeps the final pelletsin good quality.
One-step PET sheet/film production line
For PET sheet/film production,we go direct.Conventional pre-drying procedure has been completely removed from the whole process.Either 100% rPET pellets or flakes or virgin,or mixture of them, our system can easily handle it.
Ground film,waste cloth and fiber recycling system
Useon’s new recycling technology is designed for productivity.New force feeding system plus twin screw extruder significantly increased raw material intake efficiency.New type of pelletizing is more user-friendly and low maintenance.
EPS/XPS waste recycling system
For fluffy EPS/XPS recycling,feeding difficulty has been the biggest challenge.Our novelty force feeding system and special convey screw elements design greatly increase the raw material intake efficiency.New pelletizing system brings up the productivity.
Recommend Products
Company Profile
Established in 2006, Useon has been focusing on polymer extrusion equipment and process technology. Our professional and aspiring team has made a number of milestones in designing machines for plastic processing.We are committed to providing advanced polymer extrusion equipment and total solutions for our customers. As the most qualified Chinese partner in polymer extrusion equipment,Useon continues to serve many Fortune 500 international group's. Assisting by educating our clients and averting potential troubles through our experience we can help in many facets.We can be reached via email, telephone, and fax. We are bilingual,easily accessible and readily available. Always glad to help you in your endeavors.
Certifications & Exhibition
Product packaging
FAQ
Q1：Why choose us?
A1：15 years experience of machinery.
Q1：How long is the warranty?
A1：We can offer one-year warranty for the whole machine.
Q1：Is your product can be assured ?
A1：We can offer one-year warranty for the whole machine.
Q1：What makes you different with others?
A1：We have global branch offices, we can offer local service.
Q1：If we show you our layout of factory, can you help to design the whole process line?
A1：Yes, our professional engineers and technical employee can help you to arrange the layout and installation of
whole process line based on your requirement.
Q1：How long is the warranty?
A1：We can offer one-year warranty for the whole machine.
Q1：Is your product can be assured ?
A1：We can offer one-year warranty for the whole machine.
Q1：What makes you different with others?
A1：We have global branch offices, we can offer local service.
Q1：If we show you our layout of factory, can you help to design the whole process line?
A1：Yes, our professional engineers and technical employee can help you to arrange the layout and installation of
whole process line based on your requirement.
