Машина для Формовки Профилей глазурованной


Поделиться:


Цена:13 200,00 $ - 13 500,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 15708.10 $* 16493.25 $*
Aug-19-2025 15576.62 $* 16355.9 $*
Jul-19-2025 13068.35 $* 13721.16 $*
Jun-19-2025 15312.51 $* 16078.75 $*
May-19-2025 13332.28 $* 13999.53 $*
Apr-19-2025 15048.99 $* 15800.47 $*
Mar-19-2025 14916.73 $* 15662.3 $*
Feb-19-2025 14784.22 $* 15523.81 $*
Jan-19-2025 14652.54 $* 15385.7 $*

Характеристики


Glazed Tile Roll Forming Machine Roof Profile Rolling Making Machinery





1.Processing flow diagram of  glazed tile roll forming machine


Manual decoiler→Feeding material into machine→Roll forming machine→Measure  length→Hydraulic cutting→Finished Products




2.Technical parameters of  glazed tile roll forming machine






































































Model number



  Glazed Tile Roll Forming Machine Roof Profile Rolling Making Machinery



Rolled material



0.3-0.8mm thickness, aluminum sheet, galvanized sheet,


colored steel sheet and various steel plates



Effective width



1140mm



Feeding width



1250mm



Forming steps



14 stations



Roller



45# forged steel, hard chrome plating within 0.05mm



Diameter of shaft



80mm



Main motor power



5.5 kw



Pump power



3 kw



Sprocket chain



1 inch



Drive type



by chain



Cutting Blade



Cr12, heat treatment 60-62°C



Frequency Converter



It has the advantage of slowing down before cutting,


to ensure the length accuracy (±1mm, far better than


industrial standard ±3mm).



component



set of manual decoiler,1 set of main roll forming machine,


1 set of computer control cabinet,1 set of hydraulic System,


1 set of cutting mechanism,1 set of counter,1 set of output table



Payment terms



cash,T/T,L/C.



Delivery time



30 working days



Remark: Above parameters are standard, we can design and make some change exactly according to your requirements. If you need much details,pls contact us for the detail quotations.

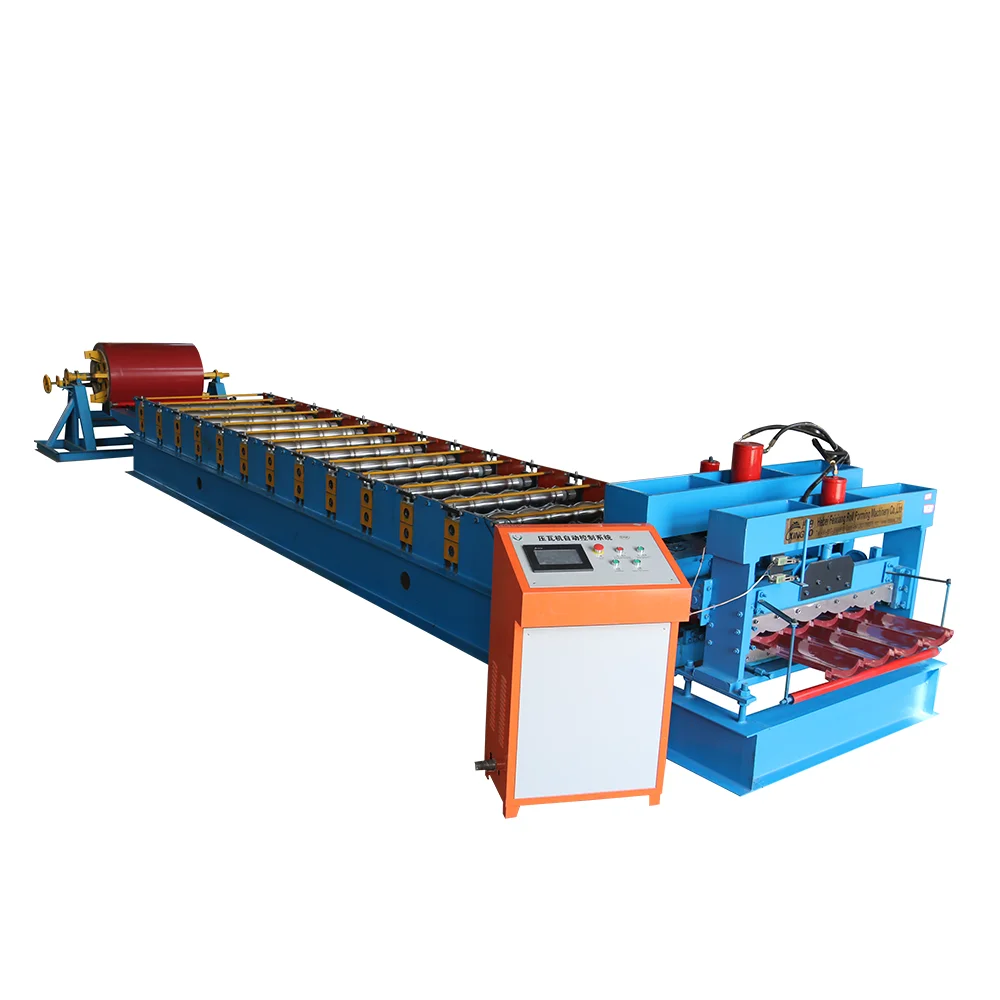

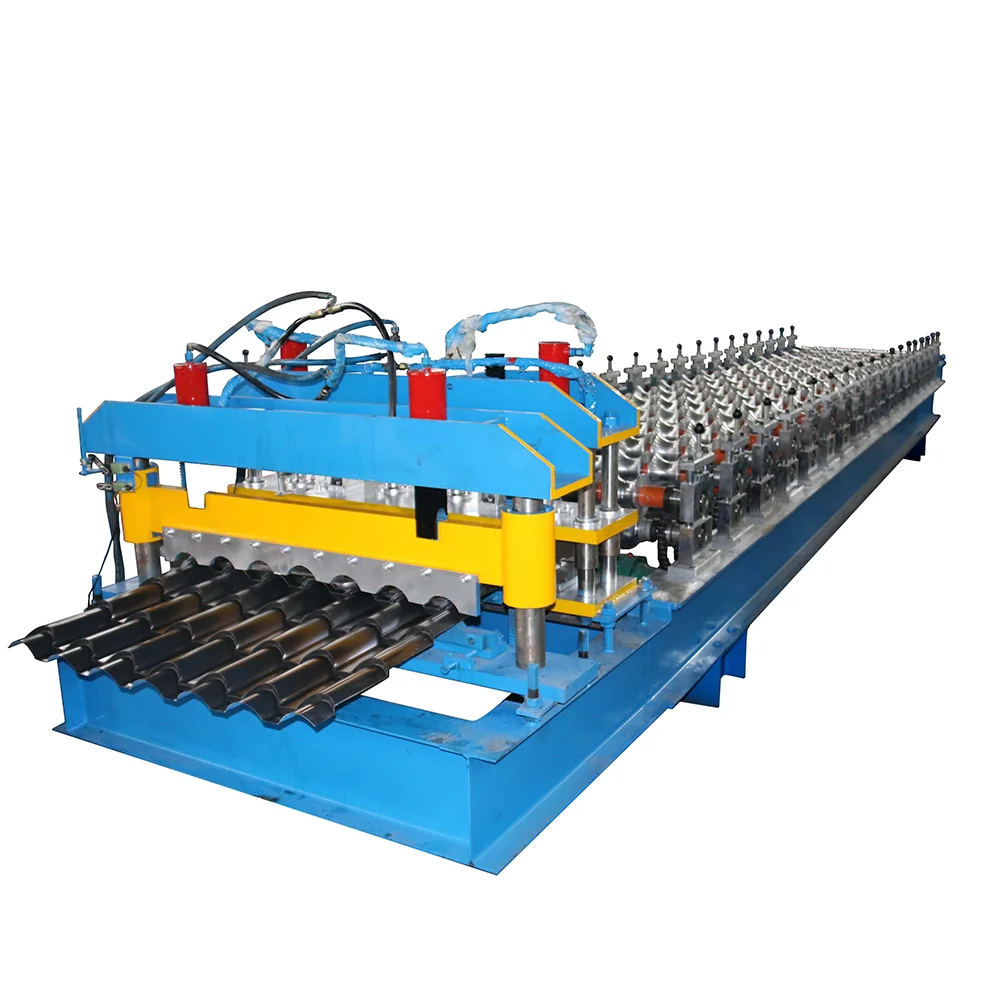

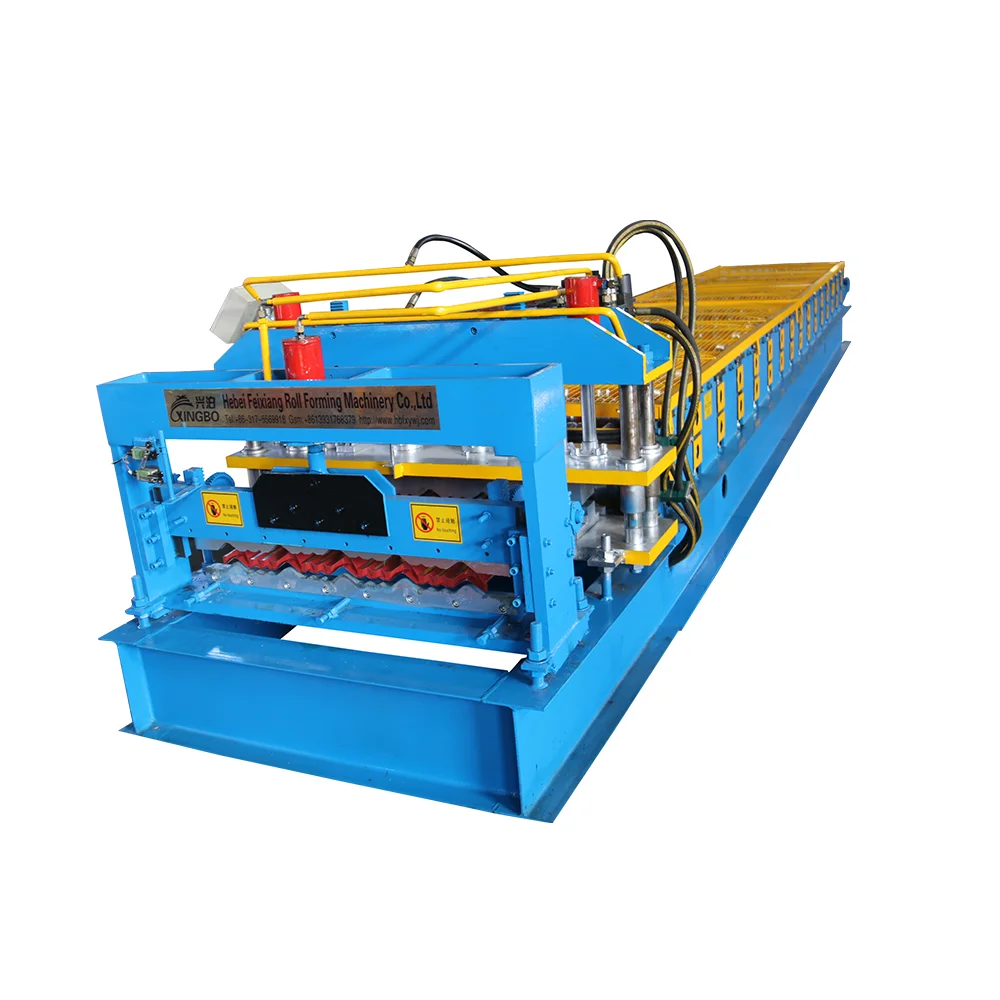

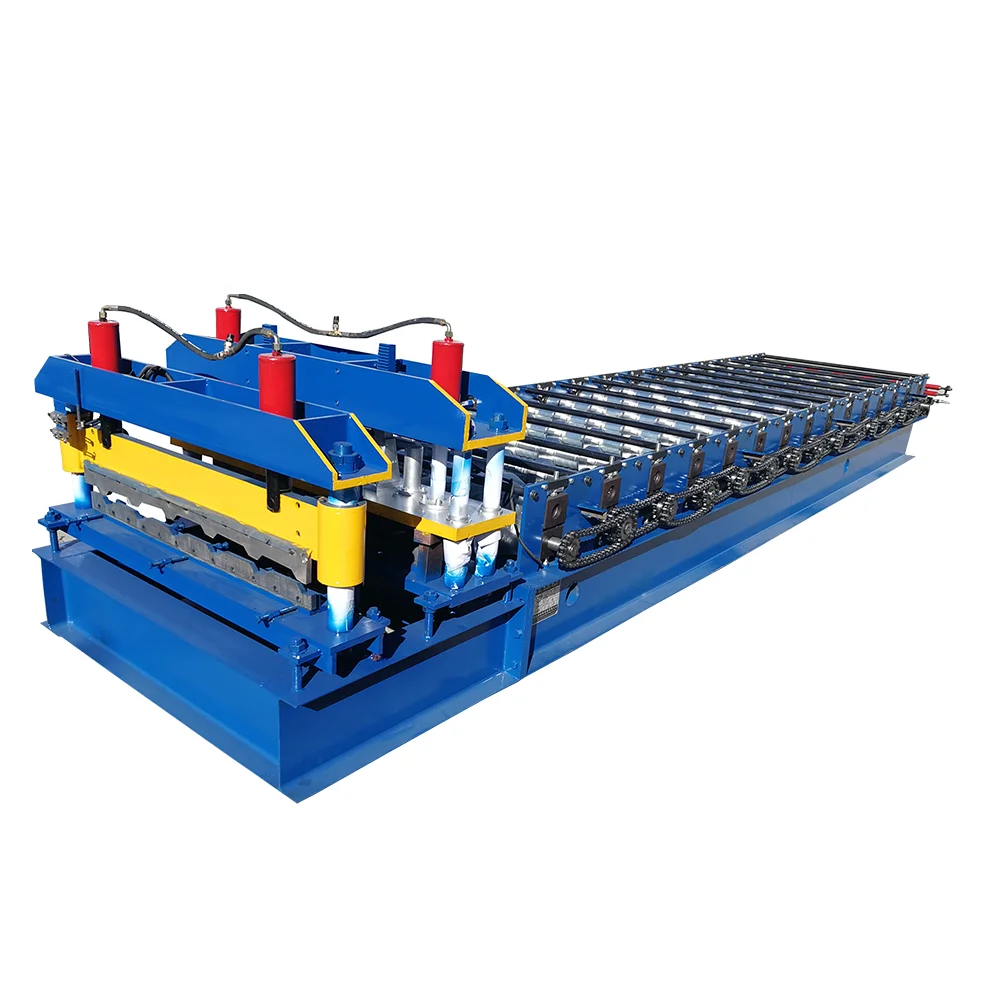

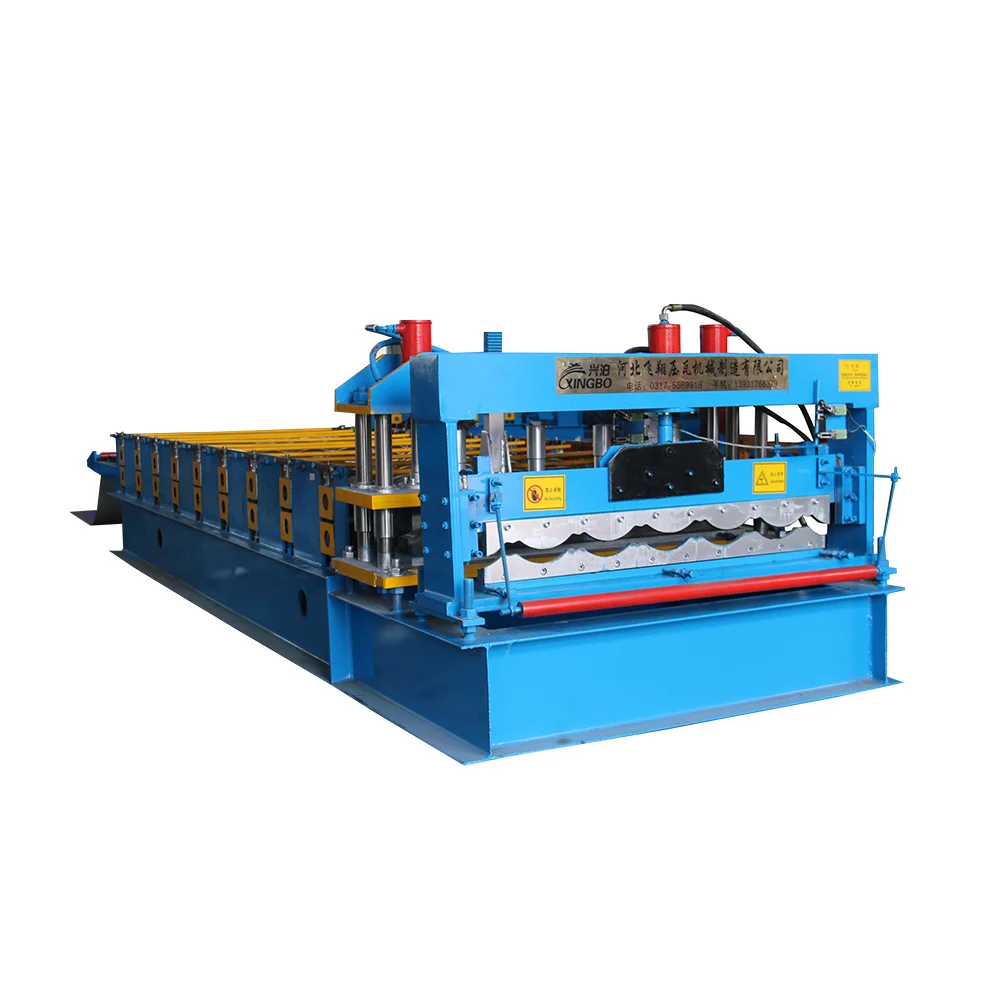

3.Profile and Real photos of   glazed tile roll forming machine FX glazed step tile cold roll forming machine








975 (2)828 (1)201611 (8)201611 (5)


5.After-sales service


  A: Warranty: One year ,and we will provide the technical support for the whole life.  B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation  overseas and USD100/person/day for salary.


  C: Need one technician.   D: Training time: one week (contains the time of installation and adjustment)


6.Real Photos of Our Factory. Warmly Welcome to Come and Visit Our Company





   glazed tile roll forming machine


7.Certifications for Our Company and Our Machines




  glazed tile roll forming machine
