Дегидратор из листьев грибов Moringa сушильная машина с циркуляцией горячего воздуха для листового чая и
- Категория: Tray Dryer >>>
- Поставщик: Henan,Workers,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5355.25 $* | 5623.46 $* |
| Aug-18-2025 | 5310.53 $* | 5576.86 $* |
| Jul-18-2025 | 4455.47 $* | 4678.53 $* |
| Jun-18-2025 | 5220.6 $* | 5481.57 $* |
| May-18-2025 | 4545.38 $* | 4772.8 $* |
| Apr-18-2025 | 5130.69 $* | 5387.22 $* |
| Mar-18-2025 | 5085.73 $* | 5339.72 $* |
| Feb-18-2025 | 5040.38 $* | 5292.13 $* |
| Jan-18-2025 | 4995.18 $* | 5245.72 $* |
Характеристики
Product Description
Product Introduction

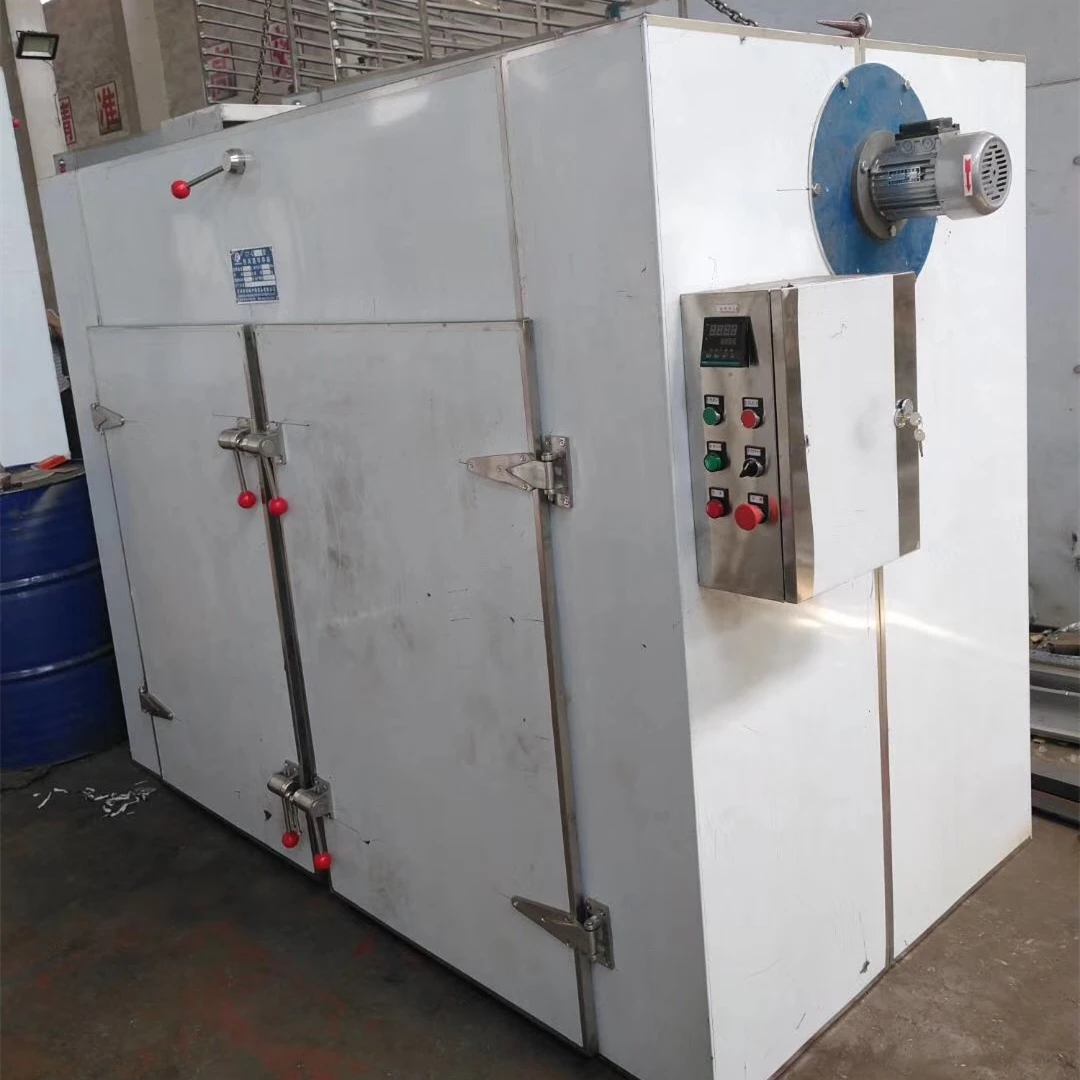

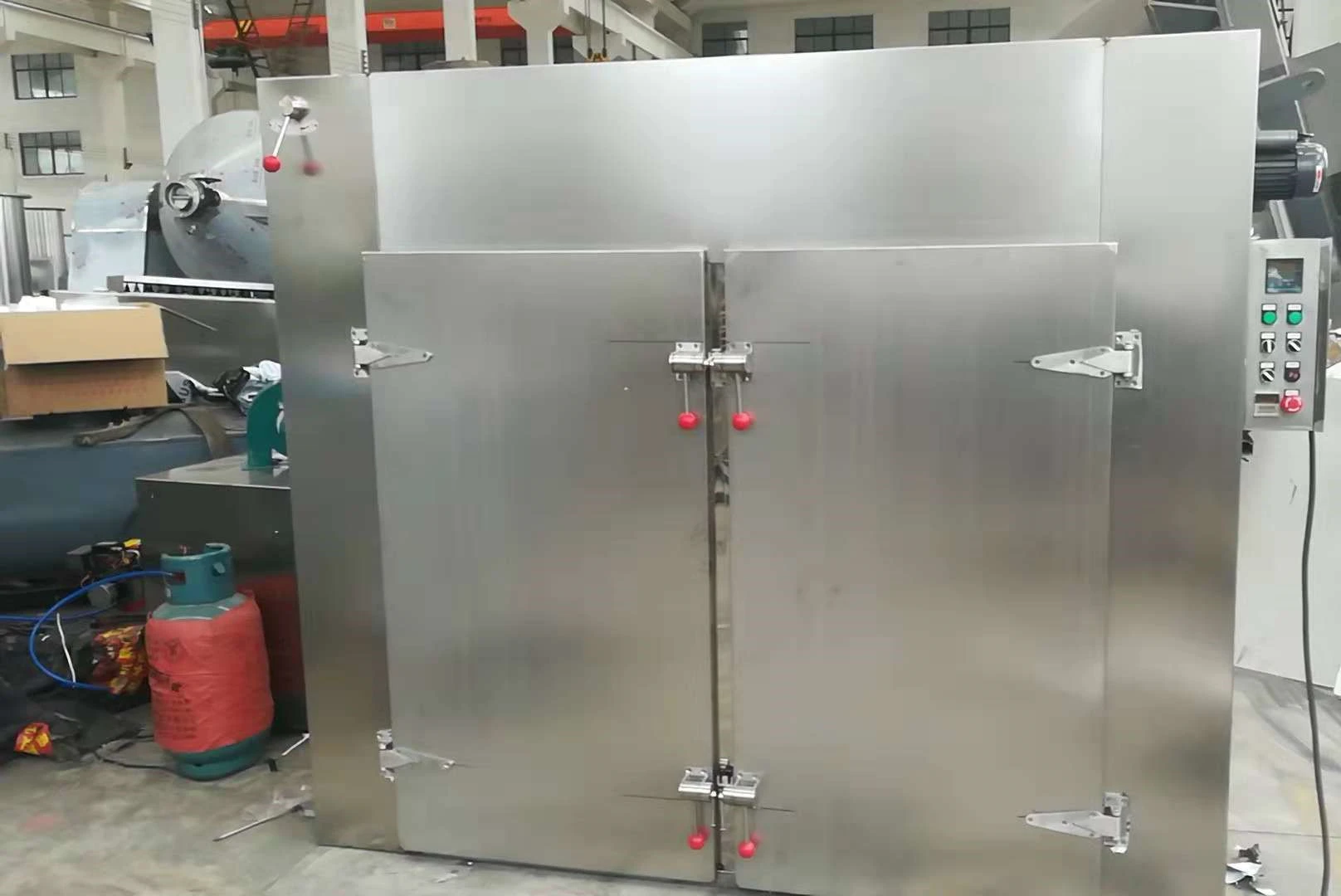

Hot air circulating drying oven applies a low-noise and high temperature-proof axial flow blower and an automatic temperature control system which is fully sealed,making that the heat efficiency of the drying oven increases from 3-7% of traditional oven to 35-45% of the present one,the highest heat efficiency can reach 50%.
WKS series special drying oven adopts the axial flow fan, with automatic constant temperature control system. Its thermal efficiency is more than 95%, which uses electricity as heating source and adopts convective heat transfer method to heat the air by axial flow fan and heat exchanger . Fresh air from the air inlet supplement, waste damp is out from the dehumidification system. Constantly add fresh air and discharge damp to keep the correct relative humidity in the oven. The biggest characteristic of this series of drying oven is that most hot air is cycling in the cabinet, the entire cycle is closed, so as to enhance the heat transfer, saving the energy.
Model | Electric Power kW | Fan power kW | Tray qty. | Tray size mm | Trolley qty. | Trolley size mm | Dimension mm | |||||||
WKS-1 | 6-9 | 0.45 | 24 | 640*460*45 | 1 | 950*700*1300 | 1400*1200*2000 | |||||||
WKS-2 | 9-15 | 0.45 | 48 | 2 | 2300*1200*2000 | |||||||||
WKS-3 | 15-30 | 0.9 | 96 | 4 | 2300*2200*2000 | |||||||||
WKS-4 | 30-45 | 1.35 | 144 | 6 | 3660*2300*2000 | |||||||||
WKS-5 | 15-60 | 1.8 | 192 | 8 | 5000*2250*2100 | |||||||||
Note: Matrial of construction is stainless steel; power supply is customized at the request of customers; heat source can be gas, steam | ||||||||||||||
Main Features
1. Most of hot air inside the loop, high thermal efficiency, energy conservation
2. The use of forced ventilation box with adjustable air divider plate, uniform drying, heat source can be steam, oil, electricity, hot water, far infrared and so on
3. Small machine noise, running balance, temperature automatically controlled, easy installation and maintenance
4. Applicable to a wide range, can be used for drying various materials and is a versatile drying equipment
2. The use of forced ventilation box with adjustable air divider plate, uniform drying, heat source can be steam, oil, electricity, hot water, far infrared and so on
3. Small machine noise, running balance, temperature automatically controlled, easy installation and maintenance
4. Applicable to a wide range, can be used for drying various materials and is a versatile drying equipment
Certifications
Detailed Images
Circulation fan
Machine Parts
Name: High performance circulation fan
Brand: Others
Original: China
Domestic famous brands, strong driving force, large capacity air volume, low fuel consumption, high economic benefits
Power: 0.45kW
Frequency inverter is optional
Control system
Machine parts
Name: stainless steel control panel
Brand: Others
Original: China
Intelligent control box, made of 304 stainless steel, manual control, high performance.
Temperature, time, heating, fan settings are integrated here.
All electrical parts are either Siemens or Chint or Schneider brand.
Siemens PLC & touch screen panel is optional

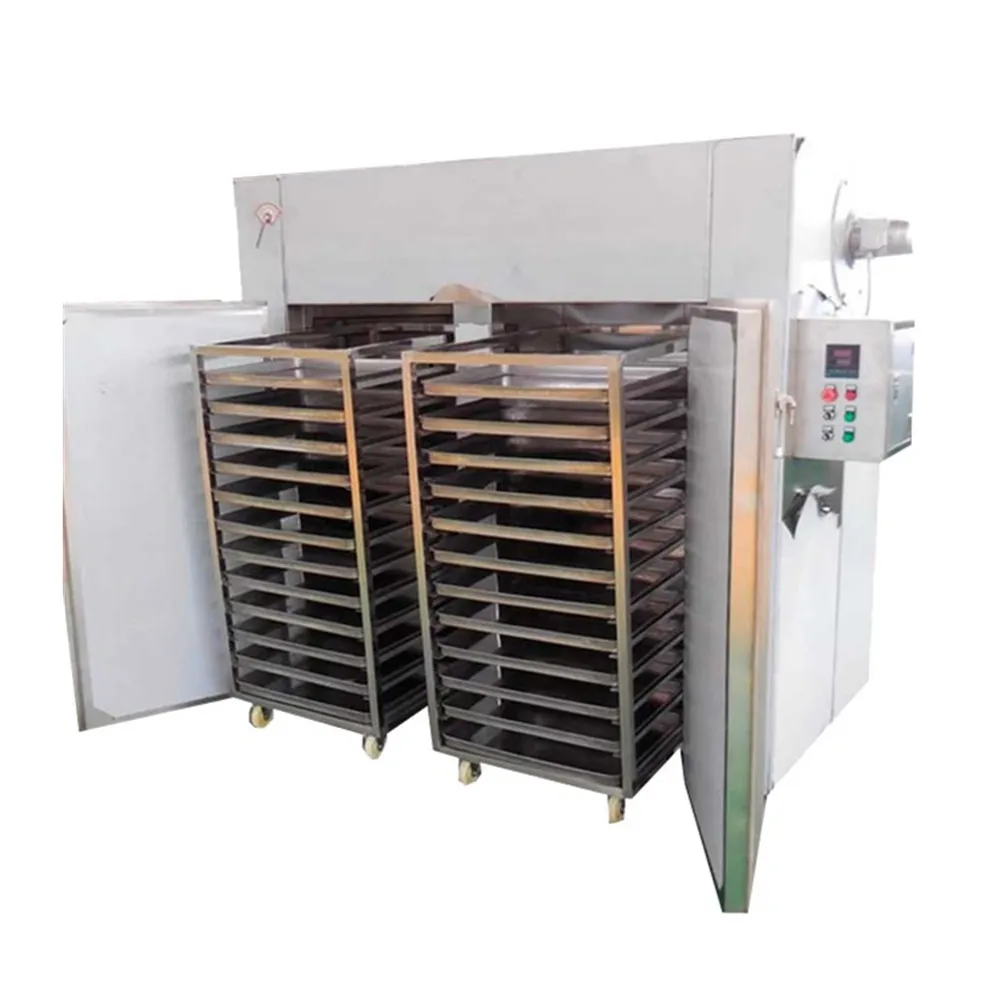

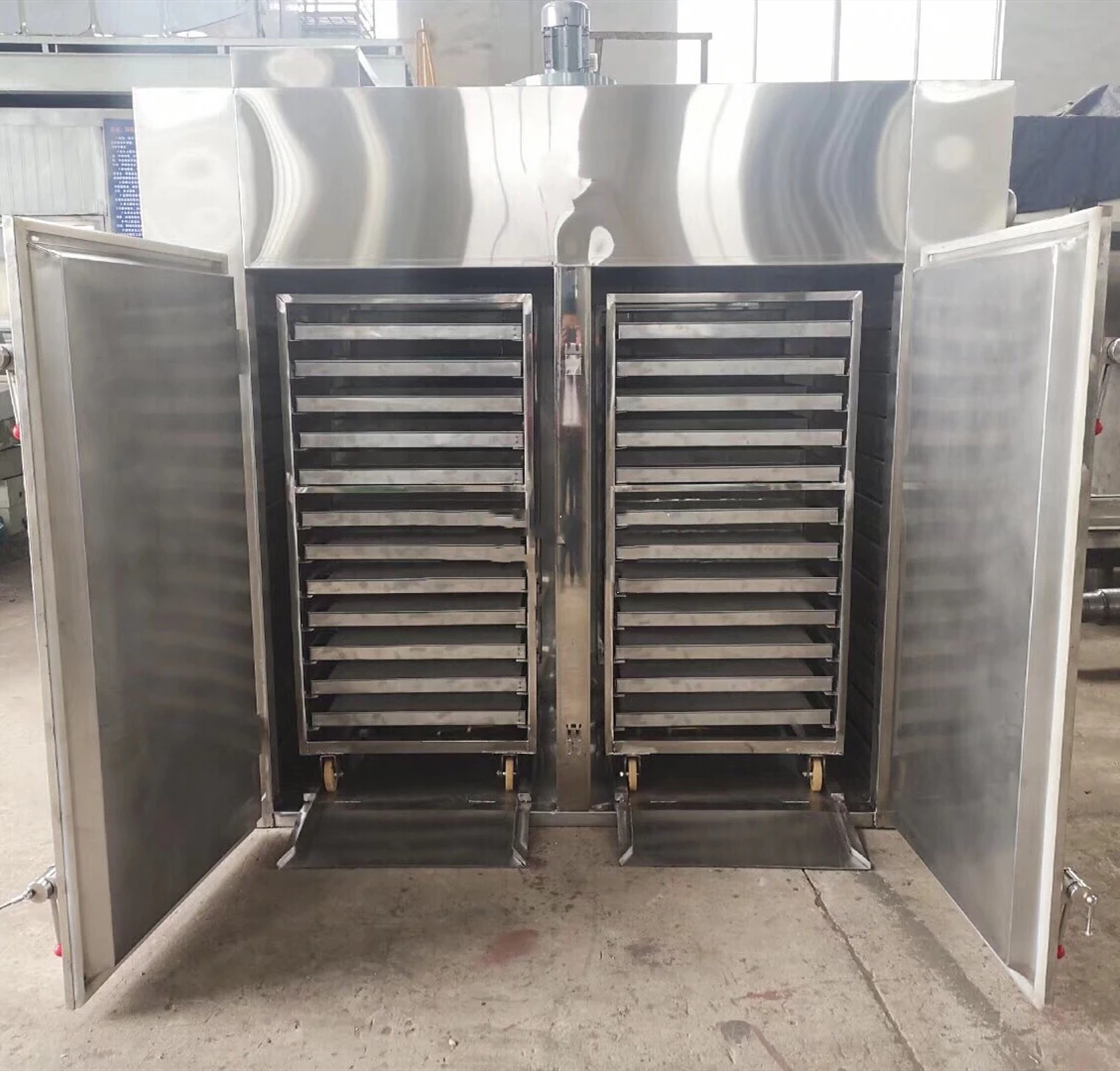

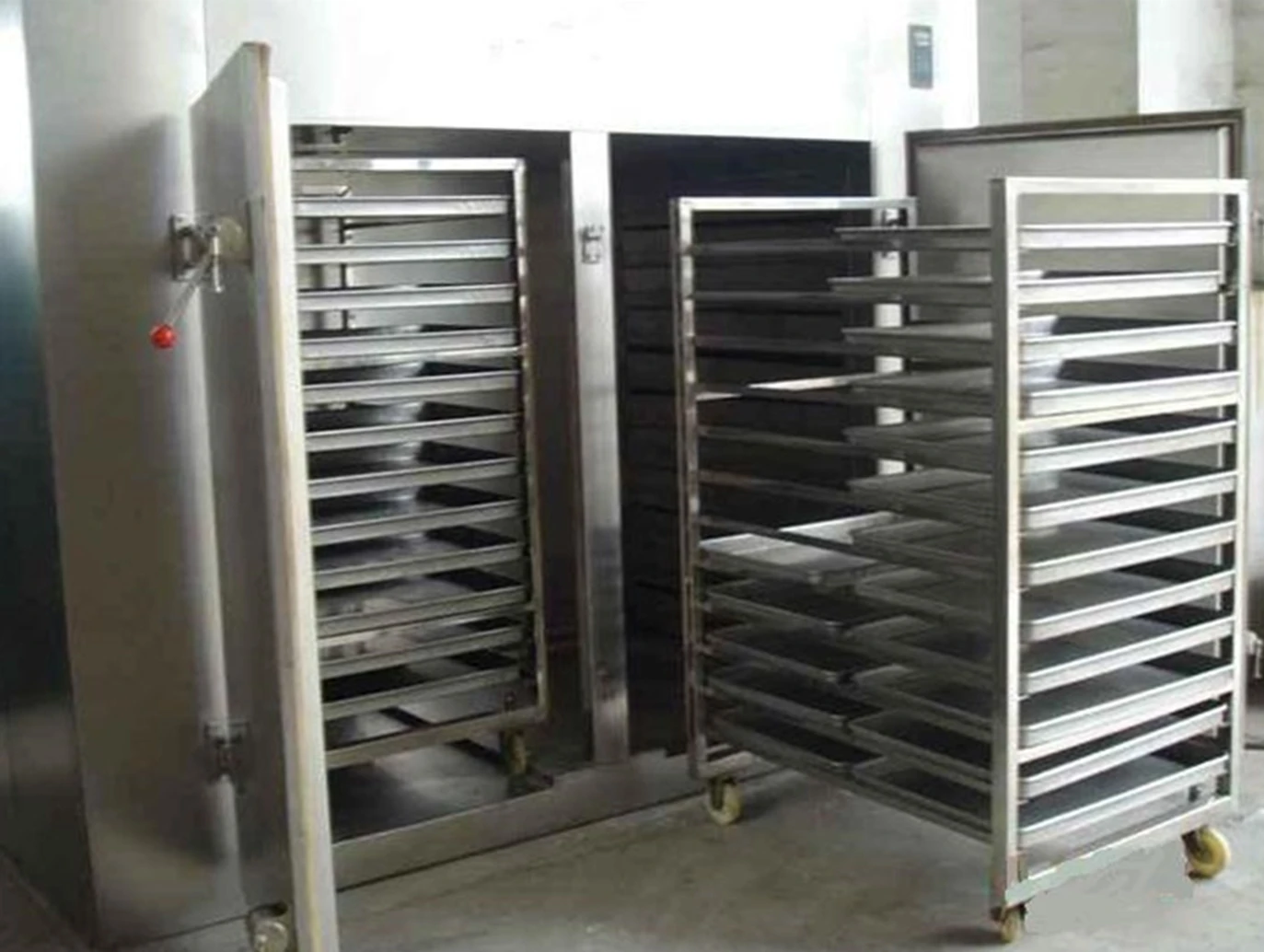

Trolley & tray
Machine Parts
Name: Rack or trolley with universal wheels
Material: stainless steel
Original: China
Strong rack made of 304 stainless steel with best universal bearings of high bearing capacity.
Size: 900*750*1300mm
Machine parts
Name: Tray
Material: 304 or 316L stainless steel
Original: China
We have many types of tray for your option: solid flat tray, hand made net tray, perforated tray, and any other size to be tailored to your requirements;
Material can be 304 SUS or 316L SUS
Size: 640*460*45mm
Moisture release
Wind shield & welding
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | Customized | |
Weight | Customized | |
Packaging Details | The normal package is plywood box. If exported to countries which have strict requirements of packaging, like European countries or Australia , the wooden box will be fumigated. If machine has to be loaded into container directly, we will use PE film for packing or pack it according to customers special request. | |
Packaging | ||
Size | Customized | |
Weight | Customized | |
Packaging Details | The normal package is plywood box. If exported to countries which have strict requirements of packaging, like European countries or Australia , the wooden box will be fumigated. If machine has to be loaded into container directly, we will use PE film for packing or pack it according to customers special request. | |
