Shandong Aolai company produces pz-7 concrete shotcrete machine for slope reinforcement and wall
- Категория: >>>
- Поставщик: Shandong,Aolai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1737.6 $* | 1824.34 $* |
| Aug-17-2025 | 1723.80 $* | 1809.49 $* |
| Jul-17-2025 | 1445.83 $* | 1517.1 $* |
| Jun-17-2025 | 1694.82 $* | 1779.53 $* |
| May-17-2025 | 1475.0 $* | 1549.91 $* |
| Apr-17-2025 | 1664.90 $* | 1747.58 $* |
| Mar-17-2025 | 1650.60 $* | 1733.75 $* |
| Feb-17-2025 | 1635.22 $* | 1717.9 $* |
| Jan-17-2025 | 1621.95 $* | 1702.23 $* |
Характеристики
Details Picture

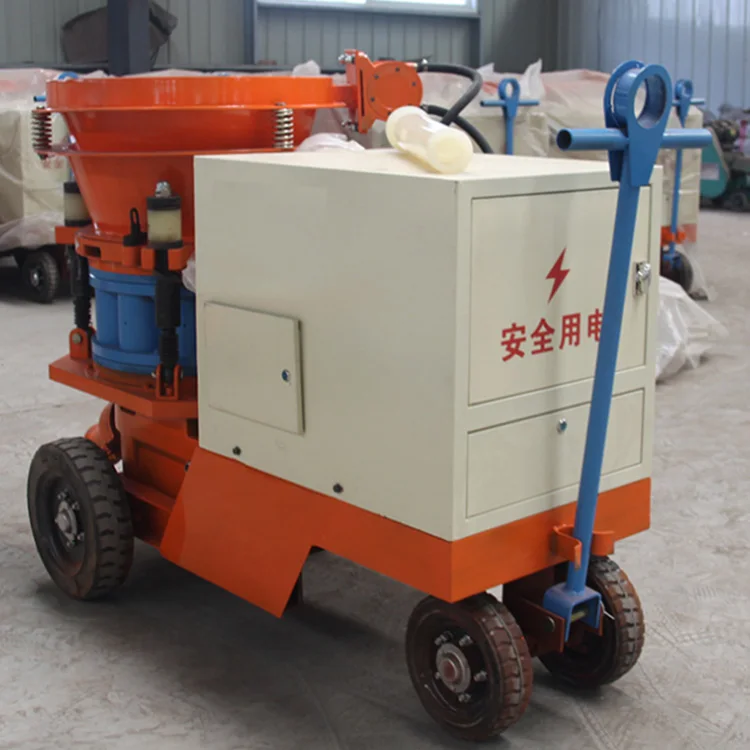

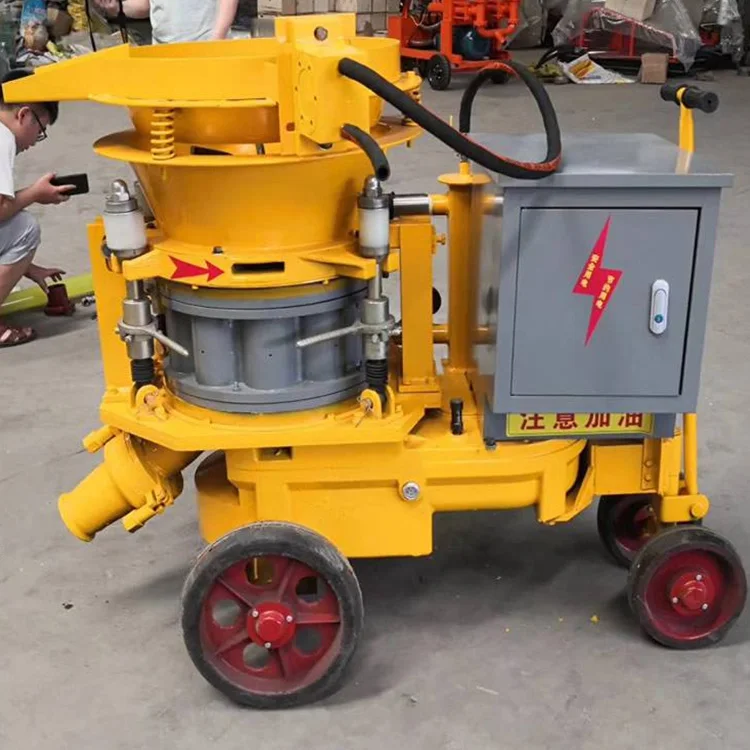

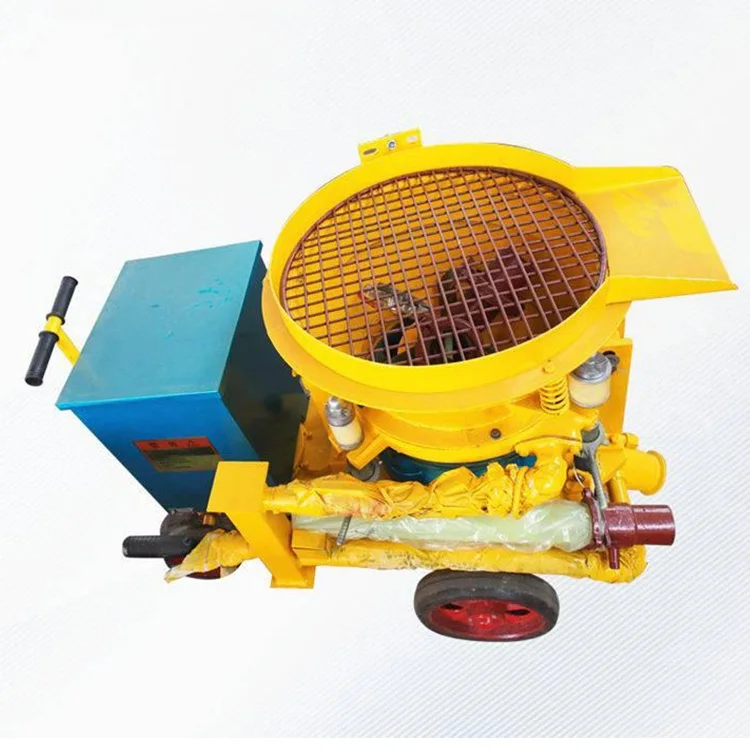

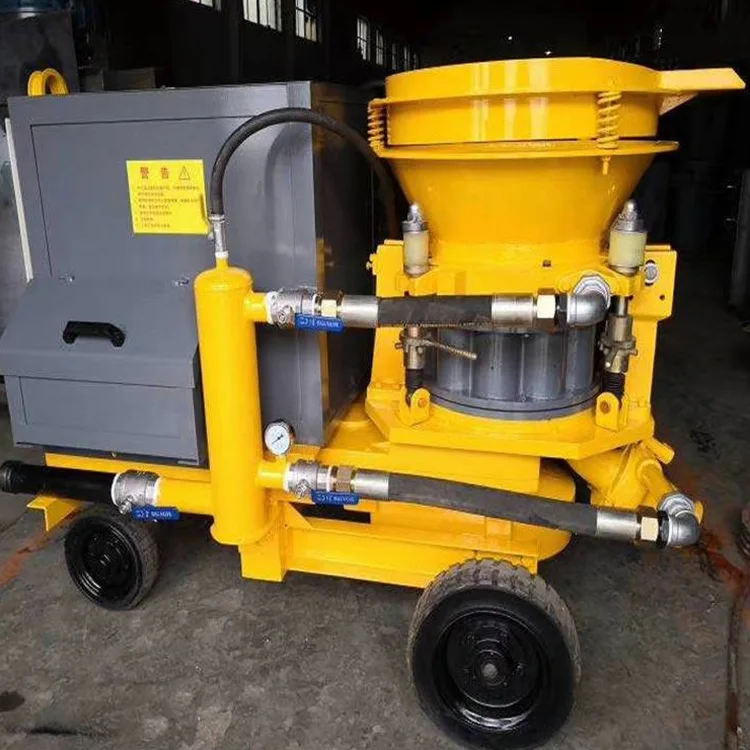

Composition of PZ-7 concrete shotcrete machine
The Pz-7 type explosion-proof dry jet is mainly composed of a drive explosion-proof motor, a reducer, a rotor body assembly, a sealing plate, a rubber plate, a compactor mechanism, a hopper seat, a mine rail wheel, a vibrating hopper, a compaction mechanism and It is composed of components such as air circuit system and electric control device.
The Pz-7 type explosion-proof dry jet is mainly composed of a drive explosion-proof motor, a reducer, a rotor body assembly, a sealing plate, a rubber plate, a compactor mechanism, a hopper seat, a mine rail wheel, a vibrating hopper, a compaction mechanism and It is composed of components such as air circuit system and electric control device.
Products Description
Since the price of raw materials will fluctuate in different periods, the online price is a reference price, not the final price. But we can guarantee the same quality and the lowest price among our peers.
If you are interested in our products, please feel free to contact us, we will give you a real-time quotation as soon as possible
If you are interested in our products, please feel free to contact us, we will give you a real-time quotation as soon as possible
Application of PZ-7 concrete shotcrete machine
PZ-7 concrete shotcrete machine is widely used in engineering buildings, mines, tunnels, culverts, subways, hydropower projects, underground projects and coal mines and mines. Spraying concrete construction operations: various types of industrial furnaces, furnace linings for refractory spraying Forming or repairing: transportation and spraying of soil in various slope protection and greening constructions. This machine can be used for dry spraying and individual fiber spraying operations.
PZ-7 concrete shotcrete machine is widely used in engineering buildings, mines, tunnels, culverts, subways, hydropower projects, underground projects and coal mines and mines. Spraying concrete construction operations: various types of industrial furnaces, furnace linings for refractory spraying Forming or repairing: transportation and spraying of soil in various slope protection and greening constructions. This machine can be used for dry spraying and individual fiber spraying operations.
Product Specification
Technical parameters of Nanning PZ-7 jetting machine (concrete shotcreting machine): |
Production capacity: 7m3/h Transmission distance: 200m Applicable material ratio: cement/sand stone=1:3-5 Applicable material water-cement ratio: ≤0.4-0.45 Orthopedic particle size: Φ20mm Inner diameter of feeding pipe: Φ57mm Working pressure: 0.6-0.8Mpa Air consumption: 7-8m3/min Feeding height: 1.1M Rotor speed: 11r/min Power: 7.5kw Voltage level: 380v or 660v Machine gauge: 600mm Dimensions (length × width × height): 2100 × 1100 × 1280mm Machine weight: 800kg |
Related Products
Our Company
Packaging And Shipping
Common Problem
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
