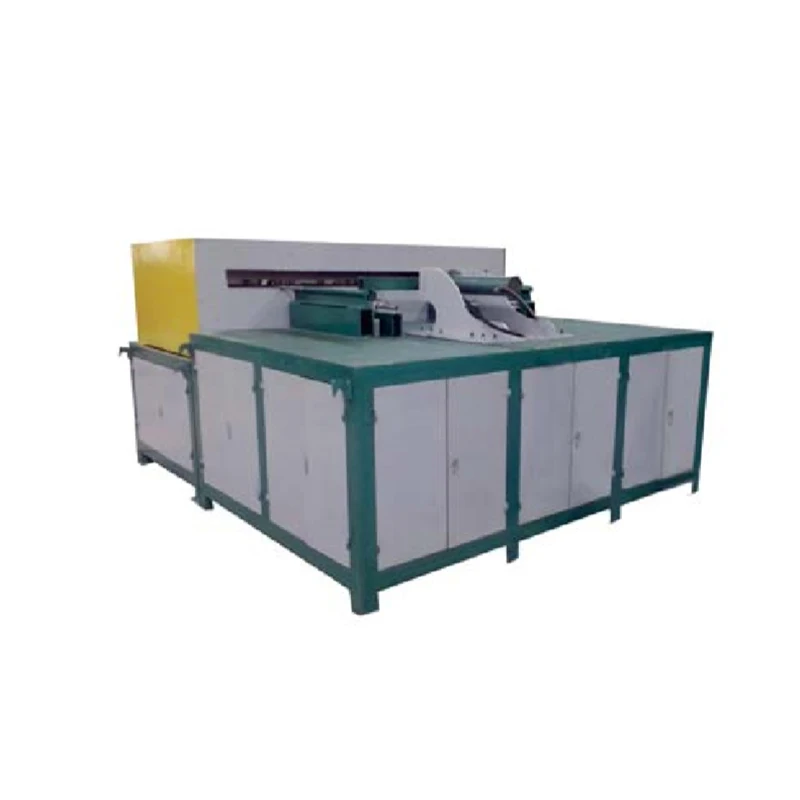

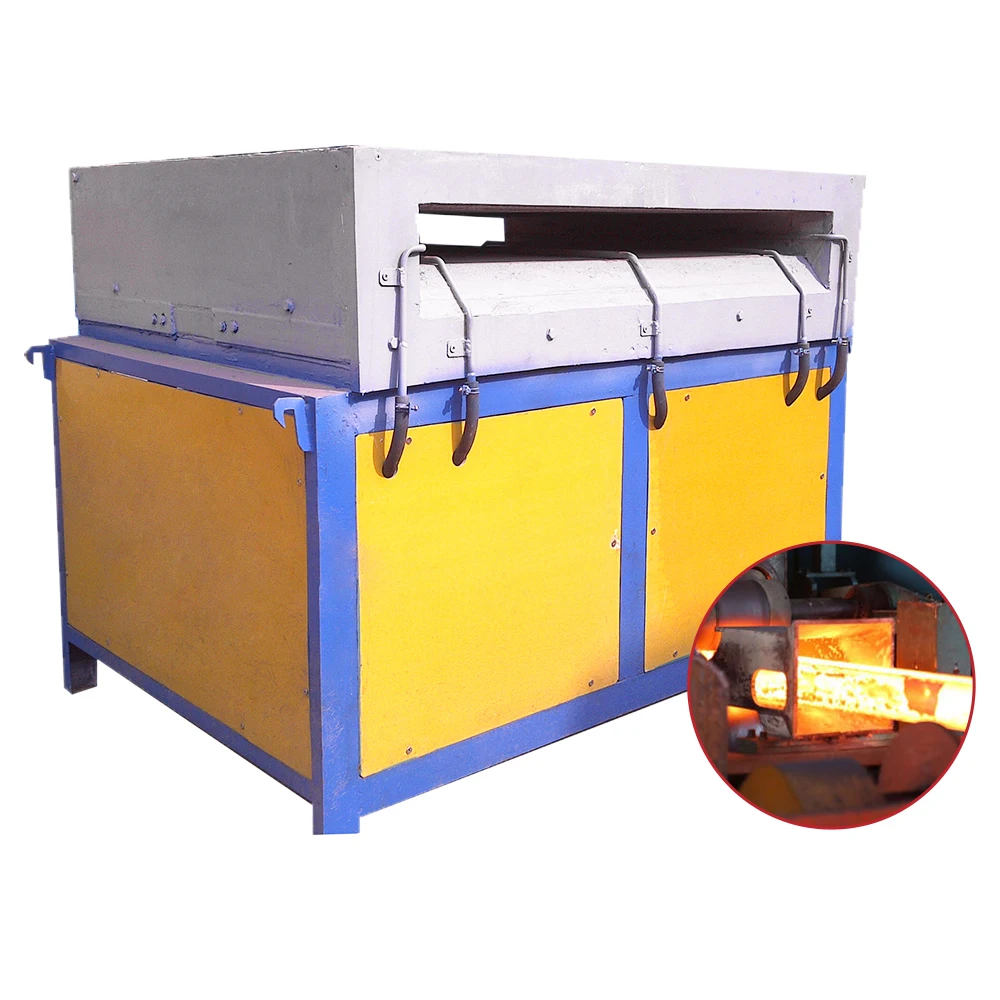

Индукционная печь средней частоты 400 кВт Индукционное нагревательное

Индукционная печь средней частоты 400 кВт Индукционное нагревательное

Категория: Industrial Furnace >>>
Поставщик: Luo,Yang,Hongteng,Electrical,Equipment,Co.,Ltd.

Цена:5 099,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	6476.36 $*	6606.24 $*
Jul-15-2025	5252.27 $*	5357.35 $*
Jun-15-2025	6374.17 $*	6501.36 $*
May-15-2025	6323.90 $*	6449.24 $*
Apr-15-2025	5048.85 $*	5149.38 $*
Mar-15-2025	6221.61 $*	6345.22 $*
Feb-15-2025	6170.17 $*	6293.59 $*
Jan-15-2025	6119.10 $*	6241.79 $*

Характеристики

Mainly used for work pieces heating, heating temperature is between 200-1400 degrees.
1, Pre-forging heating: applied to gear, ring gear, bearing, shackle, rigging.
2, Online heating: Pipe anti-corrosion coating, long steel rod heating, steel (wire) tube online quenching and tempering.
3, Local heating: U-bolt bending, thermal assembly of the drum，Steel pipe elbow etc.

1.The induction coil is insulated by two insulation treatment, high temperature insulating paint and fiberglass ribbon winding.
2.The top of the furnace body is designed with sliding cover, which is convenient for maintenance and inspection.

1.The feeding system adopts pinch roll feeding, which is suitable for bar diameter range of 40-120mm.
2.The feeding speed is controlled by variable frequency motor and the feeding speed is adjustable.
3.The pitch roller feeding motor and the reducer all adopt aluminum shell, which can effectively prevent the hot around the coil

1.This system can accurately control the outlet water temperature, the water inlet and outlet of furnace body adopt water-cooled copper plate.
2.The cooling water pipe of the furnace body adopts high temperature carbon-free hose, the service lifetime is more than three
years.

1. The main control board of the cabinet is micro computer control, one-key zero pressure start, plug and play.
2.The separate insolation design of water pressure meter of furnace body and control cabinet can make the user more convenient and intuitive to monitor the water pressure of control cabinet and furnace body.

Specification and Technical Parameter
Model	MF power	Input voltage	DC Current	MF frequency
GTR-200	200kw	3ph,380V	400A	2-10KHZ
GTR-300	300kw	3ph,380V	600A	2-10KHZ
GTR-400	400kw	3ph,380V	800A	2-10KHZ
GTR-500	500kw	3ph,380V	1000A	2-10KHZ
GTR-800	800kw	3ph,380V	1600A	2-10KHZ
GTR-1000	1000kw	3ph,380V	2000A	2-10KHZ
GTR-1500	1500kw	3ph,660V	3000A	2-10KHZ
GTR-2000	2000kw	3ph,660V	4000A	2-10KHZ
