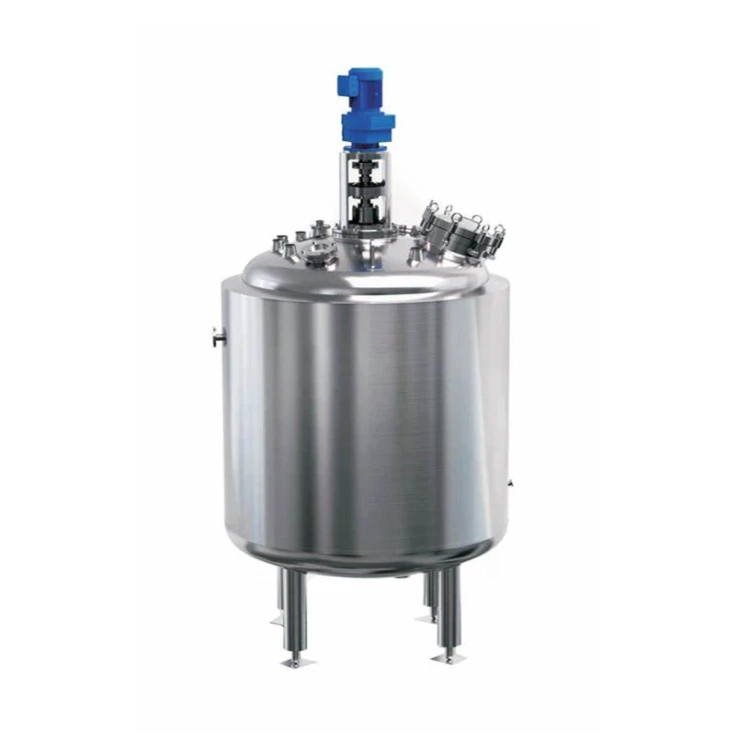

5000L Многофункциональность 3 слоя куртка смесительный резервуар для напитков/сока/экстракт жидкий смешивая


Поделиться:


Цена:23 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 27370.22 $* 28739.35 $*
Aug-15-2025 27140.46 $* 28497.16 $*
Jul-15-2025 22770.4 $* 23909.62 $*
Jun-15-2025 26680.63 $* 28014.21 $*
May-15-2025 23230.21 $* 24392.89 $*
Apr-15-2025 26220.32 $* 27531.12 $*
Mar-15-2025 25990.41 $* 27290.79 $*
Feb-15-2025 25760.34 $* 27048.71 $*
Jan-15-2025 25530.34 $* 26807.66 $*

Характеристики



Product Overview


Jacket Type Stainless Steel Mixing tank for juice/milk/beverage/herbal extract blending factory
Jacket Stainless steel tanks have the ability to resist atmospheric oxidation-that is, stainless, but also have the ability to resist corrosion in media containing acids, alkalis, salts, etc.-that is, corrosion resistance.
The mixing tank is suitable for mixing and blending ingredients materials. The design structure and configuration can be standardized and humanized according to the requirements of the production process. The mixing tank can realize feeding control, discharging control, mixing control and other manual control during the mixing process.


FEATURES AT A GLANCE


3 layers Jacket Stainless Steel Mixing Tank
1. Strong corrosion resistance
2. Good air-tightness
3. Scientific water flow design.
4. Cost saving of cleaning and maintance.
5. Lengthening service life of mechanical parts.

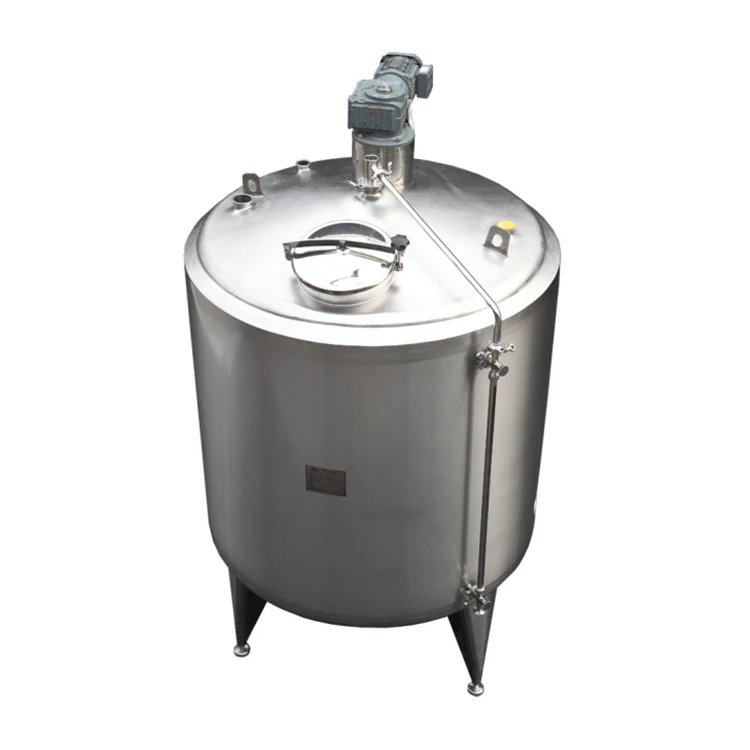

Top Cover Opened Model

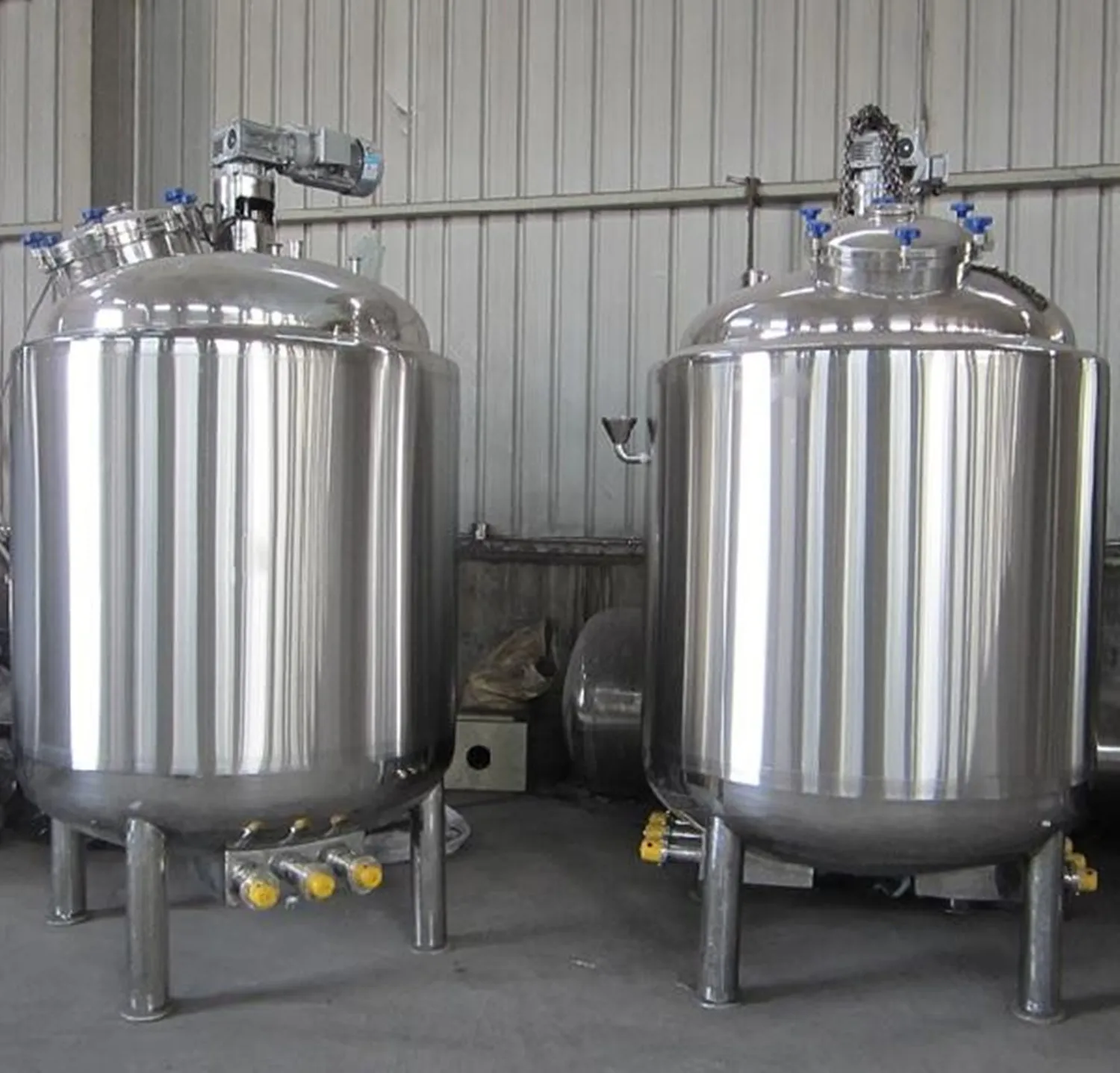

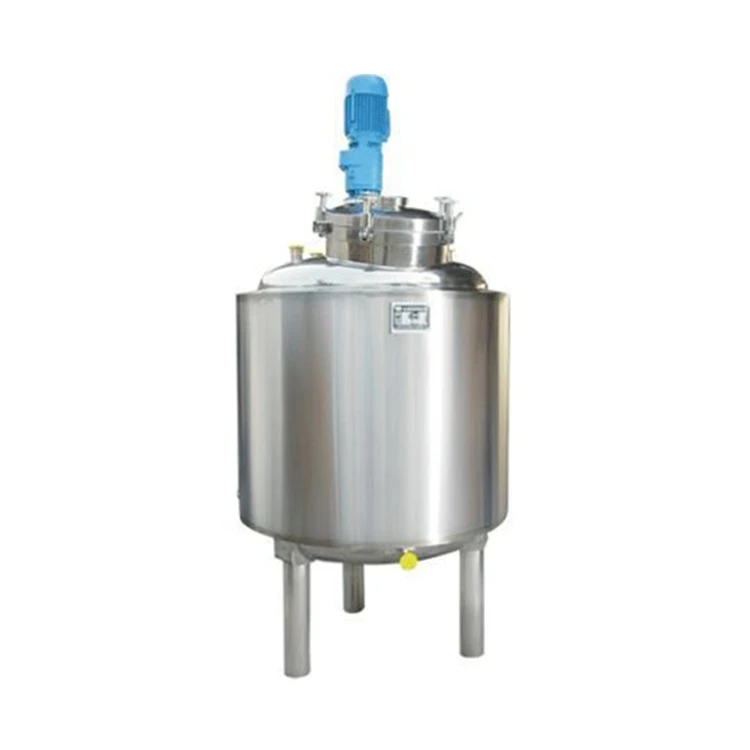

3 Legs Model
Horizontal Motor Model


Mixing Tank Structure
The mixing tank is composed of a mixing tank body, a mixing tank cover, a stirrer, a support, a transmission device, a shaft
sealing device, etc. The mixing tank body and the mixing tank cover can be connected by flange sealing or welding. The mixing tank body and the mixing tank cover can open the process tube holes for feeding, discharging, observation, temperature measurement, pressure measurement, steam fractionation, and safety venting according to the process requirements. The upper part of the mixing tank lid is equipped with a transmission device (motor or reducer), and the agitator in the mixing tank is driven by the transmission shaft. The shaft seal device can adopt various forms such as mechanical seal or packing, labyrinth seal (determined according to user needs). Due to the different production process requirements of the users, the agitator can be equipped with paddle, anchor, frame, spiral and other forms. The structure design is extremely user-friendly and operable.
The transition section of the inner wall of the cylinder adopts arc transition to ensure sanitation without dead angle.


PRODUCT SPECIFICATIONS


Model
JY-JG500
JY-JG1000
JY-JG2000
JY-JG3000
Volume
500L
1000L
2000L
 5000L
Tank Size(D×H)(mm)
840×1000
1060×1220
1340×1500
1810×2000
Total Height
(mm)
2250
2550
2900
3500
 Tank Material
SUS304 or
SUS 316L
 SUS304 or
SUS 316L
 SUS304 or
SUS 316L
 SUS304 or
SUS 316L
 Heat Insulation Layer Thickness
50mm
50mm
60mm
60mm
 Heat
Insulation Material
PU
PU
PU
PU
Manhole size
400mm
400mm
500mm
500mm
Inlet & Outlet
Diameter
38mm
51mm
51mm
51mm


If the customer proposes special requirements, the sizes can be customized according to user requirements. The total height (H) is the data obtained based on the height of the discharge port 800mm. If the height of the discharge port is changed, the total height (H) is adjusted accordingly.


Mixing Tank Application
1. Food and pharmaceutical stainless steel storage tanks:
Stainless steel ingredient storage tank, stainless steel concentrated storage tank, stainless steel rare distribution storage
tank, stainless steel extraction storage tank, stainless steel reaction storage tank, stainless steel liquid storage tank,
stainless steel mixing tank, stainless steel seed storage tank, stainless steel nitric acid storage tank, stainless steel acetic
acid storage Tanks, stainless steel carbon disulfide drums, stainless steel water tower storage tanks.

2. Stainless steel tanks for wine and dairy industry:
Stainless steel wine storage tank, stainless steel liquor storage tank, stainless steel wine storage tank, stainless steel milk
(milk) tank, stainless steel beverage storage tank

3. Chemical stainless steel tank:
Stainless steel oil storage tanks, stainless steel transportation storage tanks, stainless steel cooling storage tanks, stainless
steel insulation storage tanks, stainless steel heat exchange storage tanks, stainless steel buffer tanks, stainless steel outdoor
storage tanks and various levels of stainless steel pressure vessels in the chemical industry.


Successful Project


Essential Oil Storage Tank
Pharmaceutical Project

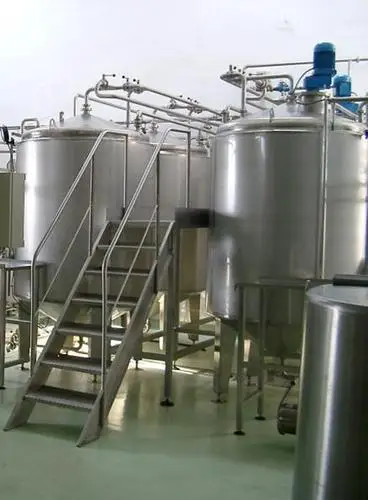

Juice Plant


SALES AND SERVICE NETWORK




Manufacturing Process
1: Machine design;
2: Raw material Cutting and Welding;
3: Assembling;
4: Quality checking;
5: Packing;
6: Deliverying
